ACUDLY
ServSwitch™ Brand CAT5 Extender
Delay Line Module
1
THE SERVSWITCH™ FAMILY
Welcome to the ServSwitch™ Family!
Thank you for purchasing BLACK BOX®ServSwitch™ Brand video equipment! We
appreciate your business, and we think you’ll appreciate the many ways that this
product will save you money, time, and effort.
Our ServSwitch family is all about breaking away from the traditional, expensive
model of computer management and display. You know, the one-size-fits-all-even-if-it-
doesn’t model that says, “One computer gets one dedicated monitor or user station, no
more, no less.” Why not a single user station (monitor, keyboard, and mouse) for
multiple computers—even computers of different platforms? Why not a pair of user
stations, each of which can control multiple computers? Why not many monitors or
user stations for the same computer? Why not access or display any of your computers,
anywhere in the world, with any of your user stations or monitors?
With our ServSwitch products, there’s no reason why not. We carry a broad line of
robust solutions for all these applications:
•
Do you have just two PCs and need an economical alternative to keeping two mice,
keyboards, and monitors on your desk? Or do you need to share many computers,
including a mix of IBM®PC, RS/6000®, Apple®Macintosh®, Sun Microsystems®,
and SGI™ types among multiple worldwide users with different access levels?
• Do you have to send video from one computer to two different local monitors? Or
do you need to send video from multiple computers to dozens of remote monitors?
•
Does your switch have to sit solidly on a worktable and use regular everyday cables?
Or does it have to be mounted in an equipment rack, use convenient many-to-one
cables, and have a rackmounted user station that folds and slides into 1U of space?
No matter how large or small your setup is, no matter how simple or how complex,
we’re confident we have a ServSwitch system that’s just right for you. The ServSwitch™
family from Black Box—the one-stop answer for all your video and KVM switching and
extension needs!
*
This manual will tell you all about your new ServSwitch™ CAT5 Extender Delay Line
Module, including how to install, configure, and troubleshoot it. For an introduction to
the
Module, see Chapter 2. The Delay Line product code covered in this manual is:
ACUDLY
2
SERVSWITCH™ BRAND CAT5 EXTENDER DELAY LINE MODULE
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA
RADIO-FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed to
provide reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct the
interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.
TRADEMARKS USED IN THIS MANUAL
BLACK BOX and the logo are registered trademarks, and ServSwitch and
ServSwitch Wizard are trademarks, of Black Box Corporation.
Apple and Macintosh are registered trademarks of Apple Computer, Inc.
IBM and RS/6000 are registered trademarks of International Business Machines
Corporation.
Sun and Sun Microsystems are registered trademarks of Sun Microsystems, Inc. in
the United States and other countries.
Any other trademarks mentioned in this manual are acknowledged to be the property of the
trademark owners.
3
EU DECLARATION OF CONFORMITY
EUROPEAN UNION DECLARATION OF CONFORMITY
Warning: This is a Class A product. In a domestic environment, this product might
cause radio interference which the user will have to take adequate measures to
correct.
This product complies with the following harmonized standards: EN55022
(1994), EN55024 (1998), EN61000-3-2 (1995), and EN61000-3-3 (1995).
When you use this product in environments that have high levels of
electromagnetic interference, you might experience some slight disturbance in the
operation of the product and the attached cabling and devices. If this occurs,
contact Black Box Technical Support as directed in Chapter 5.
To maintain compliance, use only cables supplied or recommended for use with
this product.
4
SERVSWITCH™ BRAND CAT5 EXTENDER DELAY LINE MODULE
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de
que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
5
NOM STATEMENT
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
6
SERVSWITCH™ BRAND CAT5 EXTENDER DELAY LINE MODULE
Contents
Chapter Page
1. Specifications ............................................................................................. 7
2. Introduction ............................................................................................... 8
3. Installation .................................................................................................. 9
4. Configuration ........................................................................................... 10
5. Troubleshooting ...................................................................................... 13
5.1 Calling Black Box .............................................................................. 13
5.2 Shipping and Packaging ................................................................... 13
Appendix A: Alternative Methods for Skew Correction ............................... 14
Appendix B: Extender Compatibility and Pinouts ....................................... 15
7
CHAPTER 1: Specifications
1. Specifications
Compliance — CE; FCC Part 15 Subpart B Class A, IC Class/classe A
Cable Required — Between Delay Line Module and other devices: Four-pair
(eight-wire) Category 5 or higher shielded or
unshielded twisted-pair (STP or UTP)
Standards — VGA, SVGA, XGA, or XGA-2 video
Interfaces — Twisted-pair composite including VGA red, green, and
blue on three of the four wire pairs in a cable
Maximum
Distance — Maximum total length of cabling from video source to
video destination will vary, depending on the type and
construction of the cables, but can be up to 1000 ft.
(305 m); patch cabling should be kept as short as
possible
Video Delay — Three independent lines introducing 0 to 36 ns of delay
for each color, user-selectable in 3-ns increments
User Controls — (12) Bottom-mounted pairs of 2-terminal slide switches
Indicators — None
Connectors — (2) Right-side-mounted RJ-45 female
Temperature
Tolerance: 32 to 104˚F (0 to 40˚C)
Humidity
Tolerance: 5 to 90% noncondensing
Enclosure — Steel
Power — Passive, nonpowered
Size — 1.2"H (including feet) x 4.7"W x 3.1"D (3 x 12 x 8 cm);
included patch cable is 3 ft. (0.9 m) long
Weight — 12 oz. (340 g)
8
SERVSWITCH™ BRAND CAT5 EXTENDER DELAY LINE MODULE
2. Introduction
The ServSwitch™ Brand CAT5 Extender Delay Line Module can help you
overcome one of the common problems associated with video-distance extension
over twisted-pair cable. The majority of CAT5 KVM extenders use three of the pairs
in a Category 5 cable to separately send the red, green, and blue (RGB)
components of the video signal. It has often been impossible to use such extenders
with some of the newer CAT5e and CAT6 cables, and even some CAT5 cables. This
is because the different twist ratios of the three wire pairs cause the pairs to differ
significantly in total end-to-end length, which makes the RGB components of each
pixel “spread out” (arrive at the monitor at different times). This effect, known as
“delay skew,” causes visual effects such as smearing and color fringing.
When you install the Delay Line Module in series with your CAT5, CAT5e, or
CAT6 cable, it can correct many skew problems by adding user-selectable (but
imperceptible) delays to the “faster” color signals, ensuring that all RGB
components arrive at the monitor simultaneously.
The Delay Line Module comes with a 3-ft. (0.9-m) CAT5 twisted-pair patch cable
and this manual.
Before you install the Module, read Appendix A and verify whether you even
need to use it.
9
CHAPTER 3: Installation
3. Installation
Before you install the ServSwitch™ Brand CAT5 Extender Delay Line Module,
check the compatibility list in Appendix B to make sure that your Delay Line
Module can be used immediately with your KVM or video extender, without
requiring pinning or pairing adjustments to your cables.

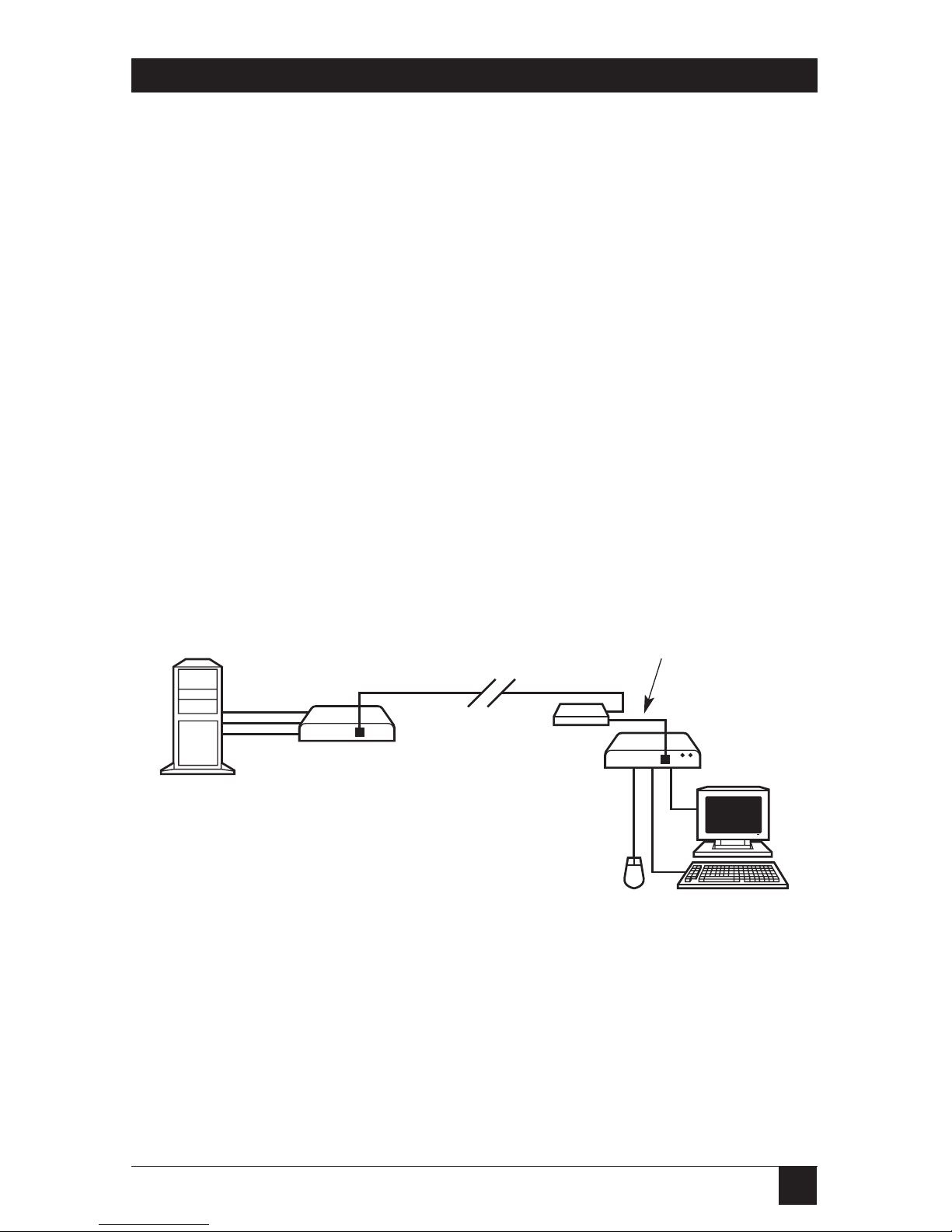

To install the Delay Line Module, unplug one end of the main twisted-pair cable
that runs between your extender’s transmitter and receiver units and plug it into
the Module’s RJ-45 connector marked “Interconnect”. Then run the included
patch cable from the Module’s RJ-45 connector marked “Extender” to the RJ-45
connector on the extender unit from which you unplugged the main cable.
You can place the Delay Line Module at either end of the main cable. However,
you will probably find it easier to make adjustments to your video-extension system
if you place the Module next to your extender’s remote unit.
Figure 3-1 shows a typical application with the Module installed in an extender
system.
Figure 3-1. Sample installation.
PC CPU
ACU1001A
transmitter
ACU1001A
receiver
Monitor/keyboard/mouse
user station
Delay Line
Module
Module’s
included
patch cableCAT5e or CAT6 cable,
up to 1000 ft. (305 m)
Tabla de contenidos
Otros manuales de Extensor de Black Box
Black Box
Black Box ServSwitch ACU2 01A-R2 Manual de usuario
Black Box
Black Box Extreme T LB323A Manual de usuario
Black Box
Black Box Wizard MultiMedia Plus Manual de usuario
Black Box
Black Box Emerald Series Manual de usuario
Black Box
Black Box ServSwitch ACU3001A Manual de usuario
Black Box
Black Box ACU1007A Manual de usuario
Black Box
Black Box ACS1009A series Manual de usuario
Black Box
Black Box AC230A Manual de usuario
Black Box
Black Box ACU5050A Manual de usuario
Black Box
Black Box KV1002A-R2 Manual de usuario
Black Box
Black Box CampusLIGHT LCL112A-TR Manual de usuario
Black Box
Black Box ACU1600A Manual de usuario
Black Box
Black Box LB401A Manual de instrucciones
Black Box
Black Box ACXMODH6R Manual de usuario
Black Box
Black Box ServSwitch ACU075A-PS2 Manual de usuario
Black Box
Black Box ACS4001A series Hoja de especificaciones
Black Box
Black Box LB323A Manual de usuario
Black Box
Black Box CAT5 ClassWork Plus Multiloop Manual de usuario
Black Box
Black Box AC1070A Manual de usuario
Black Box
Black Box MDR3243A Manual de usuario
