BIXOLON SRP-330II Manual de usuario

User’s Manual

SRP-330II/332II

Thermal Printer

Rev. 1.00

http://www.bixolon.com

Rev. 1.00

- 2 -

SRP-330II/332II

■Safety Precautions

In using the present appliance, please keep the following safety regulations in order to

prevent any hazard or material damage.

WARNING

Violating following instructions can cause serious injury or death.

Do not bend the cable by force or leave it under any

heavy object.

•A damaged cable can cause a fire.

Do not plug in or unplug with your hands wet.

•You can be electrocuted.

Keep the plastic bag out of children’s reach.

•If not, a child may put the bag on his head.

Do not pull the cable to unplug.

•This can damage the cable, which is the origin of a fire or a

breakdown of the printer.

You must use only the supplied adapter.

•It is dangerous to use other adapters.

Do not plug several products in one multi-outlet.

•This can provoke over-heating and a fire.

•If the plug is wet or dirty, dry or wipe it before usage.

•If the plug does not fit perfectly with the outlet, do not plug in.

•Be sure to use only standardized multi-outlets.

PROHIBITED

ONLY SUPPLIED ADAPTER

PROHIBITED

Rev. 1.00

- 3 -

SRP-330II/332II

CAUTION

Violating following instructions can cause slight wound or damage the appliance.

Do not use the printer when it is out of order. This

can cause a fire or an electrocution.

•Switch off and unplug the printer before calling your dealer.

Do not let water or other foreign objects in the

printer.

•If this happened, switch off and unplug the printer before

calling your dealer.

Use only approved accessories and do not try to

disassemble, repair or remodel it for yourself.

•Call your dealer when you need these services.

•Do not touch the blade of auto cutter.

Install the printer on the stable surface.

•If the printer falls down, it can be broken and you can hurt

yourself.

Keep the desiccant out of children’s reach.

•If not, they may eat it.

If you observe a strange smoke, odor or noise from

the printer, unplug it before taking following

measures.

•Switch off the printer and unplug the set from the mains.

•After the disappearance of the smoke, call your dealer to

repair it.

TO UNPLUG

PROHIBITED

DISASSEMBLING

PROHIBITED

TO UNPLUG

PRINTER

DEALER

PRINTER

Rev. 1.00

- 4 -

SRP-330II/332II

■ Warning - U.S.A

This equipment has been tested and found to comply with the limits for a Class A digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to correct

the interference at his own expense.

■Notice –Canada

This Apparatus complies with class “A” limits for radio interference as specified in the

Canadian department of communications radio interference regulations.

Get appareil est conforme aux normes class “A” d’interference radio tel que specifier par

ministre canadien des communications dans les reglements d’interference radio.

■ Caution

Some semiconductor devices are easily damaged by static electricity. You should turn the

printer “OFF”, before you connect or remove the cables on the rear side, in order to guard

the printer against the static electricity. If the printer is damaged by the static electricity, you

should turn the printer “OFF”.

■Waste Electrical and Electric Equipment(WEEE)

This marking shown on the product or its literature, indicates that is should not

be disposed with other household wastes at the end of its working life, To

prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material resources. Household

users should contact either the retailer where they purchased this product, or

their local government office, for details of where and how they can take this item for

environmentally safe recycling. Business users should contact their supplier and check the

terms and conditions of the purchase contract. This product should not be mixed with other

commercial wastes for disposal.

■Rating Label Symbol Information

DC(Direct current)

Rev. 1.00

- 5 -

SRP-330II/332II

■ Introduction

The SRP-330II/332II Roll Printer is designed for use with electronic instruments such as

system ECR, POS, banking equipment, computer peripheral equipment, etc.

The main features of the printer are as follows:

1. Print at a max. speed of 220mm/s.

2. Low noise thermal printing.

3. Support of USB & Serial(SRP-33xIICOS/COSD), USB & Parallel(SRP-33xIICOP),

USB & Ethernet & Serial(SRP-33xIICOES)

4. Internal data buffer(data can be received and buffered while printing).

5. Control of external devices like cash registers through peripheral device drive circuit.

6. Barcode Printing.

7. Support of various print density settings(by changing memory switch settings).

It is advisable to read the contents of this manual carefully before using the printer for the

first time.

※Note

The socket-outlet shall be near the equipment and it shall be easy accessible.

※All specifications are subjected to change without notice.

This equipment is indoor use and all the communication hiring are limited to inside of the

building.

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality

of all our products. In following, product specifications and/or user manual content may be

changed without prior notice.

Rev. 1.00

- 6 -

SRP-330II/332II

■ Table of Contents

1. Setting Up the Printer....................................................................................................7

1-1 Unpacking ..................................................................................................................7

1-2 Connecting the Cables...............................................................................................8

1-2-1 Serial Interface(RS-232C)..............................................................................8

1-2-2 Parallel Interface(IEEE1284)........................................................................10

1-2-3 USB Interface...............................................................................................11

1-2-4 Ethernet Interface.........................................................................................11

1-3 Drawer Cable ...........................................................................................................12

1-4 Setting the Dip Switches...........................................................................................13

1-4-1 Serial / Dual Serial Interface Settings...........................................................13

1-4-2 Parallel / Ethernet / USB Interface Settings..................................................13

1-5 Installing or Replacing the Paper Roll ......................................................................14

1-6 Recommended Papers.............................................................................................16

1-7 Using the Printer.......................................................................................................16

1-7-1 Control Panel ...............................................................................................16

1-7-2 Mounting 2” Partition....................................................................................17

1-8 Removing Paper Jam...............................................................................................18

1-9 Connecting the computer .........................................................................................19

1-10 Connecting the Power Supply................................................................................19

2. Self Test .......................................................................................................................20

3. Hexadecimal Dumping................................................................................................ 22

4. Specification................................................................................................................23

5. Appendix......................................................................................................................24

5-1 Cleaning Printer........................................................................................................24

Rev. 1.00

- 7 -

SRP-330II/332II

1. Setting Up the Printer

1-1 Unpacking

Your printer box should include these items. If any items are damaged or missing, please

contact your dealer for assistance.

SRP-330II/332II Cover Cable CD

Paper Roll Manual AC/DC Adapter

Power Cord USB A-B Cable 2” Partition

Rev. 1.00

- 8 -

SRP-330II/332II

1-2 Connecting the Cables

Connect the printer to the host computer using the right interface cable that complies with

the specifications of the interface. The drawer to be used with the printer should meet the

specifications of the printer.

※Caution

Before connecting any of the cables, make sure that both the printer and the host are

turned off.

1-2-1 Serial Interface(RS-232C)

1-2-1-1 Single Serial Interface

Pin No.

Signal Name

Direction

Function

Frame Ground

TxD

Output

Transmit Data

RxD

Input

Receive Data

RTS

Output

Ready To Send

CTS

Input

Clear To Send

DSR

Input

Data Set Ready

Signal Ground

DTR

Output

Data Terminal Ready

Rev. 1.00

- 9 -

SRP-330II/332II

1-2-1-2 Dual Serial Interface

RJ45

Pin No.

DSUB 9P

Pin No.

Signal Name

Direction

Function

TxD

Output

Transmit Data

RxD

Input

Receive Data

DSR

Input

Data Set Ready

GND

Signal Ground

DTR

Output

Data Terminal Ready

CTS

Input

Clear To Send

RTS

Output

Ready To Send

※Dual Serial RJ45 cable is not provided.

Rev. 1.00

- 10 -

SRP-330II/332II

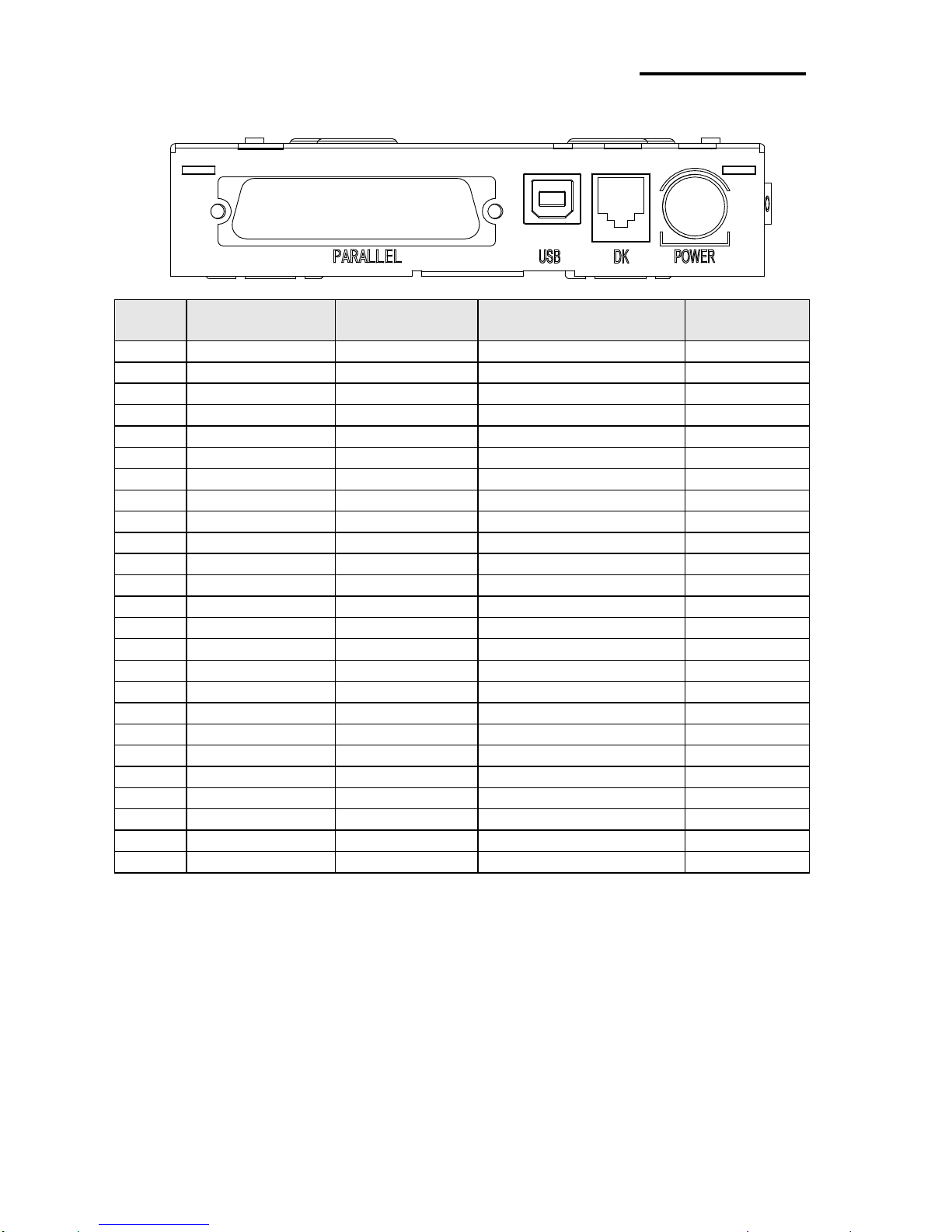

1-2-2 Parallel Interface(IEEE1284)

No.

Source

Compatibility

Mode

Nibble Mode

Byte Mode

Host

nStrobe

HostClk

Host / Printer

Data 0(LSB)

Host / Printer

Data 1

Host / Printer

Data 2

Host / Printer

Data 3

Host / Printer

Data 4

Host / Printer

Data 5

Host / Printer

Data 6

Host / Printer

Data 7(MSB)

Printer

nACK

PtrClk

Printer

Busy

PtrBusy / Data3,7

PtrBusy

Printer

Perror

AckDataReq / Data2,6

AckDataReq

Printer

Select

Xflag / Data1,5

Xflag

Host

nAutoFd

HostBusy

GND

Printer

Logic-H

19~30

GND

Host

nInit

Printer

nFault

nDataAvail / Data0,4

nDataAvail

GND

Printer

DK_Status

Printer

+5V

Host

nSelectIn

1284-Active

Otros manuales para SRP-330II

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de BIXOLON

BIXOLON

BIXOLON SRP-S3000 Manual de instalación y funcionamiento

BIXOLON

BIXOLON SRP-S320 Manual de usuario

BIXOLON

BIXOLON SRP332III Instrucciones de instalación

BIXOLON

BIXOLON SRP-E300 Manual de instalación y funcionamiento

BIXOLON

BIXOLON SPP-R300 Manual de usuario

BIXOLON

BIXOLON SRP-330II Manual de instalación y funcionamiento

BIXOLON

BIXOLON SRP-F310 Manual de usuario

BIXOLON

BIXOLON SRP-380 Manual de instalación y funcionamiento

BIXOLON

BIXOLON SRP-F310 Manual de usuario

BIXOLON

BIXOLON SRP-500 Manual de usuario

BIXOLON

BIXOLON Bixolon SRP-270 Manual de usuario

BIXOLON

BIXOLON SRP-350plus Manual de instalación y operación

BIXOLON

BIXOLON SRP-350II Manual de instalación y operación

BIXOLON

BIXOLON XM7-40 Manual de usuario

BIXOLON

BIXOLON SPP-R300 Manual de instalación y operación

BIXOLON

BIXOLON SPP-R300 Manual de usuario

BIXOLON

BIXOLON SRP-350plusII Manual de usuario

BIXOLON

BIXOLON SRP-350plusIII SRP-352plusIII Manual de usuario

BIXOLON

BIXOLON SPP-R200II Manual de usuario

BIXOLON

BIXOLON STP-131 Manual de usuario

BIXOLON

BIXOLON STP-131 Manual de usuario

BIXOLON

BIXOLON SRP-QE300 Manual de usuario

BIXOLON

BIXOLON SLP-TX420 Nota de publicación

BIXOLON

BIXOLON SRP-QE300 Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
