Biostar Racing X570GTA Manual de usuario

BIOS Update �� 2

UEFI BIOS Setup �� 6

SMART FAN Control �� 7

VIVID LED Control �� 8

1� Main Menu �� 9

2� Advanced Menu��10

3� Chipset Menu��22

4� Boot Menu��25

5� Security Menu��27

6� O�N�E Menu��29

7� Exit Menu��32

BIOS User Guide

X570GTA

2 | BIOS Update

BIOS Update

The BIOS can be updated using either of the following ulies:

• BIOSTAR BIO-FLASHER: Using this ulity, the BIOS can be updated from a le on a hard disk,

a USB drive (a ash drive or a USB hard drive), or a CD-ROM.

• BIOSTAR BIOS Update Ulity: It enables automated updang while in the Windows

environment. Using this ulity, the BIOS can be updated from a le on a hard disk, a USB

drive (a ash drive or a USB hard drive), or a CD-ROM, or from the le locaon on the Web.

BIOSTAR BIO-FLASHER

Note

» This ulity only allows storage device with FAT32/16 format and single paron.

» Shung down or reseng the system while updang the BIOS will lead to system boot failure.

Updang BIOS with BIOSTAR BIO-FLASHER

1. Go to the website to download the latest BIOS le for the motherboard.

2. Then, copy and save the BIOS le into a USB ash (pen) drive.(Only supported FAT/FAT32

format)

3. Insert the USB pen drive that contains the BIOS le to the USB port.

4. Power on or reset the computer and then press <F12> during the POST process.

5. Aer entering the POST screen, the BIO-FLASHER

ulity pops out. Choose <fs0> to search for the BIOS

le.

6. Select the proper BIOS le, and a message asking

if you are sure to ash the BIOS le. Click “Yes” to

start updang BIOS.

BIOS Update | 3

X570GTA

7. A dialog pops out aer BIOS ash is completed,

asking you to restart the system. Press the <Y> key

to restart system.

8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS

setup.

Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>

funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the

computer. Then the BIOS Update is completed.

BIOS Update Ulity (through the Internet)

1. Installing BIOS Update Ulity from the DVD Driver.

2. Please make sure the system is connected to the internet before using this funcon.

3. Launch BIOS Update Ulity and click the

“Online Update” buon on the main screen.

4. An open dialog will show up to request your

agreement to start the BIOS update. Click “Yes”

to start the online update procedure.

5. If there is a new BIOS version, the ulity will

ask you to download it. Click “Yes” to proceed.

6. Aer the download is completed, you will be

asked to program (update) the BIOS or not. Click

“Yes” to proceed.

4 | BIOS Update

7. Aer the updang process is nished, you

will be asked you to reboot the system. Click

“OK” to reboot.

8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS

setup.

Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>

funcon to load Opmized Defaults, and select <Save Changes> and <Reset> to restart the

computer. Then, the BIOS Update is completed.

BIOS Update Ulity (through a BIOS le)

1. Installing BIOS Update Ulity from the DVD Driver.

2. Download the proper BIOS from hp://www.biostar.com.tw/

3. Launch BIOS Update Ulity and click the “Update

BIOS” buon on the main screen.

4. A warning message will show up to request your

agreement to start the BIOS update. Click “OK” to

start the update procedure.

5. Choose the locaon for your BIOS le in the

system. Please select the proper BIOS le, and

then click on “Open”. It will take several minutes,

please be paent.

UEFI BIOS Setup | 5

X570GTA

6. Aer the BIOS Update process is nished, click

on “OK” to reboot the system.

7. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS

setup.

Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>

funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the

computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS buon on the main screen

for the backup of BIOS, and select a proper

locaon for your backup BIOS le in the system,

and click “Save”.

6 | UEFI BIOS Setup

UEFI BIOS Setup

Introduction

The purpose of this manual is to describe the sengs in the AMI UEFI BIOS Setup program on this

motherboard. The Setup program allows users to modify the basic system conguraon and save

these sengs to NVRAM.

UEFI BIOS determines what a computer can do without accessing programs from a disk. This

system controls most of the input and output devices such as keyboard, mouse, serial ports and

disk drives. BIOS acvates at the rst stage of the boong process, loading and execung the

operang system. Some addional features, such as virus and password protecon or chipset

ne-tuning opons are also included in UEFI BIOS.

The rest of this manual will to guide you through the opons and sengs in UEFI BIOS Setup.

Plug and Play Support

This AMI UEFI BIOS supports the Plug and Play Version 1.0A specicaon.

EPA Green PC Support

This AMI UEFI BIOS supports Version 1.03 of the EPA Green PC specicaon.

ACPI Support

AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Conguraon and Power interface

specicaon (ACPI). It provides ASL code for power management and device conguraon

capabilies as dened in the ACPI specicaon, developed by Microso, Intel and Toshiba.

PCI Bus Support

This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component Interconnect)

local bus specicaon.

Using Setup

When starng up the computer, press <Del> during the Power-On Self-Test (POST) to enter the

UEFI BIOS setup ulity.

In the UEFI BIOS setup ulity, you will see General Help descripon at the top right corner, and

this is providing a brief descripon of the selected item. Navigaon Keys for that parcular menu

are at the boom right corner, and you can use these keys to select item and change the sengs.

Note

»The default UEFI BIOS sengs apply for most condions to ensure opmum performance of the

motherboard. If the system becomes unstable aer changing any sengs, please load the default

sengs to ensure system’s compability and stability. Use Load Setup Default under the Exit Menu.

»For beer system performance, the UEFI BIOS rmware is being connuously updated. The UEFI BIOS

informaon described in this manual is for your reference only. The actual UEFI BIOS informaon and

sengs on board may be slightly dierent from this manual.

»The content of this manual is subject to be changed without noce. We will not be responsible for any

mistakes found in this user’s manual and any system damage that may be caused by wrong-sengs.

SMART FAN Control | 7

X570GTA

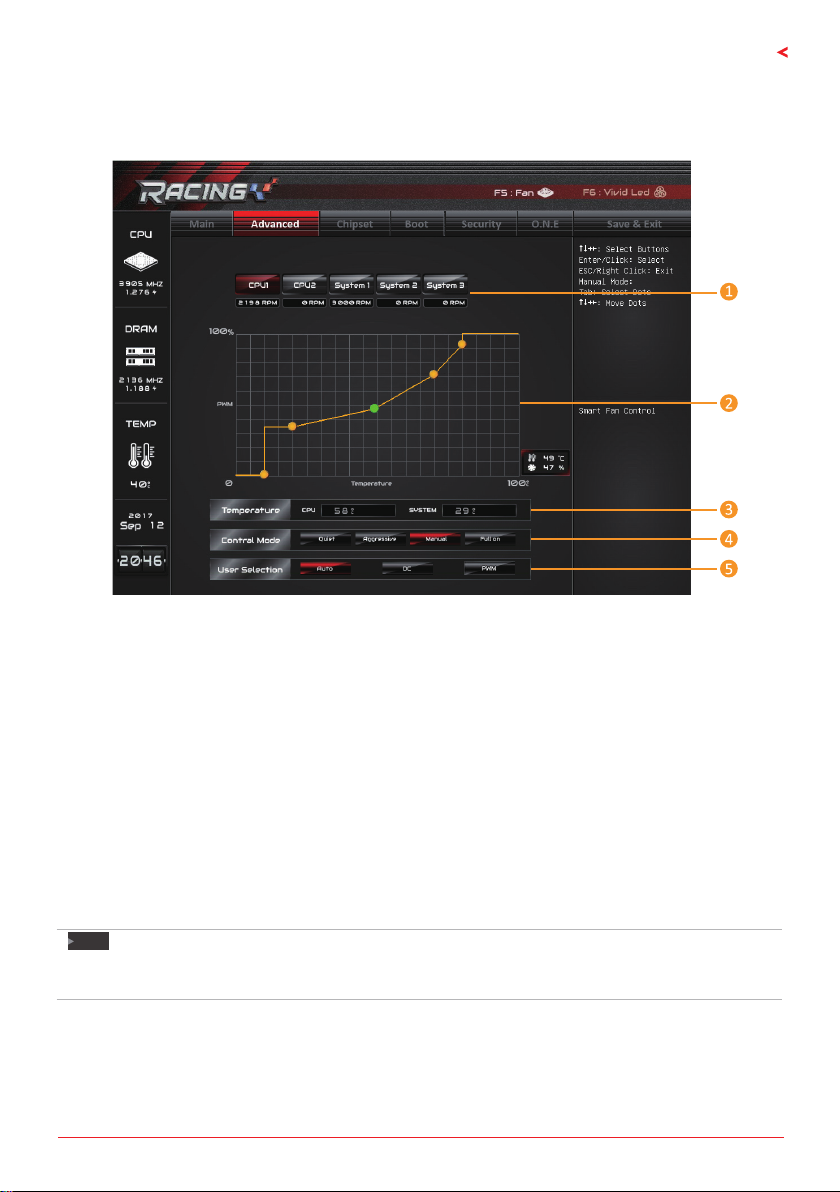

SMART FAN Control

Press <F5> to display the SMART FAN Control menu.

1� CPU1/2 RPM & SYSTEM1/2/3 RPM: Click buon to set the status value of CPU and system

fan.

2� PWM/Temperature Panel: According to the fan PWM value corresponding to CPU and system

temperature to adjust the fan speed.

»Allows you to adjust according to your preferences.

3� Temperature: Shows the current CPU and system temperature.

4� Control Mode: Allows you to control mode of the fans.

• Quiet: Enable Quiet mode.

• Aggressive: Enable Aggressive mode.

• Manual: Enable Manual mode.

• Full on: Enable Full On mode.

5. User Selecon: Sets the fan property controls the actual selecon operaon.

• Auto: Allows you to adjust the Automac detecon Mode.

• DC: Allows you to adjust the Direct Current (DC) Mode.

• PWM: Allows you to adjust the Pulse Width Modulaon (PWM) Mode.

Note

»Menu contents will be dierent slightly, depending on dierent motherboard of users’ computers.

»Once you are nished making your selecons, choose the <Save & Exit> menu to save.

8 | VIVID LED Control

VIVID LED Control

Press <F6> to display the VIVID LED Control menu.

1. LED SPARKLE: Allows to you choose sparkle of the LEDs.

• Permanent: LEDs are constantly lit.

• Breath: LEDs gradually ash on and o.

• Shine: LEDs ash at a specic frequency.

• OFF: Allows you to enable or disable VIVID LED of a single item.

2� LED COLOR:

• Auto: LEDs will Automacally change the Color Palee and LED Brightness.

»If you select Auto mode, the Color Pallee and LED Brightness Bar will disabled.

• Default: All the seng are back to default.

3� LED Type: Select the LED lighng blocks.

• System : System LED illuminaons. (Racing ARMOR)

• 12V LED : The 12V LED illuminaon. (12V_LED Device)

• 5V LED : The 5V LED illuminaon. (5V_LED Device)

4� ON/OFF: To enable or disable VIVID LED funcon.

5. Color Palee: Allows to you choose specic color of the LEDs.

6. LED Brightness Bar: Allows you to adjust the LED brightness.

Note

»Menu contents will be dierent slightly, depending on dierent motherboard of users’ computers.

»Once you are nished making your selecons, choose the <Save & Exit> menu to save.

1. Main Menu | 9

X570GTA

1� Main Menu

Once you enter AMI UEFI BIOS Setup Ulity, the Main Menu will appear on the screen providing

an overview of the basic system informaon.

BIOS Information

It shows system informaon including UEFI BIOS version, Project Code, Model Name, Build Date

and etc.

Total Memory

Shows system memory size, VGA shard memory will be excluded.

System Language

Choose the system default language.

System Date

Set the system date. Note that the ‘Day’ automacally changes when you set the date.

System Time

Set the system internal clock.

10 | 2. Advanced Menu

2� Advanced Menu

The Advanced Menu allows you to congure the sengs of CPU, Super I/O, Power Management,

and other system devices.

Note

»Beware of that seng inappropriate values in items of this menu may cause system to malfuncon.

Trusted Computing

Security Device Support

This item enables or disables BIOS support for security device. O.S. will not show Security Device.

TCG EFI protocol and INT1A interface will not be available.

Opons: Enabled (Default) / Disabled
