Biostar GeForce 6100 M7 Manual de usuario
GeForce 6100-M7
i
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
Table of Contents
ii
Chapter 1: Introduction .............................................................. 1
1.1 Motherboard Features.....................................................................1
1.2 Layout and Components.................................................................4
Chapter 2: Hardware Installation ............................................ 5
2.1 Installing Central Processing Unit (CPU)..................................... 5
2.2 FAN Headers....................................................................................6
2.3 Installing System Memory..............................................................7
2.4 Connectors and Slots .......................................................................8
Chapter 3: Headers & Jumpers Setup.................................. 10
3.1 How to Setup Jumpers .................................................................. 10
3.2 Detail Settings.................................................................................10
Chapter 4: Useful Help........................................................... 16
4.1 Award BIOS Beep Code................................................................ 16
4.2 Extra Information........................................................................... 16
4.3 Troubleshooting .............................................................................18
Chapter 5: WarpSpeeder™....................................................... 19
5.1 Introduction ....................................................................................19
5.2 System Requirement......................................................................19
5.3 Installation....................................................................................... 20
5.4 [WarpSpeeder™] includes 1 tray icon and 5 panels..................21
GeForce 6100-M7
1
CHAPTER 1: INTRODUCTION
1.1 MOTHERBOARD FEATURES
CPU
Supports Socket 754.
Supports AMD Athlon 64 processor up to 3700+.
Supports AMD Sempron processor.
Supports HyperTransport Technology up to 1600MT/s.
Chipset
North Bridge: nVIDIA GeForce6100.
South Bridge: nVIDIA nForce 410.
Dimensions
Micro ATX Form Factor: 21.86cm (L) x 24.4cm (W)
Operating System Supporting
Supports Windows 2000 and Windows XP.
Note: Does not support Windows 98SE and Windows ME.
Slot
Two PCI bus master slots.
One PCI-E x1 slot.
One PCI-E x16 slot.
On-board IDE
Two on-board connectors support 4 IDE disk drives.
Supports PIO mode 0~4, Block Mode and Ultra DMA
33/ 66/100/133 bus master mode.
Super I/O
Chip: ITE IT8712F.
Low Pin Count Interface.
Provides the most commonly used legacy Super I/O
functionality.
Environment Control initiatives,
!H/W Monitor
!Fan Speed Controller
!ITE's "Smart Guardian" function
GeForce 6100-M7
2
System Memory
Supports up to 2 DDR devices.
Supports DDR-266/333/400.
Maximum memory size is up to 2GB. (Following table is only for
reference.)
DIMM Socket
Location DDR Module Total Memory Size
DIMM1 128MB/256MB/512MB/1GB *1
DIMM2 128MB/256MB/512MB/1GB *1 Max is 2 GB.
Onboard AC’97 Sound Codec
Chip: ALC655
Support 6 channels.
Supports S/PDIF out function.
Compliant with AC’97 Version 2.3 specification.
Onboard Serial ATA
Integrated in nForce 410.
Four serial ATA connectors support 2 SATA devices.
Supports RAID 0 and RAID 1 functions.
Supports 2 serial ATA (SATA) ports.
-Data transfer rates up to 3.0 GB/s.
-Compliant with SATA Version 2.0 specification.
10/100 LAN PHY
PHY: RTL8201BL/RTL8201CL.
Supports 10 Mb/s and 100 Mb/s auto-negotiation.
Half/Full duplex capability.
Supports ACPI, PCI power management.
GeForce 6100-M7
3
Internal On-board I/O Connectors and Headers
1 front panel header supports front panel facilities.
1 CD-in connector supports 1 CD-ROM audio-in device.
1 front audio header supports front panel audio function.
1 S/PDIF-Out connector supports digital audio-out function.
1 chassis open header supports PC case-opened warning
function.
1 FDD connector supports 2 Floppy drives with 360K, 720K,
1.2M, 1.44M and 2.88Mbytes.
2 IDE connectors support 4 hard disk devices.
2 Serial ATA connectors support 2 SATA devices.
2 USB headers support 4 USB 2.0 ports at front panel.
Back Panel I/O Connectors
4 USB 2.0 ports.
1 VGA port.
1 Serial port.
1 Printer port.
1 RJ-45 LAN jack.
1 PS/2 Mouse port.
1 PS/2 Keyboard port.
1 Vertical audio port including 1 Line-in connector, 1 Line-out
connector, and 1 MIC-in connector.
Printer port Line In/
Surround
Line Out
Mic In 1/
Bass/Center
LAN
PS/2
Keyboard
PS/2
Mouse
USB x2 USB x2COM1 VGA1
GeForce 6100-M7
4
1.2 LAYOUT AND COMPONENTS
nForce
410
JPRNT1
JKBMS1
JUSB1
JAUDIO1
JUSBLAN1
BIOS
PCI-EX1_1
PCI-EX16
PCI1
FDD1
BAT1
JCOM1
JUSBV1
JCDIN1
Codec
LAN
PHY
JFAUDIO1
JATXPWR2
JSPDIF_OUT1
PCI2
Super I/O
JUSBV2
JUSB2
JUSB3
DIMM2
DIMM1
JSFAN1
JCI1
JCMOS1
JPANEL1
IDE1
IDE2
JATXPWR1
JCFAN1
GeForce
6100
CPU1
JVGA1
JSATA2
JSATA1
Note: ■represents the 1st pin.
GeForce 6100-M7
5
CHAPTER 2: HARDWARE INSTALLATION
2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
Step 1: Pull the lever toward direction Afrom the socket and then raise the
lever up to a 90-degree angle.
90
A
Step 2: Look for the black triangle on socket, and the white triangle on
CPU should point forwards this black triangle. The CPU will fit
only in the correct orientation.
Step 3: Hold the CPU down firmly, and then close the lever to complete
the installation.
Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.
GeForce 6100-M7
6
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
JSFAN1
3
1
1
3
JCFAN1
3 FAN RPM rate
sense
Note:
The JCFAN1 and JSFAN1 support 3-pin head connector. When connecting with wires
onto connectors, please note that the red wire is the positive and should be connected to
pin#2, and the black wire is Ground and should be connected to GND.
GeForce 6100-M7
7

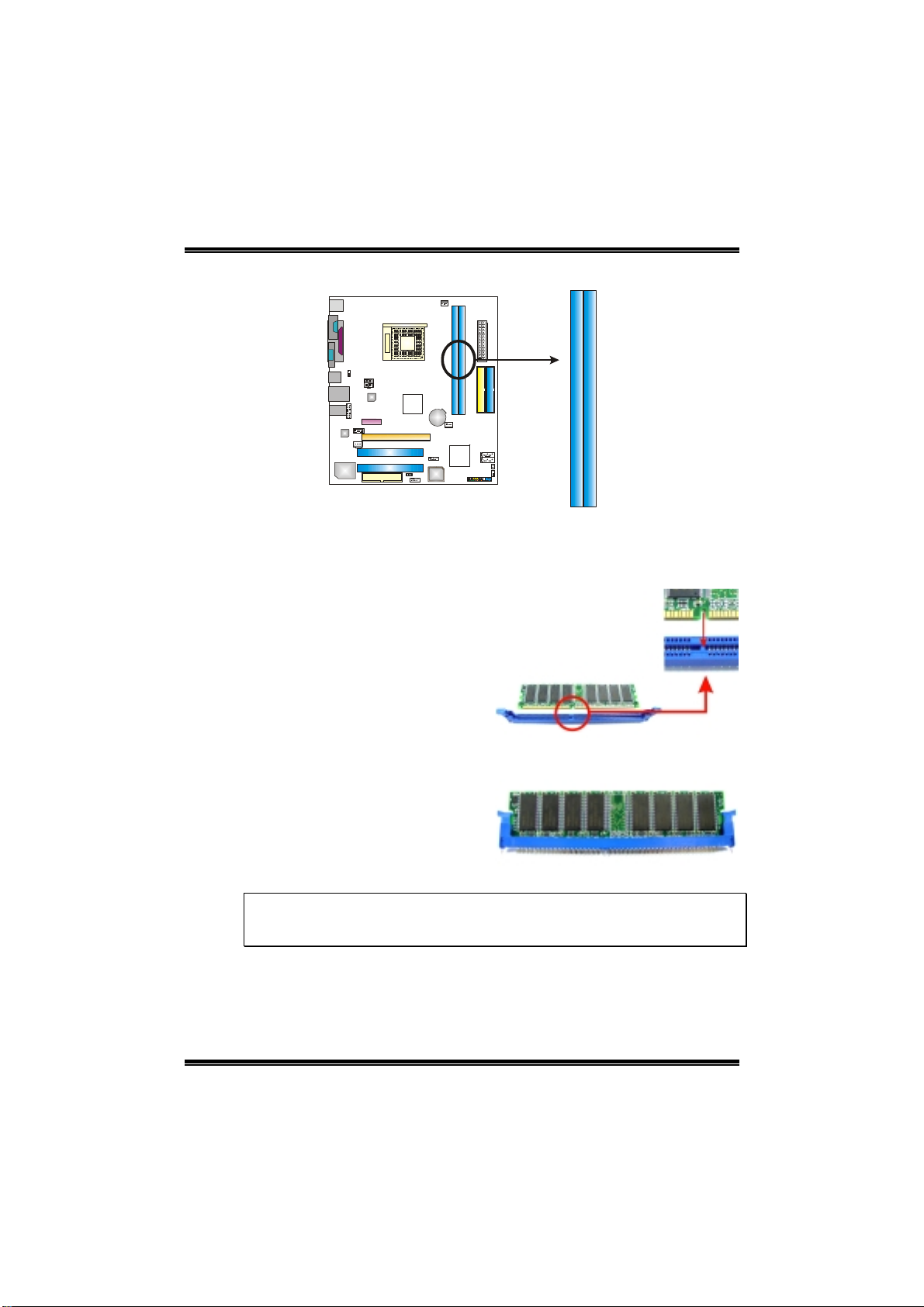

2.3 INSTALLING SYSTEM MEMORY
DIMM1
DIMM2
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
Note:
To remove the DDR modules, push the ejector tabs at both sides of the slot outward at
the same time, and pull the modules out vertically.
GeForce 6100-M7
8
2.4 CONNECTORS AND SLOTS
FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
This connector supports the provided floppy drive ribbon cables.
34
331
2
IDE1/IDE2: Hard Disk Connectors
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDE connectors can connect a master and a slave drive, so
you can connect up to four hard disk drives. The first hard drive
should always be connected to IDE1.
IDE1IDE2
21
3940
