G31-M7 TE BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power ofCMOS

RAM is supplied by abattery so that it retains theSetup informationwhen the power

is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage ofthe booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in BIOS

Setup.

Plugand Play Support

ThisAMI BIOS supports thePlug and Play Version 1.0A specification.

EPA Green PC Support

ThisAMI BIOS supports Version 1.03 ofthe EPA Green PC specification.

APM Support

This AMI BIOS supports Version 1.1&1.2 of the Advanced Power Management

(APM) speci fication. Power management features are implemented via the System

Management Interrupt (SMI). Sleep and Suspend power management modes are

supported. Power to the hard disk drives and video monitors can also be managed by

this AMI BIOS.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in theACPI specification, developed by

Microsoft, Intel and Toshiba.

G31-M7 TE BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconnect) local bus specification.

DRAM Support

DDR2 SDRAM (Double Data Rate II Synchronous DRAM) is supported.

Supported CPUs

ThisAMI BIOS supports the Intel CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter theBIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default BIOS settings applyfor most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system performance, the BIOS firmware is being continuously updated.

The BIOS information described in this manual isfor yourreferenceonly. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content ofthis manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

General Help

Navigation Keys

G31-M7 TE BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview ofthe basic system information.

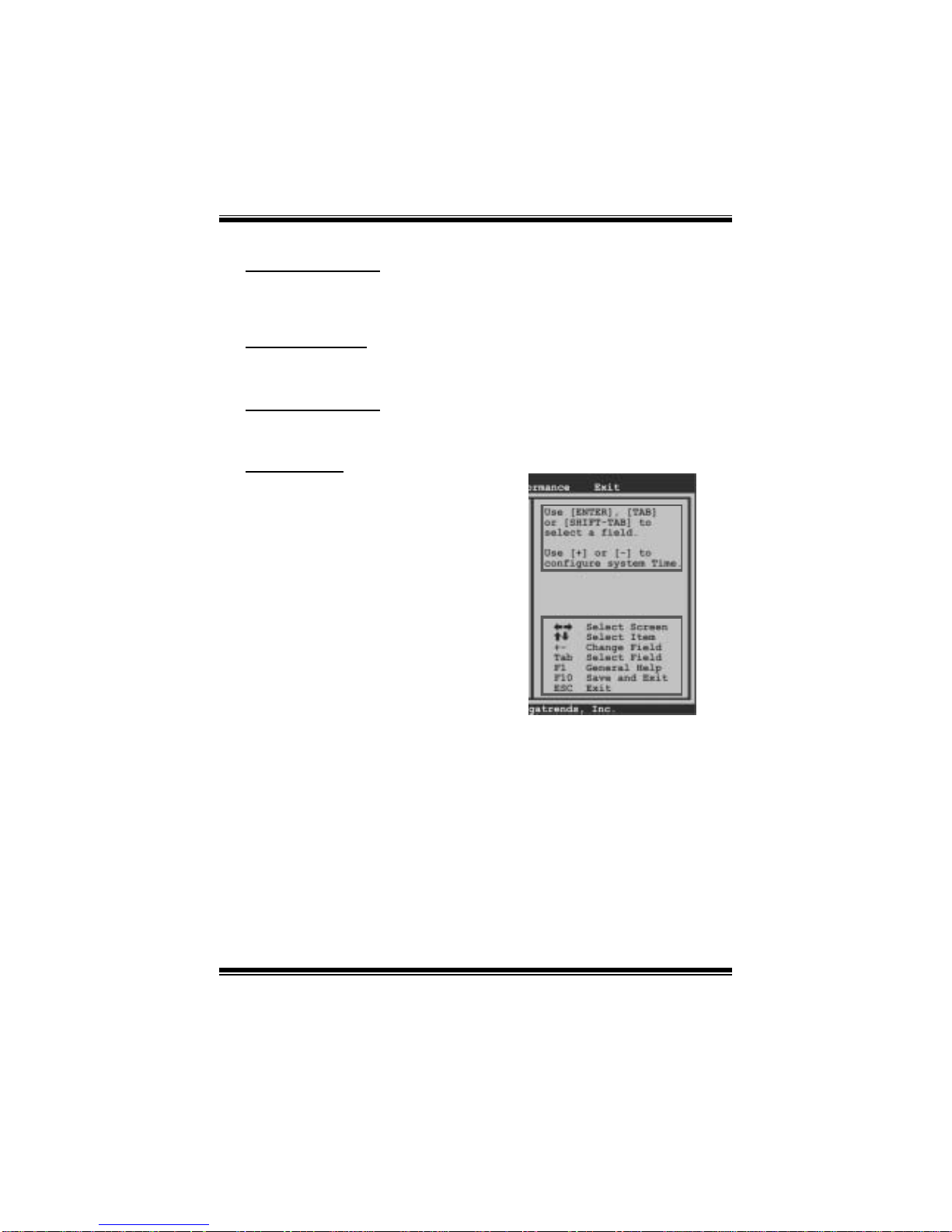

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

[ :00:00]

System Date [Tue 01/01/2008]

Floppy A

> IDE Configuration

Version :01.01.01

Build Date:01/01/08

System Time 00

Exit

AMI BIOS

Shows systeminformation including BIOS version, built date, etc.

System Time

Set the systeminternal clock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

Floppy A

Select the typeof floppy disk drive installed in yoursystem.

Options: 360K, 5.25in / 1.2M, 5.25 in/ 720K, 3.5 in / 1.44M, 3.5 in /

2.88M, 3.5in / None

G31-M7 TE BIOS Manual

IDE Configuration

The BIOS will automatically detect the presence of IDE/SATA devices. There is a

sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter

the sub-menu ofdetailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

IDE Confuguration

Configure SA TA Channels [Before PATA]

> Primary IDE Master

> Primary IDE Slave

> Secondary IDE Master

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

> Secondary IDE Slave

> Third IDE Master

> Third IDE Slave

ATA/IDE Configuration [Enhanced]

Port2 SATA AHCI Speed: GEN 1 (1.5 Gb/sec)

Options

Disabled

Compatible

Enhanced

ATA/IDE Configuration

Thisitem allows you to control theonboard IDE controller.

Options: Enhanced (Default) / Compatible/ Disabled

Configure SATA Channels

Thisitem allows you to control theSATA channel configuration sequence..

Options: Before PATA (Default) / Behind PATA

G31-M7 TE BIOS Manual

Primary/Secondary/Third IDE Master/Slave

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

Primary IDE Master

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective devices, and these

information and values are shown below to the name of thesub-menu.

Type

Select the typeofthe IDE/SATAdrive.

Options: Auto (Default) / CDROM / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

PIOMode

Select the PIO mode.

Options: Auto (Default) / 0 / 1/ 2 / 3 /4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / Disabled

G31-M7 TE BIOS Manual

S.M.A.R.T

Set the Smart Monitoring, Analysis, and ReportingTechnology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the device

is accessed through BIOS.

Options: Disabled (Default) / Enabled

IDE Detect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default)/ 30 / 25/ 20 / 15 / 10 / 5 / 0

G31-M7 TE BIOS Manual

2Advanced Menu

The Advanced Menu allows you to configure thesettings ofCPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system tomalfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> USB Configuration

> SuperIO Configuration

> Hardware Health Configuration

> Smart Fan Configuration

> Power Configuration

> CPU Configuration

Exit

CPU Configuration

Thisitem shows theCPU information that theBIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

This should be enabled

in order to enable or

disable the Hardware

Prefetcher Disable

Feature.

Configure advanced CPU settings

Module Version:xx.xx

Manufacturer:Intel

Frequency :

FSB Speed :

Cache L1 :

Cache L2 :

Ratio Actual Value:

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Max CPUID Value Limit [Disabled]

Intel(R) Virtualization Tech [Enabled]

Execute-Disable Bit Capability[Enabled]

PECI [Disabled]

Core Multi-Processing [Enabled]

Intel(R) SpeedStep(tm) tech [Enabled]

G31-M7 TE BIOS Manual

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches data and instructions from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hardware adjacent cache line prefetch mechanism that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cache latency by making the next cache line

immediately available ifthe processor requires it as well.

Options: Enabled (Default) / Disabled

Max CPUID Value Limit

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines thekind ofbasic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Intel(R) Virtualization Tech

Virtualization Technology can virtually separate your system resource into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Enabled (Default) / Disabled

Execute-Disable Bit Capability

Thisitem allows you to configure the Execute Disabled Bit function, which protects

yoursystem from buffer overflow attacks.

Options: Enabled (Default) / Disabled

PECI

This item allows you to control the PECI function for the processor which supports

Platform Environment Control Interface for betterthermal management.

Options: Disabled (Default) / Enabled

G31-M7 TE BIOS Manual

Core Multi-Processing

Thisitem allowsmulti-processing function for multi-core processors.

Options: Enabled (Default) / Disabled

Intel(R) SpeedStep(tm) Tech

This item allows you to enable SpeedStep technology for better power saving.

SpeedStep is a technology built into some Intel processors that allows the clock

speed of the processor to be dynamically changed by software.

Options: Enabled (Default) / Disabled

SuperIO Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Allows BIOS to Enable

or Disable Floppy

Controller

Configure ITE8712 Super IO Chipset

Onboard Floppy Controller [Enabled]

Serial Port1 Address [3F8/IRQ4]

Parallel Port Address [378]

Parallel Port Mode [Normal]

Parallel Port IRQ [IRQ7]

Keyboard PowerOn [Disabled]

Mouse PowerOn [Disabled]

Restore on AC Power Loss [Power Off]

Onboard Floppy Controller

Select enabled if your system has a floppy disk controller (FDC) installed on the

system board and you wish to use it. If you installed another FDC or the system uses

no floppy drive, select disabled in this field.

Options: Enabled (Default) / Disabled

Serial Port1Address

Select an address and corresponding interrupt for the first and second serial ports.

Options: 3F8/IRQ4 (Default) / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3/ Auto / Disabled

Otros manuales para G31-M7 TE - BIOS

Tabla de contenidos

Otros manuales de Placa madre de Biostar

Biostar

Biostar M7VIT 800 V7.X Manual de usuario

Biostar

Biostar P4 VTG Manual

Biostar

Biostar P4 VTB Manual de usuario

Biostar

Biostar B150MD PRO D4 Manual de usuario

Biostar

Biostar B560GTQ Manual de usuario

Biostar

Biostar B460GTQ Manual de usuario

Biostar

Biostar A760G M2 PLUS - BIOS Guía del usuario

Biostar

Biostar M5ATA Manual de usuario

Biostar

Biostar H67MH Guía del usuario

Biostar

Biostar TA880GXE - BIOS Guía del usuario

Biostar

Biostar Hi-Fi B150S3H Manual de usuario

Biostar

Biostar I86PE-A7 Manual de usuario

Biostar

Biostar B650MP-E PRO Manual de usuario

Biostar

Biostar NF61S-M2 TE Guía del usuario

Biostar

Biostar A88MQ Guía del usuario

Biostar

Biostar M7VIG Pro-D Manual de usuario

Biostar

Biostar B450NH Manual de usuario

Biostar

Biostar TA790GX XE - BIOS Manual de usuario

Biostar

Biostar P4M890-M7 TE Guía del usuario

Biostar

Biostar M7 VIF Manual de usuario

Biostar

Biostar NF4UL-A9 Manual de usuario

Biostar

Biostar TA760G M2+ Manual

Biostar

Biostar B760NH-E Manual de usuario

Biostar

Biostar J1800TH Guía del usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
