USER GUIDE

Before operating this set,

please read these instructions carefully.

Speakeasy Combo 3410

CORDED AND

DIGITAL CORDLESS

TELEPHONE WITH

ANSWERING MACHINE

UK BTP Ver 3, Nov 07

Remark:this guide is for the corded part only, and that for instructions .

on how to use the cordless part, to see the other user guide.

Important note — emergency calls

The SC3410 cordless handset is not designed for

making emergency calls when the mains power fails.

But, if there’s a power failure, you can use the base

unit telephone to make an Emergency Call, by lifting

up the corded handset instead of using the

speakerphone.

*** Before operating this set, please read these

instructions carefully.

If you need help …..

Binatone Helpline (for UK only)

Monday to Friday from 9:00am to 5:00pm

Tel: 0845 345 9677

**Please note that all calls are charged at local rate

Or visit our website:

http://www.binatoneonline.com

Unpacking your SC3410 system

In the box, you will find:

Ƶthe base unit telephone

Ƶa telephone line cable for the base unit

Ƶa mains power adapter for the base unit

Ƶthe cordless handset (up to five, depending on

which SC3410 system you’ve bought)

Ƶtwo user guides, one for the corded phone and one

for the cordless handset.

Ƶup to five charger pods, each with a mains power

supply for multi handset systems

Ƶtwo copies of user guide: one is for corded phone,

one is for cordless

Keep the packaging materials in a safe place in case

you later need to transport the unit.

Keep your sales (till) receipt, which is your

guarantee. Note: After lifting the handset you

Note: After lifting the handset you will need to wait

for several seconds to get dial tone, before keying in

the telephone number to make the call.

Also you cannot dial numbers from memories when

the mains power is off.

Binatone Help Line : 0845 345 9677 1

LCD Display

One-touch Memory M1, M2

Press to call numbers

stored on One Touch

memory

Ringer Indicator

Menu/Ok/Mute /OK

Press to access menu

Press as “OK” key to confirm your

operation

Press to mute/un-mute microphone

during a call

Phonebook/Back /C

Press to access phonebook

records

Press to exit present menu

Speakerphone light

Turns ON when using the

speakerphone

New Call light

Flashes when you have new

Caller display records.

R(Recall)

You may need this function if your

phone is connected to a PBX, or if

you use BT Calling Features.

Stop/Answer on/off

Press to stop recording

or playback.

Press & hold to switch

the answering machine

ON or OFF.

With TAM ON in standby

mode, press to select

OGM1 & OGM2

Message Light

Turns ON when the TAM

is ON.

Flashes when you have

new TAM messages.

SOS Call

Press and hold for 2 seconds

to activate the SOS call

Speakerphone

Press to call or answer a call

by using the speakerphone.

Microphone

For speakerphone and

answering machine recording.

Where to find it

Important:

When the instruction simply say ‘press’ a button, this means you should press it briefly then

release it.

When the instruction say ‘press and hold’ a button, this means you should keep it pressed

until the display changes or you hear a tone.

Pres

messages, memos,

stored numbers or

Call

Delete(DEL)

s to delete

er Display records.

Memo/Skip

Press and hold to

record a memo

Press during message

playback to go forward

to next message

Play/Pause

Press to playback

messages memos

Press to pause playing

of a memo or message

OGM/Rewind

Press and hold to record

OGM

Press to playback OGM

Press to go back to

previous message/s.

Intercom

Press to make an

Up-Down(CDS)

Press to access the

Caller display records

and scroll through them

Press to change earpiece

speakerphone volume

Press to scroll through

the lists and menu options

RD/P

Press to redial the

last number

Press while dialing

a number to insert

a pause

intercom call or to

transfer a call

Binatone Help Line : 0845 345 9677 2

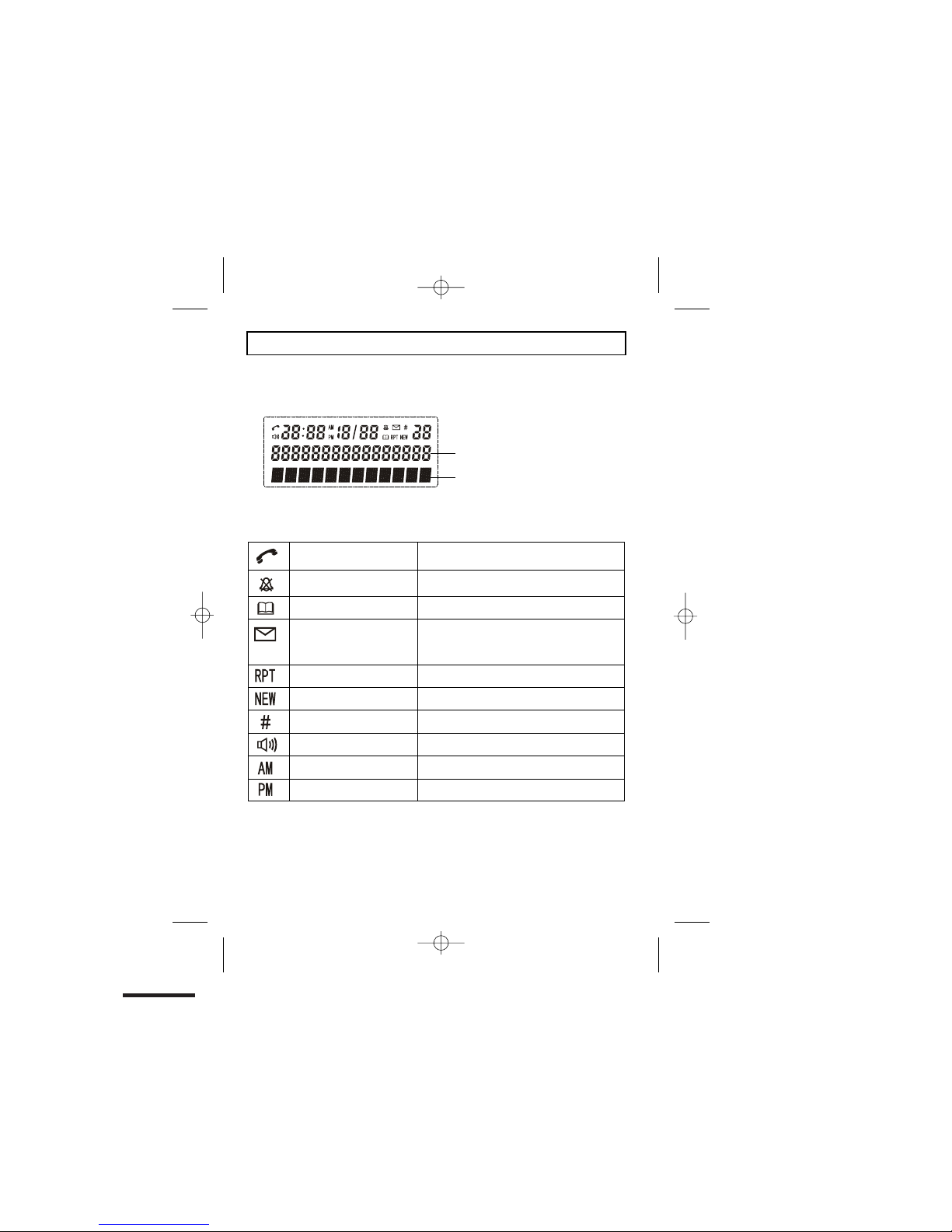

What's on the display?

The display of your telephone contains one line with the Time/Date and Icons, one line

What do the symbols mean?

Talk x This will display when the user picks up the

handset

Ring Off x This will display when the ringer is set to

OFF

Phonebook x This will display when you are in the

phonebook menu

Voicemail x This will display when you have a new Voice

Mail message. (This is a caller id service and

is not usually available from UK network

Repeat CID x This will display when the same caller has

called more than once

New CID x This will display when there is a new CID

entry or if one is being viewed

Sequence x Indicates the sequence number of the CID

record

Hands free/speakerphone x This will display when the speakerphone is

in use

A.M. x This will display if it is A.M., in the 12 hour

clock mode

P.M. x This is display if it is P.M., in the 12 hour

clock mode

Number field: showsthe telephone

numbers

Character field: showsthe Menu,

name and status of a call

of numbers and one line of text.

providers.)

Binatone Help Line : 0845 345 9677 3

Contents

Page

Where to find it 1

What’s on the display? 2

x What the symbols mean? 2

Read First before Use 5

x Choosing a site for base unit and

charger pod 5

x Mains power connection 5

x If you have a broadband line 5

Installation and Set-up

x Choose a suitable site for the base unit

x Connect the mains power lead and the

telephone line cord into the base unit 6

x Plug the mainsadaptor into your wall

socket 6

x Connect the base unit to the telephone

Desk/Wall mount installation 7

Desk Mo 7

Wall Mount 7

Basic settings

x To set Dateand Time9

Making and answering calls 10

x To make call

x

Tomake acall from redial list 10

x To make a call from caller display (CID)

list10

x To answer a call 10

x

ToMute orun-mute themicrophone11

x To change the earpiece or speakerphone

volumedua call11

x

Emergencycallwithoutmainspower11

Memory/Phonebookmanagement 12

x To create a contact in your phonebook

Page

x

To delete a contact in the phonebook 13

x To delete all contacts in your phonebook

To edit a contact in yourphonebook 14

x To store a last number redial in your

phonebook

x Making calls from the phonebook

x

Reviewing phonebookmemorystatus

x

Direct MemoryCall

x

To Store the telephonenumber

x

To Speed-Dial the telephonenumber

Caller Display (CDS) / Caller ID (CID) 17

x New CID log 17

x

To review the CID list 17

x To delete a Caller ID record 18

x To delete all Caller ID records 18

x To Store a Caller ID contact in

phonebook18

Ringer volume, and melody 19

x To changeringer volume19

x

To changeringer melody19

Using multi-handset 21

x

To make intercom calls 21

x To Transfer intercomcall21

x

To setup a three-wayconference22

Telephone AnsweringMachine(TAM)

x Switching TAM on/off 26

x To Record your Outgoing Message

(OGM)

x

Toplaybackthe OGM 29

x To delete the OGM (SET OGM to

DEFAULT) 30

x

Switchbetween OGMs30

x

To play/pause messages onTAM 30

x To delete a message onTAM 31

x

Page / locate a handest

Handset registration 23

line6

Binatone Help Line : 0845 345 9677 4

x

To delete all messages on TAM 31

x

Torecord amemo on TAM31

x

Incoming Call Messages (ICM) 31

x

Remote Operation 32

x

To Set TAM alarm33

x

To setting ring number 33

x

To Change SecurityCode (TAMPIN)

x

To Reset TAM to default settings 34

SOS call function 35

x

How SOS callfunction works 35

x

How to terminate SOS call function 35

x

To Set SOSnumbers 35

x

ToRecordSOS voiceprompt 36

x

To Playback the SOSvoice prompt36

Advanced use ofyourPhone37

x

To Turn on/off key tone 37

x

To Set flash (Recall)time37

x

To Set Dialling Mode (Tone/Pulse)38

x

To Set Base todefault settings38

x

To Change thePIN code39

Troubleshooting 40

Cleaning and Care 42

Declaration of Conformity43

Guarantee and Service 43

Technical Details 44

Connection and conditions for use.

You can connect your Speakeasy Combo 3410 to a direct exchange line (DEL) - a line

connected to a local exchange, with its own phone number; to an extension on an approved

compatible PBX. Do not connect the Speakeasy Combo 3410 as an extension to a payphone.

The ringer equivalence numbers (RENs) of all instruments (phones, fax machines, etc.)

connected to an exchange line must not add up to more than 4 - otherwise, one or more

of them mat not ring and/or answer calls correctly. The Speakeasy Combo 3410 has a

REN of 1, and most othe telephones have a REN of 1 unless marked otherwise.

Binatone Help Line : 0845 345 9677 5

Read First Before Use

Choosing a site for the base unit and charger pod

The base unit and charger pod(s) should be placed on level surface, in a position where:

x the mains adapter plug will reach an easily accessible 230-VAC switched mains

supply socket - never try to lengthen the mains power cable

x the base unit's telephone line cable will reach your telephone line socket or

extension socket

x it is not close to a sink, bath or shower, or anywhere else where it might get wet

x it is not close to other electrical equipment - fridges, washing machines,

microwave ovens, fluorescent lights, televisions etc.

x if the base comes into contact with liquids, disconnect it promptly and use a soft

cloth to dry it; if you believe that the liquid has seeped into the unit, do not

reconnect the base station. Contact the Binatone helpline.

x it is away from hot, humid conditions and strong sunlight

Mains power connection

IMPORTANT - The SC3410 base unit must be used with the mains adapter supplied

with the unit.

Using any other adapter will result in non-compliance with EN60950, and will

invalidate any approval given to this apparatus.

If you have a Broadband line

If you connect your telephone to a line with a broadband connection, you will need to

insert a micro-filter between the telephone and the telephone line; otherwise you may

get interference between the telephone and the broadband, which could cause

problems.

In a home with broadband, every telephone must have a micro-filter connected, not

just the one at the telephone point that your modem is connected to. If you need more

broadband micro-filters, contact your broadband supplier.

Binatone Help Line : 0845 345 9677 6

Installation and Set-up

1/ Choose a suitable site for the

base unit (see page 5)

2/ Connect the mains power lead

and the telephone line cord into the

base unit

Plug one end of the telephone line

cord into the jack on the back of the

base (the other end will plug into

3/ Plug the mainsadaptor into your

wall socket. If you have one or more

charger pods, plug the mains

adaptors accordingly

Make sure that the 230VAC, 50hz mains

socket is switched OFF when you plug

the mains adapter into the socket.

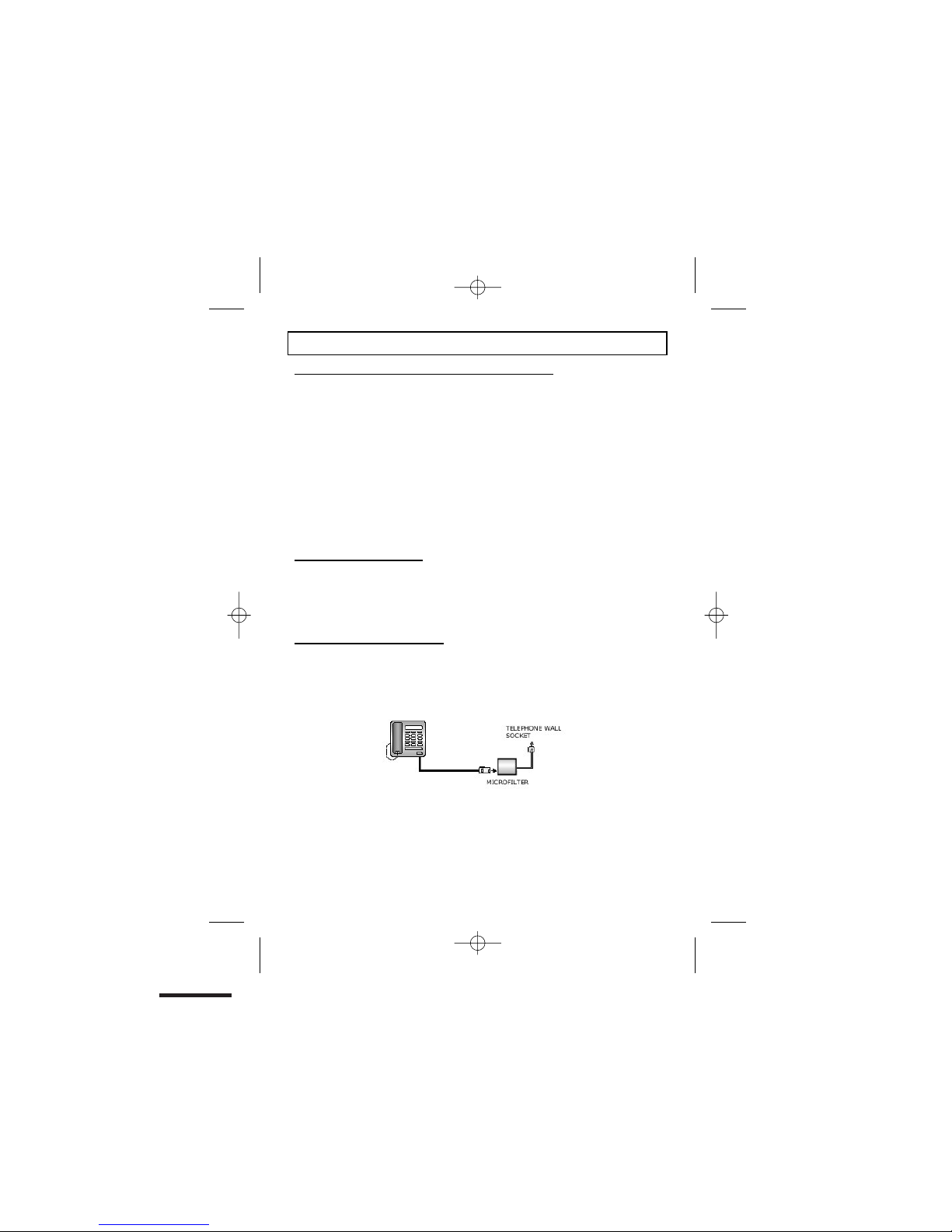

4/ Connect the base unit to the telephone line

Insert the telephoneline plug into the socketthen switch

See the note

on page 5

See the note

on page 5

mains power back ON.

Make sure the mains socket is switched on —

the phone won’t work without electrical power

Binatone Help Line : 0845 345 9677 7

Desk/Wall mount installation

To place the SC3410 on a desk, connect

the stand to the bottom of the phone in the

slots near the rear of the base as shown below.

Desk Mount

Insert the rigid clips of the stand into the slots

on the bottom of the phone (nearer the centre

of the base ). Press down firmly until the

flexible clips clicks into place.

To remove the stand, (1) pinch the flexible

clips, (2) pull back the stand, and then (3)

slide up and forward as shown below.

To place the SC3410 on a wall, connect the

stand to the bottom of the phone in the slots

near the front of the base as shown below.

Wall Mount

Desk/Wall mounting continue...

Insert the rigid clips of the stand into the slots

on the bottom of the phone (nearer the centre

of the base). Press down firmly until the flexible

clips clicks into place.

To remove the stand, (1) pinch the flexible

clips, (2) pull back the stand, and then (3)

slide up and forward as shown below.

Mark two points on the wall that are 120 mm

apart to lay the fixing centers as shown below.

BE CAREFULto check that there are no

electrical wires hidden in the wall. Fix two screws

at the marked locations,leaving approximately

7mm between the wall and the the screw head.

Hang the telephone on the screws using the

wall mount slots. You may need to remove the

telephone from the wall and tighten the screws

so that the telephone is securely fixed and does

not wobble. Place the Handset on the cradle with

the parking hook on the cradle arranged to fit

in the parking recess under the earpiece on

the Handset.

BinatoneHelpLine : 0845 345 9677 8

Tabla de contenidos

Otros manuales de Teléfono de Binatone

Binatone

Binatone PB10 Manual de usuario

Binatone

Binatone 5502 Manual de usuario

Binatone

Binatone Trend 3 Executive Manual de usuario

Binatone

Binatone Spirit 110 Manual de usuario

Binatone

Binatone SPEAKEASY 5 Manual de usuario

Binatone

Binatone DECT Combo Plus Single Manual de usuario

Binatone

Binatone SC2050 Manual de usuario

Binatone

Binatone 3488 Manual de usuario

Binatone

Binatone iDECT L1i System Manual de usuario

Binatone

Binatone CAPRICE 500 Manual de usuario

Binatone

Binatone Speakeasy Combo 3865 Triple Manual de usuario

Binatone

Binatone Smart 66 Manual de usuario

Binatone

Binatone DECT Solo Single Manual de usuario

Binatone

Binatone IDECT X3 Manual de usuario

Binatone

Binatone IHOME PHONE - Manual de usuario

Binatone

Binatone Caprice 670 Manual de usuario

Binatone

Binatone Trend Manual de usuario

Binatone

Binatone IHOME PHONE - Manual de usuario

Binatone

Binatone Trend 0119 Manual de usuario

Binatone

Binatone LYRIS 410 Manual de usuario

Binatone

Binatone iDECT Freedom Twin Manual de usuario

Binatone

Binatone SPIRIT 710 Manual de usuario

Binatone

Binatone Oval Twin XD1220 Manual de usuario

Binatone

Binatone ACTIVE XA2020 Manual de usuario

Manuales populares de Teléfono de otras marcas

GE 2-9480 Manual de usuario

Geemarc

Geemarc PHOTOPHONE 155 Manual de usuario

D-Link

D-Link DWR-720/PW Manual de usuario

Interquartz

Interquartz Gemini IQ333 Manual de usuario

SSS Siedle

SSS Siedle HT 840-0 Manual de usuario

Motorola

Motorola TITANIUM Manual de usuario

Panasonic

Panasonic ICX Manual de usuario

LG H870DS Manual de usuario

Samsung

Samsung GT-I9500 Manual de usuario

AT&T

AT&T Trimline 205 Manual de usuario

Selta

Selta zenyth 600 Manual de usuario

Doro

Doro AFTI 20 Manual de usuario

UNIQCELL

UNIQCELL A1 Manual de usuario

Panasonic

Panasonic KX Series Manual de usuario

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manual de usuario

BT Decor 425 Manual de usuario

NEC

NEC SV8500 Manual de usuario

Teledex

Teledex PEARL Manual de usuario
