VOLTERA A Series

Installation and Set Up Guide

Product Information Sources

•This guide covers the installation and initial set up of the amplifier.

•Please see the product datasheets on Biamp.com for each Voltera amplifier’s

specifications.

•If you are installing the amplifier in an AV system managed by a Tesira DSP device,

you will need a copy of the Tesira Design Software. See page 17 for details.

Included in the Box

•0.3” euroblock connector plugs for the amplified outputs (yellow)

o2 plugs for the 2-channel amps. 4 plugs for the 4-channel amps.

•3.81mm audio input mating plugs

•Detachable IEC Power cord

•4 adhesive feet

•1 single device rack mounting bracket, 1 device rack mounting bracket, and 4

surface-mount brackets.

A 300.2 A 600.2 A 300.4 A 600.4 Analog Amplifiers

2 Voltera Amplifiers Installation and Set Up Guide

Installation Considerations

•Install the device away from heat sources, such as vents, radiators, heat registers, and

stoves.

•Do not exceed the maximum ambient operating temperature of 32° - 104° (0° - 40° C).

•Avoid installing near water or steam.

Device Layout

Front Panel

On / Off Power Button

Channels Status Display

(The number of channels varies by amplifier type)

Amplifier Type Identifier

Power Indicator Light

3 Voltera Amplifiers Installation and Set Up Guide

Front Panel LED Indicators

Power Indicator

Off

Green Light

Yellow Light

The amplifier is off.

The amplifier is powered

The amplifier is asleep

Channel Display Indicators

Off

Green

Yellow

Red

temp

This channel is

within safe

temperature

limits

N/A

Fan speed

medium

Fan speed max

limit*

This channel is

within safe

limits

N/A

Channel

limiting low to

medium

Channel

limiting high

signal

No signal

Signal

present**

The signal is 6

dB from

maximum

output

The signal is 1

dB from

maximum

output

mute

This channel is

unmuted

N/A

Mute Active

**A minimum signal strength of -56 dBU is required to register as present.

Back Panel LED Indicators

*Each channel’s LED indicator on the back panel combines the

signal present and the limiter indicators from its front panel

counterparts. Signal present is indicated with green. If the

signal is strong enough to engage the limiter, it replicates the

front panel yellow and red limit outputs.”

4 Voltera Amplifiers Installation and Set Up Guide

A 300.2 and A 300.2 Back Panels

The amplifiers share an identical panel layout

A 300.4 and A 600.4 Back Panels

Channels 3 and 4 gain controls

4, 3-pin input Ports

Logic input / output connectors

Voltage Control Input

Attenuator and High Pass Filter switches

4 Speaker output ports

Channel 2 output level control

Channel 1 gain control

2, 3-pin input Ports

Logic input / output connectors

Voltage Control Input

Attenuator and High Pass Filter switches

2 Speaker output ports

Channel 2 output level control

Channel 1 gain control

Limit / signal indicators

5 Voltera Amplifiers Installation and Set Up Guide

Included Mounting Brackets

1 Single-Device Rack Mounting Bracket

Biamp part number: 548.0468

1 Device Rack Mounting Bracket

Biamp part number: 548.0469

4 Surface Mounting Brackets

Biamp part number: 548.0470

6 Voltera Amplifiers Installation and Set Up Guide

Installation and Set Up Overview

Installation

Perform the procedures described in the Installation chapter to install the amplifier on a flat

horizontal surface or in an AV equipment rack.

✓Install in a location

•Freestanding, page 7

•Surface mount, page 8.

•A single amplifier in a 19-inch rack, page 9

•Dual amplifiers in a 19-inch rack mount, page 10

19-inch rack installation configurations using the included mounting brackets

✓Connect the amplifier

•Connect to its input, output, and other relevant devices in the system, page 12.

oThis section includes a description of the port functions and technical details.

oOptional: Adjust the output gain levels.

oSet the output power modes on each channel and set the High Pass Filter to on

or off.

•Attach and plug in the power cord, page 16.

Amplifier Set Up

✓Configure the amplifier

•Download the Tesira Design Software, page 17.

•Add the amplifier to the Tesira system and select its output speaker types, page 18.

7 Voltera Amplifiers Installation and Set Up Guide

Install Option: Freestanding

Place the amplifier on a flat horizontal surface.

1. Verify the surface is flat and level, and that the amplifier's power cord and connections

will be safely out of the way to avoid snagging, yanking, or crushing.

2. Attach the 4 included adhesive feet to the bottom of the amplifier. The 4 feet should be

attached near the 4 corners.

3. Place the amplifier on the surface

Advance to the connect the amplifier procedure on page 12.

8 Voltera Amplifiers Installation and Set Up Guide

Install Option: Surface Mount

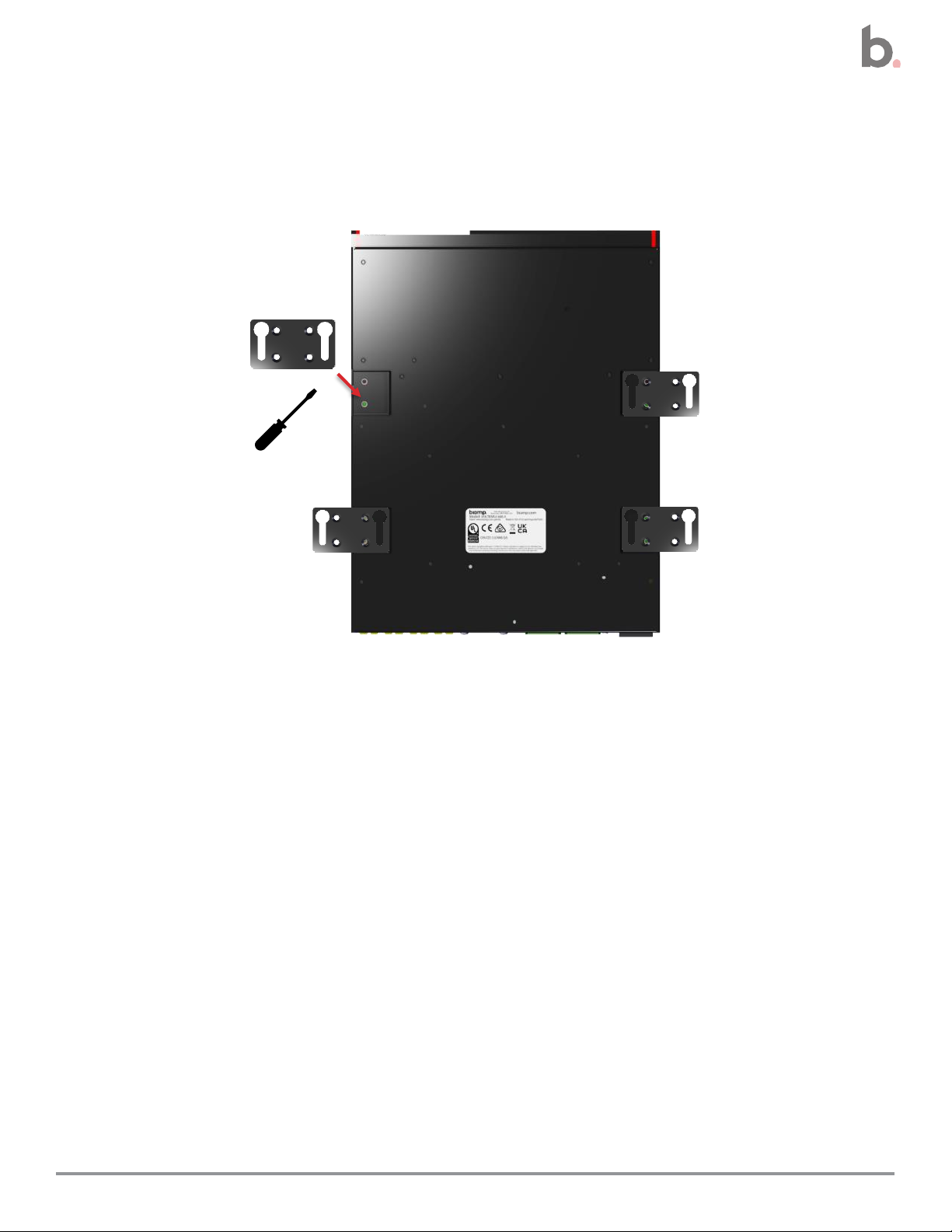

Secure the amplifier to a flat surface using the surface mount brackets.

1. Verify the surface is flat and level, and that the amplifier’s power cord and connections

will be safely out of the way to avoid snagging, yanking, or crushing.

2. Use the included screws to fasten the 4 surface mount brackets to the four attachment

points on the bottom of the amplifier.

3. Place the amplifier on the surface and fasten the mounting brackets to the surface.

Advance to the connect the amplifier procedure on page 12.

9 Voltera Amplifiers Installation and Set Up Guide

Install Option: A single amplifier in a 19-inch AV rack

Install a single amplifier by itself in an AV equipment rack using the included Single-Device

Mounting Bracket and the Device Mounting Bracket.

1. Verify the installation rack space meets the temperature and spacing requirements in

the Installation section Consideration on page 2.

2. Attach the single-unit mounting bracket to the left or right side of the amplifier.

3. Attach the device mounting bracket to the opposite side of the amplifier.

4. Place the amplifier in the rack and use two of the included screws to secure the

mounting plate to the rack

Advance to the Connect the Amplifier procedure on page 12.

10 Voltera Amplifiers Installation and Set Up Guide

Option: Dual devices in a 19-inch rack

Install two amplifiers side by side in a standard AV rack using the Device Mounting Bracket

included with each unit and two of the included surface mounting brackets.

1. Verify the installation rack space meets the temperature and spacing requirements in

the Installation section Consideration on page 2.

2. Place both amplifiers side by side on lying their tops, with the bottom facing up. You are

about to fasten the amplifiers together for installation, so their front panels must face in

the same direction.

3. Attach two of the surface mounting brackets to the bottom of the two amplifiers on the

surface-mount attachment points where the amplifiers meet. Each bracket should cover

the adjoining mount points on the amplifiers.
