BFT DEIMOS BT A400 Manual de usuario
A
CB
D
Ø 19.5 - PG 11
Ø 30 - PG 21
Ø 16 - PG 9
D813946 00903_01 11-01-18
PREPARE THE ELECTRICAL CONNECTION SYSTEM BETWEEN THE TRANSFORMER PANEL AND
THE DEIMOS BT A400/600, ACCORDING TO THE CABLE DATA INDICATED IN THE ATTACHED TABLE
CPEM WITH BT A400/A600 TRANSFORMER
Cable section (mm2) 1 mm21.5 mm22.5 mm24 mm2
Deimos 400
[0.116 Ohm]
5.5 m 8.3 m 13.8 m 22.1 m
Deimos 600
[0.0695 Ohm]
3.3 m 5 m 8.3 m 13.2 m
Cable section (AWG) AWG 17 AWG 15 AWG 13 AWG 11
Deimos 400
[0.116 Ohm]
5.5 m 8.3 m 13.8 m 22.1 m
Deimos 600
[0.0695 Ohm]
3.3 m 5 m 8.3 m 13.2 m
ASSEMBLE THE PANEL WITH TRANSFORMER AS PER THE MANUAL CONTAINED IN THE PACK
DEPENDING ON THE SECTION OF THE CABLE CHOSEN,
BREAK THE CABLE PASSAGE ZONE
OPEN THE COVER BY
UNSCREWING THE SCREWS
F
E
G
1
1
2
H
J K
I
1
2
2
3
1

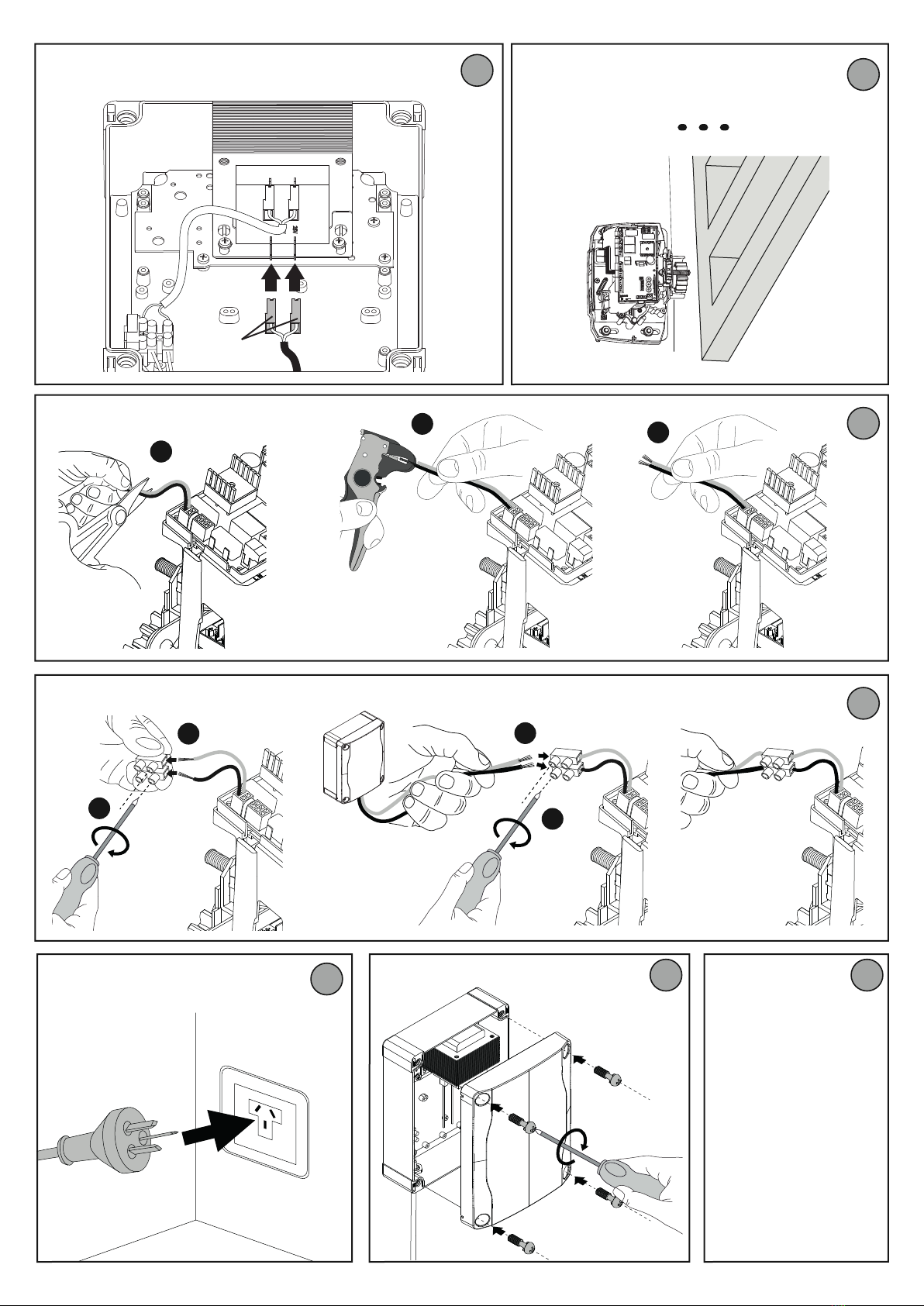

INSERT THE 6.3X0.8 FEMALE FASTON IN
THE SECONDARY OF THE TRANSFORMER
CUT THE CABLE AS SHOWN IN THE IMAGE
MAKE THE CONNECTION BETWEEN THE CUT CABLE AND THE CABLE OF THE PANEL WITH TRANSFORMER
INSERT THE PLUG INTO THE SOCKET FASTEN THE COVER WITH THE SCREWS
END THE
INSTALLATION
OF THE DEIMOS BT
A400/600
AS PER THE
PRODUCT
MANUAL
PROCEED TO ASSEMBLE THE
DEIMOS BT A400/600 MOTOR ONLY AS
PER THE PRODUCT MANUAL.
Not supplied
