Unite TP – Bodypack Transmitter

Thank you for choosing the Unite TP bodypack transmitter.

To ensure an optimum performance, we would like to give you

a brief introduction on how to use this bodypack transmitter.

The Unite TP bodypack transmitter was designed for barrier-

free use:

– raised symbols on the front operating buttons for the blind

– Braille on the side mute button for the blind

– compatible with the beyerdynamic induction loop for the

hard of hearing

For detailed operating instructions in your language, please

visit: www.beyerdynamic.com/unite

1. Safety instructions

General

• Please READ this user manual before the first use.

• Please KEEP this user manual.

• Please FOLLOW the specified operating and safety

instructions.

Disclaimer

• beyerdynamic GmbH & o. KG will not be liable for any

damage to the product or injury to persons caused by

negligent, improper, incorrect or inappropriate operation of

the product.

Danger to life

• lip-on microphones can be very small. There is a risk of

suffocation if accidentally swallowed. Therefore, keep such

microphones out of the reach of children.

english

Unite TP – Bodypack Transmitter 5

• The supplied strap is only used for wearing the device

around the neck. If it is not used correctly, the risk of

strangulation may occur.

Volume

• When using headphones/headsets, make sure that the

volume is set to minimum. Adjust the volume only after

putting on the headphones/headset.

Too high volumes and too long listening times can damage

your hearing. Hearing damage always represents an irrever-

sible impairment of hearing.

• Always pay attention to the volume. As a rule of thumb, the

higher the volume, the shorter the listening time. By law,

the maximum allowed value is 85 dB at a maximum

listening time of 8 hours.

• Temporary symptoms that you have been exposed to loud

noise are:

– ringing or whistling in the ears

– high tones can no longer be perceived

Troubleshooting / repairs

• Never open the device yourself.

• Refer all service work to authorised professionals only.

Cleaning

• Only clean the device with a dry or slightly damp cloth.

Never use solvents, as these will damage the surface.

Rechargeable battery

• The bodypack transmitter is operated with the following

battery type: BAT-3707, lithium-ion, 3.7 V, 1.88 Ah,

6.96 Wh (order # 727.679)

Unite TP – Bodypack Transmitter

• Use only a USB 2.0/3.0 compliant 5V power supply to

charge the battery pack via the integrated USB type- port

(power consumption is max. 500 mA).

• High temperatures, particularly in association with a high

charging status, result in irreversible damage of the battery

pack.

• If you are not intending to use the battery for an extended

period or are planning to put it into storage, it is advisable

to lower the battery’s charging level to around 50% and to

store it at temperatures of maximum 30 ° .

• In order to ensure safe transport by land, sea and air, the

battery pack used for the bodypack transmitter is tested ac-

cording to the UN 38.3 transport regulation for lithium-ion

batteries.

• Misuse or improper use could damage the battery pack. In

extreme cases, there is a risk of explosion, heat, fire, smoke

or gas.

• Never expose the battery pack to excessive heat such as

sunshine, fire or the like.

• Do not expose the battery pack to mechanical shock.

• harge the battery pack before initial use.

• Use the speciﬁed chargers for charging the battery pack.

• Avoid complete draining of the battery. This could damage

the battery and shorten its service life.

• If you do not use the transmitter for several months, the

batteries should be charged at least twice a year to prevent

deterioration in performance due to self-discharge.

• lean the charging contacts of the transmitter with a clean

dry cloth, if they become dirty.

• Do not short-circuit the battery.

english

Unite TP – Bodypack Transmitter 7

• The charging contacts could cause property damage, injuries

or fire damage if they come into contact with conductive

materials such as jewellery, keys or chains. This can lead to

a closed electric circuit and, therefore, to the material

overheating. To avoid this kind of unintentional electric

circuit, the charging contacts must be handled with care.

This is especially important if the transmitter is transported

in a bag or another container containing other metallic

objects.

Moisture / heat sources

• Keep the battery pack clean and dry. Never expose the device

to rain or high humidity. Do not install it in the immediate

vicinity of swimming pools, shower facilities, damp base-

ments or other areas with unusually high air humidity.

• Never place objects filled with water (e.g. vases or drinking

glasses) on the device. Liquids in the devices may cause a

short circuit.

• Never install or operate the device in the immediate vicinity

of radiators, lighting systems or other heat-generating

devices.

Disposal

At the end of its operating life this product may not

be disposed of along with normal household waste.

Please take it to a designated recycling point for

electric and electronic appliances. This is

indicated by the symbol on the product, the

operating instructions or the packaging.

Unite TP – Bodypack Transmitter

Simpliﬁed E declaration of conformity

beyerdynamic hereby declares that the wireless transmission

device complies with the EU Directive 2014/53/EU (RED). The

complete text of the EU declaration of conformity is available

online at the following address:

http://www.beyerdynamic.com/cod

2. Supplied accessories

• Unite TP bodypack transmitter with mounted belt clip

• Quick Start Guide

• Strap

• Two spare caps for the mute button

english

Unite TP – Bodypack Transmitter 9

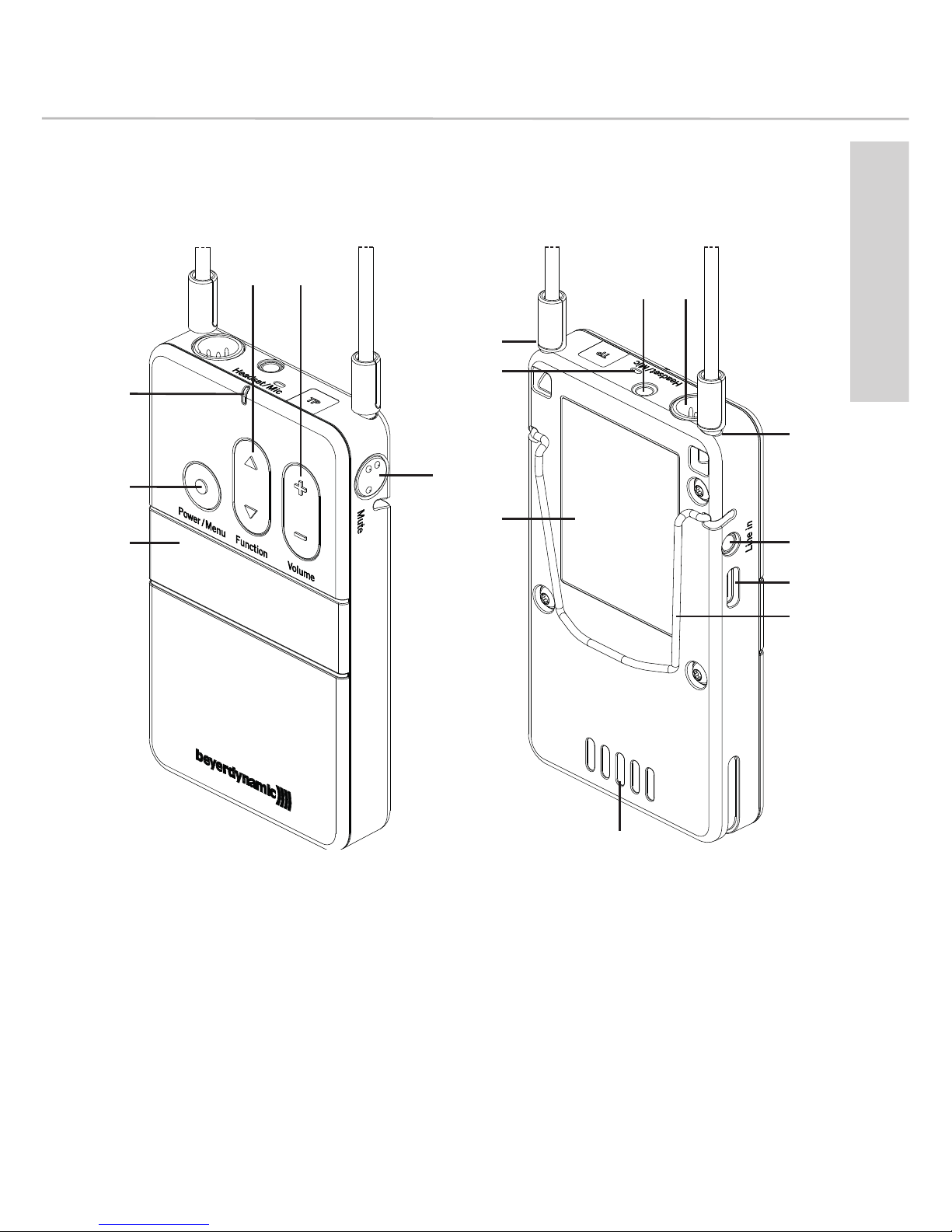

3. Operating elements

3.1 Device

Display

The display indicates the channel name, battery status and

different menus.

On/Off and menu button

Use the on/off button to turn the transmitter on or off. To

switch off the device, hold down the button for 5 seconds.

In order to activate the main menu, hold down the button

for 2 seconds. Use the menu button to confirm settings.































Unite TP – Bodypack Transmitter

Status indicator light – during operation:

– in the charger:

Indicator light Operating status

Off Device is switched off

Green Ready to operate and

battery status > 2 h

Flashing red ritical battery level < 30 min

Red • Low battery level

• Out of range

• Microphone is muted

• Device is starting

Flashing red rapidly ritical error

Indicator light Charging status

Off Device is switched off

Flashing yellow slowly harging 0 - 90%

Flashing green slowly harging 90 - 100%

Green Battery is charged

Flashing green/yellow Device is being localised

Flashing yellow rapidly Pairing information is being

copied from the transmitter

Flashing red rapidly harging error

Flashes red 5 times Too many transmitters
