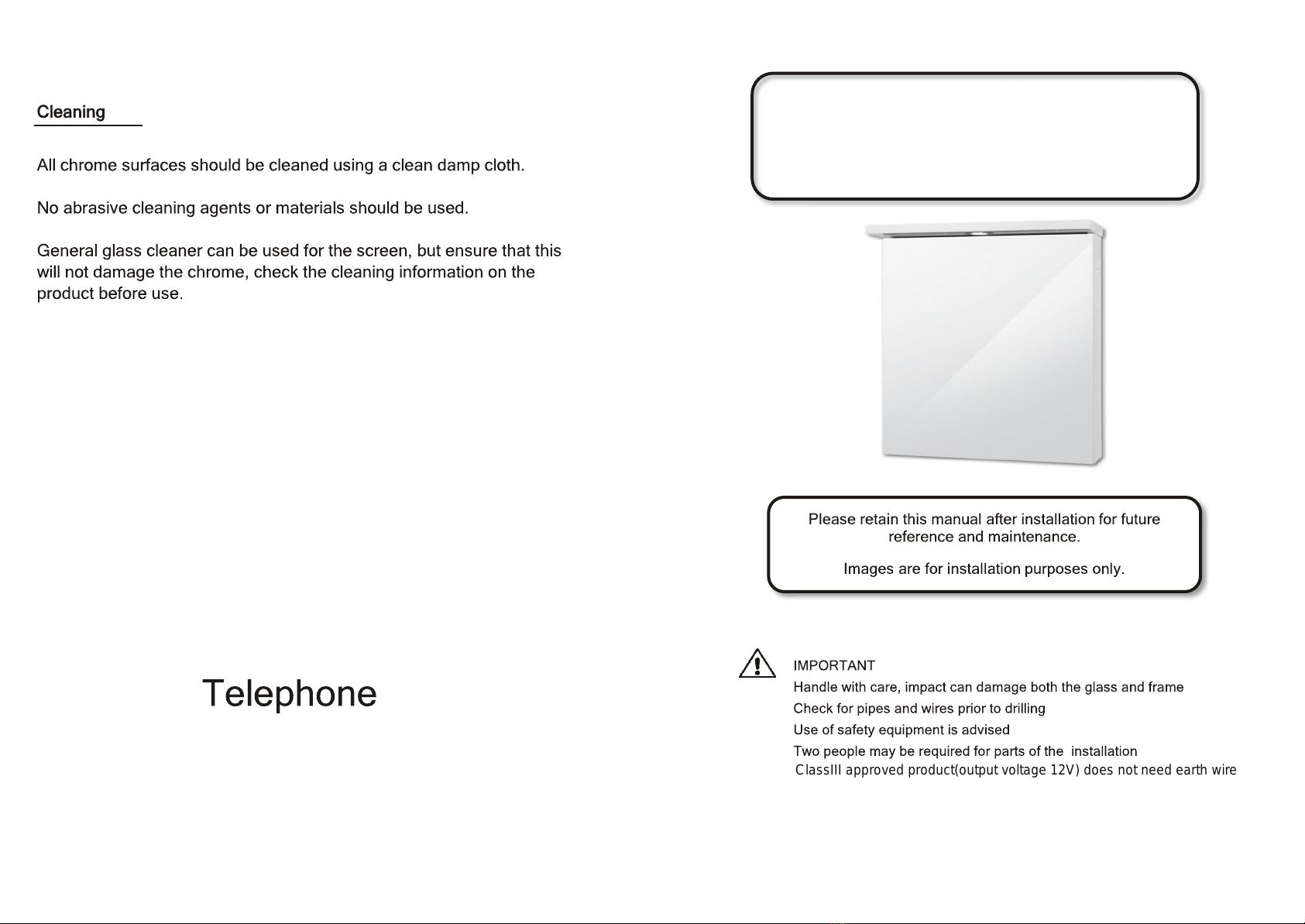

Windsor 550 Mirrored Cabinet

0333 777 4777

with 1 Light

This instruction will cover installation of the following units

Codes:

7689

ClassIII approved product(output voltage 12V) does not need earth wire

Figure1

L N

+

L

+

-

*** The unit can only be installed by fully qualified electrician.

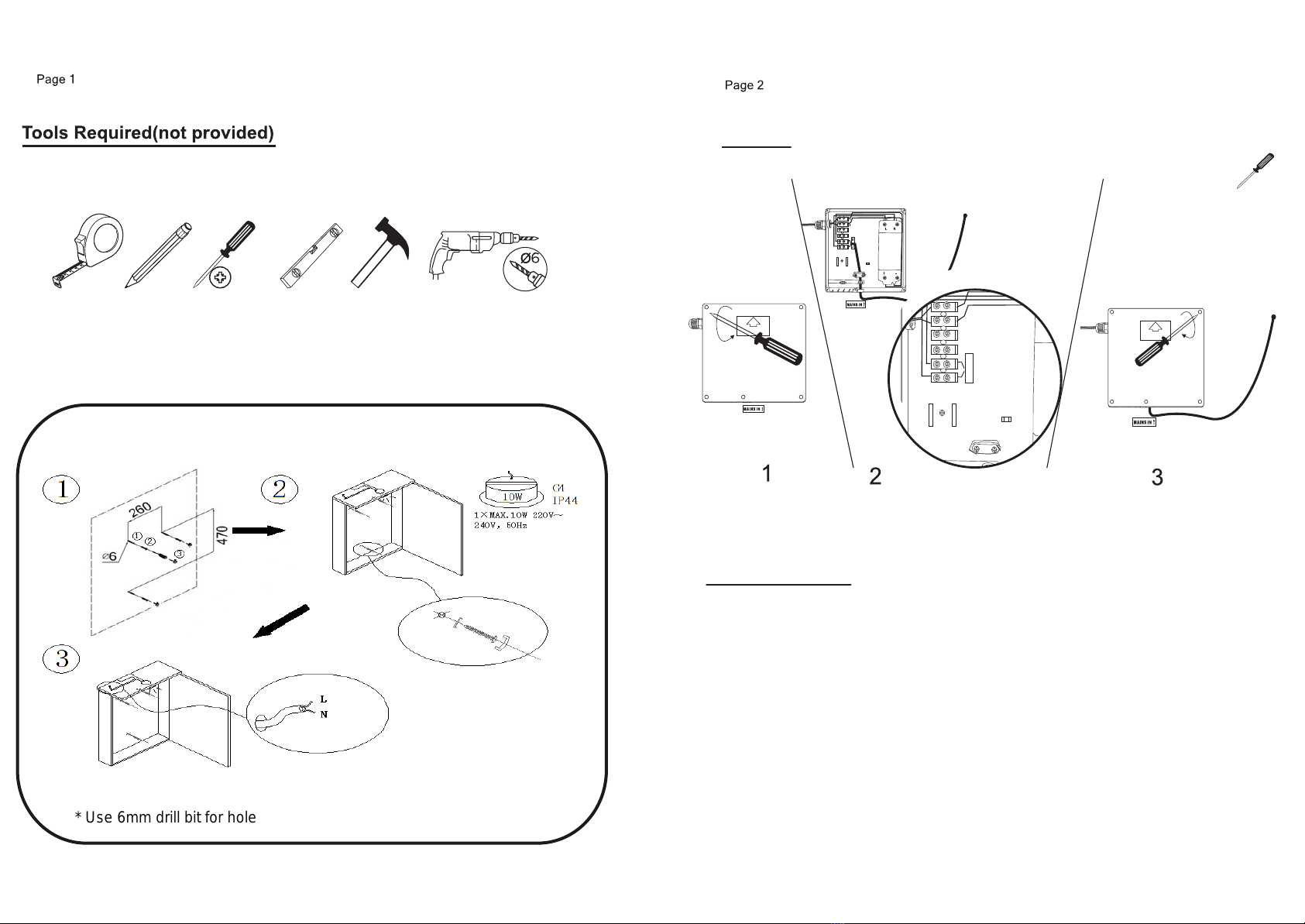

1. Position the mirror in a suitable location,make sure the domestic electrical mains

supply is within reach of the electrical entry point of the product.

2. Carefully mark the position of the mirror using a soft pencil ensuring it is level.

Remove the mirror and mark the mounting points. Please ensure that all marked

mounting points accurately match up with the fixing points on the mirror.

3. Using a suitable drill bit, drill holes in the marked positions to a suitable depth.

Installation Guide

* Use 6mm drill bit for hole

Page 3 Page 4

Installation Guide

5. Screw supplied fixings into wall plugs.

6. Ensure the domestic electrical mains supply to which the mirror is

being connected is turned off. Connect the domestic mains supply to

the wires on top of the mirror cabinet --- the live wire in brown and

4. Insert wall plugs level with the surface of the wall. If fitting to a tiled

surface, wall plugs should be inserted below the tile surface to avoid

cracking.

neutral wire in blue.

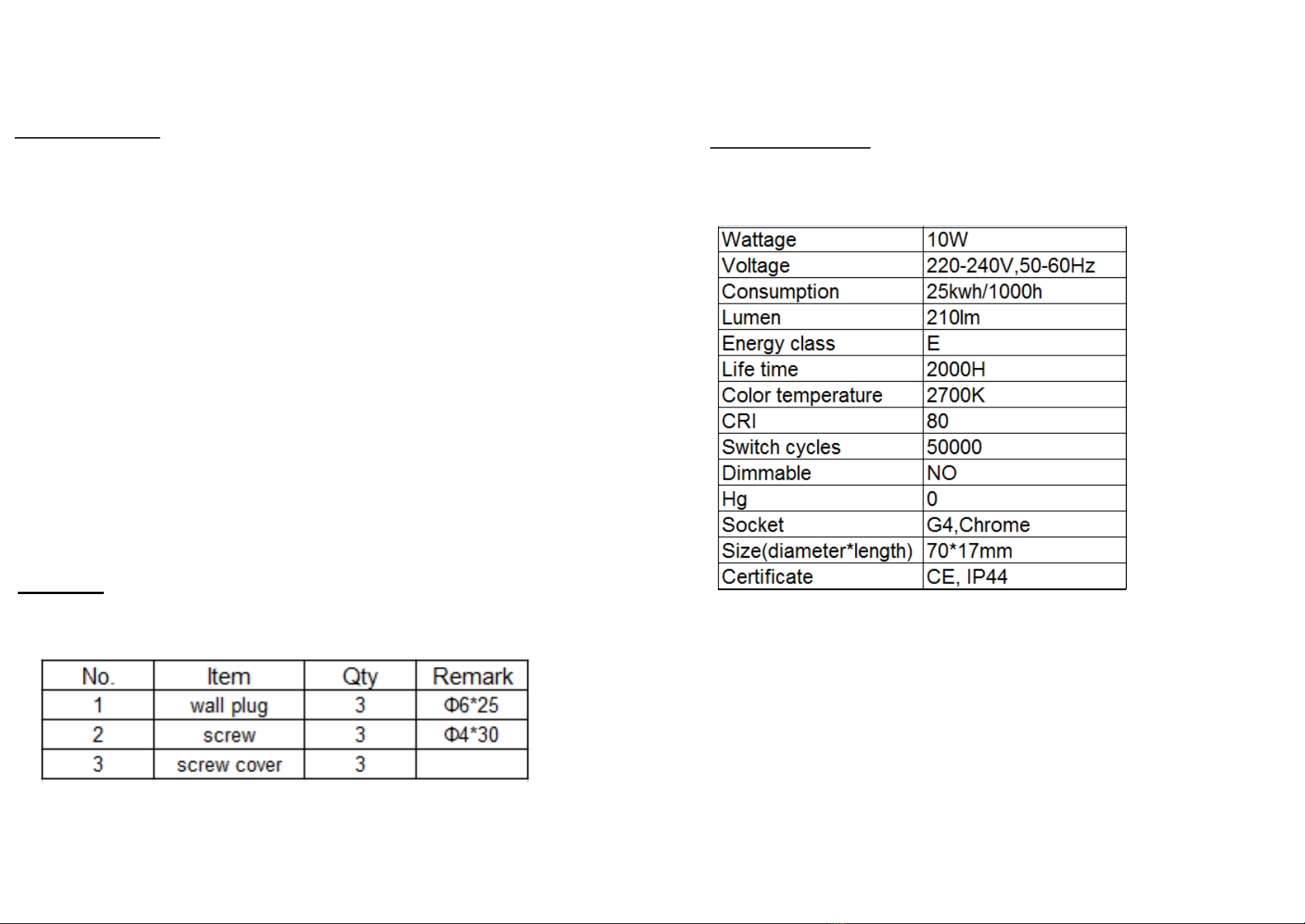

Product Specification

Parts List

7. Hang the cabinet onto the screws.
