BestScope BS-6024RF Manual de usuario

Scientific Research Metallographic

Microscope

Model Number: BS-6024RF/TRF, 6025RF/TRF

Instruction Manual

BS-6024RF/TRF BS-6025RF/TRF

This manual is written for Scientific Research Metallographic Microscope of BS-6024RF/TRF, 6025RF/TRF. To ensure

the safety, obtain optimum performance and to familiarize yourself fully with the microscope, it’s strongly

recommended that you read this manual carefully before operating this microscope.

BestScope International Limited

Content

User Notice...............................................................................................................2

1. Components Name ...............................................................................................4

2. Structure...............................................................................................................5

3. Adjustment and Operation....................................................................................7

4. Installation ..........................................................................................................16

4-1 Installation diagram .......................................................................................16

4-2 Installation Steps............................................................................................17

5. Technical specifications.......................................................................................21

6. Trouble Shooting.................................................................................................24

6.1 Optical system................................................................................................24

6.2 Mechanical parts............................................................................................26

6.3 Electrical parts................................................................................................26

BestScope International Limited

BS-6024, 6025

User Notice

I. Safety Symbols

The following signs are on the microscope. Figure out what these symbols meanings and always use the

microscope in the safest way.

II. Safety Precautions

1. Be careful when moving the microscope, to avoid the lens glass sticked by fingerprints and sweat stains

for the sake of observation, to avoid the lenses dropped or damaged.

2. Do keep the microscope out of direct sunlight, high temperature or humidity, dusty and easy shaking

environment. Make sure the stage is smooth, horizontal and firm enough.

3. Hook into the upper slot behind the rack by one hand, and hold the front bottom of the rack by the other hand

when moving the microscope.

4. If the carrier, objective or viewing tube is spilled with bacteria or solution, you should immediately pull out the

power wire and dry the solution or water to ensure that the microscope is dry. Otherwise, it is possible to

damage the instrument.

5. Be sure to keep at least 10cm away from the left, right, top, rear of the microscope from walls and other objects,

so as not to plug natural convection air, which is used for cooling.

6. Make sure the instrument is earthed, to avoid lightning strike.

7. is used to ensure safety, you should make sure the main switch is in "O" (off) state and cut off the power

supply before replacing the bulb or the fuse. Check the input voltage: Be sure the input voltage which is signed

in the back of the microscope is consistent with the power supply voltage, or it will bring a serious damage to

the instrument.

8. Use the special wire provided by our company.

Symbol

Meaning

Main power switch is on

Main power switch is off

Ground connection

Upper / Lower lighting

Button press for upper lighting, button do not press for lower lighting

Trash bin

F.S-Diaphragm, --Aperture diaphragm opening direction, -Narrow direction

The switch of Light off while people leave

Photograph

Wrench used here

Light intensity direction, weaken to the left, strengthen to the right

CE certification passed

BestScope International Limited

BS-6024, 6025

III. Maintenance

1. All the lenses have been adjusted properly; Please do not dismount them by yourself.

2. The nosepiece, coarse and fine focusing parts are so delicate that it is forbidden to disassemble them carelessly

by yourself.

3. Keep the instrument clean, and do not pollute the optical elements when wiping away the dust on the instrument.

The objective lenses should be cleaned once every other month by professional.

4. We can clean the contaminations such as fingerprints and oil smudges on the prism by using the Lens paper and

solution, which is mixed by ether(70%) and alcohol(30%).

Noting that alcohol and ether are highly flammable, do keep them away from the fire or potential

sources of electrical sparks, and use them in a drafty room as possible as you can.

5. Do not attempt to use organic solvents to clean the microscope components other than the glass components.

Using neutral detergent to clean them.

6. You should cut off the power immediately and dry it if the microscope is wetted by the liquid when using the

microscope.

7. Do not try to disassemble any part so as not to affect functionality or lower the performance of the microscope.

8. The instrument should be kept in a cool, dry place and should be covered with a dust shield when not be used.

Cover the microscope after the lamp cooling down.

9. Working environmental requirements:

a) Indoor use; b) Temperature range:10℃~35℃;

c) Maximum relative humidity: when the temperature reached 31 ℃ is 80%, linear reduction of temperature

to 34℃ is 70%, when the temperature reached 37℃ is 60%, when the temperature reached 40℃ is 50%.

10. Storage and transportation requirements:

a) Temperature range: -40℃~+70℃ b) relative humidity range: 10%~100%

c) Atmospheric pressure range: 500hpa～1060hpa

warning:

Please operate the microscope in the manner specified in this manual, Otherwise, not only user's safety will be

endangered but also the microscope will be damaged. The microscope shall always be operated in accordance with

this instruction.

◎ This microscope will not cause radiation, electromagnetic interference and other phenomena to the

surrounding environment. It meets CE&UL certification standard.

The following symbols are used in this instruction to highlight text:

means failure to observe the warning in this instruction will result in personal injury to the

operator and/or damage to the instrument (including objects near the instrument)

★means failure to follow this instruction will cause instrument damage.

◎means annotation (for operation and maintenance)

BestScope International Limited

BS-6024, 6025

1. Components Name

The main difference between BS-6024RF/TRF and BS-6025RF/TRF is that BS-6024RF/TRF is manual microscope, BS-

6025RF/TRF has motorized nosepiece. BS-6024RF and BS-6025RF only have reflected illumination, BS-6024TRF and

BS-6025TRF have reflected and transmitted illumination, we will mainly introduce the operation of BS-6025TRF,

other models can refer to BS-6025TRF.

Eyepiece

Reflected Illuminator

Trinocular Viewing Head

Objective

Nosepiece

Stage

Condenser

Microscope base

BS-6025TRF

BestScope International Limited

BS-6025TRF

10*

BS-6024, 6025

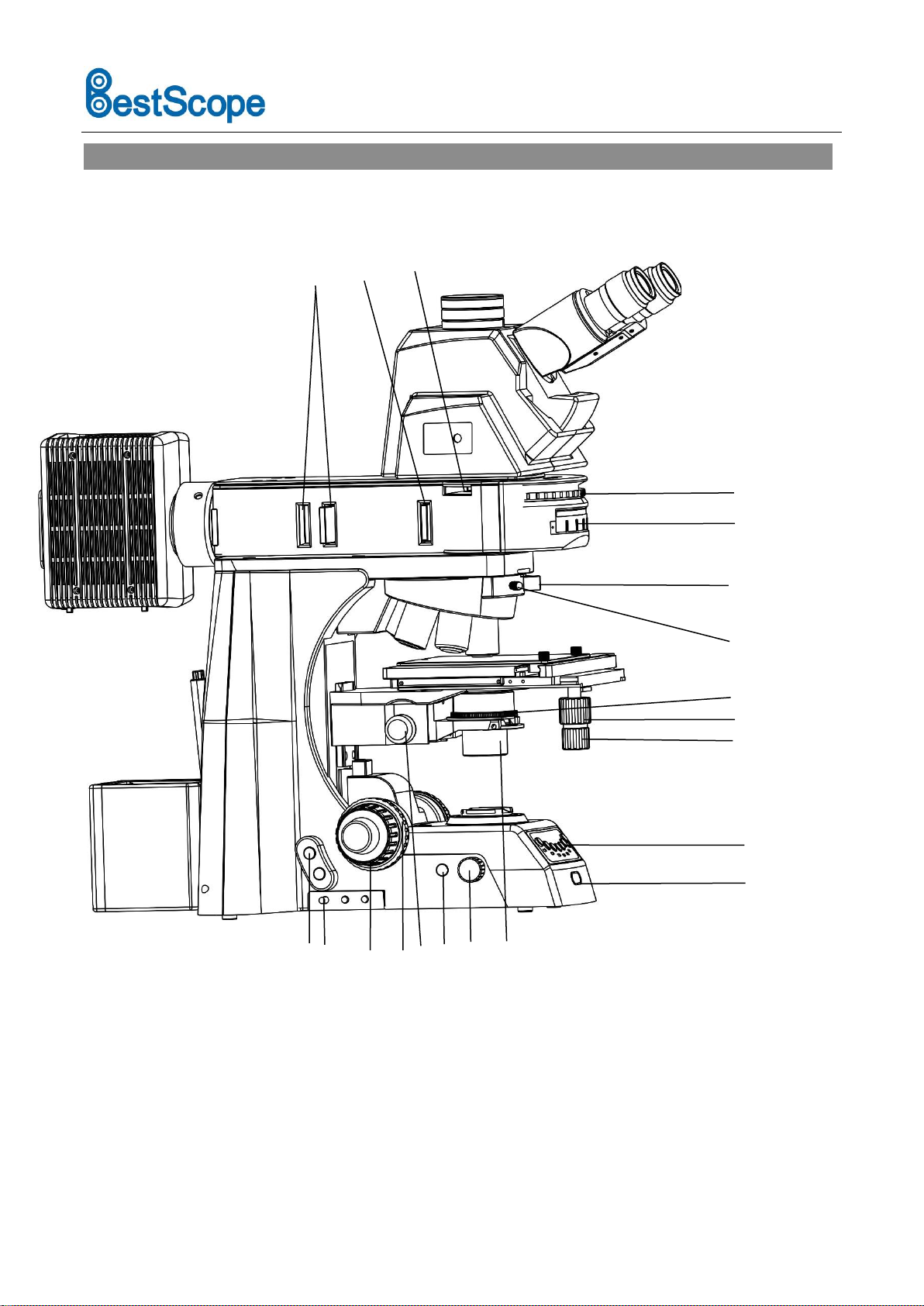

2. Structure

1. Function shortcut keys

2. Filter switch lever

3. Coarse and fine lifting hand-wheel

4. Focusing upper position locking hand-wheel

5. Condenser height adjustment hand-wheel

6. Upper and lower lighting switch button

7. brightness control button

8. Long distance condenser

9. "ECO" infrared induction device

10. Objective switch key area

11. Stage movement hand wheel for X-direction

12. Stage movement hand wheel for Y-direction

13. Condenser diaphragm adjusting ring

14. Extended function board fastening screw

15. Extended function board

16. Excitation light label

17. Rotating spectroscope assembly room

18. Check partial slot

19. The partial slot

20. ND filter slots

* Manual version does not have this function

BestScope International Limited

7☆

15*

BS-6025TRF

BS-6024, 6025

1. Switching lever for optical path observation

2. Aperture switch button

3. Viewing diaphragm

4. Aperture diaphragm

5. Fastening screw for condenser

6. Condenser height adjustment hand-wheel

7. Photograph button

8. Field aperture size adjustment knob

9. Fine focusing hand wheel

10. Coarse focusing hand wheel

11. Lamp room fastening screw

12. Earthing screw

13. Lamp room socket

14. Lamp room plug

15. USB interface

16. Universal wrench

BestScope International Limited

BS-6024, 6025

3. Adjustment and Operation

Fig.1

Fig.2

3-1 Turn on the power (Fig.1)

Turn on the power, change the main switch on the

back of microscope (as shown by the Fig.1) into "-"

(power on) state.

3-2 Light intensity adjustment and upper & lower

light source switch (Fig.2)

As shown by the arrow in Fig.2, The light fades as the

button rotates. Instead, the light enhances.

As shown in Fig.2, when pushing the switch bar of up

and down light source, the upper light source is

lighting, the symbol is ; when pulling out

the switch bar of up and down light source, the

down light source is lighting, the symbol is

3-3 Light source socket (Fig.3)

As shown in Fig.3, there are red dots in the socket

and plug, the direction should be adjusted before

the plug is inserted into the socket, and red dots

should be inserted in alignment. When hearing

"click", it means ok.

Noting screen prints on the left and right socket

corresponds to switch levers of up and down light

source. As shown by the Fig: means light

socket of up light source, which corresponds to the

pushed state of switch bar for up and down light

source; means light socket of down light

source, which corresponds to the pulled state of

switch bar for up and down light source.

switch bar

of up and

down light

source

Dimmer hand-wheel

Red dot

Fig.3

When changing switch levers of up and down

light source, the statement of which is

different from the statement shown by the fig,

please check the plug and make sure the plug

is in the socket.

BestScope International Limited

BS-6024, 6025

3-4 Specimen preparation and placement (Fig.4, Fig5)

1. The specimen (Num② in Fig.4) for observation is fixed

on the sample plate (Num① in Fig.4) by use of silly putty

(Num③ in Fig.4), and ensure the specimen surface is

parallel to the sample plate. You can use the nipping

machine to press the sample. (as shown in Fig.5).

2. Place the sample plate of the fixed

specimen on the microscope stage.

Be careful when replacing the objectives, after the

specimen was observed with a short-range objective lens,

the objective may collide with the specimen when it is

need to replace the objective.

3-5 Pupillary distance adjustment (Fig.6)

The distance range between the pupils is 47mm～78mm.

When observing, we adjust the distance between the

pupils by holding the right and left prism eyepiece tube,

rotating around the axis until both left and right field of

view combined and feel comfortable.

Fig.6

Fig.4

①

②

③

Nipping

machine

Fig.5

BestScope International Limited

BS-6024, 6025

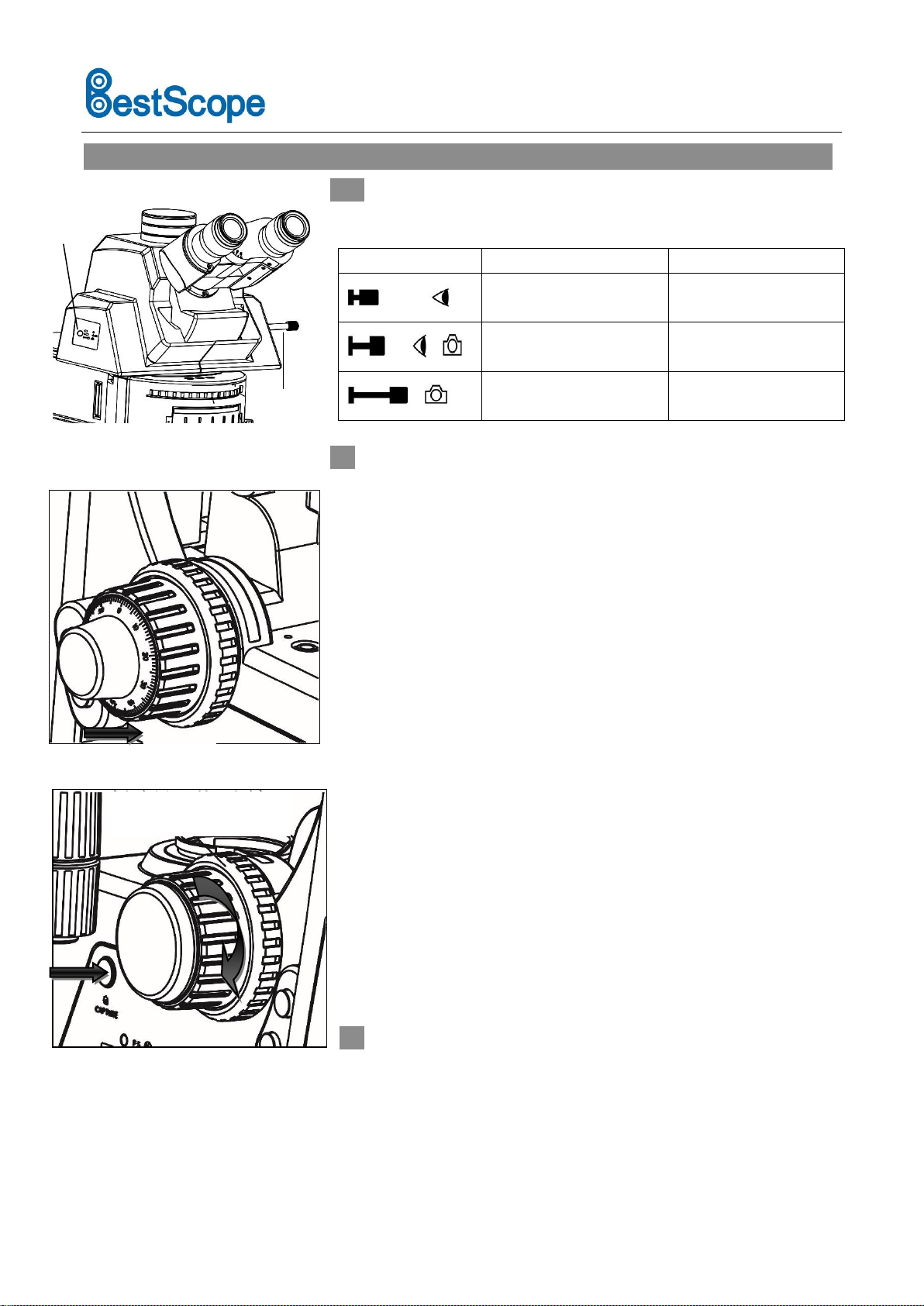

3-6 Three position light-path switch (Fig.7)

Select the desired light path and light intensity ratio as shown by Fig.7

Diagram

Push-pull rod Operation

Eye: Camera light ratio

Completely pushed

100: 0

Middle

20: 80

Completely pulled

0: 100

3-7 Focusing (Fig.8, Fig.9)

1. When no cameras are used:

Push-pull rod (as shown in Fig.7) is completely pushed. When binocular

observing, you can use 10× objective to focus. To prevent the specimen

from colliding with the objective lens, The mechanical stage should be

raised, which brings the specimen close to the objective, then slowly

reverse rotation of the coarse focusing wheel so that the specimen could

be down, meanwhile, you can search the image in the 10× eyepiece, finally

you can focus to clear with the fine focus hand-wheel. At that time even if

you convert to other multiplier objective, the specimen can reach the same

focus without any damage.

2. When Photographic devices are used:

Push-pull rod (as shown in Fig. 7) is completely pushed. Making binocular

observations, when the image is clear, then pulled it out, then it can be

observed by the camera system.

 The fine focusing hand wheels on both sides are held by magnets for easy

removal. All you need is the arrow shown in the Fig.9, Press one end of

the hand wheel inward to make the other curl, then gently pull off the

end of the cock, so hand-wheel is easily detached. Assembly also needs

only hand wheel center alignment put in. This function makes the two

fine-tuning hand wheels conveniently inter changeable, to avoid fine-

tuning hand-wheel and platform handle collision.

3-8 Adjust the tightness of the focusing hand-wheel (Fig.9)

The rotation direction is shown in the Fig.9, the more rotation, the tighter

the focusing hand-wheel is. On the contrary, the less rotation, the less tight

the focusing hand-wheel is.

Light-path

switch sign

Push-pull

rod

Fig.7

Fig.8

Fig.9

Tension adjustment ring

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microscopio de BestScope

BestScope

BestScope BS-2076 Series Manual de usuario

BestScope

BestScope BS-3015 Series Manual de usuario

BestScope

BestScope BS-2046 Manual de usuario

BestScope

BestScope BS-2052BDBD Manual de usuario

BestScope

BestScope BS-2081L Manual de usuario

BestScope

BestScope BS-3003 Manual de usuario

BestScope

BestScope BS-6020RF Manual de usuario

BestScope

BestScope BS-2030B Manual de usuario

BestScope

BestScope BS-3044 Manual de usuario

BestScope

BestScope BS-2070 Manual de usuario

BestScope

BestScope BS-3030 Series Manual de usuario

BestScope

BestScope BS-3035 Series Manual de usuario

BestScope

BestScope BLM-210 Manual de usuario

BestScope

BestScope BLM-205 Manual de usuario

BestScope

BestScope BS-5040B Manual de usuario

BestScope

BestScope BS-3010A Manual de usuario

BestScope

BestScope BS-2026 Series Manual de usuario

BestScope

BestScope BS-2044 Series Manual de usuario

BestScope

BestScope BS-3060A Manual de usuario

BestScope

BestScope BS-2043 Series Manual de usuario

BestScope

BestScope BS-3001 Series Manual de usuario

BestScope

BestScope BS-2010BD Manual de usuario

BestScope

BestScope BS-5092 Series Manual de usuario

BestScope

BestScope BS-2020BD(300) Manual de usuario

Manuales populares de Microscopio de otras marcas

Thermo Scientific

Thermo Scientific Nicolet iN10 Guía

National

National DC3-163 Manual de usuario

KERN Optics

KERN Optics OPE-1 Manual de usuario

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manual de usuario

Prior

Prior Lux POL Manual de usuario

Opitec

Opitec Smartscoop 115615 Manual de usuario

KERN

KERN OPO-1 Manual de usuario

Topcon

Topcon SP-1P Manual de usuario

Motic

Motic PA43 Manual de usuario

Leica

Leica DVM5000 Guía del usuario

MshOt

MshOt MZ62 Manual de usuario

KERN Optics

KERN Optics OZR-5 Manual de usuario

VWR

VWR VisiScope 384 Series Manual de usuario

Nikon

Nikon ECLIPSE E200 POL Manual de usuario

Leica

Leica DI C800 Manual

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

Olympus

Olympus SZ61 Manual de usuario
