This manual is written for digital monocular microscope BS-2010MD.

ensure the safety, obtain optimum performance and to familiarize the

use of this microscope, it is recommended strongly that you study this

manual thoroughly before using the microscope and retain this manual in

an easily accessible place near the work desk for future reference.

Bestscope

Bestscope International

International

International Limited

Limited

1. Brief

Brief

Brief introduction

introduction

Digital monocular microscope BS-2010MD is widely used in biological, pathological,

bacteriological fields for purposes such as observation, research, academic demonstration, clinic,

medical inspection. It features more comfortable and reliable operation with modern design and

advanced technology.

2. Main

Main

Main Specifications

Specifications

1. Mechanical tube: 160mm

2. Objectives (achromatic) ：

Magnification Numerical

Aperture

Focal Length

f (mm)

Working

distance

(mm)

4X 0.10 31.05 37.5

10X 0.25 17.13 7.316

40X 0.65 4.65 0.632

100X 1.25 2.906 0.198

Eyepiece

Objective

Stage

Coarse focusing knob

Fine focusing knob

Condenser

Main switch

Brightness adjusting knob

Digital

Monocular head

Collector

Limit bolt

Bestscope

Bestscope International

International

International Limited

Limited

3. Eyepiece

Category Magnification Focal Length f(mm)

Field of view （mm ）

Plan

Eyepiece

10X 24.95 Ø 18

4. Total Magnification

Eyepiece 10X 10X 10X 10X

Objective 4X 10X 40X 100X

Total 40X 100X 400X 1000X

5. Objective conjugate distance:195mm

6. Stage: double layer stage 125mmX115mm

7. Coarse focusing range: 6.5mm

8.Condenser: Abbe Condenser ，NA=1.2 with iris diaphragm

9.Diameter of filter ：Ø 28mm

10.Illuminator ：LED Lamp ，brightness adjustable

3. Outfit

Outfit

Name Specifications Standard outfit

Body

Stand O

Double-layer mechanical stage O

Base （LED lamp ）O

Viewing Head Monocular digital head O

Condenser NA1.2 Abbe Condenser O

Nosepiece Quadruple O

Illuminator LED lamp O

Eyepiece 10X Plan Eyepiece O

Objectives

4X O

10X O

40X O

100X O

Immersion oil O

AC Adapter O

User Manual O

Package O

4. Structure

Structure

Structure Feature

Feature

a) Eyepiece

Eyepiece

Eyepiece ,

, objective

objective

objective and

and

and nosepiece

nosepiece

10X plan eyepieces combined with 4X , 10X , 40X , 100X achromatic objectives can give

the microscope a large and clear field of view. The nosepiece has a precise frame which

can locate objectives accurately and stably 。The digital monocular head can turn 360

degree freely with comforts and conveniences.

b) Curved

Curved

Curved arm

arm

arm and

and

and coarse

coarse

coarse and

and

and fine

fine

fine focusing

focusing

focusing frame

frame

The C-type molding of the curved arm is sprightly. The coarse focusing frame adopts

Bestscope

Bestscope International

International

International Limited

Limited

dovetail guide and move smoothly with upper limit device.

c) Base

Base

The base, with built-in illuminator, is the foundation of whole microscope which adopts

streamline circular i n consonance with the curved arm.

d) Stage

Stage

Use double-layer mechanical stage, the slide is fixed with slide clip.

e) Illumination

Illumination

Illumination system

system

The illumination system consists of illuminator, iris diaphragm and condenser.

Abbe condenser can be raised and lowered by simple operation.

5. Assembly

Assembly

A) Environmental

Environmental

Environmental Requirement

Requirement

Requirement ：

1.Ambient temperature: 5 ° C to 40 ° C(41 ° F to 104 ° F),Maximum R.H ：85% 。

2. High Temperature will result in a mildewing, dew and even ruinous instrument.

3. Avoid placing the instrument in a dusty environment. When ending your microscope

operation, please cover it with the dust cover.

4. Lay the microscope in a plan and stable position, please.

B) Input

Input

Input voltage

voltage

voltage check:

check:

Check the input voltage: be sure the input voltage which signed in the back of the

microscope is consistent with the power supply voltage, or it will bring a serious damage to

the instrument.

C) Eyepiece:

Eyepiece:

Insert the eyepiece into the eyepiece tube.

D) Objective:

Objective:

Adjusting the coarse focus knob until the mechanical stage reaches its lower limit

position.

Screw the lowest magnification objective into the nosepiece from the left or the right

side, then revolve the nosepiece clockwise and mount other objectives in the sequence of

low to high magnification

E) Condenser:

Condenser:

The condenser had been installed in the microscope before leaving factory.

F) Collector:

Collector:

The collector had been installed and located before leaving factory. The screw-mounted

collector can be taken down by anticlockwise turning.

H) Filter:

Filter:

Bestscope

Bestscope International

International

International Limited

Limited

Mount the filter on the iris diaphragm bracket under the condenser if necessary.

6. Operation

Operation

1. Insert the eyepiece into the eyepiece tube and revolve the objectives into the

nosepiece in sequence of magnification.

2. Place the specimen in the center of the stage, keeping the cover slip upward, and then

nip it with the specimen holder.

3. Search the image by lower magnification objective, turn the longitudinal and transversal

adjustment knobs which on the mechanical ruler to move the specimen onto the center of

the field of view. Then replace with higher magnification objective, turn the fine focusing

knob to sharpen the image.

4. When using 100X oil objective, add the cedar oil between the objective and specimen.

You

should be aware of the cleaning procedures to be used after the use of oil. Wipe oil

from the oil immersion objective, and from any other parts in need of cleaning. Clean lenses

immediately with xylene after use. Leaving oil on the lens may lead oil to seep behind and

harden on the inside of the lens.

★

obtain a bright and clear image, it is import to adjust the illumination system. The

condenser position and the iris diaphragm size should match with objectives of different

magnifications. Turn the condenser focus knob to shift the condenser. It needs to raise the

condenser when using the high magnification objective, and to decline when using the low

magnification one.

★The aperture diaphragm is used to adjust the numerical aperture instead of brightness.

Generally, setting the size of the aperture diaphragm at 70% ～80% of the numerical aperture,

you can obtain a clear image with enough contrast.

★For observing a batch of specimen of the same type, use the limit bolt to locate general

position of the stage to simplify operation. In this way, the specimen can come into focus

rapidly just by turning the coarse focusing knob.

Note:

Note: specimens of the same type means they are same in the thickness of slide, cover

slip and specimen slice.

7. Maintenance

Maintenance

1. Carefully open the box, avoid the accessories, like lens, dropping to ground and being

damaged.

2. All the lenses have been well checked and adjusted. It is forbidden to disassemble them

by user self.

3. The nosepiece and coarse/fine focus unit have a compact and precise frame, so please

don ’ t disassemble them as possibly as you can.

4. Keep the instrument clean, wipe dust regularly, apply a little non-corrosive grease in the

sliding parts and be attention to avoid contaminating the optical elements especially.

Bestscope

Bestscope International

International

International Limited

Limited

5. Place the instrument in a cool, dry position. When not using the microscope, keep it

covered with a dust helmet. Make sure the lamp socket is cool before covering the

microscope.

8. Troubleshooting

Troubleshooting

Under certain conditions, performance of this unit may be adversely affected by factors

other than defects. If a problem occurs, please review the following list and take remedial

action as needed. If you cannot solve the problem after checking the entire list, please contact

your local franchiser for assistance.

）

. Optical

Optical

Optical part

part

Problem Cause Solution

The edge of the field

of view has shadow

or the brightness is

asymmetry

The nosepiece is not in the located

position （objective is not in the center

of the optical path ）

Turn objective to the

right position(the optical

light center)

The image of the filament is not in the

center

Center it

The surface of the lens is moldy or has

contaminant （include condenser,

objective, eyepiece and collector ）

Clean it up

Find dust and stain in

the field of view

There are stains on the lens （include

condenser, objective, eyepiece and

collector ）

Clean it up

There are stains on the specimen Clean it up

The position of the condenser is too

low

Raise it to proper

position

The image is

defocused ( low

resolution \ contrast)

There is no coverslip on the specimen Add coverslip

The coverslip is too thick or too thin

Use the standard

coverslip ( 0.17mm )

The specimen is placed inversely Reverse it back

There was oil on the dry

objective(easily happened in 40X

objective)

Clean it up

There are stains on the lens （including

condenser, objective, eyepiece and

collector ）

Clean it up

The oil objective didn ’ t immerse oil Use immerse oil

There was bleb in the oil Eliminate the bleb

Use a unsuitable oil

Change to the specified

one

The size of the aperture diaphragm is

too large

Minify it

Bestscope

Bestscope International

International

International Limited

Limited

The size of the aperture diaphragm is

too small

Open it up

The position of the condenser is too

low

Adjust the position

One side of the

image is dark

The condenser is not in the center of

the field of view\the condenser

inclines

Re-install the condenser

The nosepiece is not in the right

position

Turning it until it reach

the “ clicked ” position

The specimen is floating Fix it

The image shift

during focusing

The specimen slips on the stage Fix it

The nosepiece is not in the right

position

Turn it to the

“ clicked ” position

）

. Mechanical

Mechanical

Mechanical part

part

TROUBLE CAUSE SOLUTION

The image can focus

when using high

magnification

objective

The specimen is placed inversely

The coverslip is too thick

Turn inversely

Use the standard

coverslip （0.17 mm ）

The objective and the

specimen touch

when change

objectives from low

magnification to

higher magnification

The specimen is placed inversely

The coverslip is too thick

Turn inversely

Use the standard

coverslip （0.17 mm ）

The specimen is

not easy to move

The specimen holder is not fixed Fix it

The eyes are too

tired

The brightness is not suitable

Adjust the voltage of the

lamp

）

. Electrical

Electrical

Electrical Part

Part

TROUBLE

TROUBLE CAUSE

CAUSE

CAUSE SOLUTION

SOLUTION

The lamp can ’ t light

when turning on the

switch

No power supply Check the connection of

the power cord

The LED lamp is burnt out Replace it

The lamp burns out

suddenly

The voltage is too high Use the specified AC

adapter, if the problem is

not solved, contact with

the service department

Bestscope

Bestscope International

International

International Limited

Limited

The brightness is not

enough

Use a substandard AC adapter Use the specified AC

adapter

The voltage is too low Add the voltage

．

The

The software

software

software Scopeimage

Scopeimage

Scopeimage 9.0

9.0

1) Installation

Installation

1. Link the digital Monocular head with PC by the USB cable, the system will find the new device,

and then run the driver under the CD, please follow the clue to finish the installation.

Attention:

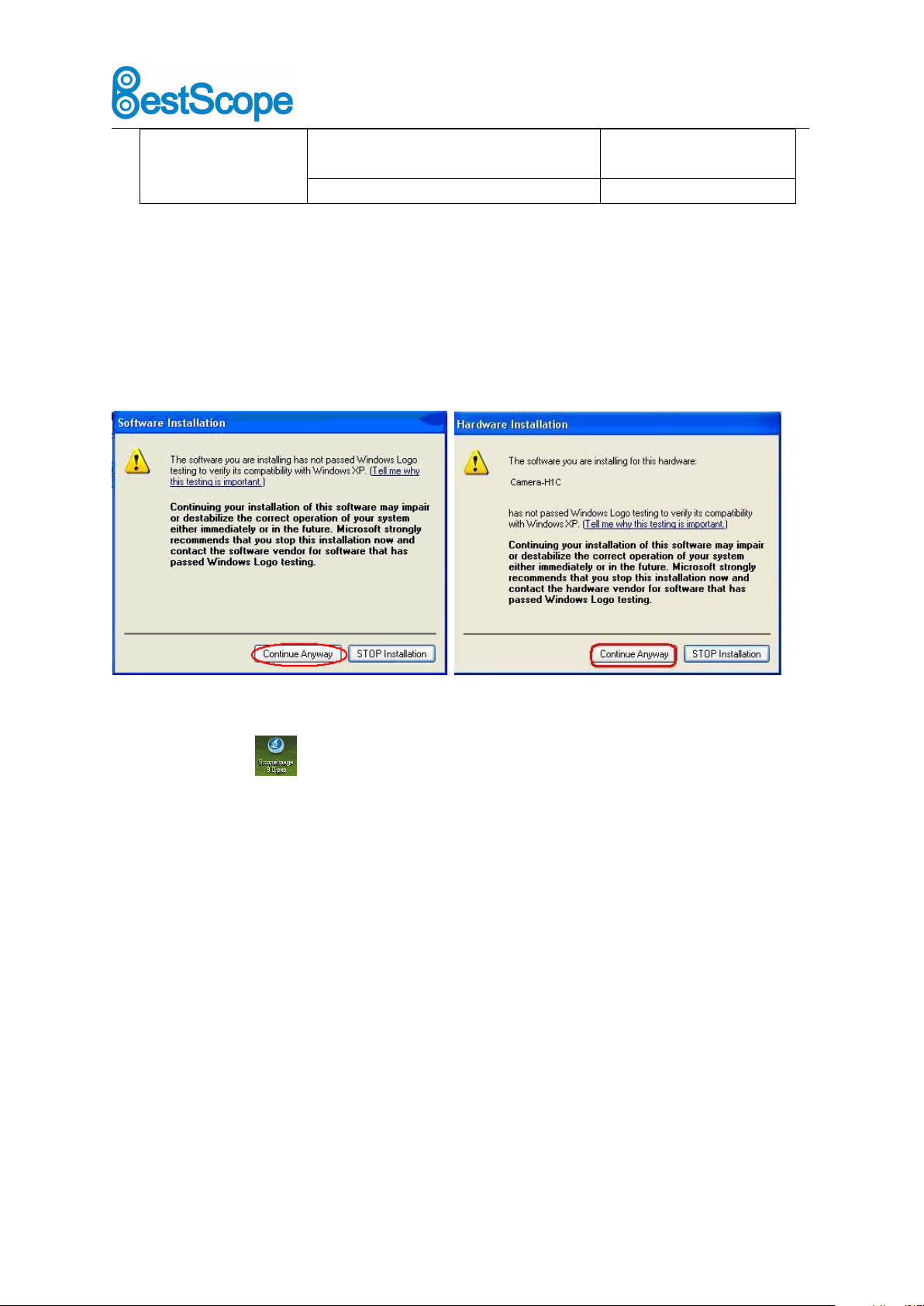

Attention: please link the camera with PC before running the driver installation; and when

there comes out warning dialog, just click ‘ Continue Anyway ’ , as the pictures show below:

2. Install the software, follow the clue to finish the installation, after the installation, there will be a

shortcut icon on the Desktop and the Start Menu.

3. Please install the video codec ‘ wmv9VCMsetup.exe ’ , it can compress the video files when

recording, and greatly reduce the size of the video files. If you can not do record, please

check whether you have installed the video codec already.

4. Double click the shortcut icon on the desktop to preview the images, please insure the

camera has linked with the PC, and the driver has been installed rightly, or there will come out

an error hint: Cannot preview successfully. Please check your camera.

Attention:

★Please install all the three setup files in the CD, otherwise the camera may can not work

normally.

★USB2.0 is a mandatory, not optional. This camera cannot work on the computers with USB1.1

ports. In order to ensure the stability of the connection with the USB2.0 interfaces, please

insert the plug into those interfaces in the back panel the mainframe.

Bestscope

Bestscope International

International

International Limited

Limited

★Please use the same USB2.0 port every time. Using on a different USB2.0 port requires

reinstalling or updating the driver again to make the camera work rightly. If not, it will influence the

performance of the camera, and cause the live image displays drag, for there is another system

driver, and the system set it as default driver.

★Support operation system: Windows2000/XP/Vista 32bit, for 64bit PC processor, please

installs the 32bit operation system.

★Please unplug the USB cable from the computer immediately after using. It will shorten the

lifetime of the camera, sometimes may cause repair service if the camera is plugged in the

computer all the time and you do not shut down the computer for a long time.

2) Operation

Operation

ScopeImage 9.0 is image-processing software professionally designed for digital microscope. It

allows you to view, capture, edit, record, zoom, measure, and process microscope images. The

main interface of the software is as follows:

Bestscope

Bestscope International

International

International Limited

Limited

Besides image windows, many other windows or user interface elements reside within the main

window of ScopeImage 9.0. These include menu, toolbars, status bar and control windows,

providing additional information about the images or control of the camera.

ScopeImage 9.0 mainly divides into two parts operation, one is for the video operation, and the

other one is for the image operation;

Video operation includes video preview, video control, color adjustment, video capture, ect.

Image operation includes image processing, image flip, image calibration and measurement, ect.

ScopeImage 9.0 is image-processing software professionally designed for digital microscope. It

allows you to view, capture, edit, record, zoom, measure, and process microscope images.

Specific features included are as follows:

1）Active image preview, freezing preview, fit to window preview, real preview, full screen

preview … various preview modes make you preview the active images with great ease.

2）Convenient color adjustment of the active image, containing brightness, contrast,

saturation, RGB value, white balance and so on, very convenient to adjust the color

during previewing.

3）Special design color database, we can associate the parameters of the color to the

database, and can store or delete the color scheme.

4）Various image measurement tools, including line, angle, rectangle and circle, can move,

delete or set the color of the objects. And you can also burn all the objects into the image

for further using.

5）Basic image operations like other similar software are included in the Image menu. You

can adjust the image at ease.

6）Image flip function, include horizontal flip and vertical flip of the active image, and rotate

90 degree, 180 degree, 270 degree or any angle degree of the captured image.

7）Image Zoom: Contain image zoom in, zoom out, 1:1.

Attention:

When launching the software, there will be several seconds displays as black preview, please

don ’ t worry, it is normal, because the camera needs time to do some pretreatment, to ensure the

stable working of the camera. The same reason for the recording, when you begin to record, it will

displays as black preview for several seconds, and when the images display normal, the

recording begins.

Detail information about how to operate the software, please refer to the user manual in the CD.

Otros manuales de Microscopio de BestScope

BestScope

BestScope BS-2040FB(LED) Manual de usuario

BestScope

BestScope BS-2044 Series Manual de usuario

BestScope

BestScope BS-2020BD(300) Manual de usuario

BestScope

BestScope BPM-620 Manual de usuario

BestScope

BestScope BS-6012 Series Manual de usuario

BestScope

BestScope BS-2030MH10 Manual de usuario

BestScope

BestScope BS-6045 Manual de usuario

BestScope

BestScope BS-2023B Manual de usuario

BestScope

BestScope BS-3012 Series Manual de usuario

BestScope

BestScope BS-2080MH10 Manual de usuario

BestScope

BestScope BS-2080MH4 Manual de usuario

BestScope

BestScope BS-2081 Manual de usuario

BestScope

BestScope BS-6020DRF Manual de usuario

BestScope

BestScope BS-2094C Manual de usuario

BestScope

BestScope BS-2042 Series Manual de usuario

BestScope

BestScope BS-6005 Manual de usuario

BestScope

BestScope BS-6010R Manual de usuario

BestScope

BestScope BS-2080MH6 Manual de usuario

BestScope

BestScope BS-2040B Manual de usuario

BestScope

BestScope BS-2005 Series Manual de usuario

BestScope

BestScope BS-3015 Series Manual de usuario

BestScope

BestScope BS-2053 Series Manual de usuario

BestScope

BestScope BS-2030MH4A Manual de usuario

BestScope

BestScope BS-2036 Series Manual de usuario

Manuales populares de Microscopio de otras marcas

Thermo Scientific

Thermo Scientific Nicolet iN10 Guía

National

National DC3-163 Manual de usuario

KERN Optics

KERN Optics OPE-1 Manual de usuario

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Manual de usuario

Prior

Prior Lux POL Manual de usuario

Opitec

Opitec Smartscoop 115615 Manual de usuario

KERN

KERN OPO-1 Manual de usuario

Topcon

Topcon SP-1P Manual de usuario

Motic

Motic PA43 Manual de usuario

Leica

Leica DVM5000 Guía del usuario

MshOt

MshOt MZ62 Manual de usuario

KERN Optics

KERN Optics OZR-5 Manual de usuario

VWR

VWR VisiScope 384 Series Manual de usuario

Nikon

Nikon ECLIPSE E200 POL Manual de usuario

Leica

Leica DI C800 Manual

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Manual de usuario

Olympus

Olympus SZ61 Manual de usuario
