Service Manual

BERNINA

Model 1030 - 1020

1000 1015-

free www.occaphot.chonownloadd

page 13

Table of Contents

Parts of

your machine page 1

Removing covers page 2

Clean and lubricate page 3 – 5

Hook position and timing page 5 – 7

Bobbin tension page 7

Top tension page 8

Troubleshooting guide page 9 - 11

Downloaded from www.Manualslib.com manuals search engine

Removing Covers

MAKE SURE THE MACHINE IS NOT PLUGGED IN BEFORE

STARTING.

On the back of the machine, remove the screws as shown. On

the back of the open arm you will find covers on two of the

screws. The third screw on the arm is a 2.5mm Allen screw.

Carefully lay the machine on its back and remove the three

screws as shown.

Remove the hand wheel cover and the dial. They come off by

gently prying with a small screw driver. Remove the hand wheel

screw and cover screw then remove the hand wheel. Remove

the screw under the hand wheel. You can now carefully take off

the rear and side covers which come off together.

Clean and Lubricate

The best way to remove lint from the machine is with

compressed air. Blow all the lint from the machine. Remove all

lint from the gears and again from the bobbin area and feed

dogs.

When oiling your machine make sure you use a good quality

oiler and clear sewing machine oil.

This type of oiler is good because it has an extendable

spout and only lets out small drops of oil. A drop of oil is the

amount of oil left on the tip of a needle if you did it in oil.

Clean all lint from the open arm area and needle bar area. You

can access the needle bar area from the back though the access

holes. Oil all moving parts but be careful to use very little oil in

the needle bar area as the oil will find its way onto your fabric.

Clean off any excess with a soft cloth.

Clean and Lubricate Continued

Remove the needle plate and hook. Clean the race and race

cover of all lint and old oil. Use a bit of oil to clean the race

grooves. Re oil the race and hook pin.

MAKE SURE YOU ONLY TOUCH THE OUTTER EDGES OF THE

BOARD WITH YOUR HANDS.

Remove the screws from the power

board. Unplug the color coded wires from the board. The board

will fold down towards you.

Clean and Lubricate Continued

Clean and oil all moving parts

behind the board. Again do not use too much oil. Be careful not

to get oil on the plastic parts. Clean off any excess with a soft

cloth.

The gear set behind the power board requires

light gear grease.

Hook Position and Timing

Turn the hand wheel so the needle is at its

lowest position. The tip of the hook should line up with the edge

of the race.

Hook Position and Timing Continued

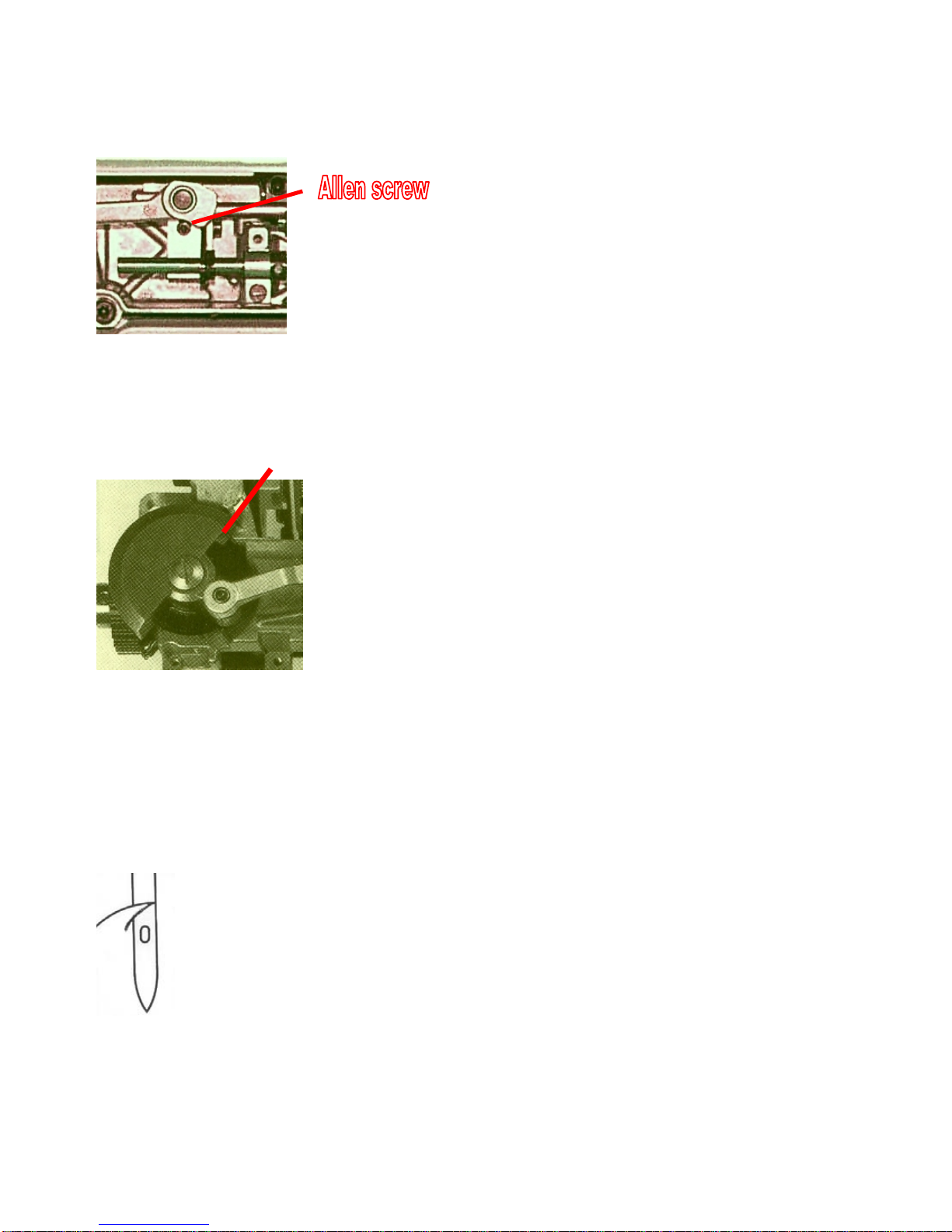

If they do not line up, loosen the Allen screw on

the hook drive arm ½ turn. Line up the hook. Tighten the screw

and recheck the position.

Locate the hook crank behind the power

board on the back of the machine. Set the machine to right

needle position by pushing the needle bar to the right almost all

the way. Turn the hand wheel until the hook and needle meet.

The hook crank should line up as shown.

The hook and needle should meet as shown.

Hook Timing Continued

If the crank does not line up, locate the Allen

screw on the back of the hand wheel. Loosen the screw ½ turn.

Line up the hook and needle as shown. Tighten the screw and

recheck the timing. MAKE SURE YOU DO NOT LET THE HAND

WHEEL MOVE IN OR OUT.

Bobbin Tension

To check the bobbin tension, insert a bobbin wound

with medium weight, light color thread into the bobbin case.

Snap the bobbin case onto the hook. Hold the bobbin case and

hook up with the thread. If you jerk your hand the hook and

bobbin case should drop down 1 – 2 inches.

Turn the screw clock wise to tighten and

counterclockwise to loosen.
