Bentel Security FireClass 200 Manual de usuario

The FireClass200 is available in the following models:

FC200 - Master panel with 4 A Linear power supply;

FC200/S - Master panel with 2.5 A Switching power supply;

FC200/SL - Slave panel without power supply unit.

In this manual the name FireClass200 has been used to identify the

control panel features that are common to all three models. However,

the model has been specified when a feature applies to one model only.

BENTEL SECURITY declines all responsibility in the event of unauthori-

zed intervention on the FireClass200 control panel.

The FireClass200 control panel has been developed and made according

to the highest standards of quality, reliability and performance adop-

ted by BENTEL SECURITY srl.

Proper functioning of the FireClass200 components can only be guaran-

teed when ambient conditions, external to the cabinet, comply with the

3k5 category of the IEC 721-3-3:1978.

Installation of the FireClass200 control panel must carried out stric-

tly according to the instructions, and in compliance with the safety

laws in force.

The Loops of the FireClass200 control panel can support up to 396 Ana-

logue Devices. The Conventional Zone of the FireClass200 control panel

can support up to 30 Conventional Devices. However, do not connect

more than 512 devices to the FireClass200 control panel.

The FC200/SL Slave panel must have the BENTEL BA424 (27.6 V - 4 A) Li-

near power supply or the BENTEL BAQ60/24 (27.6 V - 2.5 A) Switching

power supply, otherwise, the IMQ Certification will be forfeited.

The FC200/SL Slave panel power supply must be installed by personnel

with Access Level no.4 (see "Access Levels" paragraph).

The FC200/SL Slave panel can function only when connected to a Fire-

Class200 Master panel.

BENTEL SECURITY srl reserves the right to change the technical featu-

res of this product without prior notice.

via Florida - Z.I. Valtesino - 63013 GROTTAMMARE (AP) - ITALY

Installation manual: Analogue Fire Control Panel FireClass200

Istruzioni Inst. Inglese Antin. FC200/UK ISTINSFC200/UK

TABLE OF CONTENTS

OVERVIEW 7

Access Levels . . . . . . . . . . . . . . . . . . . . . . 7

Features . . . . . . . . . . . . . . . . . . . . . . . . . 7

Options with requirements . . . . . . . . . . . . . . . . 8

Telecom Module FC200/COM (Optional) . . . . . . . . . 8

Alarm cycle . . . . . . . . . . . . . . . . . . . . . . . . 8

PARTS IDENTIFICATION 11

Main unit (FireClass200) . . . . . . . . . . . . . . . . . 11

Output Expander (FC200/6OUT) . . . . . . . . . . . . 18

Loop Interface . . . . . . . . . . . . . . . . . . . . . . 18

Telecom Module FC200/COM . . . . . . . . . . . . . . 19

Repeater . . . . . . . . . . . . . . . . . . . . . . . . . 20

INSTALLATION 21

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . 21

Output expander Installation . . . . . . . . . . . . . . 22

Telecom module installation FC200/COM . . . . . . . 22

Repeater Installation . . . . . . . . . . . . . . . . . . 22

Connections . . . . . . . . . . . . . . . . . . . . . . . 23

Main board terminals . . . . . . . . . . . . . . . . . . 23

Connection of Addressable Analogue Devices . . . . 26

Connection of Conventional Devices . . . . . . . . . 28

Connection of Repeaters and Slave Panels . . . . . . 29

Connection of Output Devices . . . . . . . . . . . . . 30

Bell Outputs . . . . . . . . . . . . . . . . . . . . . . . 30

Connection of Telecom Module FC200/COM . . . . . 31

Power Connection . . . . . . . . . . . . . . . . . . . . 32

Maintenance . . . . . . . . . . . . . . . . . . . . . . . 33

CONTROL PANEL MANAGEMENT 35

General rules for management from panel . . . . . . 36

Access to FireClass200 Management . . . . . . . . . 37

PROGRAMMING 39

Auto (Autolearning) . . . . . . . . . . . . . . . . . . . 40

Connections: Loop 1 and Loop 2 . . . . . . . . . . . . 41

Connections: Network . . . . . . . . . . . . . . . . . 43

Programming: Fire sensors . . . . . . . . . . . . . . . 44

Programming: Monitoring modules . . . . . . . . . . . 46

Programming: Control modules . . . . . . . . . . . . 47

Programming: Conventional Zone module . . . . . . . 48

Programming: Repeaters and Slave panels . . . . . . 49

Devices . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Loop 1 and Loop 2 . . . . . . . . . . . . . . . . . . . 50

Conventional Line . . . . . . . . . . . . . . . . . . . . 51

Bell Outputs . . . . . . . . . . . . . . . . . . . . . . . 52

Network . . . . . . . . . . . . . . . . . . . . . . . . . 54

Password (PassWD) . . . . . . . . . . . . . . . . . . . 54

Welcome Message (MesINI) . . . . . . . . . . . . . . . 55

Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

OPTION . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Prealarm time . . . . . . . . . . . . . . . . . . . . . . 58

Warning Threshold . . . . . . . . . . . . . . . . . . . 58

Alarm Verify . . . . . . . . . . . . . . . . . . . . . . . 59

Drift Compensation . . . . . . . . . . . . . . . . . . . 60

Timer and Special timer . . . . . . . . . . . . . . . . 61

Delay . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Pulse . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Extinction Modes . . . . . . . . . . . . . . . . . . . . 64

System . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Date and Time . . . . . . . . . . . . . . . . . . . . . 66

Blink . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Wires . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Silence mode . . . . . . . . . . . . . . . . . . . . . . 68

Walk Test . . . . . . . . . . . . . . . . . . . . . . . . 69

Network . . . . . . . . . . . . . . . . . . . . . . . . . 70

Printer . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Verify . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Factory . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Restore default . . . . . . . . . . . . . . . . . . . . . 72

4Analogue Fire Control Panel FireClass200

Maintenance . . . . . . . . . . . . . . . . . . . . . . 72

Telephone . . . . . . . . . . . . . . . . . . . . . . . . 73

Dial. (Telephone Dialler) . . . . . . . . . . . . . . . . 74

Commun. (Digital Telephone Communicator) . . . . . 76

T.Num (Telephone Numbers) . . . . . . . . . . . . . 78

Options . . . . . . . . . . . . . . . . . . . . . . . . . 78

Remote management . . . . . . . . . . . . . . . . . . 80

MODIFYING 81

Disable . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Delete Verify . . . . . . . . . . . . . . . . . . . . . . . 84

Delete logger . . . . . . . . . . . . . . . . . . . . . . . 85

Telecom Module . . . . . . . . . . . . . . . . . . . . . 85

READING PARAMETER 87

Devices/Zones/Outputs . . . . . . . . . . . . . . . . . 87

Options . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Version . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Logger . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Logger data . . . . . . . . . . . . . . . . . . . . . . . 90

Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Telecom Module . . . . . . . . . . . . . . . . . . . . . 92

QUICK GUIDE 95

General features . . . . . . . . . . . . . . . . . . . . . 95

Terminals . . . . . . . . . . . . . . . . . . . . . . . . . 96

6Analogue Fire Control Panel FireClass200

OVERVIEW

Access Levels

FireClass200 has several access levels for control panel management.

Level 1 The Plexiglas window allows all persons to view the control panel status.

Level 2A The door-lock protects the manual commands (RESET, SILENCE and

LOGGER), and allows access to authorized key holders only.

Level 2B Only User PINs (code of 1 to 5 digits) can Disable the Loop devices, Bell

Outputs, Software Zones and Network devices.

Level 3A Only the Installer PIN (code of 1 to 5 digits) can access the programming

phase of the control panel parameters.

Level 3B Access to the internal components of the control panel, for maintenance pur-

poses ---- battery and fuse replacement etc., must be done by authorized

persons only, and requires removal of the screws and upper door.

Level 4 Repairs to the electronic board (e.g. to substitute the EPROM memory)

must be done by the manufacturer.

Features

Day/Night The FireClass200 control panel provides Day mode and Night mode. The

Alarm Threshold and Warning Threshold can be increased by the pro-

grammed value, during programmed hours.

In this way false alarms, caused by the persons present in the protected

ambient, will be reduced considerably.

DAY Mode ----Silence will be enabled until the SILENCE button is pressed

again.

NIGHT Mode ----Silence will be enabled for the programmed time (from 0.5

to 30 minutes).

The change-over from DAY to NIGHT Mode can be done manually, by me-

ans of the Silence option from the SYSTEM menu or automatically, as per

the programming of the two Timers (it is possible to program the precise

hours and days of the week when the control panel must operate in DAY

Mode).

OVERVIEW 7

Options with requirements

The FireClass200 control panel performs the following options with requi-

rements (complies with European norm EN54 part 2):

Øoutputs to fire alarm routing equipment

Øco-incidence detection

Øfault signals from points

Ødisablement of addressable points

ØTest condition

Telecom Module FC200/COM (Optional)

The Telecom Module can call and send recorded messages to the pro-

grammed telephone numbers and, by means of communication protocols,

can also send data to central stations. This module allows system mana-

gement ---- through the FC200/SW software package installed on the PC

that is connected to the telephone line.

Description

r8 independent channels

rRecords one 11 second alarm message for each channel

r32 programmable telephone numbers (modifiable)

rUp to 15 digits per telephone number; allows pauses of 1 or 5 seconds

rRepeats alarm messages for 20, 40, 60 or 80 seconds

rRepeats call cycle up to 5 times

rVoice answer detection

rBypassable "dial tone" test

rElectronic telephone line interface

rOver-voltage protection

rDTMF and Pulse dialling

rDigital recording / Message play

rNon-volatile memory for data storage

rManages the following communication protocols:

ADEMCO SLOW 10 BAUD, ADEMCO FAST 14 BAUD, FRANKLIN 20

BAUD, RADIONICS 40 BAUD, SCANTRONIC 10 BAUD, CONTACT ID

(DTMF), SIA 300 BAUD.

Alarm cycle

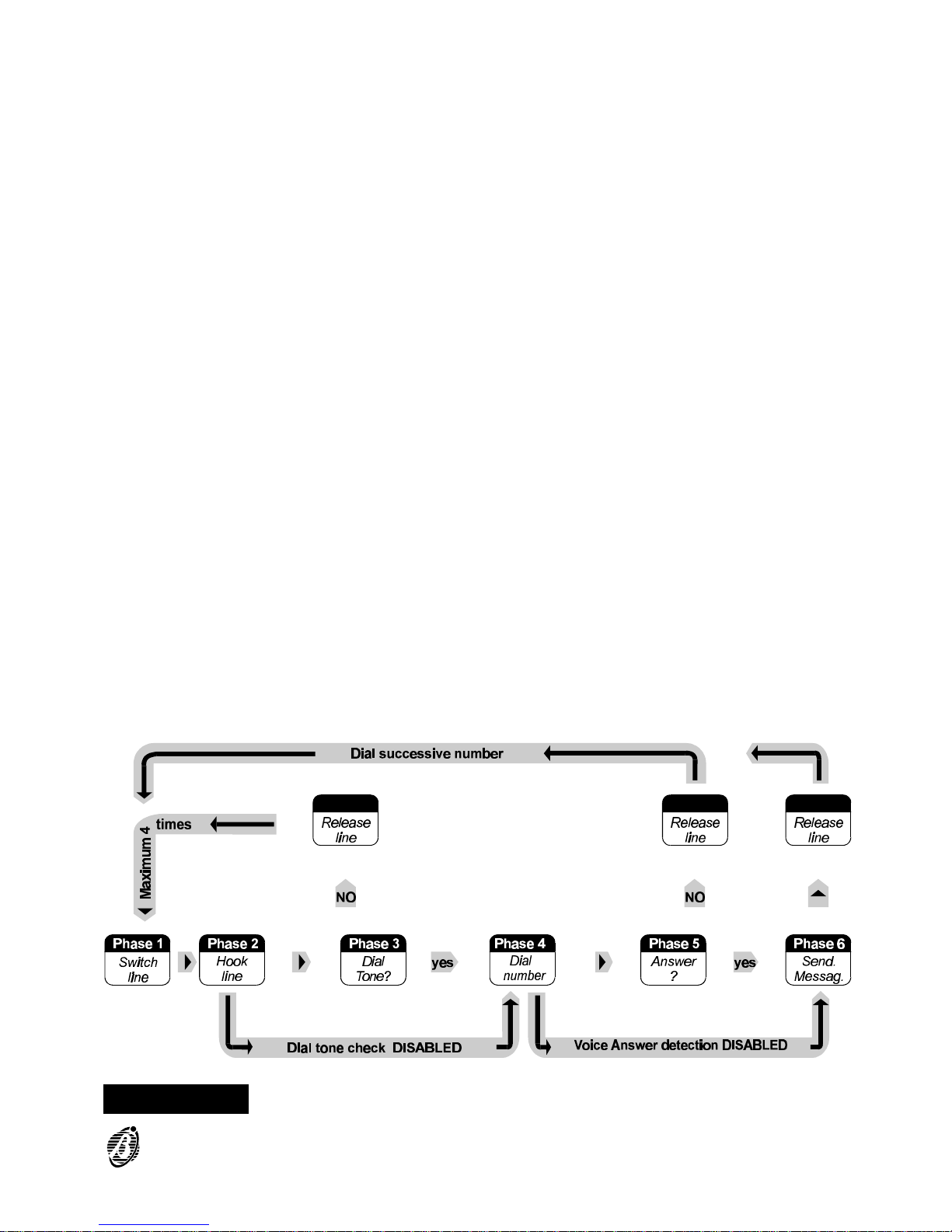

In the event of an alarm status on an alarm channel, the telephone dialler

will generate the alarm cycle, shown in figure 1.

8Analogue Fire Control Panel FireClass200

Phase 1 The telephone dialler will switch the telephone line.

Phase 2 After 3 seconds the dialler will engage the telephone line.

Phase 3 If the Dial-tone check option is enabled (refer to "Programming" chapter)

the dialler will check for the dial tone, and when detected, will step to suc-

cessive phase. If the dial tone is not detected (option enabled) the dialler

will hook-up and step back to phase1.

The Dial-tone check will be done 4 times, after which the dialler will step

to the successive telephone number.

If this option is disabled the dialler will step directly to the successive pha-

se.

Phase 4 The dialler will dial the telephone number of the alarm channel in alarm

status.

Phase 5 If the Voice answer detection option is enabled (refer to "Programming"

chapter), the dialler will wait 25 seconds for a voice answer and, when voice

answer is detected, the dialler will step to the successive phase. However, if

the Voice answer detection option 6is disabled, the dialler will pause for a few

seconds before stepping to the successive phase.

Phase 6 The dialler will send the alarm message assigned to the alarm channel in

question. The message will be played for the programmed Message play-

back time (20, 40, 60 or 80 seconds).

Call cycle The Call cycle (set during programming) determines the number of times

that each telephone number ---- assigned to the alarm channel in alarm

status will be called (1 to 5 times).

Figure 1 Telecom Module alarm cycle.

OVERVIEW 9

10 Analogue Fire Control Panel FireClass200

Otros manuales para FireClass 200

Tabla de contenidos

Otros manuales de Panel de control de Bentel Security

Bentel Security

Bentel Security KYO 320 Manual de usuario

Bentel Security

Bentel Security NormaOtto Series Manual de usuario

Bentel Security

Bentel Security KYO-Unit Series Manual de usuario

Bentel Security

Bentel Security KYO 320 Manual de usuario

Bentel Security

Bentel Security FireClass100 Instrucciones de montaje

Bentel Security

Bentel Security Academy8L Manual de usuario

Bentel Security

Bentel Security FireClass 100 Manual de usuario

Bentel Security

Bentel Security Academy 4 Instrucciones de funcionamiento

Bentel Security

Bentel Security Absoluta Plus 4.10 Manual de usuario

Bentel Security

Bentel Security K-NET Manual de usuario

Bentel Security

Bentel Security ABS104 Guía de configuración rápida

Bentel Security

Bentel Security KYO 320 Manual de usuario

Bentel Security

Bentel Security KYO 100 Manual de usuario

Bentel Security

Bentel Security KYO 320 Manual de usuario

Bentel Security

Bentel Security KYO 320 Manual de usuario

Bentel Security

Bentel Security FireClass 200 Manual de usuario

Bentel Security

Bentel Security Absoluta Manual de instrucciones

Bentel Security

Bentel Security KYO 4 M Manual de usuario

Bentel Security

Bentel Security FireClass FC500IP Manual de usuario

Bentel Security

Bentel Security KYO 320 Manual de usuario

Bentel Security

Bentel Security Omnia Manual de usuario

Bentel Security

Bentel Security OmniaTAST-R Manual de usuario

Bentel Security

Bentel Security KYO Series Instrucciones de funcionamiento

Bentel Security

Bentel Security ABSOLUTA ABS16P15 Manual de usuario

Manuales populares de Panel de control de otras marcas

RDZ

RDZ PC-HRX Manual de usuario

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manual técnico

Efka

Efka Variocontrol V810 Manual de usuario

Cebora

Cebora 208-10 Manual de usuario

AMX

AMX AutoPatch CP-15 Manual de usuario

Satel

Satel CA-6 KLED-S Manual de usuario

Evolution

Evolution IQ plus 800 Manual de usuario

Fagor

Fagor 8040 TCO CNC Manual de usuario

Trane

Trane ComfortLink II XL950 Control Manual de usuario

AKO

AKO PROCool AKO-17635-2 Manual de usuario

ABB

ABB 6136/30M-101 Manual de usuario

Telikou

Telikou BK-603 Belt Pack Manual de usuario

Mapei

Mapei Mapeheat Thermo Touch Manual de usuario

Bosch

Bosch D9412GV4 Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manual de usuario

Sminn

Sminn BOX L VF1L EI Manual de usuario

Balboa

Balboa TP600 Manual de usuario

Nice

Nice HSCU1 Especificaciones técnicas
