BenQ V7000i Manual de usuario

Installation Guide

Digital Projector

Laser TV Projector | V7000i / V7050i 4J.JP102.001 V1.03

IMPORTANT

To install the projector properly,

you are strongly recommended

to follow the steps and safety

precautions in this document.

User

Manual

PDF

Online Manual

V7000i / V70500i / QS01 Product Support

Support.BenQ.com

Projector’s remote control

Quick Start Guide

ATV dongle (QS01) Dongle’s remote control

Warranty card

Quick Start Guide

Scan to watch how-to videos.

Check the size of your projection wall/screen and determine

where to install the projector.

Before getting started

What You Need To Know

Before You Buy Your Laser TV

ALR screen

TV shelf

For details for projector placement, see “Measurements” on page 6.

Note

TV shelf height

TV shelf depth

Image bottom- shelf

surface distance

Screen Hight

Screen Width

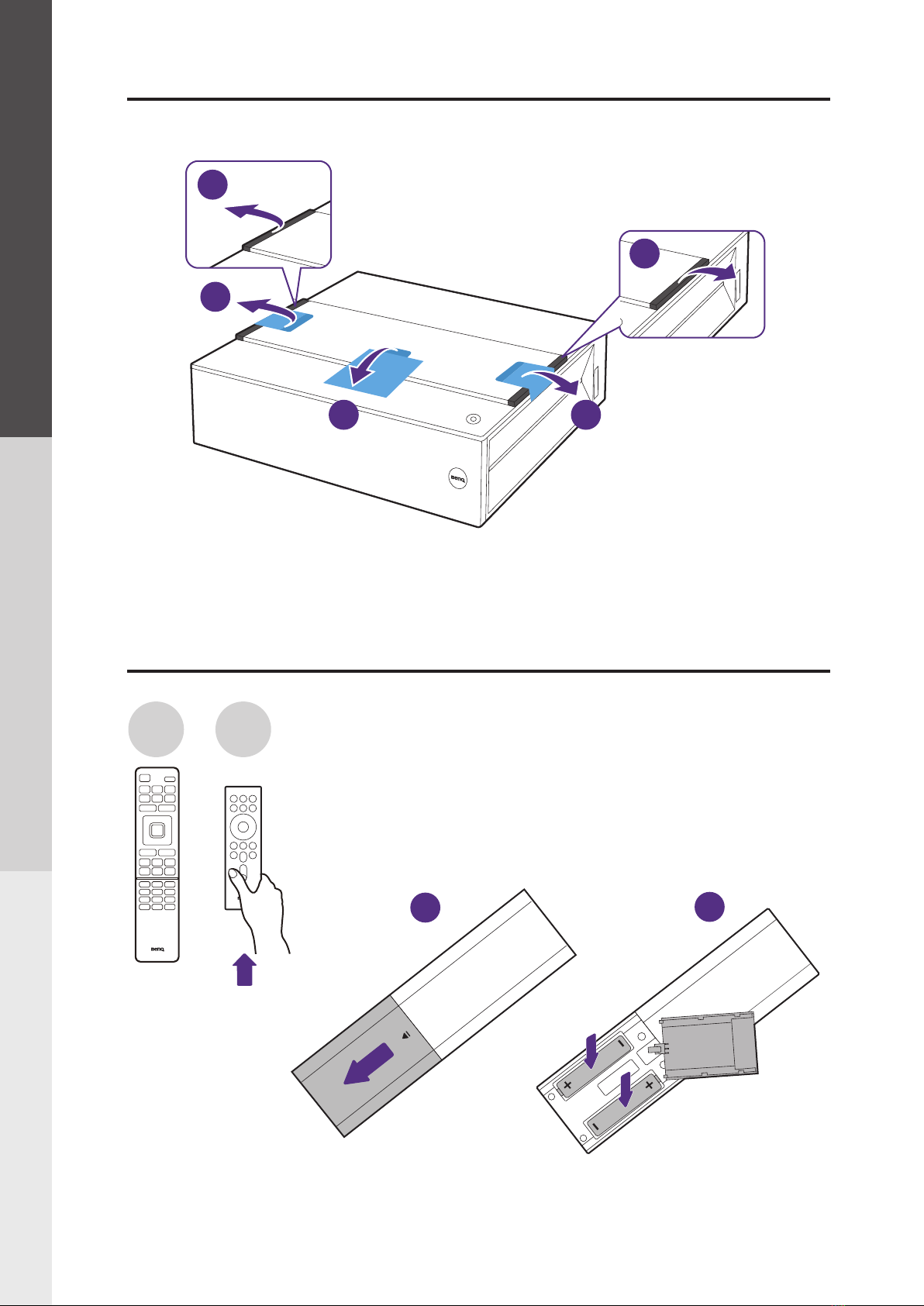

2Install batteries to dongle’s remote control.

1Remove packing materials.

Projector Dongle

Projector placement Screen adjustmentConnections

3Connect ATV dongle and power cord.

How to

make connections

Optional

AVR / PS5 / DVD player

Projector placement Screen adjustmentConnections

How to connect to

audio systems

4Place the projector.

Projector dimensions: 50.0 (W) x 38.8 (L) x 15.7 (H) cm

Measurements of 100" projection screen

100"

Measurements of 120" projection screen

120"

How to

place the projector

49.0" ( 124.5 cm)

87.2" (221.4 cm)

ALR screen

Wall

8.7" ( 22.2 cm )

≥24" (61 cm)

15.8" (40.2 cm)

15.2"± 2

(38.7±5cm)

100"

16 : 9

58.5" (149.4 cm)

104.6" (265.7 cm)

ALR screen

Wall

13" ( 33.1 cm )

≥28.3" (71.9cm)

18.2" (46.3 cm)

10.4"± 2

(26.4±5cm)

120"

16 : 9

Image size &

aspect ratio Image dimensions Projector-screen

surface distance TV shelf depth

(Immobile)

Image bottom- shelf

surface distance

TV shelf height

(While image center

at 1.4m high)

234

Projector placement Screen adjustmentConnections

Note Values are provided for your quick installation. Fine adjustments may be required according to your needs.

Wall

ALR screen

Projector placement Screen adjustmentConnections

Using the integrated measuring tool

to measure distance from projector to the wall

Distance to the wall

8090100

100

BENQ

ALR SCREEN

120

Recommended for 100” ALR screen with frame depth of 2.8 cm.

5Power on and complete inital setup.

3 4

5 6

Projector placement Screen adjustmentConnections

Press OK on remote control to skip.

Note See “6. Screen adjustment” on page 9 for details.

SKIP

6Screen adjustment.

How to

adjust the screen

>INSTALLATION >Motor Focus >Adjust

Focus adjustment

Wi-Fi

Internet

3 seconds

Projector placement Screen adjustmentConnections

2Disable auto keystone

3Screen edge adjustment

>INSTALLATION >Auto Keystone >Off

>INSTALLATION >Keystone >0.0

>INSTALLATION >Test Pattern >On

Projector placement Screen adjustmentConnections
