Digital Projector

User Manual

LW730 / LH730 V 1.00

2 Warranty and Copyright information

Warranty and Copyright information

Limited warranty

BenQ warrants this product against any defects in material and workmanship, under normal

usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is

found to be defective within the warranty period, BenQ's only obligation and your exclusive

remedy shall be replacement of any defective parts (labor included). To obtain warranty

service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in

accordance with BenQ's written instructions, especially the ambient humidity must be

in-between 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 4920 feet,

and avoiding to operate the projector in a dusty environment. This warranty gives you specific

legal rights, and you may have other rights which vary from country to country.

For other information, please visit www.BenQ.com.

reproduced, transmitted, transcribed, stored in a retrieval system or translated into any

language or computer language, in any form or by any means, electronic, mechanical,

magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ

Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with

respect to the contents hereof and specifically disclaims any warranties, merchantability or

fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this

publication and to make changes from time to time in the contents hereof without obligation to

notify any person of such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are

copyrights of their respective companies or organizations.

Patents

Please go to http://patmarking.benq.com/ for the details on BenQ projector patent coverage.

3Table of Contents

Table of Contents

Warranty and Copyright information ...............................................................................2

Important safety instructions .........................................................................................4

Introduction ....................................................................................................................7

Shipping contents ............................................................................................................. 7

Projector exterior view ...................................................................................................... 8

Controls and functions ..................................................................................................... 9

Positioning your projector ............................................................................................11

Choosing a location ........................................................................................................11

Obtaining a preferred projected image size.................................................................. 12

Mounting the projector ................................................................................................... 16

Adjusting the projected image .......................................................................................17

Connection ...................................................................................................................19

Operation .....................................................................................................................22

Starting up the projector .................................................................................................22

Using the menus ............................................................................................................. 23

Securing the projector ....................................................................................................24

Switching input signal ..................................................................................................... 25

Connecting the projector to the Internet .......................................................................26

Shutting down the projector ...........................................................................................27

Menu operation ............................................................................................................28

Basic Menu ......................................................................................................................28

Advanced Menu .............................................................................................................. 29

Maintenance ................................................................................................................47

Care of the projector .......................................................................................................47

Light source information ................................................................................................ 47

Troubleshooting ...........................................................................................................50

Specifications ..............................................................................................................51

Projector specifications .................................................................................................51

Dimensions ......................................................................................................................52

Timing chart .................................................................................................................... 53

4 Important safety instructions

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you

follow the instructions mentioned in this manual and marked on the product.

1. Please read this manual before you

operate your projector. Save it for future

reference.

2. Do not look straight at the projector lens

during operation. The intense light beam

may damage your eyes.

3. Refer servicing to qualified service

personnel.

4. Always open the lens shutter (if any) or

remove the lens cap (if any) when the

projector light source is on.

5. The light source becomes extremely hot

during operation.

6. In some countries, the line voltage is NOT

stable. This projector is designed to

operate safely within a mains voltage

between 100 to 240 volts AC, but could

fail if power cuts or surges of ±10 volts

occur. In areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect your

projector through a power stabilizer,

surge protector or uninterruptible power

supply (UPS).

7. Do not block the projection lens with any

objects when the projector is under

operation as this could cause the objects

to become heated and deformed or even

cause a fire. To temporarily turn off the

light source, use the blank function.

8. Do not operate light sources beyond the

rated light source life.

5Important safety instructions

9. Do not place this product on an unstable

cart, stand, or table. The product may fall,

sustaining serious damage.

10. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death if

you should come into contact with live

parts.

Under no circumstances should you ever

undo or remove any other covers. Refer

servicing only to suitably qualified

professional service personnel.

11. Do not block the ventilation holes.

- Do not place this projector on a blanket, bedding

or any other soft surface.

- Do not cover this projector with a cloth or any

other item.

- Do not place inflammables near the projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

12. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more than 10

degrees left to right, nor at angle of more than 15

degrees front to back. Using the projector when it

is not fully horizontal may cause a malfunction

of, or damage to, the light source.

13. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

14. Do not step on the projector or place any

objects upon it. Besides probable physical

damage to the projector, doing so may

result in accidents and possible injury.

15. When the projector is under operation,

you may sense some heated air and odor

from its ventilation grill. It is a normal

phenomenon and not a product defect.

6 Important safety instructions

16. Do not place liquids near or on the

projector. Liquids spilled into the projector

may cause it to fail. If the projector does

become wet, disconnect it from the power

supply's power outlet and call BenQ to

have the projector serviced.

17. This product is capable of displaying

inverted images for ceiling/wall mount

installation.

18. This apparatus must be earthed.

19. Do not place this projector in any of the

following environments.

- Space that is poorly ventilated or confined. Allow

at least 50 cm clearance from walls and free flow

of air around the projector.

- Locations where temperatures may become

excessively high, such as the inside of a car with

all windows rolled up.

- Locations where excessive humidity, dust, or

cigarette smoke may contaminate optical

components, shorten the projector's life span and

darken the image.

- Locations near fire alarms

- Locations with an ambient temperature above

40°C / 104°F

- Locations where the altitudes are higher than

3000 m (10000 feet).

Risk Group 2

1. According to the classification of photobiological safety of light sources and light source

systems, this product is Risk Group 2, IEC 62471-5:2015.

2. Possibly hazardous optical radiation emitted from this product.

3. Do not stare at operating light source. May be harmful to the eyes.

4. As with any bright source, do not stare into the direct beam.

To avoid damaging the DLP chips, never aim a high-power laser beam into the projection lens.

3000 m

(10000

feet)

0 m

(0 feet)

7Introduction

Introduction

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items are

missing, please contact your place of purchase.

Standard accessories

Optional accessories

• Wireless Dongle (EZC5201BS) (for LH730)

Replacing the remote control batteries

1. Press and open the battery cover, as illustrated.

2. Remove the old batteries (if applicable) and install

two AAA batteries. Make sure that the positive and

negative ends are positioned correctly, as illustrated.

3. Replace the battery cover until it clicks into place.

Projector Remote control with

batteries Power cord

Quick start guide Warranty card* Regulatory statements

• The supplied accessories will be suitable for your region, and may differ from those illustrated.

• *The warranty card is only supplied in some specific regions. Please consult your dealer for detailed

information.

• Avoid leaving the remote control and batteries in an excessive heat or humid environment like the

kitchen, bathroom, sauna, sunroom or in a closed car.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used batteries according to the manufacturer's instructions and local environment

regulations for your region.

• Never throw the batteries into a fire. There may be danger of an explosion.

• If the batteries are dead or if you will not be using the remote control for an extended period of time,

remove the batteries to avoid damage to the remote control from possible battery leakage.

Quick Start Guide

Digital Projector

8 Introduction

Projector exterior view

1. Vent (air inlet)

2. External control panel

(See Controls and functions on page 9.)

3. Security bar

4. Adjuster feet

5. IR remote sensor

6. Projection lens

7. Vent (air exhaust)

8. Focus ring and Zoom ring

9. IR remote sensor

10. RJ-45 LAN input jack

11. Audio output jack

12. USB Type A port (for WiFi dongle)

13. HDMI input ports

14. USB Type A port (5V/1.5A power supply)

15. RS-232 control port

16. Kensington anti-theft lock slot

17. AC power jack

18. Ceiling/Wall mount holes

110 11 12 14 15

10 11 14 1513

LH730

LW730

4 4

9Introduction

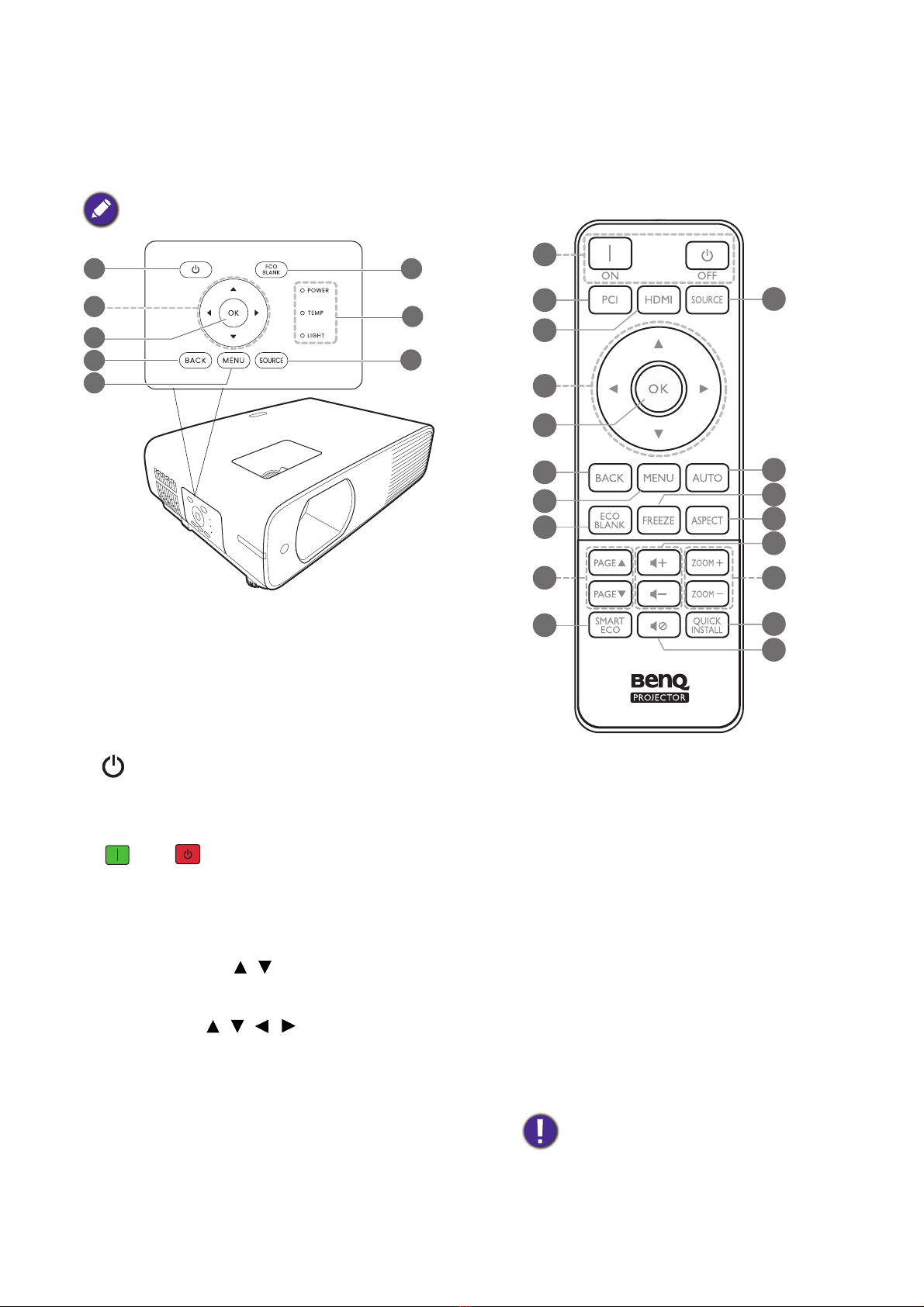

Controls and functions

Projector & Remote control

1. POWER

Toggles the projector between standby

mode and on.

ON/ Off

Toggles the projector between standby

mode and on.

2. Arrow keys

Keystone keys ( , )

Displays the keystone correction page.

Arrow keys ( , , , )

When the On-Screen Display (OSD) menu

is activated, these keys are used as

directional arrows to select the desired

menu items and to make adjustments.

3. OK

Selects an available picture setup mode.

When the On-Screen Display (OSD) menu

is activated, confirms the selected

On-Screen Display (OSD) menu item.

4. BACK

Goes back to previous OSD menu, exits

and saves menu settings.

5. MENU

Turns on or closes the On-Screen Display

(OSD) menu.

6. ECO BLANK

Used to hide the screen picture.

Do not block the projection lens

from projecting as this could

cause the blocking object to

become heated and deformed or

even cause a fire.

All the key presses described in this

document are available on the remote control

or projector.

10 Introduction

Remote control effective range

The remote control must be held at an angle within 30 degrees perpendicular to the projector's

IR remote control sensor(s) to function correctly. The distance between the remote control and

the sensor(s) should not exceed 8 meters (~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor(s) on the

projector that might obstruct the infra-red beam.

7. POWER indicator light/TEMPerature

warning light/LIGHT indicator light

(See Indicators on page 49.)

8. SOURCE

Displays the source selection bar.

9. Source selection button: PC 1

No function.

10. Source selection button: HDMI

Selects HDMI 1 input source for display.

11. PAGE /PAGE

Operate your display software program (on

a connected PC) which responds to page

up/down commands (like Microsoft

PowerPoint).

12. SMART ECO

Displays the Light Source Mode menu for

selecting a suitable light source operating

mode.

13. AUTO

No function.

14. FREEZE

Freezes the projected image.

15. ASPECT

Selects the display aspect ratio.

16. Volume keys /

Decreases or increase the projector

volume.

17. ZOOM+/ZOOM-

Magnifies or reduces the projected picture

size.

18. QUICK INSTALL

Quickly selects several functions to adjust

the projected image and displays the test

pattern.

19. MUTE

Toggles projector audio between on and

off.

• Operating the projector from the front • Operating the projector from the top

Approx.+30º

Otros manuales para LW730

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de BenQ

BenQ

BenQ HT480W - HT - DLP Projector Manual de usuario

BenQ

BenQ HT3560 Manual de usuario

BenQ

BenQ SP870 - XGA DLP Projector Manual de usuario

BenQ

BenQ SH915 Manual de usuario

BenQ

BenQ LU935 Manual de usuario

BenQ

BenQ MW721 Manual de usuario

BenQ

BenQ MW821ST Manual de usuario

BenQ

BenQ MX615 Manual de usuario

BenQ

BenQ MP771 - XGA DLP Projector Manual de usuario

BenQ

BenQ V7000i Manual de usuario

BenQ

BenQ W1700 Manual de usuario

BenQ

BenQ PB2120 - SVGA DLP Projector Manual de usuario

BenQ

BenQ PB8250 - XGA DLP Projector Manual de usuario

BenQ

BenQ MP778 Manual de usuario

BenQ

BenQ MP623 - XGA DLP Projector Manual de usuario

BenQ

BenQ PB6210/ PB6110 Manual de usuario

BenQ

BenQ SP830 - WXGA DLP Projector Manual de usuario

BenQ

BenQ LW61ST Manual de usuario

BenQ

BenQ MW870UST Manual de usuario

BenQ

BenQ MX722 Manual de usuario

BenQ

BenQ MX766, MW767, MX822ST Manual de usuario

BenQ

BenQ MH680 Manual de usuario

BenQ

BenQ MX704 Manual de usuario

BenQ

BenQ Home Cinema Series Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
