MX882UST/MW883UST

Digital Projector

User Manual

Table of contents2

Ta b l e o f c o n t e n t s

Important safety

instructions ........................... 3

Introduction.......................... 7

Projector features.....................................7

Shipping contents ......................................8

Projector exterior view...........................9

Controls and functions ..........................10

Positioning your

projector..............................14

Using the quick install ............................14

Obtaining a preferred projected image

size..............................................................15

Connection .........................18

Connecting video source devices........19

Connecting smart devices.....................20

Operation............................21

Starting up the projector ......................21

Adjusting the projected image .............22

Using the menus......................................25

Securing the projector...........................26

Switching input signal .............................28

Magnifying and searching for details ...29

Selecting the aspect ratio ......................29

Optimizing the image .............................32

Setting the presentation timer.............35

Remote paging operations ....................36

Freezing the image ..................................36

Hiding the image......................................37

Locking control keys ..............................37

Operating in a high altitude

environment.............................................37

Adjusting the sound................................38

Using the test pattern............................ 38

Using the teaching templates............... 39

Presenting from a USB Reader............ 40

Shutting down the projector ............... 41

Direct power off..................................... 41

Menu operation ...................................... 42

Maintenance........................ 53

Care of the projector............................ 53

Lamp information ................................... 54

Troubleshooting ................ 60

Specifications ...................... 61

Projector specifications......................... 61

Dimensions .............................................. 62

Wall mount installation......................... 62

Timing chart............................................. 63

Warranty and Copyright

information ......................... 67

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that

you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before

you operate your projector. Save

it for future reference.

2. Do not look straight at the

projector lens during operation.

The intense light beam may damage

your eyes.

3. Refer servicing to qualified

service personnel.

4. Always open the lens shutter (if

any) or remove the lens cap (if

any) when the projector lamp is

on.

5. In some countries, the line voltage is

NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power cuts

or surges of ±10 volts occur. In

areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect

your projector through a power

stabilizer, surge protector or

uninterruptible power supply

(UPS).

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire. To

temporarily turn off the lamp, press

ECO BLANK on the projector or

remote control.

Important safety instructions4

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the projector

to cool for approximately 45 minutes

prior to removing the lamp assembly

for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive operation of

lamps beyond the rated life could

cause them to break on rare

occasions.

9. Never replace the lamp assembly or

any electronic components unless the

projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

11. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death

if you should come into contact with

live parts. The only user serviceable

part is the lamp which has its own

removable cover.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to

suitably qualified professional service

personnel.

12. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Important safety instructions 5

Safety Instructions (Continued)

13. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm

clearance from walls and free flow of air

around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled

up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shorten the projector's life span and

darken the image.

- Locations near fire alarms

- Locations with an ambient temperature

above 40°C / 104°F

- Locations where the altitudes are higher

than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a

blanket, bedding or any other soft

surface.

- Do not cover this projector with a cloth

or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at

angle of more than 15 degrees front to

back. Using the projector when it is not

fully horizontal may cause a malfunction

of, or damage to, the lamp.

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

17. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector, doing

so may result in accidents and possible

injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power supply's

power outlet and call BenQ to have

the projector serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it is

securely installed.

20. This apparatus must be earthed.

Ceiling mounting the projector

We want you to have a pleasant

experience using your BenQ projector,

so we need to bring this safety matter

to your attention to prevent possible

damage to person and property.

If you intend to mount your projector

on the ceiling, we strongly recommend

that you use a proper fitting BenQ

projector ceiling mount kit and that

you ensure it is securely and safely

installed.

If you use a non-BenQ brand projector

ceiling mount kit, there is a safety risk

that the projector may fall from the

ceiling due to an improper attachment

through the use of the wrong gauge or

length screws.

You can purchase a BenQ projector

ceiling mount kit from the place you

purchased your BenQ projector. BenQ

recommends that you also purchase a

separate Kensington lock compatible

security cable and attach it securely to

both the Kensington lock slot on the

projector and the base of the ceiling

mount bracket. This will perform the

secondary role of restraining the

projector should its attachment to the

mounting bracket become loose.

Hg - Lamp contains mercury. Manage in

accordance with local disposal laws. See

www.lamprecycle.org.

Introduction 7

Introduction

Projector features

The projector offers the following features

• SmartEco™ starts your dynamic power saving

The SmartEco™ technology offers a new way of operating the projector lamp system

and saves lamp power depending on the content brightness level.

• Interactive capability

Extends the interactive function with optional PointWrite module.

• Corner Fit and Surface Fit

Correct each distorted corner and edge to get a perfect rectangular image.

• HDMI/MHL compatible

You can project the content from your smart devices via HDMI/MHL connection.

• Network Control

Integrated RJ45 connector for wired network control allowing management of

projector status from a computer using a web browser.

Enable Network Standby mode < 6 W.

• Crestron RoomView®and AMX supported

The projector supports Crestron eControl, RoomView and AMX allowing you to

control and manage equipment from a remote computer via LAN connection.

• Less than 0.5W in standby condition

Less than 0.5W power consumption under standby mode.

• One-key auto-adjustment

Pressing AUTO on the keypad or remote control to show the best picture quality

immediately.

• Built-in 10 W x 2 speaker(s)

Built-in speaker(s) providing mixed mono audio when an audio input is connected

• Quick Cooling, Auto Power Off, Signal Power On, Direct Power On

Quick Cooling function speeds up the cooling process when turning off the

projector. Auto Power Off function allows the projector to turn off automatically if

no input signal is detected after a set period of time. Signal Power On function turns

on your projector automatically once detecting the signal input and Direct Power

On turns your projector when the power is fed.

• 3D Function supported

Various 3D formats make the 3D function more flexible. By presenting the depth of the

images, you can wear BenQ 3D glassed to enjoy the 3D movies, videos and sporting

events in a more realistic way.

• The apparent brightness of the projected image will vary depending on the ambient lighting conditions,

selected input signal contrast/brightness settings, and is directly proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers specifications. This

is normal and expected behavior.

Introduction8

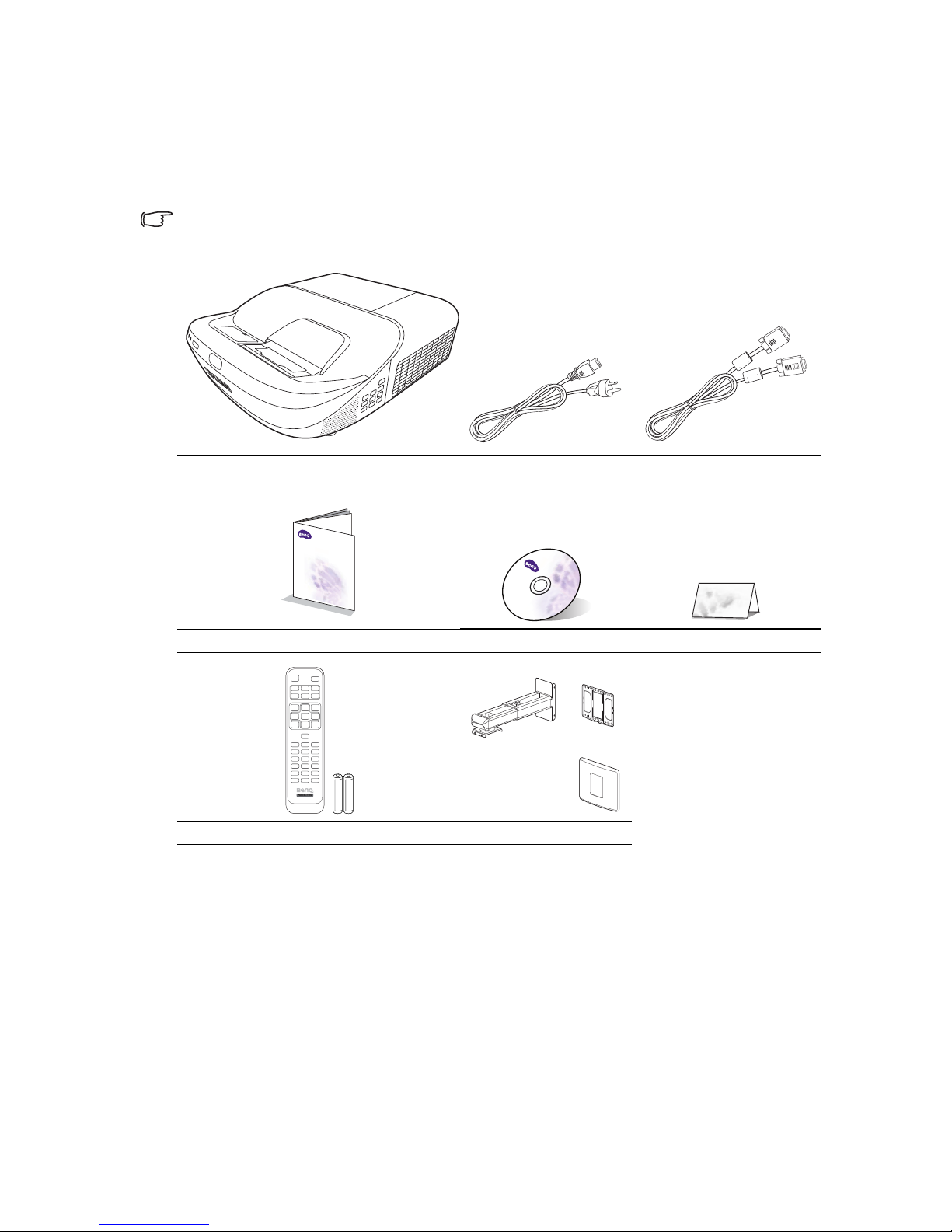

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

*Only supplied in some specific regions. Please consult your dealer for detailed information.

Optional accessories

Projector with the projector

mounting plate

Power cord VGA cable

Quick start guide User manual CD Warranty card*

Remote control with batteries Wall mount kit

Digital Projector

Quick Start Guide

1. Spare lamp kit

2. 3D glasses

3. PointWrite kit

Introduction 9

Projector exterior view

1. Lamp cover

2. Vent (heated air exhaust)

3. Speaker grill

4. PointWrite dummy cover (Optional

PointWrite kit)

5. Front IR remote sensor

6. Projection lens and Mirror

7. Adjuster foot

8. Speaker

9. External control panel

(See "Controls and functions" on

page 10 for details.)

10. Focus ring

11. Vent (cool air intake)

12. USB Type-A port (for USB flash

drive/USB wireless dongle)

13. HDMI/MHL-input port (for HDMI

dongle)

14. AC power jack

15. USB Type A port (Power for Touch

kit)

16. PointWrite port (PointWrite kit is

required)

17. HDMI-input port

18. Video input jack

19. S-Video input jack

20. Audio (L/R) input jacks

21. Audio input jacks

Audio output jack

22. RGB (PC)/Component Video (YPbPr/

YCbCr) signal input jacks

23. RGB signal output jack

24. RS232 control port

25. RJ45 LAN input jack

26. USB Mini-B port

27. Kensington anti-theft lock slot

28. Projector mounting plate

10 11

789

Front/upper side

14 16 18 20 22 24 26

15 17 19 21 23 25

Rear/lower side

Introduction10

Controls and functions

Projector

1. Focus ring

Adjusts the focus of the projected image.

2. POWER indicator light

Lights up or flashes when the projector is

under operation.

3. TEMPerature warning light

Lights up red if the projector's

temperature becomes too high.

4. LAMP indicator light

Indicates the status of the lamp. Lights up

or flashes when the lamp has developed a

problem.

5. MENU/EXIT

Turns on the On-Screen Display (OSD)

menu. Goes back to previous OSD menu,

exits and saves menu settings.

6. Keystone/Arrow keys ( / Up, /

Down)

Manually corrects distorted images

resulting from an angled projection.

7. Left/

Decreases the projector volume.

8. MODE/ENTER

Selects an available picture setup mode.

Activates the selected On-Screen Display

(OSD) menu item.

9. ECO BLANK

Used to hide the screen picture.

10. POWER

Toggles the projector between standby

mode and on.

11. AUTO

Automatically determines the best picture

timings for the displayed image.

12. Right/

Increases the projector volume.

When the On-Screen Display (OSD)

menu is activated, the #6, #7 and #12

keys are used as directional arrows to

select the desired menu items and to

make adjustments.

13. SOURCE

Displays the source selection bar.

2 3 4

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de BenQ

BenQ

BenQ Home Entertainment Series Manual de usuario

BenQ

BenQ PB8263-XGA Manual de usuario

BenQ

BenQ LK970 Manual de usuario

BenQ

BenQ DX550 Manual de usuario

BenQ

BenQ MS619ST Manual de usuario

BenQ

BenQ PB6100 - SVGA DLP Projector Manual de usuario

BenQ

BenQ Home Entertainment Series Manual de usuario

BenQ

BenQ MX615 Manual de usuario

BenQ

BenQ PB6240 - XGA DLP Projector Manual de usuario

BenQ

BenQ PROFESSIONAL PB8263 Manual de usuario

BenQ

BenQ MW809STH Manual de usuario

BenQ

BenQ PX9510 Manual de usuario

BenQ

BenQ LU9915 Manual de usuario

BenQ

BenQ PB6240 - XGA DLP Projector Manual de usuario

BenQ

BenQ Installation Series PB8250 Manual de usuario

BenQ

BenQ DX832UST Manual de usuario

BenQ

BenQ RS232 Commands Manual de usuario

BenQ

BenQ PU9730 Manual de usuario

BenQ

BenQ MX808PST Manual de usuario

BenQ

BenQ LW550 Manual de usuario

BenQ

BenQ MX722 Manual de usuario

BenQ

BenQ Home Entertainment PE5120 Manual de usuario

BenQ

BenQ I Series Manual de usuario

BenQ

BenQ MP771 - XGA DLP Projector Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
