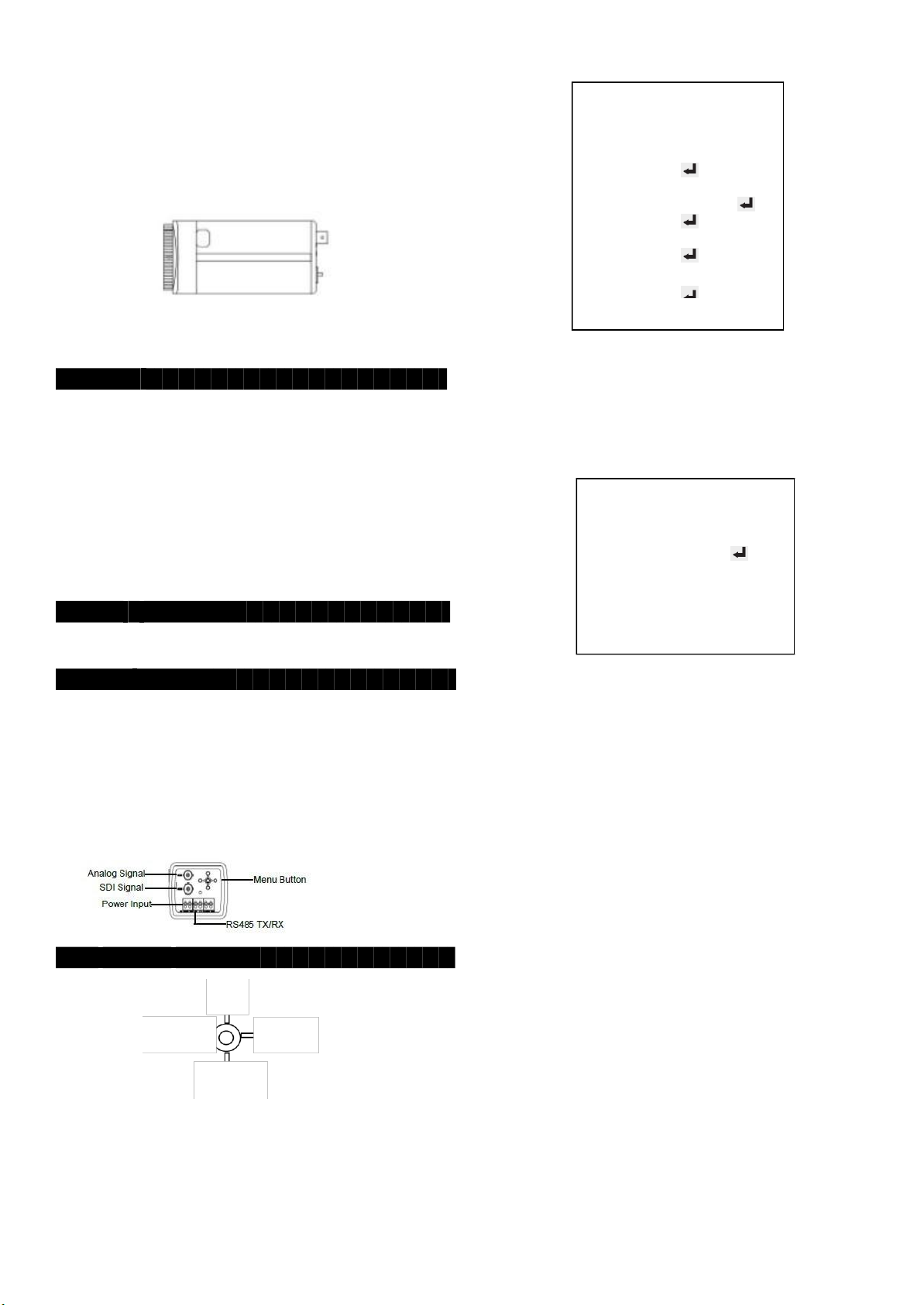

Support (WDR / 3D DNR / Sense-up / Digtial
Zoom …etc functions)
HD-SDI (SMTPE 292M) / CVBS: 1.0Vp-p 75ohm
Auto Tracking White Balance
DC 12V Max Power Consumption Less than
1.5W(When Leds ON)
EXTERN: select this when the color is controlled by CDS sensor.
AUTO: camera will automatically show color image in high lux and
black/white image in low lux.
COLOR: only displayed color image.
B&W: only displayed black/white image.
●SUBMENU OF EXTERN DAY & NIGHT
DAY & NIGHT
detection horizontally.
2) SENSITIVITY:setting the sensitivity of motion detection, it is selectable
from 0-10. Default setting is “5”.
3) MOTION OSD: Press right or left button to active this function when
display “ON”. Then you can see red box in the screen to remind of motion
objects.
4) TEXTALARM: Press right or left button to active this function when
display “ON”. Then you can see “MOTION”in the screen to remind of
motion objects.
6. COLOR
ANTI-SAT
EXTERN S/N
AGC THRES
AGC MARGIN
DELAY
RETURN
IiiiiiIiiiiiI 7
LOW
IiiiiiIiiiiiI 11
IiiiiiIiiiiiI 8
LOW
5) SIGNALOUTPUT: Press right or left button to active this function when
display “ON”.
6) RETURN: return to upper menu
10. SYSTEM
1) COM.: Selecting setting camera ID display.
●SUBMENU OF COM.
COM.:
BAUDRATE: setting the baud rate of this camera.
RETURN: return to upper menu.
2) IMAGE RANGE: setting image range, FULL/ CROP / USER selectable
1) AWB: Setting the white balance mode:AUTO / AUTOext / PRESET /
MANUALselectable.
2) COLOR GAIN: Setting the thickness of color, from 0~20. Default setting
is “10”.
●SUBMENU OF MANUAL WHITE BALANCE:
1) C-TEMP: Setting the color temperature of surveillance area, 3000K /
5000K / 8000K selectable.
2) R-GAIN: Setting red gain from 0~20. Default setting is “10”.
3) B-GAIN: Setting blue gain from 0~20. Default setting is “10”.
7. DNR
Digital noise reduction setting, LOW / MIDDLE / HIGH selectable. Default
setting is “MIDDLE”.
8. IMAGE
1) SHARPNESS: setting the sharpness, it is adjustment from 0-10. Default
setting is 5.
2) GAMMA: setting the output GAMMAcharacteristic, 0.45/0.55/0.65/0.75
selectable. Default setting is “0.55”
3) MIRROR: setting mirror function, ON / OFF selectable. Default setting is
“OFF”.
4) FLIP: setting flip function, ON / OFF selectable. Default setting is “OFF”.
5) D-ZOOM: setting digital zooming function, it is selectable from 1X~16X.
Default setting is “1X”.
6) ACE: setting adaptive contrast enhancement in outputting analog signal.
OFF / LOW / MIDDLE / HIGH selectable. Default setting is “OFF”.
7) DEFOG: setting fog penetrating function, OFF / LOW / MIDDLE / HIGH
selectable. Default setting is “OFF”.
8) SHADING: setting shading compensation when using wide angle lens.
OFF / ON selectable. Default setting is “OFF”.
9) PRIVACY:setting private protection area, OFF / ON selectable. If turn the
PRIVACYfunction ON, then could enter the submenu to set. Press ZONE
NUM to set the privacy protection areas, 0-15 areas are selectable in
“BOX”mode, 0-7 areas are selectable in “POLYGON”mode..
ZONE DISP: turn the ZONE DISP function ON, then privacy protection
area will display in screen.
H-POS(POS-X): setting the position of the range that you selected in
the ZONE NUM to left and right. Selectable range from 0~60.
V-POS(POS-Y):setting the position of the range that you selected in
the ZONE NUM to up and down. Selectable range from 0~40.
H-SIZE: increase and decrease the size of the range that you selected
in the ZONE NUM horizontally. Selectable range from 0~60.
V-SIZE: increase and decrease the size of the range that you selected
in the ZONE NUM vertically. Selectable range from 0~40.
Y-LEVEL: setting the luminance level of privacy area. It’s selectable
from 0~20, default setting is “10”.
CB LEVEL: setting the blue thickness in privacy area. It’s selectable
from 0~20, default setting is “10”.
CR LEVEL: setting the red thickness in privacy area. It’s selectable
from 0~20, default setting is “10”.
TRANS: setting the transparencyof privacy area. 0 / 1 / 2 / 3
selectable, default setting is “3”.
RETURN: return to upper menu.
10) RETURN: return to upper menu
9. MOTION
Motion detection setting, OFF / ON selectable
1) DETWINDOW:setting the area of motion detection.
WINDOW USE: choosing motion detection area, 0 / 1 / 2 / 3 selectable.
WINDOW ZONE: Press right of left button to active this function when
display “ON”. Then motion detection will work in this area you choose in
“WINDOW USE”.
DET H-POS: setting the positionof the range in the motion detection area
to left and right.
DET V-POS: setting the position of the range of motion detection area to
up and down.
DET H-SIZE: increase and decrease the size of the range of motion
detection horizontally.
DET V-SIZE: increase and decrease the size of the range of motion
3) COLOR SPACE: HD-CbCr / YUV / SD-CbCr
4) FRAME RATE: setting output SDI signal resolutions, 1080-30p / 720-30p
/ 720-60p.
5) FREQ: Press right and left to choose signal system, 50HZ / 60HZ
selectable. 50HZ for PAL,60HZ for NTSC.
6) COLOR BAR.:setting “ON”to active this function, then you will see many
bar of different colours in the screen. If set “OFF”, COLOR BAR will be
closed.
7) CVBS: setting the output signal system, PAL/ NTSC selectable.
8) LANGUAGE:setting the language of OSD menu, ENG / CHN / JPN /
KOR / RUS / ITA / DUT / DEU / FRE selectable.
9) CAM TITLE: setting the ID of this camera, it is 8-bit ID made of A-Z or
0~9. Default setting is “00000000”. Press up and down to choose
character,left and right to choose the position of character,Press enter to
return to the upper menu.
10) RESET:continuouslypress OSD button to let all settings back to factory
default, except “FRAME RATE””FREQ”“LANGUAGE”.
11) RETURN: return to upper menu.
11. EXIT
Exit the OSD menu.
