Bend-Pak HD-7500BL Manual de usuario

INSTALLATION AND OPERATION MANUAL

SHIPPING DAMAGE CLAIMS

When this equipment is shipped, title passes to the

purchaser upon receipt from the carrier.

Consequently, claims for the material damaged in shipment

must be made by the purchaser against the transportation

company at the time shipment is received.

BE SAFE

Your new lift was designed and built with safety in mind.

However, your overall safety can be increased by proper

training and thoughtful operation on the part of the

operator. DO NOT operate or repair this equipment

without reading this manual and the important safety

instructions shown inside.

1645 Lemonwood Dr.

Santa Paula, CA. 93060, USA

Toll Free 1-800-253-2363

Tel: 1-805-933-9970

Fax: 1-805-933-9160

www.bendpak.com

Keep this operation manual near the

machine at all times. Make sure that

ALL USERS read this manual.

7,500 POUND CAPACITY

BOAT STORAGE

FOUR-POST LIFTS

MODELS:

HD-7500BL

HD-7500BLX

PLEASE READ THE ENTIRE CONTENTS OF THIS MANUAL PRIOR TO

INSTALLATION AND OPERATION. BY PROCEEDING YOU AGREE THAT

YOU FULLY UNDERSTAND AND COMPREHEND THE FULL CONTENTS OF

THIS MANUAL. FORWARD THIS MANUAL TO ALL OPERATORS. FAILURE TO

OPERATE THIS EQUIPMENT AS DIRECTED MAY CAUSE INJURY OR DEATH.

Manual REV A 10- 21-10

pn# 5900xxx

7,500 POUND CAPACITY, COMMERCIAL GRADE

FOUR POST AUTO / TRUCK LIFT

This instruction manual has been prepared especially for you.

Your new lift is the product of over 35 years of continuous research, testing and development;

it is the most technically advanced lift on the market today.

READ THIS ENTIRE MANUAL BEFORE INSTALLATION & OPERATION BEGINS.

RECORD HERE THE LIFT AND

POWER UNIT INFORMATION WHICH IS

LOCATED ON THE SERIAL NUMBER

DATA PLATES ON THE LIFT AND

ON THE POWER UNIT

Power Unit Model # _____________

Power Unit Date Of Mfg. _____________

Power Unit Serial # _____________

This information is required when

calling for parts or warranty issues.

PRODUCT WARRANTY

BendPak 4-Post Lifts are covered under warranty for five years on equipment structure, to be free of defects in material

and workmanship. Power units, hydraulic cylinders, and all other assembly components such as turnplates, slip plates,

cables, chains, valves, switches etc. are covered under warranty for one year against defects in material or

workmanship under normal use. BendPak Inc. shall repair or replace at their option for the warranty period those parts

returned to the factory freight prepaid which prove upon inspection to be defective. BendPak Inc. will pay labor costs for

the first 12 months only on parts returned as previously described.

The warranty does not extend to...

 defects caused by ordinary wear, abuse, misuse, shipping damage, improper

installation, voltage or lack of required maintenance;

 damages resulting from purchaser’s neglect or failure to operate products in accordance with

instructions provided in the owner’s manuals) and/or other accompanying instructions supplied;

 normal wear items or service normally required to maintain the product in a safe operating condition;

 any component damaged in shipment;

 other items not listed but may be considered general wear parts;

 damage caused by rain, excessive humidity, corrosive environments or other contaminants.

THESE WARRANTIES DO NOT EXTEND TO ANY COSMETIC DEFECT NOT INTERFERING WITH EQUIPMENT

FUNCTIONALITY OR ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT

MAY RESULT FROM ANY DEFECT, FAILURE, OR MALFUNCTION OF A BENDPAK INC. PRODUCT OR THE

BREACH OR DELAY IN PERFORMANCE OF THE WARRANTY.

WARRANTY IS NOT VALID UNLESS

WARRANTY CARD IS RETURNED.

IMPORTANT NOTICE !

Do not attempt to install this lift if you have never been

trained on basic automotive lift installation procedures.

Never attempt to lift components without proper lifting

tools such as forklift or cranes. Stay clear of any moving

parts that can fall and cause injury. These instructions

must be followed to insure proper installation and

operation of your lift. Failure to comply with these

instructions can result in serious bodily harm and void

product warranty. Manufacturer will assume no liability for

loss or damage of any kind, expressed or implied

resulting from improper installation or use of this product.

PLEASE READ ENTIRE MANUAL

PRIOR TO INSTALLATION.

DEFINITIONS OF

HAZARD LEVELS

Identify the hazard levels used in this manual with the

following definitions and signal words:

DANGER !

Watch for this symbol: It Means: Immediate hazards

which will result in severe personal injury or death.

WARNING !

Watch for this symbol: It Means: Hazards or unsafe

practices which could result in severe personal

injury or death.

CAUTION !

Watch for this symbol: It Means: Hazards or unsafe

practices which may result in minor personal injury,

product or property damage.

OWNER’S RESPONSIBILITY

To maintain the lift and user safety, the responsibility of

the owner is to read and follow these instructions:

 Follow all installation and operation instructions.

 Make sure installation conforms to all applicable Local,

State, and Federal Codes, Rules, and Regulations;

such as State and Federal OSHA Regulations and

Electrical Codes.

 Carefully check the lift for correct initial function.

 Read and follow the safety instructions. Keep them

readily available for machine operators.

 Make certain all operators are properly trained, know

how to safely and correctly operate the unit, and are

properly supervised.

 Allow unit operation only with all parts in place and

operating safely.

 Carefully inspect the unit on a regular basis and

perform all maintenance as required.

 Service and maintain the unit only with authorized or

approved replacement parts.

 Keep all instructions permanently with the unit and

all decals on the unit clean and visible.

BEFORE YOU BEGIN

Receiving:

The shipment should be thoroughly inspected as soon as it

is received. The signed bill of lading is acknowledgement by

the carrier of receipt in good condition of shipment covered

by your invoice. If any of the goods called for on this bill of

lading are shorted or damaged, do not accept them until the

carrier makes a notation on the freight bill of the shorted or

damaged goods. Do this for your own protection.

NOTIFY THE CARRIER AT ONCE if any hidden loss or

damage is discovered after receipt and request the carrier

to make an inspection. If the carrier will not do so, prepare

a signed statement to the effect that you have notified the

carrier (on a specific date) and that the carrier has failed to

comply with your request.

IT IS DIFFICULT TO COLLECT FOR LOSS OR DAMAGE

AFTER YOU HAVE GIVEN THE CARRIER A CLEAR

RECEIPT. File your claim with the carrier promptly. Support

your claim with copies of the bill of lading, freight bill,

invoice, and photographs, if available. Our willingness to

assist in helping you process your claim does not make

BendPak responsible for collection of claims or

replacement of lost or damaged materials.

TABLE OF CONTENTS

Contents Page No.

Warranty / Serial Number Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Deﬁnitions of Hazard Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Owner’s Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installer Operator/ Protective Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety / Warning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Step 1 / Selecting Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Step 2 / Floor Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Concrete Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Assembly View / Description of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

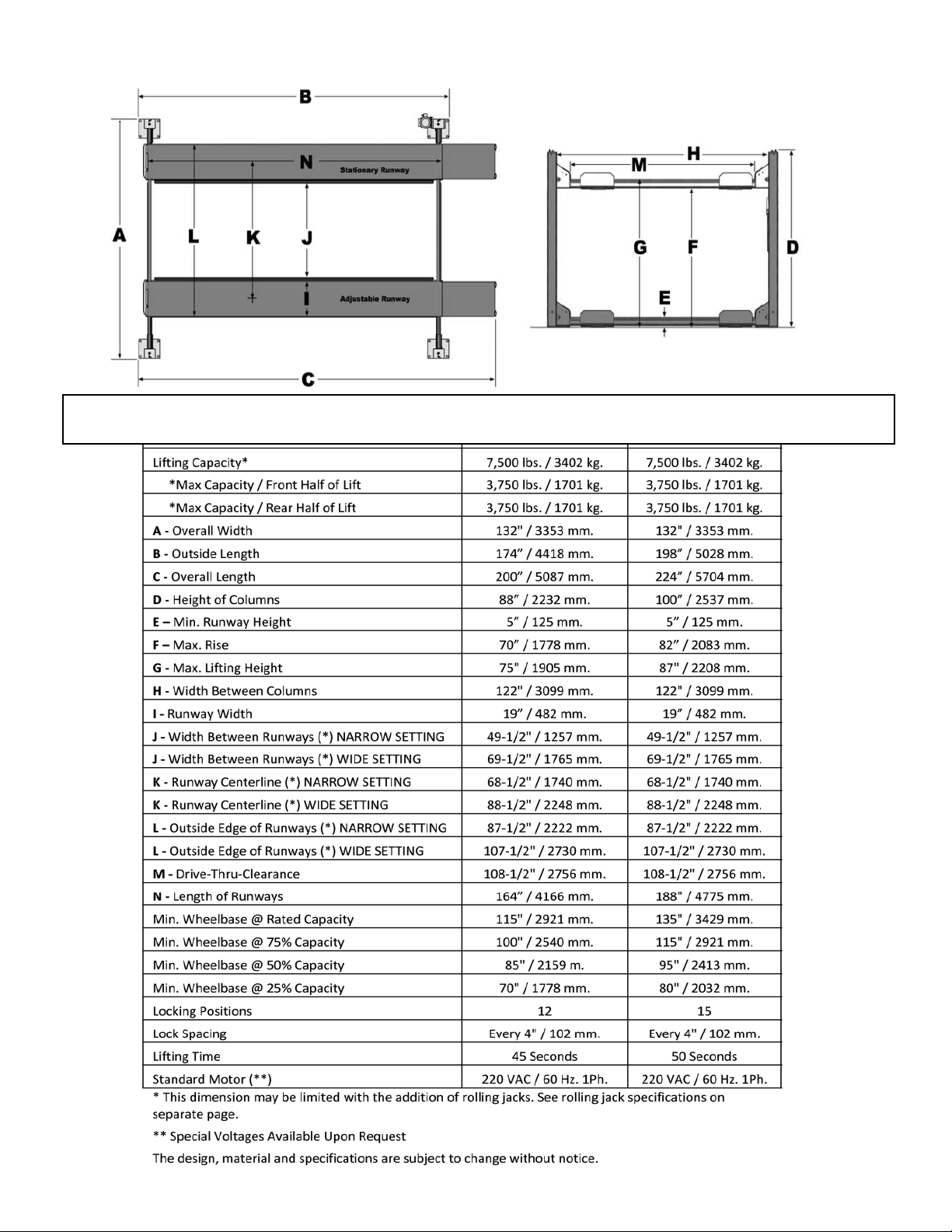

Floor Plan / Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power Unit Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Step 3 / Column and Cross Tube Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12

Step 4 / Raising the Cross Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Step 5 / Powerside Runway Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Step 6 / Offside Runway Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Step 7 / Cable Sheave Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15

Step 8 Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Step 9 / Power Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

Step 10 / Routing Hydraulic Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-18

Step 11 / Routing Air Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Step 12 / Power Unit Hook Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-22

Step 13 / Inspecting Slack Safety Springs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Step 14 / Lift Start Up / Final Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-23

Step 15 / Anchoring The Columns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24

Step 16 / Attaching Approach Ramps / Tire stops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Step 17 / Leveling System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25

Step 18 Bleeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Optional Equipment Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-28

Step 19 / Operation/ Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-34

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-38

Installation Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Part Number Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-46

Maintenance Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

INSTALLER / OPERATOR

PLEASE READ AND FULLY

UNDERSTAND.

BY PROCEEDING YOU AGREE TO

THE FOLLOWING.

 I have visually inspected the site where the lift is to be

installed and verified the concrete to be in good

condition and free of cracks or other defects. I understand

that installing a lift on cracked or defective concrete could

cause lift failure resulting in personal injury or death.

 I understand that a level floor is required for proper

installation and level lifting.

 I understand that I am responsible if my floor is of

questionable slope and that I will be responsible for all

charges related to pouring a new level concrete slab if

required and any charges.

 I understand that the lifts are supplied with concrete

fasteners meeting the criteria of the American National

Standard “Automotive Lifts - Safety Requirements for

Construction, Testing, and Validation” ANSI/ALI ALCTV-

2006, and that I will be responsible for all charges related

to any special regional structural and/or seismic

anchoring requirements specified by any other agencies

and/or codes such as the Uniform Building Code (UBC)

and/or International Building Code (IBC).

 I will assume full responsibility for the concrete floor

and condition thereof, now or later, where the above

equipment model(s) are to be installed. Failure to follow

danger, warning, and caution instructions may lead to

serious personal injury or death to operator or bystander

or damage to property.

 I understand that Bendpak lifts are designed to be

installed in indoor locations only. Failure to follow

installation instructions may lead to serious personal

injury or death to operator or bystander or damage to

property or lift.

Failure to follow danger, warning, and caution

instructions may lead to serious personal injury or death

to operator or bystander or damage to property.

Please read entire manual prior to installation.

Do not operate this machine until you read and

understand all the dangers, warnings and cautions

in this manual. For additional copies

or further information, contact:

BendPak Inc. / Ranger Products

1645 Lemonwood Dr.

Santa Paula, CA. 93060

1-805-933-9970

www.bendpak.com

INSTALLER / OPERATOR

PROTECTIVE EQUIPMENT

Personal protective equipment helps makes installation

and operation safer, however, it does not take the place

of safe operating practices. Always wear durable work

clothing during any installation and/or service activity.

Shop aprons or shop coats may also be worn, however

loose fitting clothing should be avoided. Tight fitting

leather gloves are recommended to protect technician

hands when handling parts. Sturdy leather work shoes

with steel toes and oil resistant soles should be used by

all service personnel to help prevent injury during typical

installation and operation activities.

Eye protection is essential during installation and operation

activities. Safety glasses with side shields,

goggles, or face shields are acceptable.

Back belts provide support during lifting

activities and are also helpful in providing

worker protection. Consideration should

also be given to the use of hearing protection if service

activity is performed in an enclosed area, or if noise levels

are high.

THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH IF NOT FOLLOWED

COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OR YOURSELF AND OTHERS

AND CAN CAUSE PERSONAL INJURY OR DEATH. READ AND FOLLOW ALL INSTRUCTIONS IN

THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

1. Carefully remove the crating and packing

materials. CAUTION! Be careful when cutting steel

banding material as items may become loose and fall

causing personal harm or injury.

2. Check the voltage, phase and proper amperage

requirements for the motor shown on the motor plate.

Wiring should be performed by a certified electrician

only.

IMPORTANT SAFETY INSTRUCTIONS !

Read these safety instructions entirely!

IMPORTANT NOTICE !

Do not attempt to install this lift if you have never been trained on basic automotive lift installation procedures.

Never attempt to lift components without proper lifting tools such as forklift or cranes.

Stay clear of any moving parts that can fall and cause injury.

INTRODUCTION

1. READ AND UNDERSTAND all safety warning

procedures before operating lift.

2. KEEP HANDS AND FEET CLEAR. Remove hands and

feet from any moving parts. Keep feet clear of lift when

lowering. Avoid pinch points.

3. KEEP WORK AREA CLEAN. Cluttered work areas

invite injuries.

4. Consider work area environment. Do not expose

equipment to rain. DO NOT use in damp or wet locations.

Keep area well lighted.

5. ONLY TRAINED OPERATORS should operate this lift.

All non-trained personnel should be kept away from work

area. Never let non-trained personnel come in contact with,

or operate lift.

6. USE LIFT CORRECTLY. Use lift in the proper manner.

Never use lifting adapters other than what is approved by the

manufacturer.

7. DO NOT override self-closing lift controls.

8. REMAIN CLEAR of lift when raising or lowering vehicle.

9. CLEAR AREA if vehicle is in danger of falling.

10. ALWAYS INSURE that the safeties are engaged before

any attempt is made to work on or near vehicle.

11. DRESS PROPERLY. Non-skid steel-toe footwear is

recommended when operating lift.

12. GUARD AGAINST ELECTRIC SHOCK. This lift must

be grounded while in use to protect the

operator from electric shock. Never connect

the green power cord wire to a live terminal.

This is for ground only.

13. DANGER! The power unit used on this lift contains high

voltage. Disconnect power at the receptacle

before performing any electrical repairs.

Secure plug so that it cannot be

accidentally plugged in during service.

14. WARNING! RISK OF EXPLOSION. This equipment

has internal arcing or sparking parts which

should not be exposed to flammable vapors.

This machine should not be located in a

recessed area or below floor level.

15. MAINTAIN WITH CARE. Keep lift clean for better and

safer performance. Follow manual for proper lubrication

and maintenance instructions. Keep control handles and/or

buttons dry, clean and free from grease and oil.

16. STAY ALERT. Watch what you are doing. Use common

sense. Be aware.

17. CHECK FOR DAMAGED PARTS. Check for alignment

of moving parts, breakage of parts or any condition that may

affect its operation. Do not use lift if any component is broken

or damaged.

18. NEVER remove safety related components from the lift.

Do not use lift if safety related components are damaged

or missing.

STEP 1

(Selecting Site)

Before installing your new lift, check the following.

1. LIFT LOCATION: Always use architects plans when

available. Check layout dimension against floor plan

requirements making sure that adequate space if

available.

2. OVERHEAD OBSTRUCTIONS: The area where the

lift will be located should be free of overhead

obstructions such as heaters, building supports, electrical

lines etc.

3. DEFECTIVE FLOOR: Visually inspect the site where

the lift is to be installed and check for cracked or

defective concrete.

4. OPERATING TEMPERATURE. Operate lift only

between temperatures of 41° -104° F.

5. Lift is designed for INDOOR INSTALLATION ONLY.

STEP 2

(Floor Requirements)

This lift must be installed on a solid level concrete

floor with no more than 3-degrees of slope. Failure

to do so could cause personal injury or death.

A level floor is suggested for proper use and

installation and level lifting. If a floor is of questionable

slope, consider a survey of the site and/or the possibility

of pouring a new level concrete slab.

 DO NOT install or use this lift on any asphalt surface

or any surface other than concrete.

 DO NOT install or use this lift on expansion seams

or on cracked or defective concrete.

 DO NOT install or use this lift on a second / elevated

floor without first consulting building architect.

 DO NOT install or use this lift outdoors.

CONCRETE SPECIFICATIONS

LIFT MODEL CONCRETE REQUIREMENTS

HD-7500BL 3.5” Min. Thickness / 2,500 PSI

HD-7500BLX 3.5” Min. Thickness / 2,500 PSI

HD-7500PBX 3.5” Min. Thickness / 2,500 PSI

DANGER !

All models MUST be installed on 2500 PSI concrete only

conforming to the minimum requirements shown above.

New concrete must be adequately cured by at least

28 days minimum.

IMPORTANT NOTICE !

These instructions must be followed to insure proper installation and operation of your lift. Failure

to comply with these instructions can result in serious bodily harm and void product warranty.

Manufacturer will assume no liability for loss or damage of any kind, expressed or implied resulting

from improper installation or use of this product.

PLEASE READ ENTIRE MANUAL PRIOR TO INSTALLATION !

 Rotary Hammer Drill or Similar

 3/4” Masonry Bit

 Hammer

 4 Foot Level

 Open-End Wrench Set: SAE /Metric

 Socket And Ratchet Set: SAE/ Metric

 Hex-Key / Allen Wrench Set

 Medium Crescent & Pipe Wrenches

 Torque Wrench

 Crow Bar

 Chalk Line

 Medium Flat Screwdriver

 Tape Measure: 25 Foot Minimum

 Needle Nose Pliers

TOOLS REQUIRED

An air supply (30 PSI Min / 3 CFM Min.) will be required for the safety-lock mechanisms. See Step 11.

IMPORTANT NOTE:

BendPak lifts are supplied with installation instructions and concrete fasteners meeting the criteria as prescribed

by the American National Standard "Automotive Lifts - Safety Requirements for Construction, Testing, and

Validation" ANSI/ALI ALCTV-2006. Lift buyers are responsible for any special regional structural and/or seismic

anchoring requirements speciﬁed by any other agencies and/or codes such as the Uniform Building Code (UBC)

and/or International Building Code (IBC).

When removing the lift from shipping angles pay close attention as the posts

can slide and can cause injury. Prior to removing the bolts make sure the posts

are held securely by a fork lift or some other heavy lifting device.

HD-7500 SERIES ASSEMBLY

VIEW

*IMPORTANT NOTE*

Check Diagonal Measurements To Ensure Square Layout Diagonal Measurements Must Be Equal.

FLOOR PLAN

The Power Unit can be located at either “X”

location shown below. It is important to locate

the POWERSIDE Runway (with Cylinder) on

the SAME SIDE as the power unit location.

Utility rails on the side of each Runway MUST

be installed to the inside.

For the remainder of this instruction we will

illustrate the Power Unit mounted at the

DRIVER-SIDE (LEFT) FRONT Column - TOP

ILLUSTRATION. For Power Unit at right rear,

rotate lift 180° leaving Approach Ramps and

Front Tire Stops in original position.

IMPORTANT NOTE

POWER UNIT LOCATION
