BELLNET Technologies. ---- MB8800 Belled User Guide

- 1 -

Belleds MB8800

2.4G+WiFi Smart Router

User Guide

(Firmware: mb8800_r74.bin)

2014-08-08

Bellnet Technologies Co., Ltd., any modification of this product will not issue a separate notice.

BELLNET Technologies. ---- MB8800 Belled User Guide

- 2 -

CONTENT

1INTRODUCTION ....................................................................................................... 3

1.1 VERIFY KIT CONTENTS..........................................................................................3

1.2 CONNECTION........................................................................................................ 3

2CONFIGURATION..................................................................................................... 4

2.1 CONFIGURATION IN PC.......................................................................................... 4

2.2 CONFIGURATION IN DETAIL..................................................................................... 6

2.2.1 Music Service .............................................................................................. 6

2.2.2 Basic Settings..............................................................................................9

2.2.3 Internet Connection ................................................................................... 15

2.2.4 Upgrade Firmware..................................................................................... 20

3BELLEDS IN MOBILE............................................................................................. 25

3.1 PREPARATION (HARDWARE &SOFTWARE)............................................................ 25

3.2 CONFIGURATION IN MOBILE .................................................................................27

3.3 PLAY MUSIC ....................................................................................................... 28

3.3.1 Music List...................................................................................................28

3.3.2 Music Play.................................................................................................29

3.3.3 Music & LEDs synchronize........................................................................32

3.4 LED CONTROL.................................................................................................... 33

3.4.1 ON and OFF.............................................................................................. 34

3.4.2 Adjust Color of LEDs ................................................................................. 34

BELLNET Technologies. ---- MB8800 Belled User Guide

- 3 -

1 Introduction

MB8800 Belleds is a product that can make the LEDs blinking synchronously with the

rhythm of your music which is in your mobile. Just install the application called “belleds” in

your mobile. Then you can control the music play, the color of the LEDs by your mobile.

1.1 Verify Kit Contents

MB8800 kit includes the following components.

1. MB8800 Router

2. Power Adaptor

3. LAN Cable

4. Audio Cable

1.2 Connection

Make sure the device and the cables are connected correctly.

1. MB8800 Router’s power line interface connects to Power Adaptor with the power

line.

2. MB8800 Router’s LAN interface connects to network interface of PC with the LAN

cable.

3. MB8800 Router’s Audio interface connects to audio interface of the earphones or

speaker with the audio cable.

BELLNET Technologies. ---- MB8800 Belled User Guide

- 4 -

2 Configuration

You can set the MB8800 Router WIFI related configuration in PC or mobile.

The details are as below.

2.1 Configuration in PC

1. Connect your computer to MB8800 using the attached Ethernet cable and set your

computer “Obtain an IP address automatically”.

2. Make sure that your computer has got IP address from the MB8800, then open the

web browser and enter “http://172.16.0.1”(by default). Press Enter key, the MB8800

configuration home page will appear (Figure 2-1).

3. The default language is Chinese. You can click “English” on the top right corner. Then

you will enter English interface (Figure 2-2).

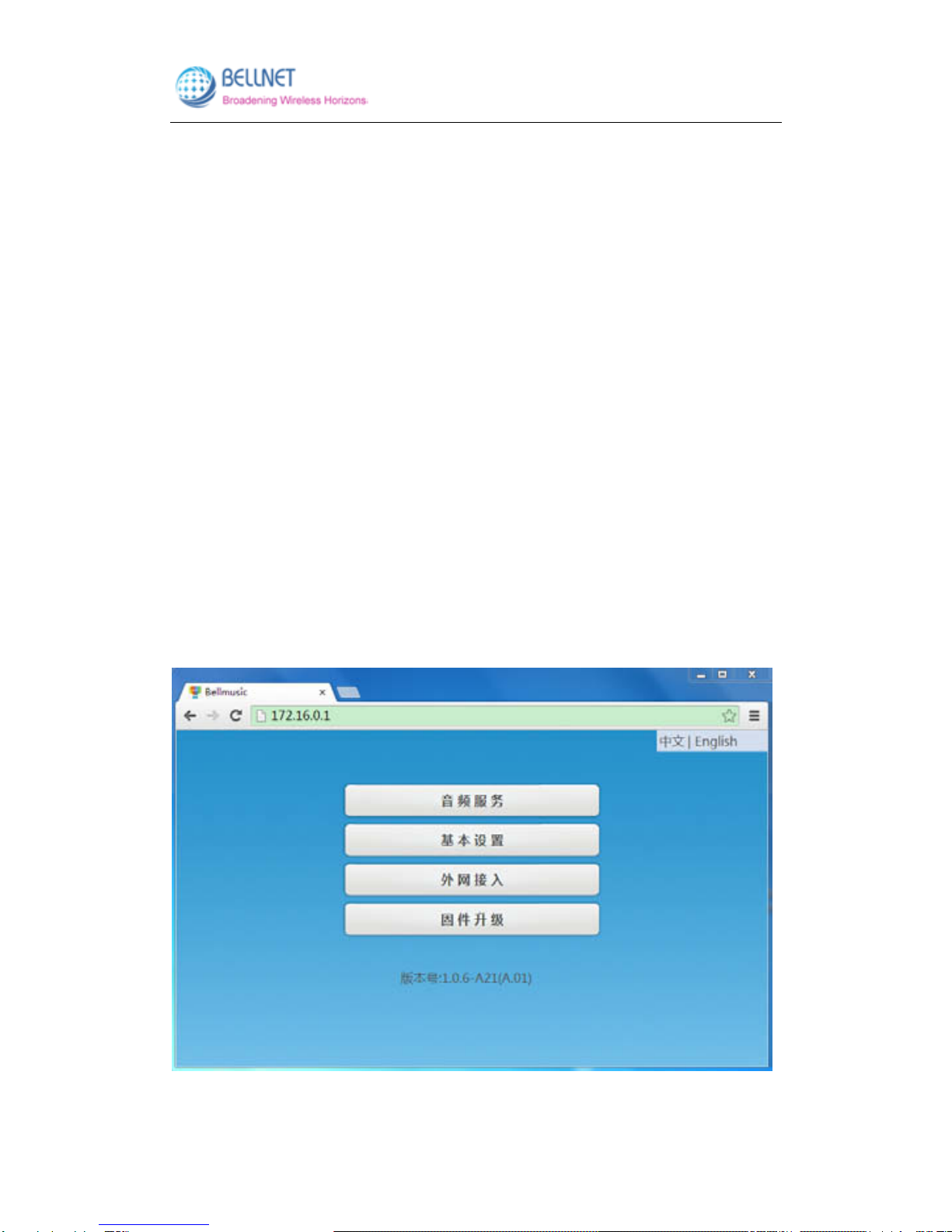

Figure 2-1 MB8800 configuration home page (Chinese)

BELLNET Technologies. ---- MB8800 Belled User Guide

- 5 -

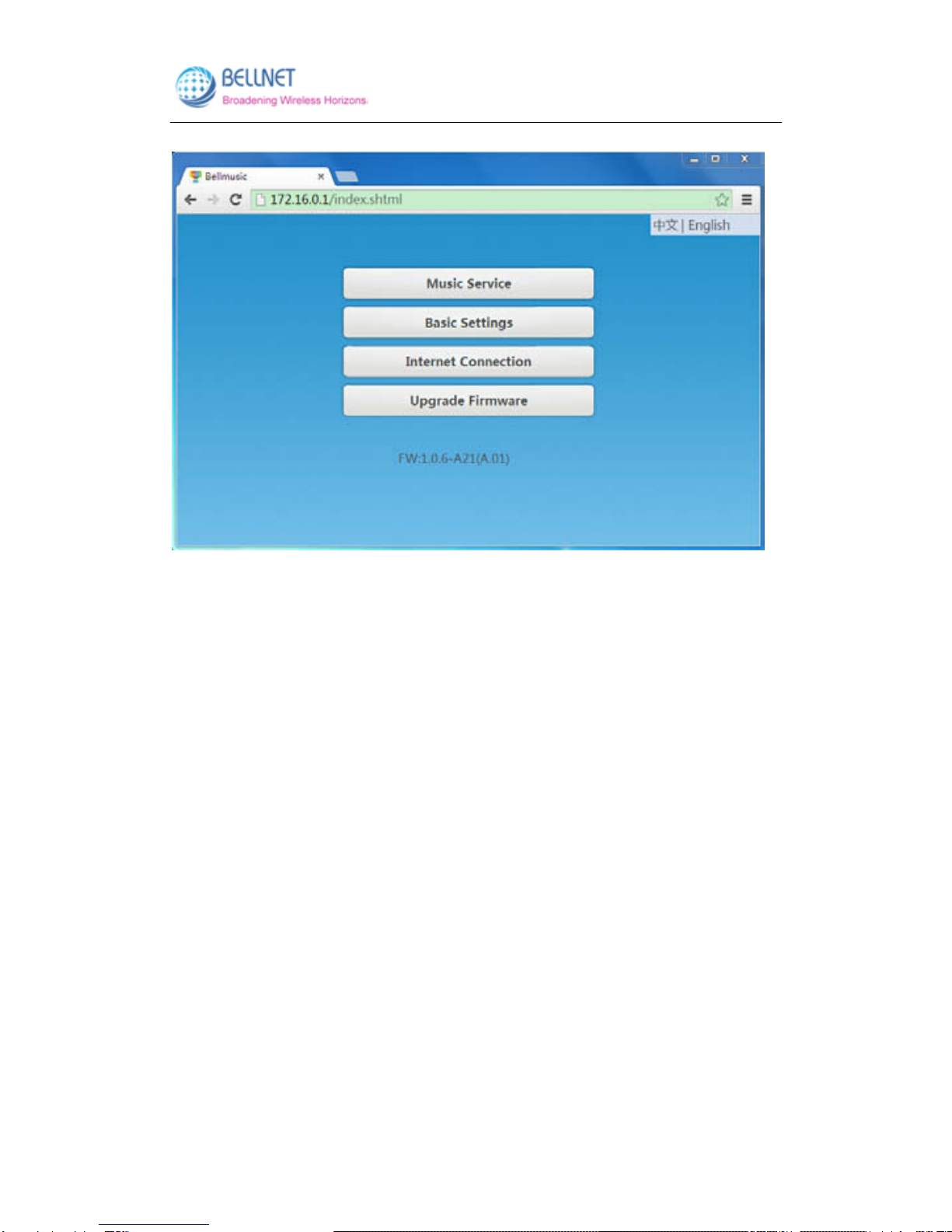

Figure 2-2 MB8800 configuration home page (English)

BELLNET Technologies. ---- MB8800 Belled User Guide

- 6 -

2.2 Configuration in detail

2.2.1 Music Service

This function controls the renderer name in belleds.

(The belleds is one application in mobile that can make the led synchronize with the

music.)

Click “Music Service”, to enter the management page (Figure 2-3).

Click “Back”, to go back to MB8800 configuration home page (Figure 2-2).

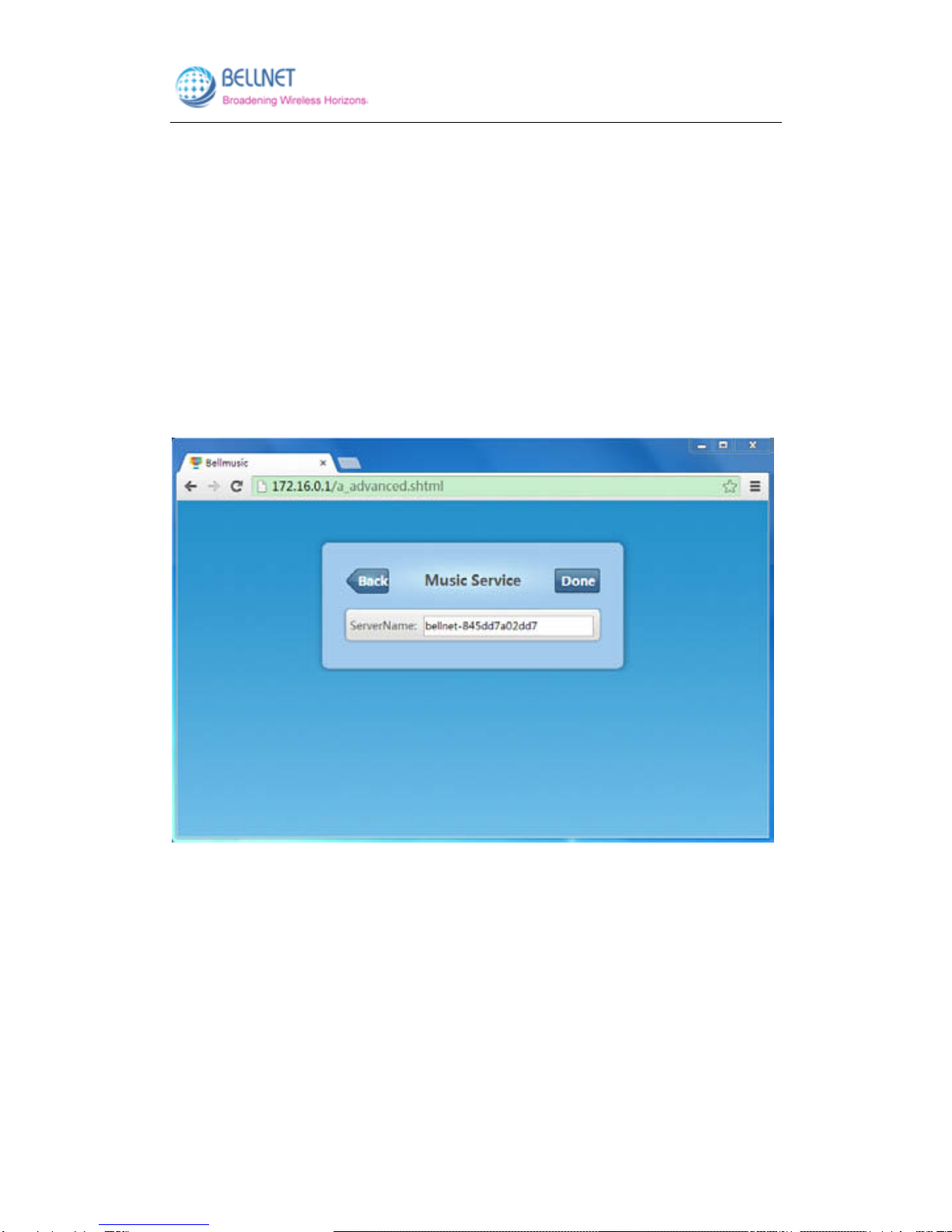

Figure 2-3 Music Service screen

You can change the Server Name:

1. Input the Server Name which you want in the field. (Figure 2-4)

2. Click “Done” (Figure 2-5), after 10 seconds it will pop-up a window (Figure 2-6):

3. Click “Yes”, and refresh the page. Then the Server Name has been changed

successfully. (Figure 2-7)

BELLNET Technologies. ---- MB8800 Belled User Guide

- 7 -

Figure 2-4 Input the Server Name you want in field

Figure 2-5 Click “Done”

BELLNET Technologies. ---- MB8800 Belled User Guide

- 8 -

Figure 2-6 After 10 seconds, it will pop-up a window.

Figure 2-7 Click Yes, then refresh the page. Then Server Name is changed successfully.

BELLNET Technologies. ---- MB8800 Belled User Guide

- 9 -

2.2.2 Basic Settings

In this function, you can change the MB8800 Router’s WIFI SSID.

Also, you can set the encryption mode and password for the WIFI.

Click “Basic Settings”, to enter the management page (Figure 2-8).

Click “Back”, to go back to MB8800 configuration main page (Figure 2-2).

Figure 2-8 Basic Settings screen

Currently:

The WIFI SSID is bellnet-r74.

Encryption Mode is NONE (no encryption).

You can change the Device Name (Known as WIFI SSID):

1. Input the Device Name which you want in the field. (Figure 2-9)

2. Click “Done” (Figure 2-10), after 20 seconds, it will pop-up a window (Figure 2-11):

Please refresh the page or reconnect your device.

3. Click “Yes”, and refresh the page. Then the Device Name has been changed

successfully. (Figure 2-12)

BELLNET Technologies. ---- MB8800 Belled User Guide

- 10 -

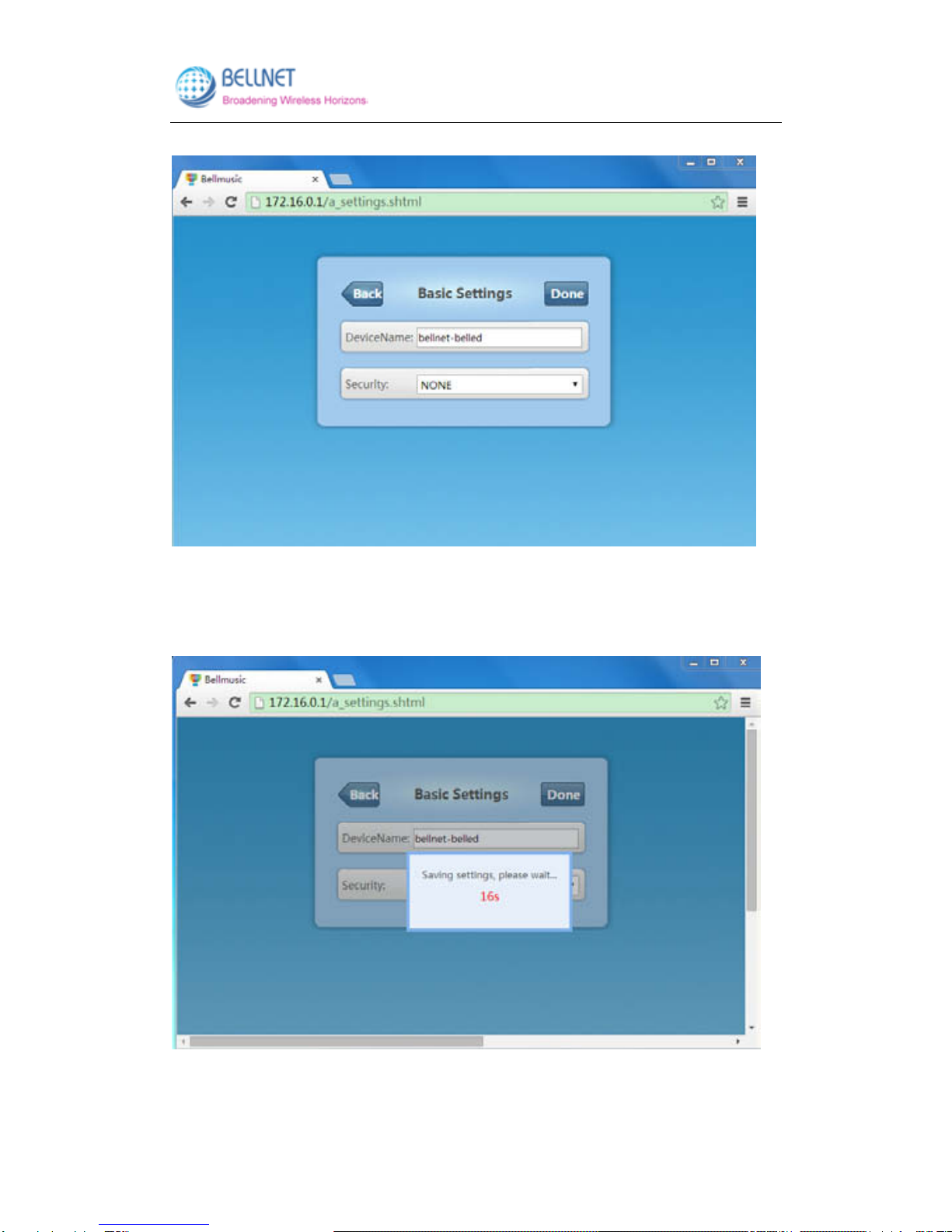

Figure 2-9 Input the Device Name you want in field

Figure 2-10 Click “Done”
