Thank you for buying this British-built appliance from us.

This user guide book is designed to help you through each step of owning your new product.

Please read it carefully before you start using your appliance, as we have endeavored to answer as

many questions as possible, and provide you with as much support as we can.

General information, spares and service information is available from our website.

If you should nd something missing from your product or have any questions that are not covered in

this user guide, please contact us (see contact information inside the front cover).

This unit must be installed by a competent electrician / qualied technician. In regions where applicable,

please retain your Certicate of Compliance.

European Directives

As a producer and a supplier of cooking appliances we are committed to the protection of the environ-

ment and are in the compliance with the WEEE directive. All our electric products are labelled

accordingly with the crossed out wheeled bin symbol. This indicates, for disposal

purposes at end of life, that these products must be taken to a recognized collection points,

such as local authority sites/local recycling centres.

This appliance Complies with European Community Directives (CE) for household and similar electrical

appliances and Gas appliances where applicable.

This appliance conforms to European Directive regarding Eco design requirements for energy-related

products. Our policy is one of constant development and improvement, therefore we cannot guarantee

the strict accuracy of all of our illustrations and specications - changes may have been made subse-

quent to publishing.

Disposal of Packaging Material

The packaging materials used with this appliance can be recycled. Please dispose of the packaging

materials in the appropriate container at your local waste disposal facilities.

UK ONLY GAS WARNING:

If you smell gas, Do not try to light any appliance. Do not touch any electrical switch.

Call the Gas Emergency Help line at 0800 111999

INTRODUCTION

WARNING

• If the hob surface is cracked, broken or shattered, switch off the

appliance to avoid the possibility of electric shock and call for a

service engineer’s visit.

• The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements. Children

less than 8 years of age shall be kept away unless continuously

supervised. This appliance can be used by children aged from 8

years and above and persons with reduced physical sensory or

mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning the use of

the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

• Do not use a steam cleaner on any cooking range, hob or oven

appliance.

• Metallic objects such a knives, forks, spoons and lids should not

be placed on the hob surface since they can get hot.

• After use, switch off the hob element by its control and do not rely

on the pan detector.

• The appliance is not intended to be operated by means of an

external timer or separate control system.

• Unattended cooking on a hob with fat or oil can be dangerous and

may result in re.

• NEVER try to extinguish a re with water, but switch off the

appliance and then cover the ame with a lid or damp cloth.

• Danger of re: Do not store items on the cooking surfaces.

• Only use hob guards designed by the manufacturer of the cooking

appliance or indicated by the manufacturer of the appliance in

the instructions for use as suitable or hob guards incorporated in

the appliance. The use of inappropriate hob guards can cause

accidents.

CAUTION

• The cooking process has to be supervised. A short term cooking

process has to be supervised continuously.

SAFETY

• Fire Safety Advice

If you do have a re in the kitchen, don’t take any risks - get everyone out of your home and call the

Fire Brigade.

Ifyouhaveanelectricalreinthekitchen:

• Pull the plug out, or switch off the power at the fuse box - this may be enough to stop the re imme-

diately

• Smother the re with a re blanket, or use a dry powder or carbon dioxide extinguisher

• Remember: never use water on an electrical or cooking oil re.

• Other Safety Advice

• Servicing should be carried out only by authorised personnel.

• There is a risk of electric shock, so always make sure you have turned off and unplugged your

appliance before starting. Always allow the product to cool down before you change a bulb.

• This appliance must be earthed.

• The appliance must never be disconnected from the mains supply during use, as this will seriously

affect the safety and performance, particularly in relation to surface temperatures becoming hot and

gas operated parts not working efciently.

• GAS WARNING! - If you smell gas: Do not try to light any appliance, Do not touch any electrical

switch. Contact your local gas supplier immediately.

USING YOUR APPLIANCE

Getting to know your product

Note: Your appliance layout may differ depending on the model.

Hob

Control panel

On/Off key

Minus key

Cook zones

Timer

Cook zones

Right hand front

Right hand rear

Centre

Left hand front

Left hand rear

Overview

Function Description Symbol

Power Level Once a cook zone is selected, a power level can be set to a

low or high temperature. 1-9

Cook zone timer

Once a cook zone is selected, the cook zone timer can be activated

to sound after a pre-determined amount of time. When the alarm

sounds, the cook zone will turn off.

Residual Heat After use, the cooking surface remains hot and the residual

heat symbol will be displayed.

Automatic switch off

Each cook zone is pre-set with a maximum operation time.

Once this time is reached, the zone will automatically switch

off. The residual heat symbol will be displayed if the surface

remains hot.

N/A

Pan detection

If no pan or an unsuitable pan is detected on an activated

cook zone, the pan detection symbol will be displayed.

Suitable pans - cast iron, metals with magnetic properties.

Non-suitable pans - copper, stainless steel, aluminium,

glass, ceramic, terra-cotta.

Booster function

The booster function temporarily increases the power to a

cook zone allowing for a faster heat up time. It will deactivate

automatically after 10 minutes or if a lower power level is

selected.

Bridge function

Individual cook zones can be bridged or joined together to

create a larger, single controlled cook zone. By bridging the

left hand front and rear zones or the right hand front and rear

zones, two larger cook zones can be created.

Pause

When at least one cooking zone is in operation, the pause

function can be activated. This will pause all cooking on the

hob for up to 10 minutes.

Recall function

While the hob is in use, if it is accidentally turned off, turn

the hob back on within 6 seconds and the settings will be

restored.

N/A

Child lock Child lock can be activated to stop the hob from being

accidentally turned on.

Low temp/keep warm

This setting temperature is set to allows the user to keep

food warm without over cooking. This setting can also thaw

frozen foods.

Caution: Always ensure that induction pans remain within the marked cooking area when hot. Do not

allow hob pans to rest on the user control panel at the front of the hob glass, as this will cause the

controls to overheat and the appliance to temporarily shut down.

Please be aware that the pans can make a noise during cooking. This is caused by vibration due to the

passage of energy from the hob to the pan.

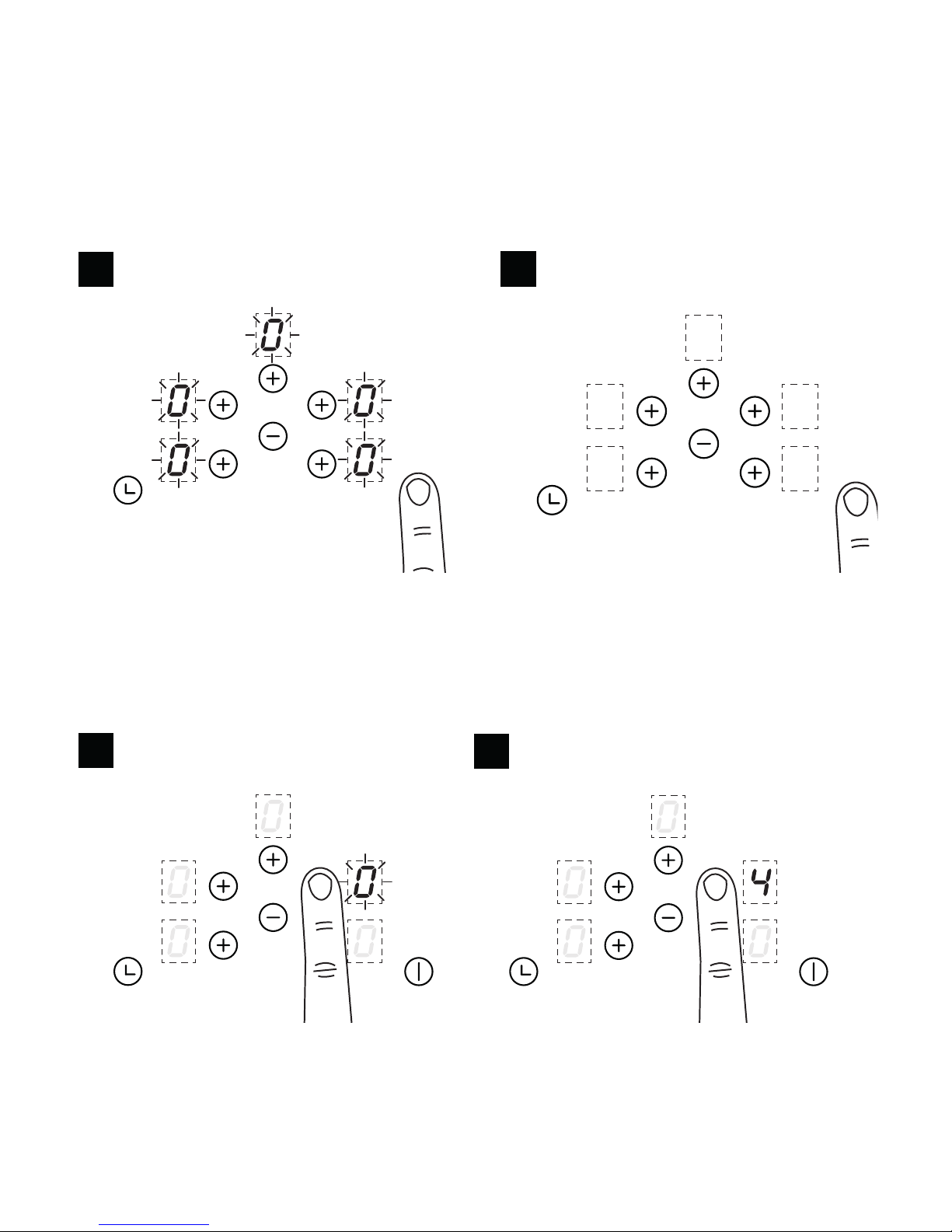

Switching the appliance On/Off

1Press and hold the On/Off key to activate

the appliance

2Press and hold the On/Off key to deactivate

the appliance

If within 20 seconds, no action (zone or timer selection) takes place the hob will automatically switch off.

Switching a cook zone On/Off

1Touch the plus key for the relevant cook zone

2Touch the cook zone plus key and the central minus

key to set a power level

Note: Setting the power level to “0” will switch off the cook zone.

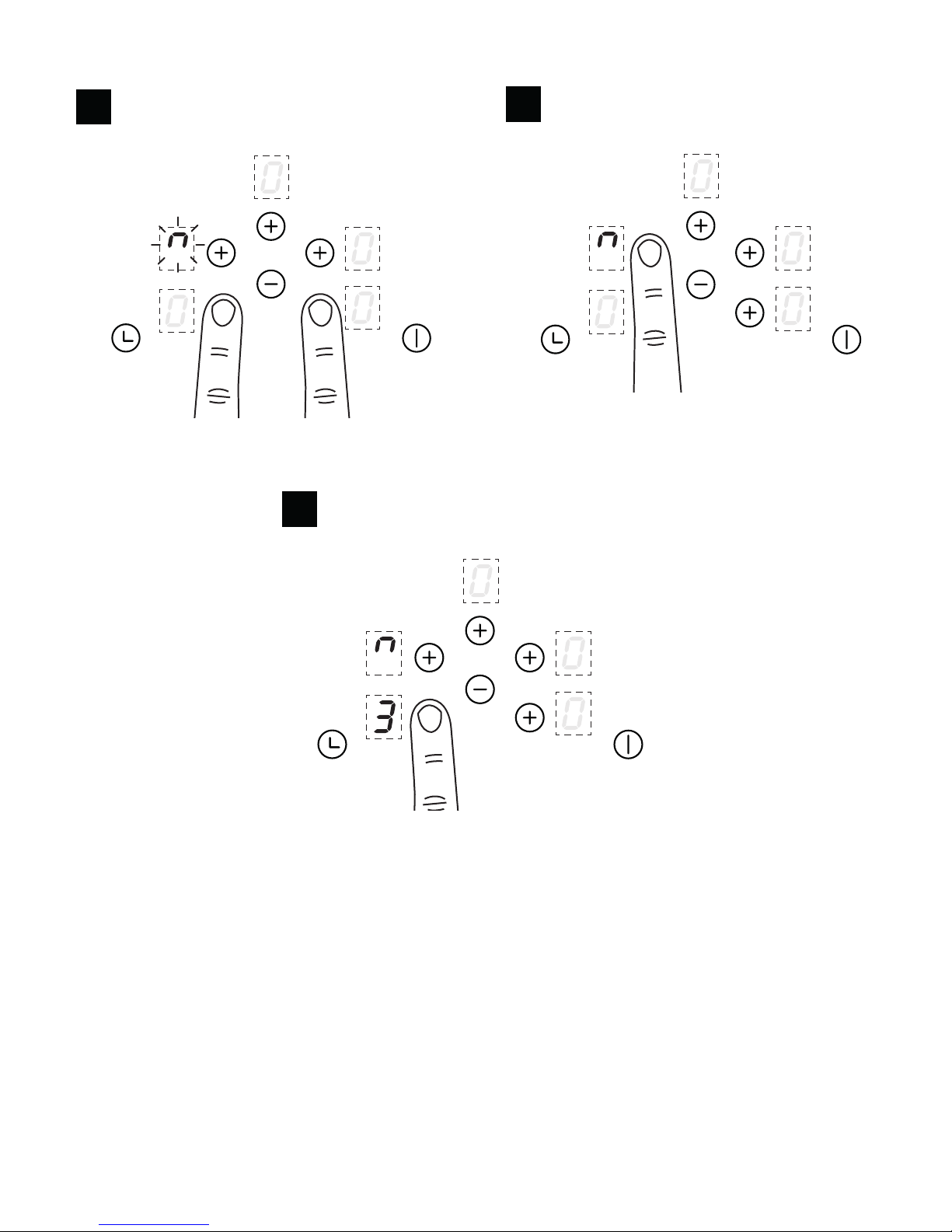

Griddle zone with bridge function

1Press the Front Left or Front Right key and hold

until the Bridge symbol blinks

Press the corresponding rear key immediately to

activate

3Once activated, set the power level by touching

the front zone plus key and central minus key.

The Left Hand and Right Hand zones can be used as 4 separate cooking zones which can be

controlled individually or they can be bridged to provide 2 large zones that can be controlled via one

setting on each side. Large pans and griddle plates can be placed across the bridged zones.

Low temperature setting/Keep warm

1Touch the plus key for the relevant cook zone

2Touch the cook zone plus key to select “u”

The “u” symbol can be found between power level “0” and “1”. Use the relevant cook zone plus key and

central minus key to scroll through the power levels.

This function can be used when the cook zone(s) are in the bridge function.

Pause key

1Press and hold central minus key

2Press and hold central minus key until

beep, then immediatley press any cook zone

plus key to de-activate

If the pause mode is not de-activated within 10 minutes, the hob will switch off.

Recall

If the hob is switched off accidentally, all the settings can be restored within 6 seconds by pressing the

On/Off key, followed by the central minus key to resume cooking.

Tabla de contenidos

Otros manuales de Quemador de Belling

Belling

Belling 60T Series Instrucciones de funcionamiento

Belling

Belling BCT60CER Manual de lista de piezas

Belling

Belling Hob Actualización de firmware

Belling

Belling IH60 UK Actualización de firmware

Belling

Belling IH302T Manual de usuario

Belling

Belling GTG60 Manual de usuario

Belling

Belling IH60R Manual de instrucciones

Belling

Belling CH302TX Manual de usuario

Belling

Belling IH6013 Actualización de firmware

Belling

Belling GTG60 Manual de usuario

Belling

Belling 60cm Manual de usuario

Belling

Belling CH60R Actualización de firmware

Belling

Belling IH60XL Actualización de firmware

Belling

Belling Gas hobs Actualización de firmware

Belling

Belling GHU573 Guía

Belling

Belling PBI60R Instrucciones de funcionamiento

Belling

Belling GTG 60 LPG Series Manual de usuario

Belling

Belling IHK80 Actualización de firmware

Belling

Belling IHF64T Manual de usuario

Belling

Belling GHU60-70 AU Manual de usuario

Belling

Belling Gas hobs Actualización de firmware

Belling

Belling CH772TX Manual de usuario

Belling

Belling Hob Rotary UK Actualización de firmware

Belling

Belling IHL603 Manual de usuario

Manuales populares de Quemador de otras marcas

Siemens

Siemens EX875KYV1E Hoja de especificaciones

AEG

AEG CERAMIC HOB 6010 K Manual de usuario

VALERA

VALERA CT 70A Manual de usuario

Zanussi

Zanussi ZGF 6420 Manual de usuario

Gaggenau

Gaggenau CI 273 Manual de usuario

G3 Ferrari

G3 Ferrari Energy Manual de usuario

Pkm

Pkm IN4B Manual de usuario

Award

Award H903BG Manual de usuario

Zanussi

Zanussi VCH 5005 RZ Manual de usuario

Miele

Miele KM 523 Manual de usuario

Hotpoint

Hotpoint IS67V8CCXT/E Manual de usuario

AEG

AEG HK854870XB Manual de usuario

Cookology

Cookology SEP600BK Manual de usuario

Bauknecht

Bauknecht Hob Manual de usuario

Zanussi

Zanussi ZGM 782 Manual de usuario

dipo INDUCTION

dipo INDUCTION DIBK218S Manual de usuario

Miele

Miele KM 5987 Manual de usuario

Miele

Miele KM 360 G Manual de usuario
