Wireless USB Hub
User Manual
F5U303
Wireless USB Hub
1. Introduction
....................................................................
1
Features
........................................................................
2
System Requirements
...................................................
2
Package Contents
.........................................................
2
Product Description
......................................................
3
2. Installation
......................................................................
4
PIN-Association Procedure
...........................................
5
Cable-Association Procedure
.......................................
6
3. Operation
........................................................................
9
Proper Orientation of Antennas
....................................
9
Using the Wireless USB Manager
...............................
10
Options
..................................................................
11
System Tray
.................................................................
15
4. Maintenance
.................................................................
16
Troubleshooting
...........................................................
16
Support for USB Classes
............................................
19
5. Technical Specifications
................................................
20
6. Information
...................................................................
21
Table of Contents
E
1

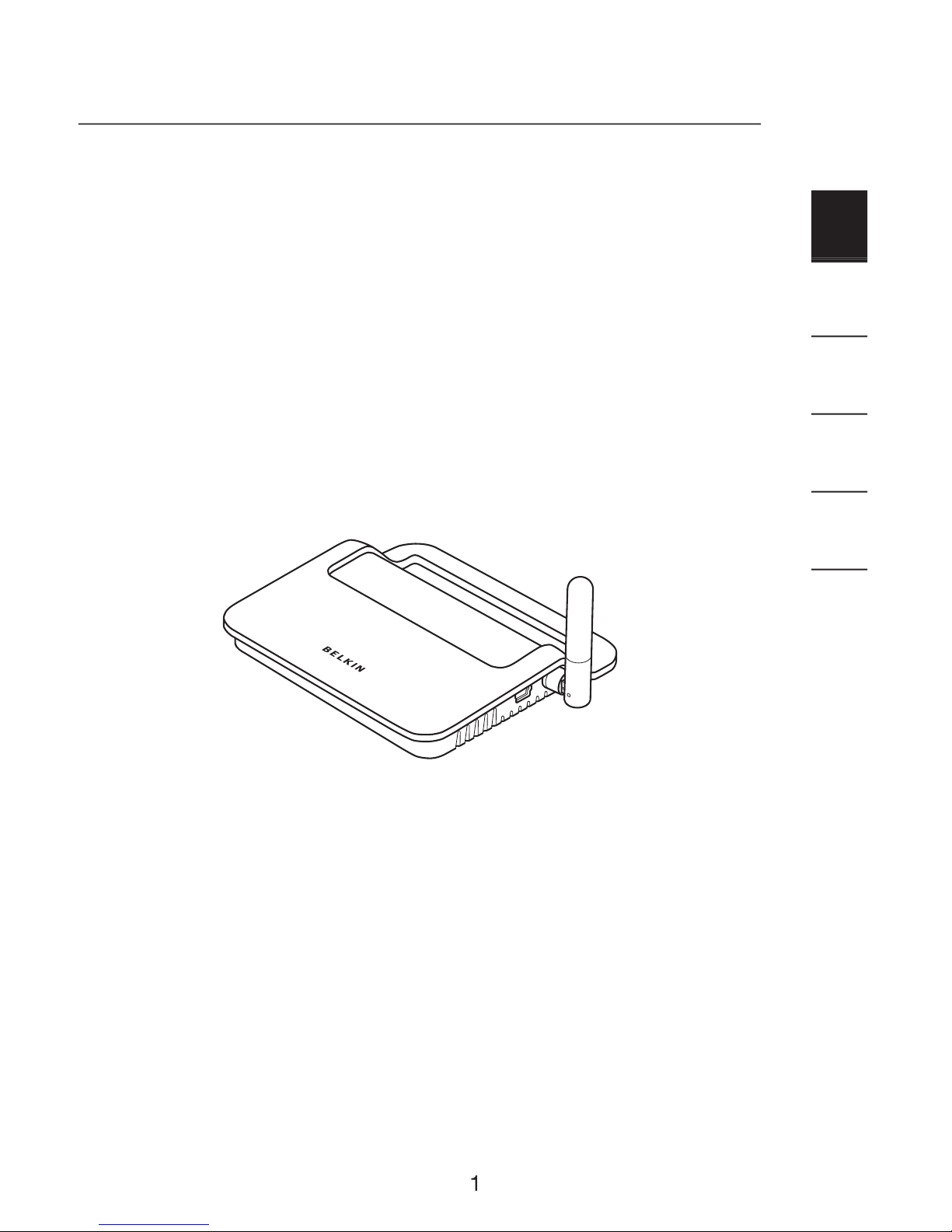

Introduction
1
2
3
4
5
6
Congratulations and thank you for purchasing the Belkin
Wireless USB Hub. This revolutionary product lets you
connect your USB devices to your computer—wirelessly.
Now you can print, play music, scan, download photos,
and burn CDs, without the hassle of connecting cables. The
Hub is easy to use and gives you the freedom to roam—and
stay connected.
Please review this User Manual carefully so that you are sure
to get the most from your Wireless USB Hub.
Wireless USB Hub
2
Introduction
1
2
3
4
5
6
Features
• Wireless connectivity through USB technology for printers,
cameras, hard drives, and other USB devices to
your computer
• Reduced cable clutter
• Ports for linking up to 4 high-, full-, and low-speed devices
with your computer
• Belkin Lifetime Warranty
System Requirements
• Windows Vista
TM
32-/64-bit operating system
Package Contents
• Wireless USB Hub
• Power Adapter
• USB Cable (A to mini-B)
• User Manual
• Quick Start Guide
3
Introduction
1
2
3
4
5
6
Product Description
Downstream USB Ports: 4
Per-Port Voltage: 5V
Per-Port Current: 500mA
Power Mode: Self-powered
Power Supply:
Input: 100–240 50/60Hz
Output: 5V DC, 3A
Plug Size: 3.5mm
Plug Polarity: Center-pin positive
LED Indicators on Hub:
Wireless Status LED
Color: Blue
Status: Constant on, when power supply is connected;
blinks to indicate a wireless connection
USB Port Status LED
Color: Green
Status: Off: No USB device plugged in
(or device not enumerated)
Green: USB device enumerated
4
1
2
3
4
5
6
Installation
Association Procedures
Two methods exist to assist you in setting up the wireless
security and association with your Hub: PIN and Cable.
5
Installation
1
2
3
4
5
6
PIN-Association Procedure
When you initially set up the Hub, you must “associate” it
with the host computer. To do this, enter the PIN (product
identification number) found on the bottom of the Hub into
the Wireless USB Manager. This “PIN association” procedure
is one of two supported methods to establish a secure
wireless connection.
1. Plug the power supply into the wall, and then plug the
DC connector into the Hub.
2. Open the Wireless USB Manager to set up the
Hub’s security.

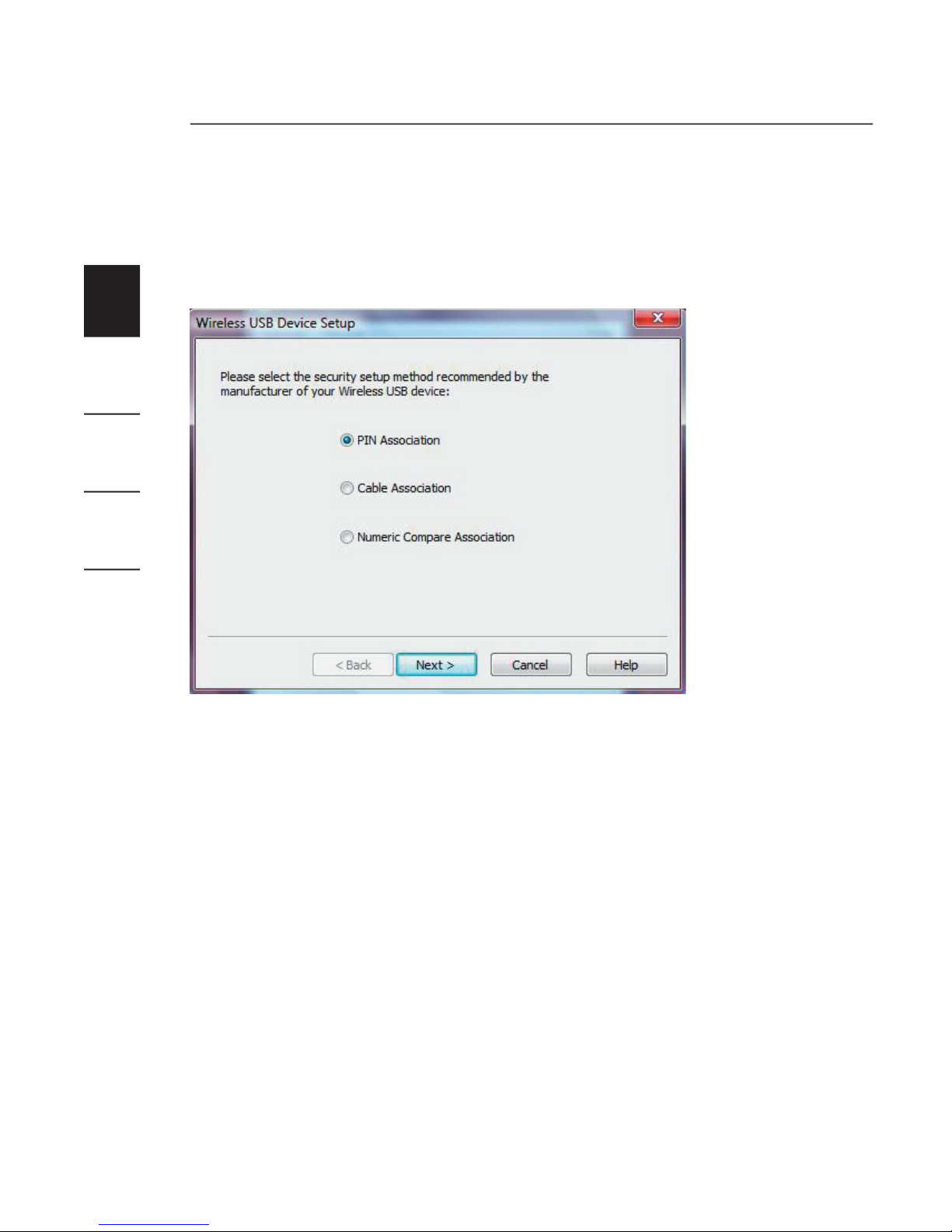

3. Click on “New Connection”.
4. Select “PIN Association” and click “Next”.
5. Enter the PIN into the space provided. The PIN can be
found on the bottom of the Hub.
6. The Wireless USB Manager will automatically detect the
Hub and provide customization options for the device
name and method of detection.
7. Click “Finish” to complete the setup and remove the
USB cable.
8. Verify that you have established a wireless connection
through the Wireless USB Manager. You should have an
icon for the Hub showing two arrows pointing to
each other.
9. Station the Wireless USB Hub in range and connect your
devices to access them wirelessly.
