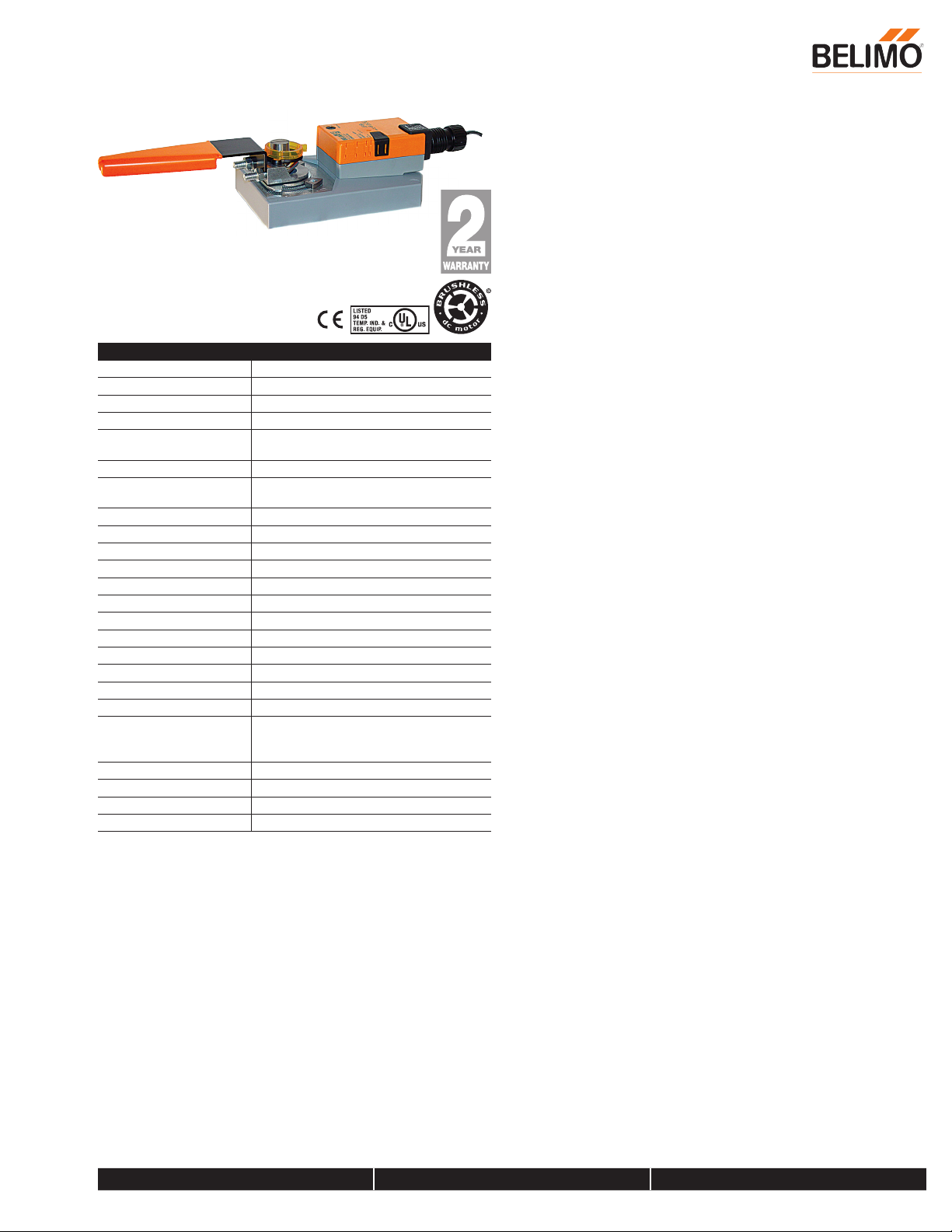

Belimo AMB24-SR-X1 Manual de usuario

Technical Data 2346

Power Supply 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%

Power Consumption Running 2.5

Power Consumption Holding 0.4 W

Transformer Sizing 5 VA (class 2 power source)

Electrical Connection 3ft [1m], 18 GA appliance cable with 1/2”

conduit connector

Overload Protection electronic throughout 0° to 95° rotation

Operating Range Y 2 to 10 VDC, 4 to 20 mA w/ ZG-R01 (500 Ω,

1/4 W resistor)

Input Impedance 600 Ω

Feedback Output U 2 to 10 VDC

Angle of Rotation Max. 95°, adjustable with mechanical stop

Torque 180 in-lbs [20 Nm] minimum

Direction of Rotation (Motor) reversible with built-in switch

Position Indication reflective visual indicator (snap on)

Manual Override external push button

Running Time (Motor) 95 sec constant, independent of load

Ambient Humidity 5 to 95% RH non condensing (EN 60730-1)

Ambient Temperature Range -22°F to 122°F [-30°C to 50°C]

Storage Temperature Range -40°F to 176°F [-40°C to 80°C]

Housing NEMA 2, IP54

Agency Listings† cULus acc. to UL60730-1A/-2-14, CAN/CSA

E60730-1:02, CE acc. to 2004/108/EC and

2006/95/EC

Noise Level (Motor) <45 dB (A)

Servicing maintenance free

Quality Standard ISO 9001

Weight 2 lb [0.9 kg]

†Rated Impulse Voltage 800V, Type action 1, Control Pollution Degree 3.

AMB24-SR-X1

Modulating, Non-Spring Return, 24 V, for 2 to 10 VDC or 4 to 20 mA

800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN

Date created, 05/17/2017 - Subject to change. © Belimo Aircontrols (USA), Inc.

Wiring Diagrams

INSTALLATION NOTES

Provide overload protection and disconnect as required.

Actuators may also be powered by 24 VDC.

Only connect common to negative (-) leg of control circuits.

A 500 Ωresistor (ZG-R01) converts the 4 to 20 mA control signal to 2

to 10 VDC.

Actuators may be connected in parallel if not mechanically linked. Power

consumption and input impedance must be observed.

Meets cULus requirements without the need of an electrical ground

connection.

!WARNING! LIVE ELECTRICAL COMPONENTS!

During installation, testing, servicing and troubleshooting of this

product, it may be necessary to work with live electrical components.

Have a qualified licensed electrician or other individual who has been

properly trained in handling live electrical components perform these

tasks. Failure to follow all electrical safety precautions when exposed to

live electrical components could result in death or serious injury.

Blk (1) Common

Red (2) Hot +

Control Signal

(+)

VDC/mA

(–)

Feedback Signal

(+)

2 to 10 VDC (–)

Ω

500 Ω

Line

Volts

Org (5) U Output

Wht (3) Y Input, 2 to 10V

24 VAC Transformer

2 to 10 VDC / 4 to 20 mA Control

AMB24-SR-X1

Modulating, Non-Spring Return, 24 V, for 2 to 10 VDC or 4 to 20 mA

800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN

Date created, 05/17/2017 - Subject to change. © Belimo Aircontrols (USA), Inc.
