T15BR

Installation Manual

English

MAEN165,2014-04

Foreword

InstallationmanualforT15BR

Foreword

All operator panels are developed to satisfy the demands of human-machine

communication. Built-in functions such as displaying and controlling text,

dynamic indication, time channels, alarm and recipe handling are included.

The operator panel works primarily in an object-oriented way, making it easy to

understand and use. Conﬁguration is carried out on a PC using the iX Developer.

Theprojectcanthenbetransferredandstoredintheoperatorpanelitself.

Various types of automation equipment such as PLCs, servos or drives can be

connected to the operator panels. In this manual, the term “the controller” refers

to the connected equipment.

This manual explains how to install the operator panel. Please refer to the

iX Developer reference manual for further information.

Order no: MAEN165

The information in this document is subject to changewithoutnoticeandisprovidedasavailableatthe

time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any

information without updating this publication. Beijer Electronics AB, including all its group companies,

assumesnoresponsibilityforanyerrorsthatmayappearinthisdocument. Readtheentireinstallation

manual prior to installing and using this equipment. Only qualiﬁed personnel may install, operate or repair

this equipment. Beijer Electronics AB, including all its group companies, are not responsible for modiﬁed,

altered or renovated equipment. Because the equipment has a wide range of applications, users must acquire

the appropriate knowledge to use the equipment properly in their speciﬁc applications. Persons responsible

for the application and the equipment must themselves ensure that each application is in compliance with

all relevant requirements, standards and legislationinrespecttoconﬁgurationandsafety. Onlypartsand

accessories manufactured according to speciﬁcations set by Beijer Electronics AB, including all its group

companies, may be used.

BEIJER ELECTRONICS AB, INCLUDING ALL ITS GROUP

COMPANIES, SHALL NOT BE LIABLE TO ANYONE FOR ANY

DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE INSTALLATION, USE OR

REPAIR OF THIS EQUIPMENT, WHETHER ARISING IN TORT,

CONTRACT, OR OTHERWISE. BUYER'S SOLE REMEDY SHALL

BE THE REPAIR, REPLACEMENT, OR REFUND OF PURCHASE

PRICE, AND THE CHOICE OF THE APPLICABLE REMEDY SHALL

BE AT THE SOLE DISCRETION OF BEIJER ELECTRONICS AB,

INCLUDING ALL ITS GROUP COMPANIES.

BeijerElectronics, MAEN165

Contents

1 SafetyPrecautions ....................................................... 4

1.1 General ........................................................... 4

1.2 UL and cUL Installation ......................................... 4

1.3 High Potential Testing ........................................... 6

1.4 DuringInstallation .............................................. 6

1.5 DuringUse ....................................................... 6

1.6 Service and Maintenance ........................................ 6

1.7 Dismantling and Scrapping ..................................... 7

1.8 Appearance of Air in Touch Screen ............................. 7

2 Installation ............................................................... 8

2.1 SpaceRequirements ............................................. 8

2.2 InstallationProcess .............................................. 9

2.2.1 ConnectionstotheController ..................................10

2.2.2 HazardousLocationInstallation ................................11

2.2.3 OtherConnectionsandPeripherals .............................11

3 TechnicalData ........................................................... 12

4 ChemicalResistance .................................................... 14

4.1 MetalCasing ..................................................... 14

4.2 Touch Screen and Overlay ....................................... 15

4.2.1 AutoﬂexEB ......................................................15

4.2.2 TouchScreenSurface ............................................16

4.2.3 TouchscreenProtectiveFilm ....................................16

4.3 Terminal to Panel Gasket ........................................ 17

5 OperatorPanelDrawings .............................................. 18

5.1 Connectors ....................................................... 18

5.2 CommunicationPorts ........................................... 18

5.3 T15BROutline .................................................. 19

6 Additional Installation Tips ............................................ 20

6.1 Grounding the Operator Panel ................................. 20

6.2 EthernetConnectionintheOperatorPanel ................... 21

6.3 To Achieve Better EMC Protection ............................. 23

6.4 AmbientTemperature ........................................... 24

6.5 Safety ............................................................. 25

6.6 GalvanicIsolation ................................................ 26

6.7 Cable and Bus Termination RS485 ............................. 27

6.8 COM Port Common-Mode Voltage ........................... 27

BeijerElectronics, MAEN165

Safety Precautions

1SafetyPrecautions

Both the installer and the owner and/or operator of the operator panel must read

and understand this installation manual.

1.1 General

•Read the safety precautions carefully.

•Check the delivery for transportation damage. If damage is found, notify the

supplier as soon as possible.

•The supplier is not responsible for modiﬁed, altered or reconstructed

equipment.

•Use only parts and accessories manufactured according to speciﬁcations of

the supplier.

•Read the installation and operating instructions carefully before installing,

using or repairing the operator panel.

•Neverallowﬂuids,metalﬁlingsorwiringdebristoenteranyopeningsinthe

operator panel. This may cause ﬁre or electrical shock.

•Only qualiﬁed personnel may operate the operator panel.

•Storing the operator panel where the temperature is lower/higher than

recommended in this manual can cause the LCD display liquid to

congeal/become isotopic.

•The LCD display liquid contains a powerful irritant. In case of skin contact,

wash immediately with plenty of water. In case of eye contact, hold the eye

open,ﬂushwithplentyofwaterandgetmedicalattention.

•Theﬁguresinthismanualservesanillustrativepurpose. Becauseofthemany

variables associated with any particular installation, the supplier cannot

assume responsibility for actual use based on the ﬁgures.

•The supplier neither guarantees that the operator panel is suitable for your

particular application, nor assumes responsibility for your product design,

installation or operation.

•It is recommended to turn on and shut down the operator panel at least once

before installing any components/cards or before connecting the operator

panel to external devices, like for example serial devices.

•This operator panel is certiﬁed to operate in a Class I, Division 2, Group A, B,

C and D hazardous environment. The operator panel must be installed and

operated as described in this document to meet this certiﬁcation.

•Observe precautions for handling electrostatic discharge sensitive devices.

1.2 ULandcULInstallation

•All devices have to be supplied by a Class 2 power supply.

BeijerElectronics, MAEN165 4

Safety Precautions

Warning:

Do not disconnect equipment unless power has been removed or the area is

known to be non-hazardous

AVANT DE DECONNECTER L’EQUIPEMENT, COUPER LE COURANT

OUS’ASSURER QUE L‘EMPLACEMENT EST DESIGNE NON DANGEREUX.

Warning:

Battery may explode if mistreated. Do not recharge, disassemble or dispose

of in ﬁre.

This product contains a BR2330A battery that is not user replaceable.

LA BATTERIE PEUT EXPLOSER EN CAS DE MAUVAISE MANIPULATION.

NE LA RECHARGEZ PAS, NE LA DÉMONTEZ PAS ET NE LA JETEZ

PAS DANS LE FEU.

CEPRODUITCONTIENTUNEPILEBR2330AQUINEPEUTPASÊTRE

REMPLACÉE PAR L'UTILISATEUR.

•Use minimum 75°C copper conductors only.

•To make wiring connections to the power supply connector, follow the table

with cable and torque speciﬁcations below:

TerminalBlockConnector WireSize TQLb.In.

Phoenix Contact Part No. 1757022 14–20 AWG

(2.08–0.52 mm2)

5–7

Warning:

Donotopenwhenanexplosiveatmosphereispresent.

N'OUVREZ PAS SI UNE ATMOSPHÈRE EXPLOSIVE EST PRÉSENTE.

Warning:

Explosion hazard! Do not disconnect while circuit is live unless the area is

known to be non hazardous.

RISQUE D'EXPLOSION ! NE DÉBRANCHEZ PAS LORSQUE LE CIRCUIT EST

SOUS TENSION SAUF SI LA ZONE EST CONNUE POUR ÊTRE NON DANGEREUSE.

Caution:

This equipment is tested as a component and is to be installed inside an enclosure rated

minimum IP66.

CETÉQUIPEMENTESTTESTÉENTANTQUECOMPOSANTETDOITÊTREINSTALLÉ

DANS UN BOÎTIER AVEC INDICE DE PROTECTION IP66 MINIMUM.

Caution:

Temperature code T4 IEC/EN 60079-0 (2012) and IEC/EN 60079-15 (2010).

CODES DE TEMPÉRATURE T4 IEC/EN 60079-0 (2012)ET IEC/EN 60079-15 (2010).

BeijerElectronics, MAEN165 5

Safety Precautions

1.3 HighPotentialTesting

Each terminal is high-pot (high potential) tested prior to shipment. After high-pot

testing surge arresting devices are installed into the terminal that will enhance

surge robustness. After placement, these deviceswillcausetheterminaltofail

high-pot testing.

Note:

If in-ﬁeld high-pot testing is required contact Beijer Electronics.

1.4 DuringInstallation

•The operator panel is designed for stationary installation on a plane surface,

where the following conditions are fulﬁlled:

–no high explosive risks

–no strong magnetic ﬁelds

–no direct sunlight

–no large, sudden temperature changes

•Install the operator panel according to the accompanying installation

instructions.

•Ground the operator panel according to the accompanyinginstallation

instructions.

•Only qualiﬁed personnel may install the operator panel.

•Separate the high voltage, signal and supply cables.

•Make sure that the voltage and polarity of the power source is correct before

connecting the operator panel to the power outlet.

•Peripheral equipment must be appropriatefortheapplicationandlocation.

1.5 DuringUse

•Keep the operator panel clean.

•Emergency stop and other safety functions may not be controlled from the

operator panel.

•Do not use excessive force or sharp objects when operating the touchscreen.

1.6 ServiceandMaintenance

•Only qualiﬁed personnel should carry out repairs.

•The agreed warranty applies.

•Before carrying out any cleaning or maintenance operations, disconnect the

equipment from the electrical supply.

•Clean the display and surrounding front cover with a soft cloth and mild

detergent.

•The battery must be replaced by an authorized Beijer Electronics service

center.

BeijerElectronics, MAEN165 6

Safety Precautions

1.7 DismantlingandScrapping

•The operator panel or parts thereof shall be recycled according to local

regulations.

•The following components contain substances that might be hazardous

to health and the environment: lithium battery, electrolytic capacitor and

display.

1.8 AppearanceofAirinTouchScreen

The layer structure of the touch screen contains air and in rare cases appearance of

bubbles can arise. This is purely cosmetic and does not affect any functionality

of the operator panel. The appearance can occur under certain environmental

conditions such as temperature, humidity, and atmospheric pressure.

BeijerElectronics, MAEN165 7

Installation

2Installation

2.1 SpaceRequirements

•Maximum installation plate thickness: 8 mm

•Space requirements in millimeters when installing the operator panel:

100

410

286

Note:

The dimensions on the drawing are not proportional.

BeijerElectronics, MAEN165 8

Installation

2.2 InstallationProcess

A Thumb Screw Installation Tool (provided) or a slotted screwdriver is required

for installation.

1. Unpack and check the delivery. If damage is found, notify the supplier.

Note:

Place the operator panel on a stable surface during installation.

Dropping the operator panel or letting it fall may cause damage.

2. To cut a correct opening for the operator panel, use the cut out dimensions

in the outline drawing. A separate cut out drawing is available for download

from the Beijer Electronics web site. For more information, see sections

Operator Panel Drawings and Technical Data.

3. Secure the operator panel in position by screwing the slotted thumb screw

clockwise, allowing the built-in brackettoﬂipoutandtightenagainstthe

cabinet. Tighten the screws (12) to 0.7 Nm ±0.2 Nm.

4. For most applications, the provided Thumb Screw Installation Tool will

provide adequate torque. In cases where the front panel seal (IP66, NEMA-4)

is critical, a torque wrench should be used to ensure all twelve screws are

torqued within the speciﬁcation above.

Thumb Screw Installation Tool

BeijerElectronics, MAEN165 9

Installation

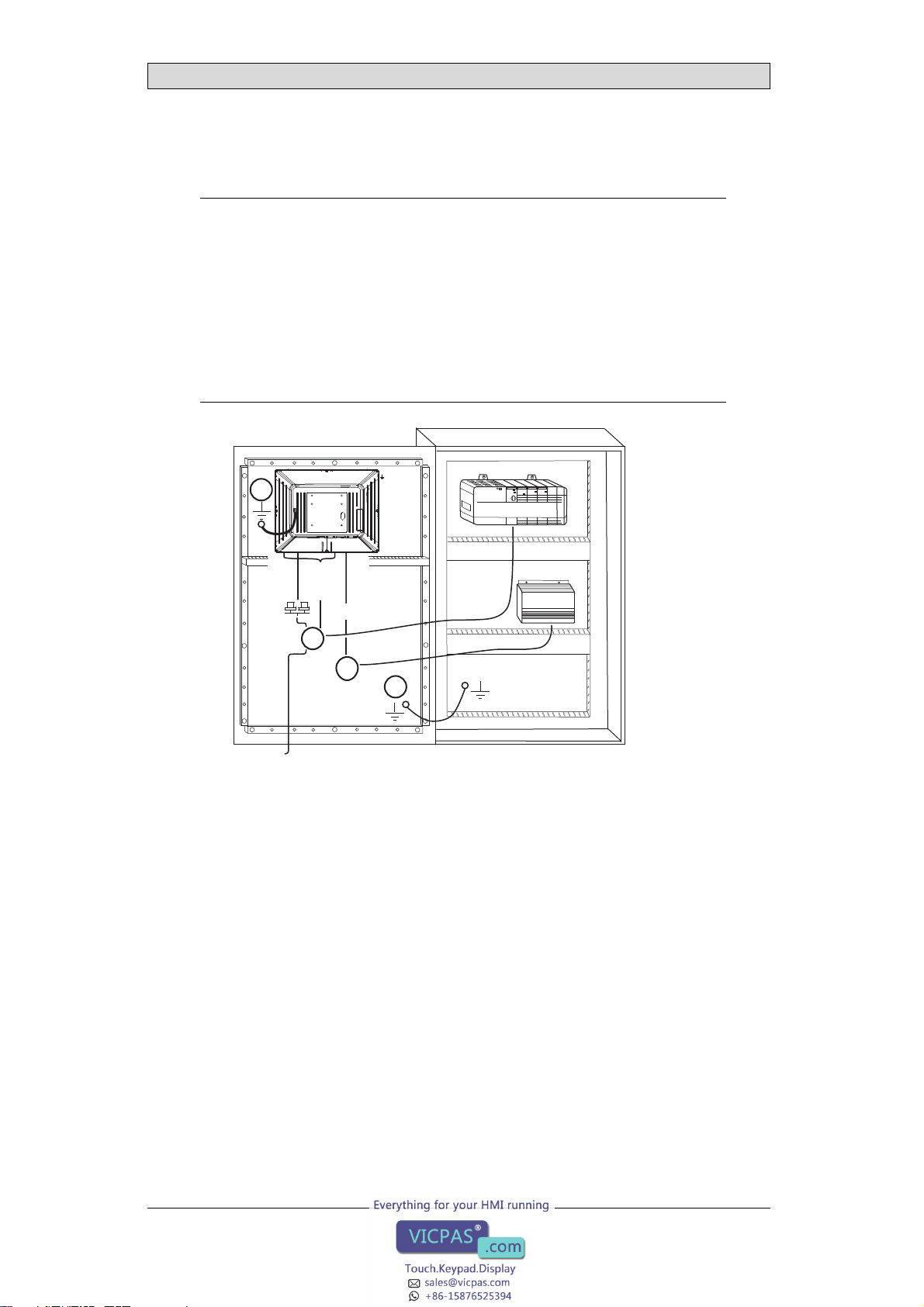

5. Connect the cables in the speciﬁed order, according to the drawing and steps

below.

Caution:

•The operator panel must be brought to ambient temperature before it is started

up. If condensation forms, ensure that the operator panel is dry before connecting

it to the power outlet.

•Ensure that the operator panel and the controller system have the same electrical

grounding (reference voltage level), otherwise errors in communication may

occur.

•Ensure that the voltage and polarity of the power source is correct.

•Separate high voltage cables from signal and supply cables.

•Shielded communication cables are recommended.

24V DC

RS232/

RS422/

RS485 24V DC

Controller

Power

Ethernet

–Use 14–20 AWG (2.08–0.52 mm2)w

ireforthepowerconnections.

–Connect cable A.

–Connect cable B, using an M5 steel screw with zinc plating and a

grounding conductor (as short as possible), that is sized correctly

according to local electrical codes.

–Connect cable C.

–Connect cable D.

6. Carefully remove the laminated ﬁlm over the operator panel display, to avoid

static electricity that could damage the panel.

2.2.1 ConnectionstotheController

For information about the cables to be used when connecting the operator panel to

the controller, please refer to the help ﬁle for the driver in question.

BeijerElectronics, MAEN165 10

Tabla de contenidos

Otros manuales de Panel táctil de Beijer Electronics

Beijer Electronics

Beijer Electronics iX T15BR-HP-HB Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

Beijer Electronics

Beijer Electronics X2 pro 4-B2 Manual de usuario

Beijer Electronics

Beijer Electronics X2 pro 15-B2 Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

Beijer Electronics

Beijer Electronics X2 pro 12-B2 Manual de usuario

Beijer Electronics

Beijer Electronics X2 base 10 v2 HP Manual de usuario

Beijer Electronics

Beijer Electronics EPC T170/170 C2D Nautic Manual de usuario

Beijer Electronics

Beijer Electronics X2 pro 10 web Manual de usuario

Beijer Electronics

Beijer Electronics X2 marine 7-B2 SC Manual de usuario

Beijer Electronics

Beijer Electronics X2 extreme 15 HP web Manual de usuario

Beijer Electronics

Beijer Electronics X2 marine 15 - B2 Manual de usuario

Beijer Electronics

Beijer Electronics iX T15C - C23 Manual de usuario

Beijer Electronics

Beijer Electronics X2 pro 7-B2 2eth Manual de usuario

Beijer Electronics

Beijer Electronics X2 extreme 15 Manual de usuario

Beijer Electronics

Beijer Electronics X2 control 4-B2 Manual de usuario

Beijer Electronics

Beijer Electronics X2 extreme 15 SL HP Manual de usuario

Beijer Electronics

Beijer Electronics T15BM Manual de usuario

Beijer Electronics

Beijer Electronics X2 control 10-B2 Manual de usuario

Beijer Electronics

Beijer Electronics X2 marine 7-B2 Manual de usuario

Beijer Electronics

Beijer Electronics X2 marine 15-B2 HB SC Manual de usuario

Beijer Electronics

Beijer Electronics X2 pro 15 web Manual de usuario

Beijer Electronics

Beijer Electronics X2 control 15-B2 Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

AMX

AMX AXP-PPC Guía

Sartorius

Sartorius X3 PR 5410 Manual de usuario

AMX

AMX Modero X Series Manual de usuario

Advantech

Advantech TPC-30 Series Manual de usuario

B&R Industries

B&R Industries MAPPC900-ENG Manual de usuario
