Beijer Electronics GN-9372 Manual de usuario

Quick Start Guide

IP address, Subnet & Gateway, G-series I/O

SUEN00389A –

How to set IP address, Subnet Mask and Gateway on

GN-9372

GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09

2 (12)

Normal.dotm, 2020-09-09

1Function and area of use

In this document we show how to set IP address, Subnet Mask and Gateway for

programmable I/O module GN-9372.

2About this Startup document

This Startup document should not be considered as a complete manual. It is an aid to be able

to Startup a normal application quickly and easily.

This Start Up document should not be considered as a complete manual. It is an aid to be

able to start up a normal application quickly and easily.

Use the following software and drivers in order to obtain a stable application:

In this document we have used following hardware and software

•GN-9372 Programmable I/O

•BootpServerVer1000_Beijer Link to BootP

•Windows 10 64 bit

For further information we refer to

•GN-9372 Manual Link

•Beijer Electronics knowledge database, HelpOnline

This document and other Startup documents can be obtained from our homepage.

Please use the address [email protected] for feedback about our Quick

Start documents.

This documentation (below referred to as ‘the material’) is the property of Beijer Electronics. The holder

or user has a non-exclusive right to use the material.

The holder is not allowed to distribute the material to anyone outside his/her organization except in cases

where the material is part of a system that is supplied by the holder to his/her customer.

The material may only be used with products or software supplied by Beijer Electronics.

Beijer Electronics assumes no responsibility for any defects in the material, or for any consequences that

might arise from the use of the material.

It is the responsibility of the holder to ensure that any systems, for whatever applications, which is based

on or includes the material (whether in its entirety or in parts), meets the expected properties or

functional requirements.

Beijer Electronics has no obligation to supply the holder with updated versions.

GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09

3 (12)

Normal.dotm, 2020-09-09

3Table of Contents

1Function and area of use.........................................................................................2

2About this Startup document....................................................................................2

3Table of Contents..................................................................................................3

4Setup Network address in PIO (GN-9372) .....................................................................4

Network setting (default) .................................................................................4

Set the IP address (network) to default setting .......................................................4

Set the IP address (network) using the built-in Web Server .........................................5

BOOTP server................................................................................................6

5About Beijer Electronics ....................................................................................... 12

GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09

4 (12)

Normal.dotm, 2020-09-09

4Setup Network address in PIO (GN-9372)

Network addresses can be set with BOOTP, Web or DHCP server.

Network setting (default)

Set the IP address (network) to default setting

•Power ON the PIO and push the Reset button in front of PIO

•The switch should be pushed for minimum 20 second. All LED should flash Green/Red.

•PIO will be set into the factory default mode

- PLC program will be erased

- PLC Parameters will be erased

•Restart the PIO

Default Setting

IP Address

192.168.1.50

Subnet Mask

255.255.255.0

Gateway

0.0.0.0

Toggle

Switch

Status

Description

PLC Run

DOWN

PLC Stop

Push

Button

Description

Press and

detach

Reset the PLC and then stop

Push for 5

sec and

power

Reset

Erase PLC user program and

Retain memory

Push for 20

sec and

power

reset

ult

Erase PLC user program and

PLC parameter reset

Hold down

and reset

the power

Available for firmware

download using FireFox

GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09

5 (12)

Normal.dotm, 2020-09-09

Set the IP address (network) using the built-in Web Server

Easiest way to configure the PIO is to use the built-in Web Server.

Default IP address as seen below.

•Make sure the PC are on the same IP segment as the PIO.

In example the PIO have 192.168.1.50

•Type Ip-address (default) “192.168.1.50/setup.htm” in web browser.

•In Network Setting, you have the choice to Change/Set a new IP address

•Change the network parameter (IP, Subnet, Gateway)

•Press button ”Set IP”

•Press button ”Reset Power” to enable new settings

•Test the new IP-setting by log in to the new ip-address

GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09

6 (12)

Normal.dotm, 2020-09-09

BOOTP server

BOOTP is a standard protocol that can be used to configure the network settings on a GL-

9089 and GN-9289.

Sometimes it’s required to disable all other network devices besides the one being used to

configure the GL-9089/GN-9289.

In some rare case the firewall needs to be disabled, select “Turn off…” on all networks and push

“OK”.

Remember to reactivate the firewall after the IP address setting is done!

There could be security software (like antivirus programs) that might need to be temporarily disabled.

In some cases when cycling the power of the network adapter, without using a switch between the PC

and network adapter, the BOOTP application will loose its reference to the ethernet port. The best

and recommended way is to use a switch between the PC and the device.

Active

GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09

7 (12)

Normal.dotm, 2020-09-09

Use BOOTP server when IP address is unknown, method 1

1. Connect the PC with the GL-9089/GN-9289 over Ethernet.

2. Set a fixed IP address on the PC, same subnet as the GL-9089/GN-9289 is to be changed to. The

IP address for the PC should not be assigned automatically (DHCP).Se section 4.2. part 1.

3. Always use the latest version of Beijer BOOTP server (included in IOGuidePro or extracted tool).

4. Run IOGuidePro, and select menu Tools > Bootp Server, or start the BOOTP tool from folder.

Alternative run the BOOTP server separately (BootpSvr.exe).

5. When the BOOTP Server is launched and to allow G-series device in present version of

IOGuidePro. Make sure that option ”Show Beijer device only” is unchecked!

Push the “Add New Device” button and enter the MAC address and desired IP address, subnet

and gateway. Select the network interface that the GL-9089/GN-9289 is connected to.

Push “Ok” and “Start Bootp”.

GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09

8 (12)

Normal.dotm, 2020-09-09

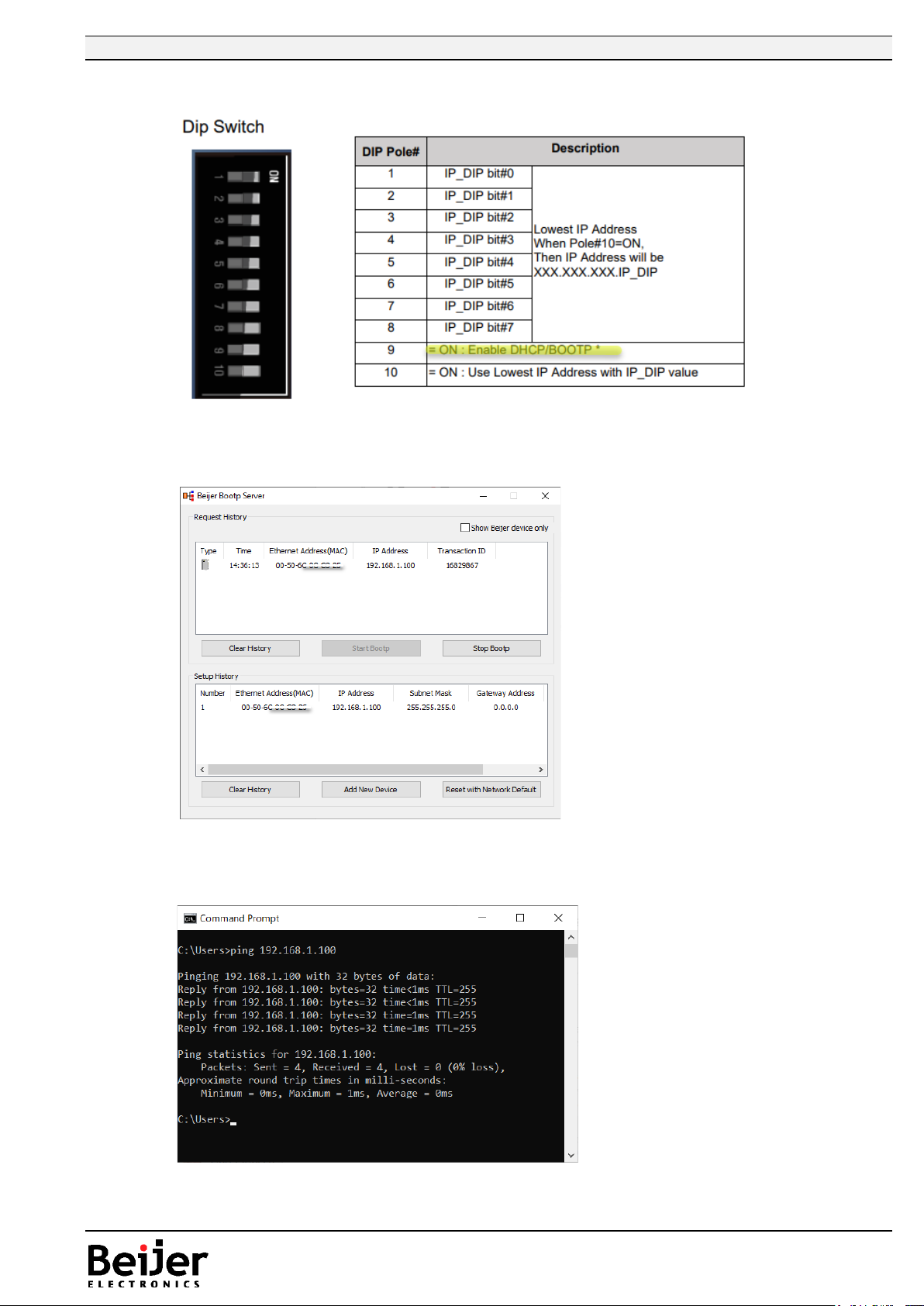

6. Power OFF the GL-9089/GN-9289 and set DIP switch 9 to ON (BOOTP).

7. Power on the GL-9089/GN-9289 device, and the device will get the new IP address from the

BootP server, it appears in the upper window.

8. “Stop Bootp” and reset DIP switch 9 to OFF, and reboot the GL-9089/GN-9289 device.

9. If the IP is set to a different subnet then change the IP address of your computer accordingly.

10. Try to ping the device with new IP address.

Close the BOOTP Server.

GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09

9 (12)

Normal.dotm, 2020-09-09

Use BOOTP server when IP address is unknown, method 2

1. Connect the PC with the GL-9089/GN-9289 over Ethernet.

2. Set a fixed IP address on the PC, same subnet as the GL-9089/GN-9289 is to be changed to. The

IP address for the PC should not be assigned automatically (DHCP). Se section 4.2. part 1.

3. Always use the latest version of the Beijer BOOTP server included in IOGuidePro or extracted

tool.

4. Run IOGuidePro and select menu Tools > Bootp Server, or start the BOOTP tool from folder. /

Alternative run the Bootp server separately (BootpSvr.exe).

5. When the BootP Server is launched and to allow M-series device in present version of

IOGuidePro, make sure that ”Show Beijer device only” is unchecked!

6. Press “Start Bootp”.

7. Power OFF the GL-9089/GN-9289 and set DIP switch 9 to ON (BOOTP).

GN-9372 - IP address, Subnet and Gateway Setting SUEN00389A 2020-09

10 (12)

Normal.dotm, 2020-09-09

8. Power on the GL-9089/GN-9289 device, and the device will be shown in the BootP server.

Double click on one of the marked rows above.

The MAC address is default entered, type required IP address, Subnet and Gateway. Select the

correct “Interface”, PC:s Ethernet connection to the GL-9089/GN-9289 and push “Ok”.

9. Now press “Stop BootP”.

10. Reset the DIP switch 9 to OFF, and reboot the GL-9089/GN-9289 device.

11. If the IP is set to a different subnet then change the IP address of your computer accordingly.
