Behringer V-Tone GM110 Manual de usuario

V-TONE GM110

Version 1.3 May 2006

Technical Specifications

V-TONE GM110

GM11GM11

GM1100

V-TONEV-TONE

V-TONE

True Analog Modeling 30-Watt Guitar Amp with

10" BUGERA™Speaker

VPowerful 30-Watt guitar workstation with authentic V-TONE analog modelling

VOriginal heavy-duty 10" BUGERA™ guitar speaker for classic sound

VAuthentic V-TONE analog modeling for 3 classic guitar amps, 3 speaker simulation models plus 3 gain

modes—providing you with 27 modeled sounds

VClean channel and full-featured modeling channel offering everything you need from clean to crunch to

super-fat distortion sounds

VPatented* DYNAMIZER circuitry captures every nuance of your playing and lends tube-like compression

to your tone

VDedicated 3-band EQ and Master level control for ultimate sound shaping

VAdditional loudspeaker and separate Headphone output with integrated speaker simulation

VBalanced direct out with XLR connector and ground lift for direct recording and live applications

VInsert facility for external effects devices (rack effects, stomp boxes, wah-wah pedals, etc.)

VHigh-quality components and exceptionally rugged construction ensure long life

VConceived and designed by BEHRINGER Germany

* German Patent No.: 100 15 833

V-TONE GM110

SPECIFICATIONS

AUDIO INPUTS

Guitar input

Connector 1/4" mono jack socket

Type RF filtered input

Input impedance approx. 1 MΩunbalanced

FX return

Connector 1/4" mono jack socket

Input impedance approx. 1 MΩunbalanced

AUDIO OUTPUTS

FX send

Connector 1/4" mono jack socket

Type Low-impedance line level output

Output impedance approx. 100 Ωunbalanced

D.I. Out

Connector XLR

Type Balanced, low-impedance line

level output

Output impedance approx. 100 Ω

Max. output level +22 dBu

LOUDSPEAKER OUPUT

Connector 1/4" mono jack socket

Load impedance (nom.) 4 Ω

SYSTEM SPECIFICATIONS

Power amp output 30 Watts RMS into 4 Ω

LOUDSPEAKER

Type 10" Vintage loudspeaker, model

BUGERATM loudspeaker

Impedance 4 Ω

Power handling 60 Watts (BUGERATM)

POWER SUPPLY

Mains voltage USA/Canada 120 V~, 60 Hz

China/Korea 220 V~, 50 Hz

U.K./Australia 230 V~, 50 Hz

Europe 230 V~, 50 Hz

Japan 1

00 V~, 50 - 60 Hz

Power consumption 70 W maximum

Fuse 100 - 120 V~: T 2 A H 250 V

200 - 240 V~: T 1 A H 250 V

Mains connection Standard IEC receptacle

DIMENSIONS/WEIGHT

Dimensions (H x W x D) approx. 15" (381 mm) x 14 ½"

(369 mm) x 9 ½" (242 mm)

Weight approx. 12.5 kg

BEHRINGER is constantly striving to maintain the highest quality standards. Modifications may be made to existing products without prior notice. Specifications and appearance may differ from

those listed or illustrated.

V-TONE GM110

Technical specifications and appearance subject to change without notice. The information contained herein is correct at the time of printing.

WINDOWS®as well as the names of companies, institutions or publications pictured or mentioned and their respective logos are registered

trademarks of their respective owners. Mac®and the Mac®logo are registered trademarks of Apple Computers Inc. , registered in the USA and

other countries. Their use neither constitutes a claim of the trademarks by BEHRINGER nor affiliation of the trademark owners with

BEHRINGER. BEHRINGER accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any

description, photograph or statement contained herein. Colours and specification may vary slightly from product. Products are sold through our

authorised dealers only. Distributors and dealers are not agents of BEHRINGER and have absolutely no authority to bind BEHRINGER by any

express or implied undertaking or representation. No part of this manual may be reproduced or transmitted in any form or by any means,

electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written permission of

BEHRINGER Spezielle Studiotechnik GmbH. BEHRINGER®is a registered trademark.

Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich-Muenchheide II, Germany.

Tel. +49 2154 9206 0, Fax +49 2154 9206 4903

Otros manuales para V-Tone GM110

Tabla de contenidos

Otros manuales de Amplificador de instrumentos musicales de Behringer

Behringer

Behringer Firebird GX108 Manual de usuario

Behringer

Behringer Ultrastack BG412V Manual de usuario

Behringer

Behringer V-Tone GMX1200H Manual de usuario

Behringer

Behringer Blue Devil GX112 Manual

Behringer

Behringer Ultrastack BG412S Manual de usuario

Behringer

Behringer Ultracoustic AT108 Manual de usuario

Behringer

Behringer Ultrabass BT108 Manual de usuario

Behringer

Behringer V-Tone GM110 Manual de usuario

Behringer

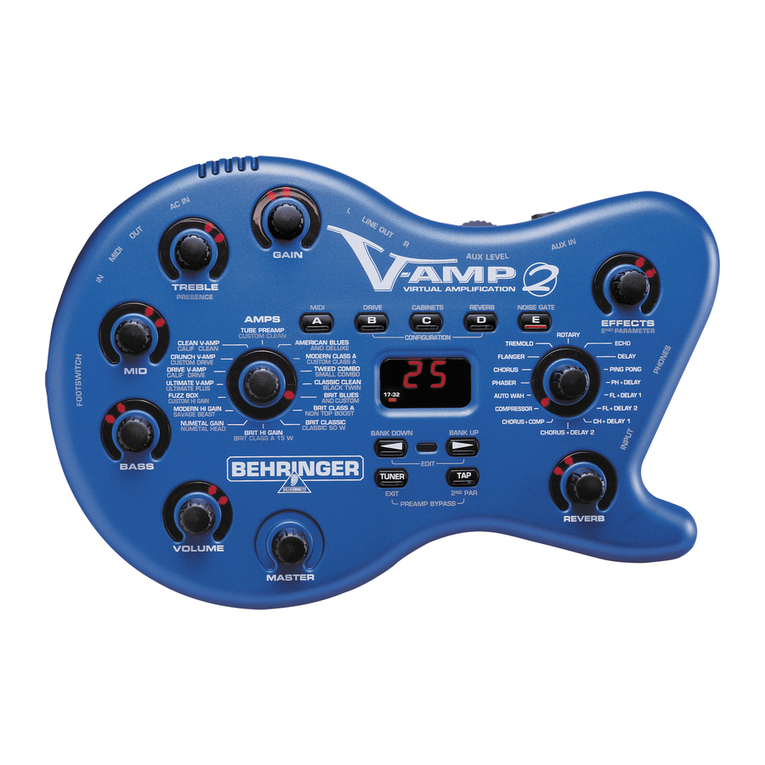

Behringer V-Amp 2 Manual de usuario
