PHASER PH9

Thank you for showing your confidence in us by purchasing the BEHRINGER PHASER PH9. This

ultimate effects pedal is designed for all musicians longing for a way to pep up their sound.

Thanks to its high-performance features, you can create phase-shifting effects with different

characteristics ranging from modern to vintage.

With the phaser, a second phase-shifted signal is added to the original audio of your instrument.

The resulting sound is thicker and above all livelier. Nowadays, this effect is often used for guitar

sounds and keyboards, but it was also extensively used for other instruments like electric

pianos in the ‘70s.

1. CONTROLS

Top view

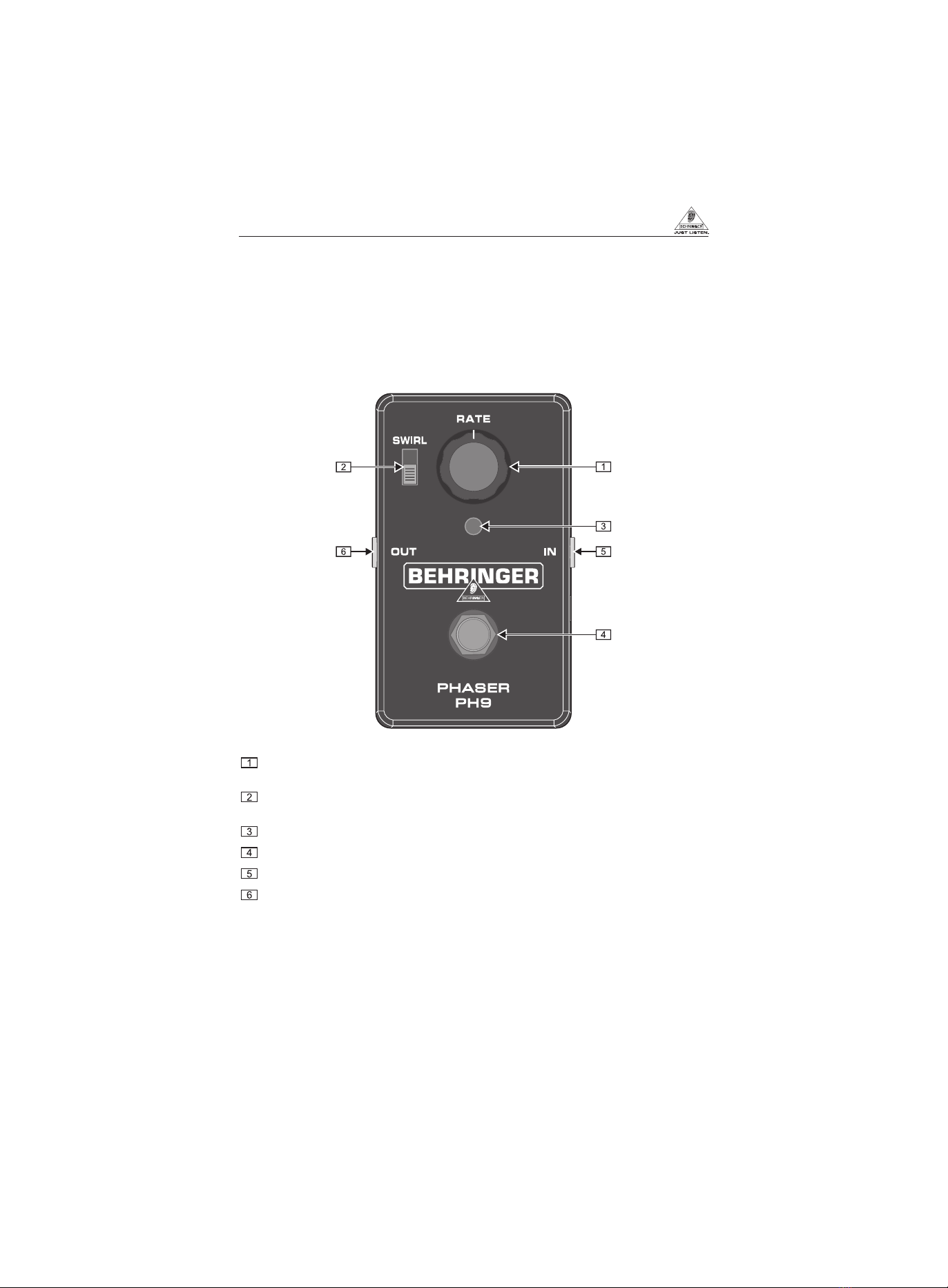

The RATE control determines the speed of the phase-shifting effect, in other words the

overall effect rate.

The SWIRL switch changes the phaser character from modern (upper position) to vintage

(lower position).

The LED illuminates when the effect is activated. It also serves as a battery level indicator.

Depress the footswitch to activate/deactivate the effect.

Use this 1/4" TS IN connector to plug in the instrument cable.

The 1/4" TS OUT connector sends the signal to your amp.

Use the DC IN connection to plug in a 9 V power supply (not included).

To install or replace the 9 V battery, remove the bottom side of the unit taking the four screws off.

The PH9 has no on/off switch. As soon as you connect the jack to the IN connector,

the PH9 is switched on. When the PH9 is not being used, remove the jack from

the IN connector to extend the battery life.

The SERIAL NUMBER is located on the bottom side of the device.

2. WARRANTY

For our current warranty terms, please refer to our website at http://www.behringer.com.

PHASER PH9

3. SPECIFICATIONS

In Connector 1/4" TS

Impedance 1 MΩ

Out Connector 1/4" TS

Impedance 1 kΩ

Power supply 9 V , 100 mA regulated

BEHRINGERPSU-SB

USA/Canada 120 V~, 60 Hz

Europe/U.K./Australia 230 V~, 50 Hz

China/Korea 220 V~, 50/60 Hz

Japan 100 V~, 50/60 Hz

Power connector 2 mm DC jack, negative center

Battery 9 V type 6LR61

Power consumption 10 mA

Dimensions (H x W x D) approx. 56 mm (2 1/5") x 113 mm (4 2/5") x 69 mm (2 2/3")

Weight approx. 0.24 kg (0.53 lbs)

BEHRINGERisconstantlystriving tomaintain thehighest professionalstandards. Asa resultof theseefforts, modificationsmay bemade

fromtime totime toexisting productswithout priornotice. Specificationsand appearancemay thereforediffer fromthose listedor shown.

4. SAFETY INSTRUCTIONS

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our

qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.

No utilizar cerca de agua o instalar cerca de fuentes de calor. Utilice sólo accesorios y aditamentos autorizados. No intenté reparar el producto

usted mismo. Contacte a nuestro personal técnico cualificado para servicio y reparaciones, especialmente cuando la fuente o el cable de

alimentación estén dañados.

Не эксплуатируйте прибор вблизи от источников воды и тепла. Применяйте только авторизованные дополнительные устройства.

Никогда не ремонтируйте прибор самостоятельно. Ремонт может производить только квалифицированный специализированный

персонал, особенно при повреждениях сетевого провода или сетевой вилки.

Die deutsche Anleitung ist erhältlich @ www.behringer.com

Manuel francophone en téléchargement sur www.behringer.com

Manualen españoldisponible enwww.behringer.com

Manualiitaliani disponibili@ www.behringer.com

Русскоязычное руководство @ www.behringer.com

Polska instrukcja dostępna jest pod adresem @ www.behringer.com

Nederlandsehandleiding beschikbaar@ www.behringer.com

Suomenkielinen käyttöohje saatavilla osoitteesta www.behringer.com

Svensk manual finns tillgänglig på www.behringer.com

Dansk vejledning findes på @ www.behringer.com

Manualportuguês disponível @ www.behringer.com

Åëëçíéêü åã÷åéñßäéï õðÜñ÷åé äéáèÝóéìï óôç äéåýèõíóç www.behringer.com

Technicalspecifications andappearancesubject tochangewithoutnotice.Theinformationcontainedhereiniscorrect atthetimeofprinting.

BEHRINGERaccepts noliability foranylosswhichmaybesufferedbyanypersonwho relieseither whollyor inpart uponany description,

photographorstatementcontainedherein.Coloursand specificationmayvaryslightlyfromproduct.Productsaresoldthroughourauthorised

dealersonly.Distributorsanddealersare notagentsof BEHRINGERandhave absolutelynoauthoritytobind BEHRINGERbyanyexpress

orimpliedundertaking orrepresentation.Nopartofthismanualmay bereproducedor transmittedinanyformorbyanymeans,electronicor

mechanical,including photocopyingandrecording ofany kind, forany purpose,withoutthe expresswritten permission ofBEHRINGER

InternationalGmbH.BEHRINGER,theBEHRINGER logoandJUST LISTENaretrademarksofBEHRINGER. ALLRIGHTSRESERVED.
