TUBE CONDENSER MICROPHONE T‑47

Safety precautions

At a glance1.

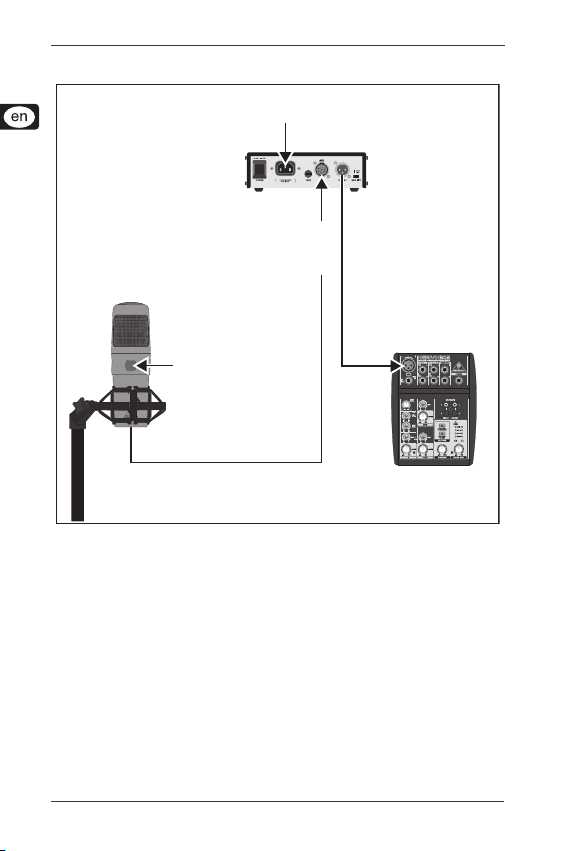

1. Mount

the microphone

2. Connect

the microphone

to the PSU-T

3. Connect the PSU-T

to the mixer

4. Connect the

mains cable

5. Switch on

the PSU-T

6. Allow the tube

to warm up

7. And you’re

good to go!

Safety precautions2.

Please read all safety precautions and operating instructions before at-

tempting to operate the unit. Keep all safety precautions and operating

instructions for future reference.

Mechanical interferences:

Always keep in mind that the contained tube is a highly sensitive component.

Avoid impact and other mechanical interferences. BEHRINGER assumes

no liability for any damage caused by the user. If possible, keep a spare

tube of the same type (12AX7) at hand.

Water and moisture:

The T-47 is extremely sensitive to moisture. Both the microphone and the

PSU-T power supply should not be used near water (for example, near

TUBE CONDENSER MICROPHONE T‑47

Control elements and connections 3

a bathtub, washing machine, swimming pool,etc.). When doing voice

recordings, always use the enclosed windscreen to protect the capsule

from moisture.

PSU-T power supply:

To reduce the risk of electric shock, do not remove the top cover (or the

rear section). No user serviceable parts inside.

Do not defeat the safety purpose of the polarized or grounding-type plug.

You should only connect the T-47 to the provided power supply.

Service and care:

After each use, wipe the microphone down with a soft cloth and place it

back into its protective casing (included with the microphone).

Control elements and connections3.

Microphone3.1

You can tell that the T-47 is switched on when the small window glows

red.

There is an XLR connector on the bottom end of the microphone. Connect

it to the power supply (PSU-T).

Power supply3.2

The included BEHRINGER PSU-T not only provides the supply volt-

age for the tube preamplier but also employs a circuit that reduces the

low frequency response. This is activated on the front panel with the

LOW CUT switch.

TUBE CONDENSER MICROPHONE T‑47

Set-up

The POWER switch on the unit's rear panel turns on the power supply.

Here you also nd the following:

a seven-pin XLR connector to connect to the T-47 (=MIC),

a three-pin XLR connector to transmit the signal (=OUTPUT),

a switch to suppress signal humming noise (=GND LIFT),

an=IEC power receptacle

and a fuse holder.=

Use the provided cable to connect the T-47 to the power sup-+

ply unit!

Set-up4.

Mounting the microphone

The microphone comes with an elastic shockmount. The advantage to a

conventional microphone stand mount is that mechanically induced noise

is virtually absorbed.

To mount the microphone, attach the shockmount to the microphone stand

and, from above, slide the T-47 into the shockmount.

Caution

The provided shockmount is not intended to be used for+sus-

pending the T-47!

Alternatively, you can also mount the T-47 on a microphone stand mount.

There is a screw adapter on the bottom side of the microphone.

Warming up

The T-47 can basically be used a couple of seconds after the PSU-T has

been switched on. However, the typical sound of the the T-47 only unfolds

a while after activating the power supply. We recommend allowing the

microphone to “warm up” 30 minutes before use.

Level setting / adjusting the basic sound

Adjust the gain control in the microphone channel of your mixing console

so that the peak LED lights up only occasionally or never at all. The EQ

TUBE CONDENSER MICROPHONE T‑47

Warranty 5

controls in the microphone channel should be set to mid-travel position

to start with; low-cut lter and signal level attenuation should be switched

off. To get the sound you want, try changing the mic position relative to

the sound source or even move the microphone around in the recording

room of your studio. Adjusting the angle at which walls face the sound

source can also be helpful. Only when the desired basic sound has been

achieved, you should start to use equalizers and signal processors, if any

at all. Remember: less is often more!

Directivity5.

Your T-47 features a capsule with a cardioid pickup pattern and is ideal

for recording individual instruments, vocals and speech. Cardioid pickup

pattern means that the sound produced by sources located in front of the

mic is strongly picked up. It is often used in recording situations, since this

directivity pattern tones down the pickup of sounds located to the back of

the microphone.

To place the microphone correctly, the BEHRINGER logo needs to face the

sound source being recorded.

Audio connection6.

To transmit a preamplied signal (OUTPUT connector on the PSU-T),

use a balanced microphone cable with the following pin assignment:

pin 1 = shielding; pin 2 = +; pin 3 = -. Since your PSU-T features gold-plated

contact points, we recommend that you use only microphone cables with

gold-plated connectors.

XLR connectorsFig. 6.1:

Warranty7.

Find our terms of warranty at http://www.behringer.com.

TUBE CONDENSER MICROPHONE T‑47

Specications

Specications8.

Transducer type condenser, 16 mm (0.63'')

Polar pattern cardioid

Preamplier vacuum tube (12AX7)

Output (PSU-T) gold-plated balanced XLR connector

Open circuit sensitivity -40 dBV (0 dBV = 1 V/Pa)

Frequency response 20 Hz to 20 kHz

Level attenuation -

Low-cut lter 12 dB/oct. @ 100 Hz (switchable)

Max. SPL (3 % THD @ 1 kHz) 130 dB

Dynamic range 110 dB

Nominal impedance approx. 200 Ω

Load impedance >1 kΩ

Supply voltage adapter BEHRINGER PSU-T

MAINS VOLTAGE / FUSE

100-120 V~, 50/60 Hz T 250 mA H 250 V

220-230 V~, 50/60 Hz T 125 mA H 250 V

Mains connector standard IEC receptacle

Dimensions Æ shaft: 2.4", length: 8.5" (Æ

shaft: 62 mm, length: 215 mm)

Weight (net) approx. 1 lb. (approx. 0.47 kg)

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these

efforts, modications may be made from time to time to existing products without prior notice. Specica-

tions and appearance may differ from those listed or illustrated.

Technical specications and appearance are subject to change without notice. The information contained

herein is correct at the time of printing. BEHRINGER accepts no liability for any loss which may be

suffered by any person who relies either wholly or in part upon any description, photograph or statement

contained herein. Colors and specications may vary slightly from product. Our products are sold through

authorized dealers only. Distributors and dealers are not agents of BEHRINGER and have absolutely

no authority to bind BEHRINGER by any express or implied undertaking or representation. This manual

is copyrighted. No part of this manual may be reproduced or transmitted in any form or by any means,

electronic or mechanical, including photocopying and recording of any kind, for any purpose, without

the express written permission of BEHRINGER International GmbH.

Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich-Muenchheide II, Germany. Tel. +49 2154 9206 0,

Fax +49 2154 9206 4903
