Behringer Eurolight BLM420 Manual de usuario
Version 1.2 April 2006
Technical Specifications
EUROLIGHT BLM420
2
EUROLIGHT BLM420
BLM420
EUROLIGHT
Dimmable and Pattern-Based Multi-Channel 19" Light ControllerDimmable and Pattern-Based Multi-Channel 19" Light Controller
Dimmable and Pattern-Based Multi-Channel 19" Light ControllerDimmable and Pattern-Based Multi-Channel 19" Light Controller
Dimmable and Pattern-Based Multi-Channel 19" Light Controller
V4 channels with up to 5 A load per channel (total load 16 A max.)
V4 different modes: Blackout, Static, Chase and Music
V8 highly diversified chaser programs triggered by built-in microphone, audio input or manually via tap or speed control
VMaster dim function for easy adjustment of overall brightness level
V“Noise-free, zero-cross switching” technology for minimum interference with other equipment
VExtensive MIDI implementation for all parameters and channels
VFootswitch connector for remote control (footswitch not included)
VSuper-compact 1 U enclosure for easy mounting in 19" racks
VHigh-quality components and exceptionally rugged construction ensure long life
VConceived and designed by BEHRINGER Germany
3
EUROLIGHT BLM420
BEHRINGER is constantly striving to maintain the highest professional standards. As a result
of these efforts, modifications may be made from time to time to existing products without prior
notice. Specifications and appearance may differ from those listed or illustrated.
SPECIFICATIONS
CHANNELS
Number 4
Current (load) per channel 5 A max.
Maximum load for all channels 16 A
Frequency 50/60 Hz
LIGHTING CONNECTORS
Type Standard connection socket 4x
Bulgin®connector 2x
Note: Units sold in the U.S. do not include Bulgin®connectors.
AUDIO INPUT
Type 1/4" TRS connector, unbalanced
Input impedance 1 MΩ
Max. input signal level -10 dBV
PEDAL CONNECTION
Type 1/4" TS connector, unbalanced
DISPLAY
Type Single-digit 7-segment
LED display
POWER SUPPLY
Voltage USA/Canada 120 V~, 60 Hz
China/Korea 220 V~, 50 Hz
U.K./Australia 230 V~, 50 Hz
Europe 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
Fuse 100 - 120 V~: T 160 mA H 250 V
200 - 240 V~: T 100 mA H 250 V
Power consumption max. 16 A
DIMENSIONS/WEIGHT
Dimensions (H x W x D) 44.5 mm (1 ¾") x 482.6 mm (19")
x 217 mm (8 ½")
Weight ca. 2.6 kg (approx. 5 lbs. 3 oz.)
4
EUROLIGHT BLM420
Technical specifications and appearance subject to change without notice. The information contained herein is correct at the time of
printing. The names of companies, institutions or publications pictured or mentioned and their respective logos are registered
trademarks of their respective owners. Their use neither constitutes a claim of the trademarks by BEHRINGER®nor affiliation of the
trademark owners with BEHRINGER®. BEHRINGER®accepts no liability for any loss which may be suffered by any person who relies
either wholly or in part upon any description, photograph or statement contained herein. Colours and specification may vary slightly
from product. Products are sold through our authorised dealers only. Distributors and dealers are not agents of BEHRINGER®and
have absolutely no authority to bind BEHRINGER®by any express or implied undertaking or representation. No part of this manual may
be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording of any
kind, for any purpose, without the express written permission of BEHRINGER Spezielle Studiotechnik GmbH. BEHRINGER®is a
registered trademark.
ALL RIGHTS RESERVED. © 2006 BEHRINGER Spezielle Studiotechnik GmbH,
Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich-Münchheide II, Germany.
Tel. +49 2154 9206 0, Fax +49 2154 9206 4903
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Controladores de Behringer
Behringer
Behringer 992 CONTROL VOLTAGES Manual de usuario
Behringer

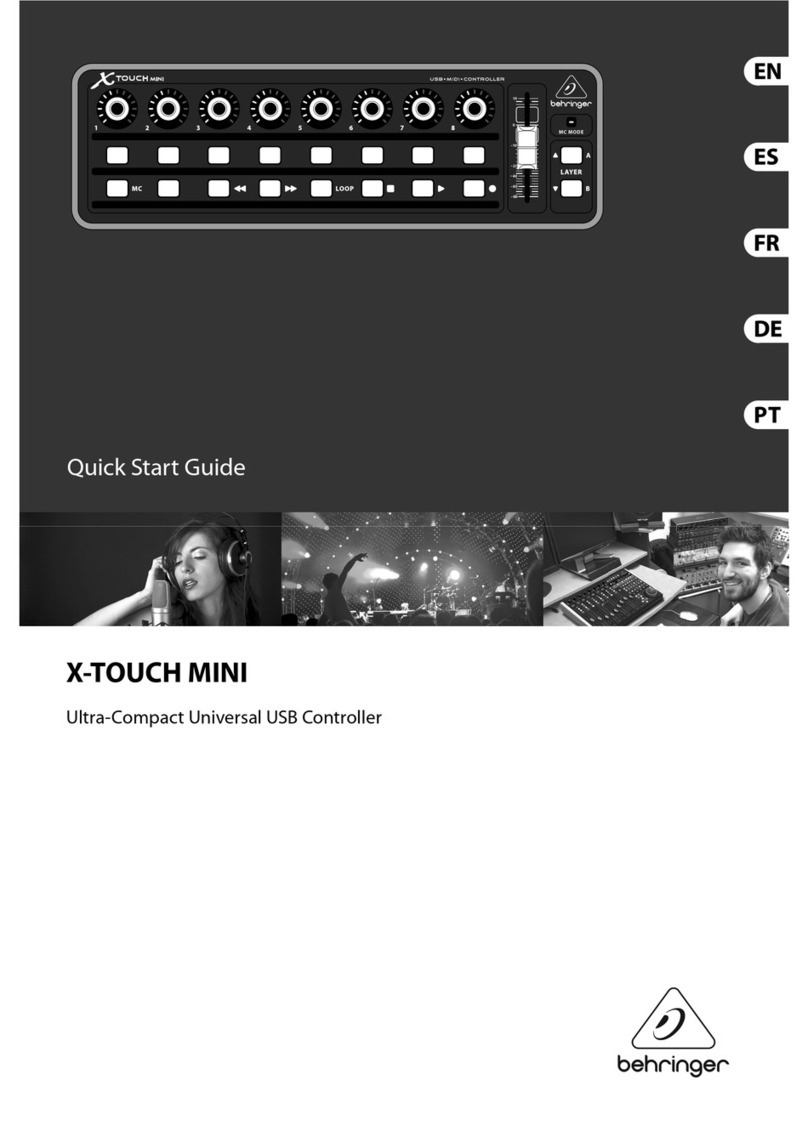

Behringer X-TOUCH MINI Manual de usuario
Behringer

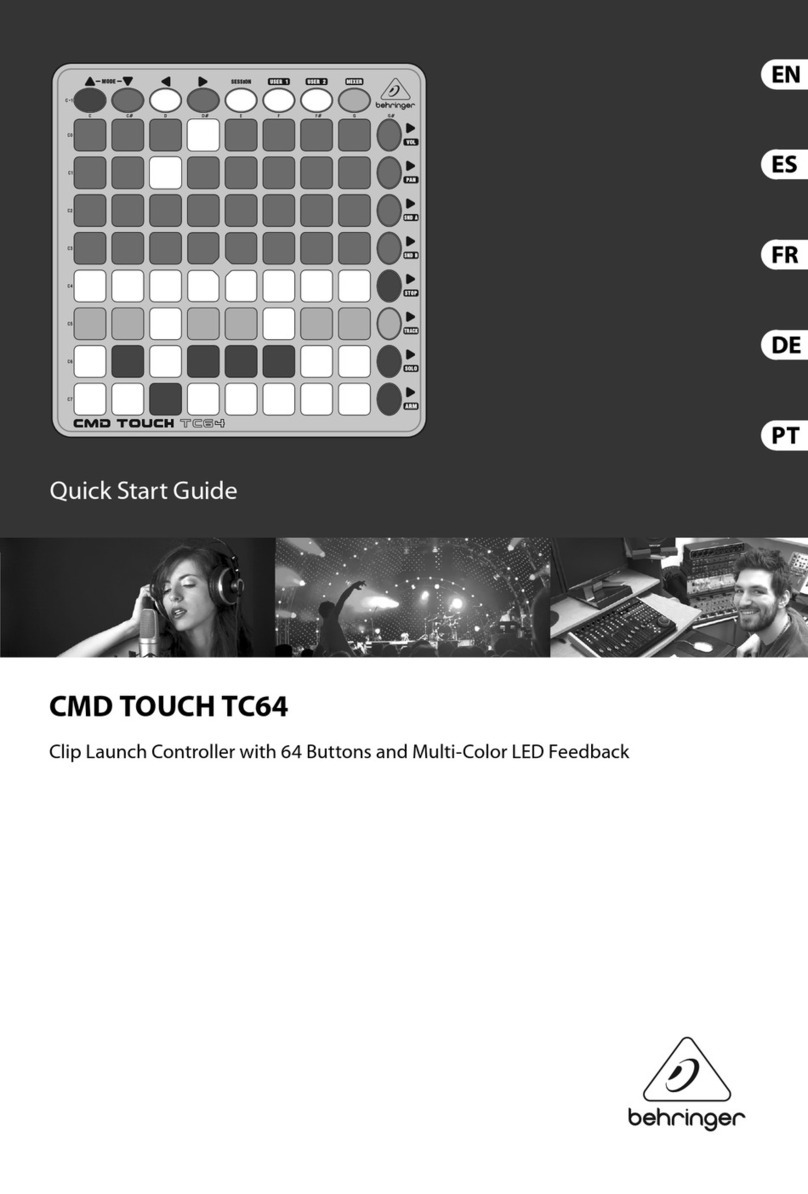

Behringer CMD TOUCH TC64 Manual de usuario
