CU2608 3Version: 2.0.0
Foreword
1 Foreword
1.1 Notes on the documentation
This description is only intended for the use of trained specialists in control and automation engineering who
are familiar with the applicable national standards.
It is essential that the following notes and explanations are followed when installing and commissioning
these components.
The responsible staff must ensure that the application or use of the products described satisfy all the
requirements for safety, including all the relevant laws, regulations, guidelines and standards.
Disclaimer
The documentation has been prepared with care. The products described are, however, constantly under
development. For that reason the documentation is not in every case checked for consistency with
performance data, standards or other characteristics. In the event that it contains technical or editorial errors,
we retain the right to make alterations at any time and without warning. No claims for the modification of
products that have already been supplied may be made on the basis of the data, diagrams and descriptions
in this documentation.
Trademarks
Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE®, XFC® and XTS® are registered
trademarks of and licensed by Beckhoff Automation GmbH & Co. KG.
Other designations used in this publication may be trademarks whose use by third parties for their own
purposes could violate the rights of the owners.
Patent Pending
The EtherCAT Technology is covered, including but not limited to the following patent applications and
patents: EP1590927, EP1789857, DE102004044764, DE102007017835 with corresponding applications or
registrations in various other countries.
The TwinCAT Technology is covered, including but not limited to the following patent applications and
patents: EP0851348, US6167425 with corresponding applications or registrations in various other countries.
EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH,
Germany
Copyright
© Beckhoff Automation GmbH & Co. KG, Germany.
The reproduction, distribution and utilization of this document as well as the communication of its contents to
others without express authorization are prohibited.
Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a
patent, utility model or design.
CU26084 Version: 2.0.0
Foreword
1.2 Safety instructions
Safety regulations
Please note the following safety instructions and explanations!
Product-specific safety instructions can be found on following pages or in the areas mounting, wiring,
commissioning etc.
Exclusion of liability
All the components are supplied in particular hardware and software configurations appropriate for the
application. Modifications to hardware or software configurations other than those described in the
documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.
Personnel qualification
This description is only intended for trained specialists in control, automation and drive engineering who are
familiar with the applicable national standards.
Description of symbols
In this documentation the following symbols are used with an accompanying safety instruction or note. The
safety instructions must be read carefully and followed without fail!
DANGER
Serious risk of injury!
Failure to follow the safety instructions associated with this symbol directly endangers the
life and health of persons.
WARNING
Risk of injury!
Failure to follow the safety instructions associated with this symbol endangers the life and
health of persons.
CAUTION
Personal injuries!
Failure to follow the safety instructions associated with this symbol can lead to injuries to
persons.
Attention
Damage to the environment or devices
Failure to follow the instructions associated with this symbol can lead to damage to the en-
vironment or equipment.
Note
Tip or pointer
This symbol indicates information that contributes to better understanding.
CU2608 5Version: 2.0.0
Foreword
1.3 Documentation issue status
Version Comment
2.0.0 - Migration
1.1.0 - Pin assignment for M12 socket added to introduction
1.0.0 - First public issue (technical data updated)
0.5.0 - draft
CU26086 Version: 2.0.0
Product overview
2 Product overview
2.1 Introduction

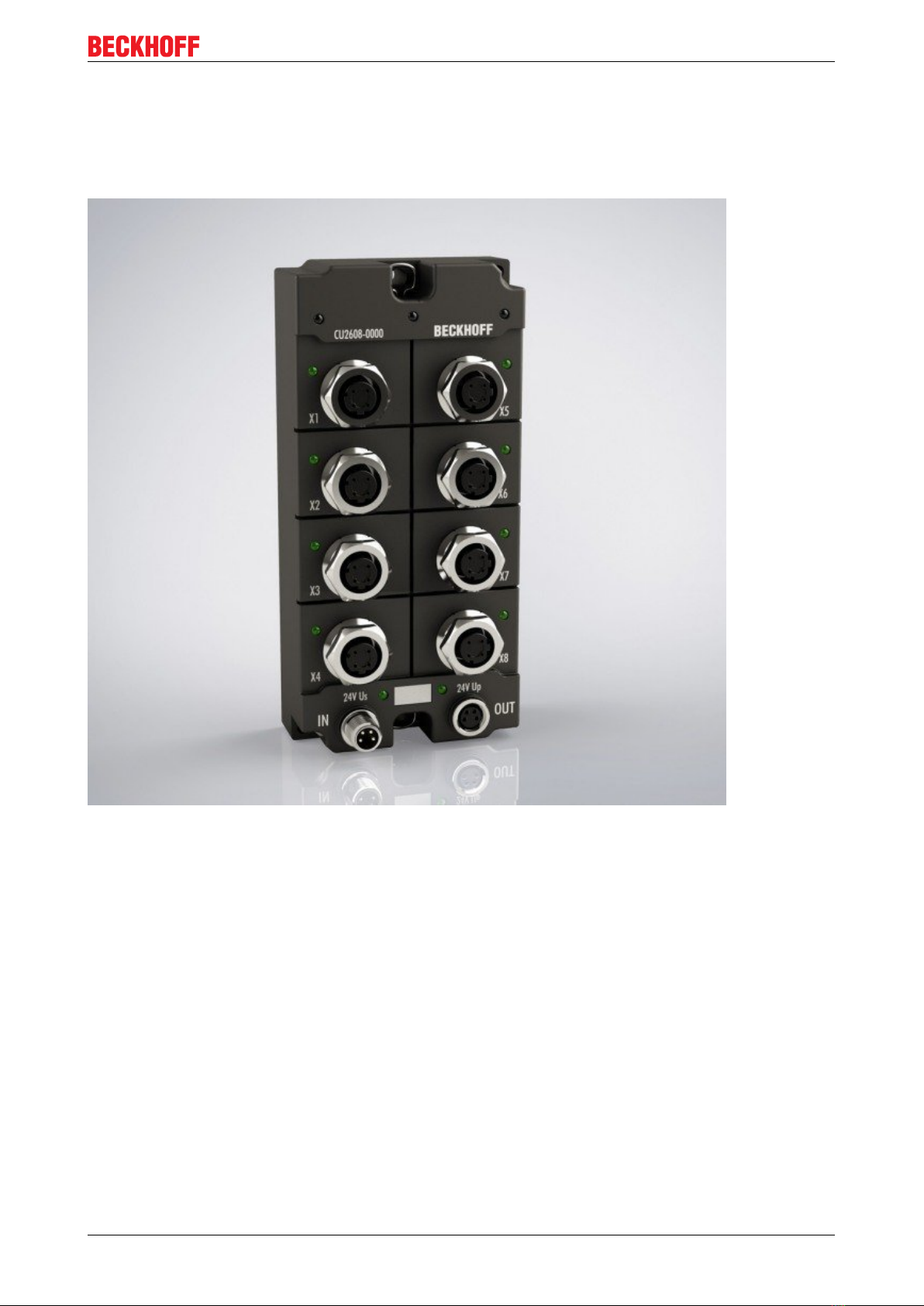

Fig.1: CU2608
8-port Ethernet switch in protection class IP67
The CU2608 Ethernet switch offers eight d-coded M12 Ethernet ports. Switches relay incoming Ethernet
frames to the destination ports. In full duplex mode, they prevent collisions.
They can be used universally in automation and office networks. It is installed either via two central 4mm
screws or two diagonally arranged 3mm screws.
The CU2608 meets the special requirements of real-time capable Industrial Ethernet solutions with
outstanding features:
• Compact design with IP67 plastic housing
• Eight d-coded M12 sockets
• 10/100 MBaud, half or full duplex, with automatic baud rate detection
• Cross-over detection: automatic detection and correction of crossover and straight-through Ethernet
cables
• Clear, fast diagnosis, one LED per Ethernet port
• Simple mounting in the field
CU2608 7Version: 2.0.0
Product overview
Socket pin assignment, 4-pin M12
Fig.2: Socket pin assignment, 4-pin M12
2.2 Basic function principles
Store and Forward
The switch operates according to the store-and-forward principle. Frames that are faulty (CRC error), too
short (< 64 bytes) or too long (> 1536 bytes) are generally not passed on.
Address Memory
The switch learns the MAC addresses of the connected devices for each port. Only frames that have these
addresses, broadcast/or multi-cast addresses, or which have unknown addresses are passed on to this port.
Because the switch remembers more than 1000 addresses for each port, it is also suitable for connecting
entire network segments. After approx. 5 minutes (Aging Time) unused addresses are removed from the
memory – if required, they are re-learnt again later.
Throughput
The switch can pass through up to 148800 Ethernet frames per second (Wire Speed).
PoE - Power over Ethernet
The CU20xx, CU22xx and CU26xx switches do not support PoE according to IEEE 802.3; they do not reveal
themselves as PSE (power sourcing equipment) or PD (powered devices). Any PSE connected to the switch
must therefore not apply a voltage.
No provision is made in the standard for passive interconnection or distribution.
Jumbo Frames
Jumbo Frames are oversized Ethernet telegrams with a length of more than 1518 bytes. They are used in
applications that require very high data throughput, for example.
The CU2208 (from hardware version 01) supports Jumbo Frames up to 9720 bytes on all ports. Please note
the following:
• Jumbo Frames only supported by ports with Gbit link
• Jumbo Frames place high demands on internal data transmission. It is therefore necessary to assess
the data throughput that can be achieved through the CU2208 for each individual application. Under
full load no more than 2 ports can be used for Jumbo Frames at the same time.
Jumbo Frames are not subject to standardization. It is therefore necessary to verify that the frames used by
the application are supported by the CU2208.
CU26088 Version: 2.0.0
Product overview
2.3 Technical data
Technical data CU2608-0000
Bus system Ethernet (all IEEE 802.3-based protocols)
Store-and-forward switching mode, unmanaged
Number of Ethernet ports 8
Ethernet interface 10BASE-T/100BASE-TX
Ethernet with M12, d-coded
Cable length up to 100m CAT5, switches cascadable as required
Baud rate 10/100Mbit/s, IEEE 802.3u auto-negotiation,
Half or full duplex at 10 and 100Mbit/s possible,
automatic settings
Diagnostics 1 LED per channel: link/activity, LED for power supply
Power supply Power supply and transfer via: M8 connector, 4-pin
Supply voltage 24VDC (-15 %/+20 %)
Current consumption typically 120 mA
Weight approx. 350 g
Dimensions without connector (W x H x D) approx. 126 x 60 x 26,5 mm
Mounting [}11] • Directly on mounting surface via two central 4mm
screws or two diagonally arranged 3mm screws.
• On ZS5300-0001 mounting rail.
permissible ambient temperature range during
operation
-30°C ... + 70°C
permissible ambient temperature range during
storage
-40°C ... + 85°C
Vibration/shock resistance conforms to EN 60068-2-6 / EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2 / EN 61000-6-4
Protection class (according to EN60529) IP65, IP66, IP67
Installation position Any
Approval CE
CU2608 9Version: 2.0.0
Mounting and cabling
3 Mounting and cabling
3.1 Dimensions
Fig.3: Dimensions (all dimensions are given in millimeters)
Housing features
EtherCAT Box Narrow housing Wide housing
Housing material PA6 (polyamide)
Sealing compound Polyurethane
Mounting Two mounting holes Ø3mm for M3 Two mounting holes Ø3mm for M3
Two mounting holes Ø4.5mm for M4
Metal parts Brass, nickel-plated
Contacts CuZn, gold-plated
Current transfer max. 4 A
Installation position variable
Protection class in screwed state IP65/66/67 (according to EN 60529)/
Dimensions (H x W x D) approx. 126 x 30 x 26.5 mm approx. 126 x 60 x 26.5 mm
Weight approx. 125 g, depending on module
type
approx. 250 g, depending on module type
Approvals CE, cULus CE
CU260810 Version: 2.0.0
