Becker CentronicPLUS SWC541A PLUS Manual de usuario
CentronicPLUS
SWC541A PLUS
en Assembly and Operating Instructions
1-channel hand-held transmitter for sun/wind
control, bidirectional
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
4036 630 263 023/11/2022
Table of contents
General ................................................................................................... 3
Licensing information for open source software.......................................... 3
Warranty ................................................................................................. 4
Safety instructions ................................................................................... 4
Intended use ........................................................................................... 5
Explanation of displays and buttons........................................................... 6
Explanation of functions ........................................................................... 6
Programming transmitter.......................................................................... 9
Setting the thresholds .............................................................................10
Restoring the factory settings of the hand-held transmitter.........................14
Installing the wall bracket.........................................................................15
Changing batteries..................................................................................15
Cleaning.................................................................................................16
Disposal .................................................................................................16
Technical data ........................................................................................16
What to do if...?.......................................................................................17
2-en
General
You can control one or more receivers with this transmitter.
This device is exceptionally easy to use.
Please observe these Assembly and Operating Instructions when installing
and setting up the equipment.
Explanation of pictograms
CAUTION CAUTION indicates a hazardous situation
which, if not avoided, could result in in-
jury.
ATTENTION ATTENTION indicates measures that must
be taken to avoid damage to property.
Denotes user tips and other useful in-
formation.
Licensing information for open source
software
This device uses free/open source software.
The licence texts are enclosed with the product in the licence documentation,
which can be identified by the following symbol:
The licence texts for the licensed software being used can be downloaded
from www.becker-antriebe.com/licenses.
Written request for the licence texts:
Becker-Antriebe will, on request, provide the licence texts for the licensed
software being used at cost price, either on a USB stick or a similar data car-
rier. Please send an email to the following email address for more information:
licenses@becker‑antriebe.com
3-en
Warranty
Structural modifications and incorrect installation which are not in accordance
with these and our other instructions can result in serious injuries, e.g., crush-
ing of limbs. Therefore, structural modifications may only be carried out with
our prior approval and strictly in accordance with our instructions, particularly
the information contained in these Assembly and Operating Instructions.
Any further processing of the products which does not comply with their inten-
ded use is not permitted.
The end product manufacturer and fitter have to ensure that all the relevant
current statutory, official and, in particular, EMC regulations are adhered to
during utilisation of our products, especially with regard to end product manu-
facture, installation and customer advice.
Safety instructions
General information
•Please keep the instruction manual safe!
•Only use in dry rooms.
•Only use unmodified original parts from the control unit manufacturer.
•Keep children away from control units.
•Observe all pertinent country-specific regulations.
•Dispose of used batteries properly. Only replace the battery with one of
the same type (see Technical Data).
Caution
•Keep people out of the system’s range of travel.
•If the system is controlled by one or more transmitters,
the system’s range of travel must always be visible during
operation.
•Device contains small parts that can be swallowed.
4-en
Intended use
The transmitter described in these instructions must only be used indoors for
the operation of radio drives and radio control units that are compatible with
the CentronicPlus.
Attention
A safety-relevant function has been provided for the
thresholds. Setting the threshold values wrongly can cause
damage to the sun protection system. For that reason, set-
ting the threshold values for the safety of your sun protection
system should only be done by – or under the instruction of –
a specialist retailer.
•Please note that radio-controlled systems may not be used in areas with
a high risk of interference (e.g. hospitals, airports).
•The remote control is intended solely for use with equipment and sys-
tems in which malfunctions in the transmitter or receiver would not pose
any risk to persons, animals or property, or which contain safety devices
to eliminate such risks.
•The operator is not protected from interference from other telecommu-
nications systems and terminal equipment (e.g. even from radio-con-
trolled systems which are properly operated in the same frequency
range).
•Only connect radio receivers to devices and systems approved by the
manufacturer.
•Ensure that the control unit is not installed or operated
close to metal surfaces or magnetic fields.
•Radio-controlled systems transmitting on the same fre-
quency may cause reception interference.
•Note that the range of the radio signal is limited by legis-
lation as well as by design.
5-en
Explanation of displays and buttons
1
2
3
4
5
6
7
1. LED ring
2. button
3. button (STOP)
4. button
5. function button
6. Battery compartment
7. programming button
Explanation of functions
LED ring
Display of:
•Confirmations from receiver
•Manual/ automatic
•Threshold/ dimming values
•Battery status
•Visual support during commissioning
6-en
Keypad , ,
•Drive commands
•Manual/automatic mode switching
•Intermediate position I + II
Function button
•Identification of the transmitter
•Retrieval/setting of thresholds
•Retrieval/setting of rain reaction
Programming button
•Environment scan, as well as selection and programming of receivers
•Add and remove receivers to/from the installation
•Restore factory settings
•Add additional transmitters to the installation
manual/ automatic
You can display and select the "Manual" or "Automatic" setting by pressing the
STOP button. Only manual drive commands and emergency signals can be
performed with the "Manual" setting. In addition, automatic drive commands
are also performed in the "Automatic" setting. The automatic functions are not
interrupted if a manual drive command is carried out when in automatic mode.
3s Press the STOP button for 3seconds to display
the current status.
Automatic
mode:
The LED ring lights up green.
Manual mode: The LED ring lights up red.
Different
modes:
The LED ring lights up yellow.
5s You can toggle between manual and automatic
mode by pressing the STOP button for 5seconds.
7-en
Identification of the hand-held transmitter
A colour can be assigned to the LED ring of the hand-held transmitter by
pressing the function button to make the device easier to identify. The stored
colour can be displayed by briefly pressing the function button. If the function
button is pressed for longer than 3 seconds, the LED ring flashes briefly. The
required colour can now be set by pressing the or button. 9 colours are
available: press the function button again for longer than 3 seconds to store
the colour currently selected.
Battery status
Battery status low
LED ring flashes yellow 4 times following normal
feedback.
Battery status empty
LED ring flashes red 4 times following normal
feedback.
Intermediate position I + II
The intermediate positions I + II are freely selectable positions for the shading
solution between the two limit positions. Each travel button can be assigned
one intermediate position. Both limit positions must be set before an interme-
diate position is set.
Whether or not this function is available depends on the devices used and is
described in the relevant instructions for the receiver.
Thresholds
The function button can be used to retrieve and set thresholds for sensors.
Whether or not this option for setting values is available depends on the
devices used and is described in the relevant instructions for the sensor.
8-en
Installation key
All of the devices operating within an installation must have the same installa-
tion key in order to communicate with one another. This key is created on ini-
tial commissioning, and is then transmitted to the additional added devices.
The installation key is only known to the programmed devices, and cannot be
read off. The commissioning procedure is described in the relevant instruc-
tions for the receiver.
Programming transmitter
Please find the appropriate description in the instructions for the receiver.
9-en
Setting the thresholds
Setting the thresholds
Bring the transmitter as close as possible to the
required receiver.
3s Press the programming button for 3seconds. The
transmitter performs a search and the LED ring
continuously changes colour. The transmitter then
switches to receiver selection and selects the re-
ceiver with the best connection quality.
▻
The receiver confirms.
If you do not receive confirmation from the re-
quired receiver, you can press the / button to
toggle between the available receivers until the re-
quired receiver confirms.
▻
The transmitter displays the current as-
signment status of the receiver via the
LED ring.
Assignment status
Lights up yel-
low:
The receiver is not yet part of the
installation or is in the as-de-
livered condition.
Lights up
blue:
The receiver is not assigned to
the selected channel.
Lights up
green:
The receiver is assigned to the
selected channel.
10-en
Tabla de contenidos
Otros manuales de Transmisor de Becker
Becker
Becker B-Tronic VarioControl VC3201B Manual de lista de piezas
Becker
Becker Centronic / B-Tronic EasyControl MC611 Manual de usuario
Becker
Becker Centronic SunWindControl SWC411 Manual de usuario
Becker
Becker Centronic EasyControl EC5410A-II Manual de usuario
Becker
Becker Centronic EasyControl EC545 Manual de usuario
Becker
Becker Centronic EasyControl EC142-II Manual de usuario
Becker
Becker Centronic EasyControl EC411-III Manual de usuario
Becker

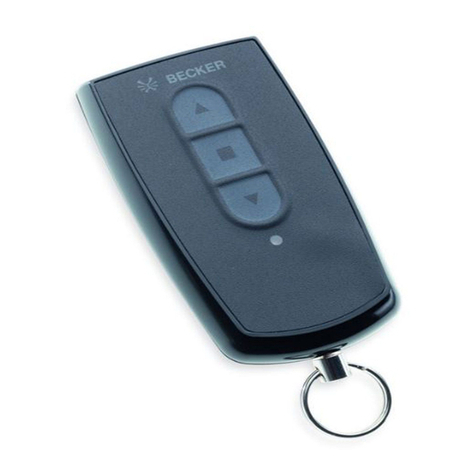

Becker Centronic EasyControl EC141-II Manual de usuario
Becker
Becker Centronic EasyControl EC545A-II Manual de usuario
Becker
Becker Centronic SunWind Control SWC241A-II Manual de usuario
Becker
Becker Centronic VarioControl VC421A Manual de usuario
Becker
Becker Centronic EasyControl EC245-II Manual de usuario
Becker
Becker Centronic EasyControl EC5410-II Manual de usuario
Becker
Becker Centronic MemoControl MC441 Manual de usuario
Becker
Becker B-Tronic EasyControl EC5415B Manual de usuario
Becker
Becker Centronic SunWindControl SWC245A-II Manual de usuario
Becker
Becker B-Tronic EasyControl EC5401B Manual de usuario
Becker
Becker Centronic EasyControl EC545-II Manual de usuario
Becker
Becker CentronicPLUS SWC548 PLUS Manual de usuario
Becker
Becker Centronic EasyControl EC541-II Manual de usuario
Manuales populares de Transmisor de otras marcas
Dejero
Dejero EnGo 3x Manual de usuario
Rosemount
Rosemount 4600 Manual de usuario
Speaka Professional
Speaka Professional 2342740 Manual de usuario
trubomat
trubomat GAB 1000 Manual de usuario
Teledyne Analytical Instruments
Teledyne Analytical Instruments LXT-380 Manual de usuario
Rondish
Rondish UT-11 Manual de usuario
