CentronicPLUS
EC548A PLUS, EC5416A PLUS
en Assembly and Operating Instructions
Bi-directional multi-channel hand-held
transmitter
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
4036 630 299 023/11/2022
Table of contents
General information ................................................................................. 3
Licensing information for open source software.......................................... 3
Warranty ................................................................................................. 4
Safety instructions ................................................................................... 4
Intended use ........................................................................................... 5
Explanation of displays and buttons........................................................... 6
Explanation of functions ........................................................................... 6
Programming transmitter.........................................................................10
Restoring the factory settings of the hand-held transmitter.........................10
Installing the wall bracket.........................................................................11
Changing batteries..................................................................................12
Cleaning.................................................................................................12
Disposal .................................................................................................13
Technical data ........................................................................................13
What to do if...?.......................................................................................14
2-en
General information
Products such as roller shutter and sun protection systems, light controls and
remote-controlled sockets can be operated using the different transmission
channels.
This device is exceptionally easy to use.
Please observe these Assembly and Operating Instructions when installing
and setting up the equipment.
Explanation of pictograms
CAUTION CAUTION indicates a hazardous situation
which, if not avoided, could result in in-
jury.
ATTENTION ATTENTION indicates measures that must
be taken to avoid damage to property.
Denotes user tips and other useful in-
formation.
Licensing information for open source
software
This device uses free/open source software.
The licence texts are enclosed with the product in the licence documentation,
which can be identified by the following symbol:
The licence texts for the licensed software being used can be downloaded
from www.becker-antriebe.com/licenses.
3-en
Written request for the licence texts:
Becker-Antriebe will, on request, provide the licence texts for the licensed
software being used at cost price, either on a USB stick or a similar data car-
rier. Please send an email to the following email address for more information:
licenses@becker‑antriebe.com
Warranty
Structural modifications and incorrect installation which are not in accordance
with these and our other instructions can result in serious injuries, e.g., crush-
ing of limbs. Therefore, structural modifications may only be carried out with
our prior approval and strictly in accordance with our instructions, particularly
the information contained in these Assembly and Operating Instructions.
Any further processing of the products which does not comply with their inten-
ded use is not permitted.
The end product manufacturer and fitter have to ensure that all the relevant
current statutory, official and, in particular, EMC regulations are adhered to
during utilisation of our products, especially with regard to end product manu-
facture, installation and customer advice.
Safety instructions
General information
•Please keep the instruction manual safe!
•Only use in dry rooms.
•Only use unmodified original parts from the control unit manufacturer.
•Keep children away from control units.
•Observe all pertinent country-specific regulations.
•Dispose of used batteries properly. Only replace the battery with one of
the same type (see Technical Data).
Caution
•Keep people out of the system’s range of travel.
•If the system is controlled by one or more transmitters,
the system’s range of travel must always be visible during
operation.
•Device contains small parts that can be swallowed.
4-en
Intended use
The transmitter described in these instructions must only be used indoors for
the operation of radio drives and radio control units that are compatible with
the CentronicPlus.
•Please note that radio-controlled systems may not be used in areas with
a high risk of interference (e.g. hospitals, airports).
•The remote control is intended solely for use with equipment and sys-
tems in which malfunctions in the transmitter or receiver would not pose
any risk to persons, animals or property, or which contain safety devices
to eliminate such risks.
•The operator is not protected from interference from other telecommu-
nications systems and terminal equipment (e.g. even from radio-con-
trolled systems which are properly operated in the same frequency
range).
•Only connect radio receivers to devices and systems approved by the
manufacturer.
•Ensure that the control unit is not installed or operated
close to metal surfaces or magnetic fields.
•Radio-controlled systems transmitting on the same fre-
quency may cause reception interference.
•Note that the range of the radio signal is limited by legis-
lation as well as by design.
5-en
Explanation of displays and buttons
1
2
3
4
5
6
7
1. LED ring
2. button
3. button (STOP)
4. button
5. function button
6. Battery compartment
7. programming button
Explanation of functions
LED ring
Display of:
•Confirmations from receiver
•Channel selection
•manual/ automatic
•Threshold/ dimming values
•Battery status
•Visual support during commissioning
6-en
Keypad , ,
•Drive commands
•Memory function
•Intermediate position I + II
Function button
•Channel selection/ Group selection/ Central command
Programming button
•Environment scan, as well as selection and programming of receivers
•Add and remove receivers to/from the installation
•Restore factory settings
•Add additional transmitters to the installation
Channel selection/ Group selection/ Central command
The channel of a transmitter can be programmed into one or more receivers.
Only the channels in which receivers are programmed are displayed. One
channel is activated through an individual command, several channels through
a group command or central command.
One group has a maximum of 4 channels and is assigned a colour.
Depending on the model/ specification of the transmitter, several groups can
be selected.
One quarter of the LED ring lights up to indicate each of the individual chan-
nels. A group consists of four channels which are represented by different col-
ours.
If the entire LED ring lights up in one of the group colours, this group is selec-
ted. With the group command, all channels of the selected group are activ-
ated.
If the entire LED ring lights up white, the central command is selected. With the
central command, all channels of all groups are activated.
Channel 1 Channel 2 Channel 3 Channel 4 Group Central
command
7-en
8-channel hand-held transmitter
Channel Group Colour
LED ring
Channel 1 - 4 Group 1 green
Channel 5 - 8 Group 2 red
Channel 1 - 8 Group all
(central command)
White
16-channel hand-held transmitter
Channel Group Colour
LED ring
Channel 1 - 4 Group 1 green
Channel 5 - 8 Group 2 red
Channel 9 - 12 Group 3 yellow
Channel 13 - 16 Group 4 light blue
Channel 1 - 16 Group all
(central command)
White
manual/ automatic
You can display and select the "Manual" or "Automatic" setting by pressing the
STOP button. Only manual drive commands and emergency signals can be
performed with the "Manual" setting. In addition, automatic drive commands
are also performed in the "Automatic" setting. The automatic functions are not
interrupted if a manual drive command is carried out when in automatic mode.
3s Press the STOP button for 3seconds to display
the current status.
Automatic
mode:
The LED ring lights up green.
Manual mode: The LED ring lights up red.
Different
modes:
The LED ring lights up yellow.
8-en
5s You can toggle between manual and automatic
mode by pressing the STOP button for 5seconds.
Battery status
Battery status low
LED ring flashes yellow 4 times following normal
feedback.
Battery status empty
LED ring flashes red 4 times following normal
feedback.
Memory function
The memory function can save one switching time for a and run respect-
ively, and repeat every 24 hours.
Whether or not this function is available depends on the devices used and is
described in the relevant instructions for the receiver.
Intermediate position I + II
The intermediate positions I + II are freely selectable positions for the shading
solution between the two limit positions. Each travel button can be assigned
one intermediate position. Both limit positions must be set before an interme-
diate position is set.
Whether or not this function is available depends on the devices used and is
described in the relevant instructions for the receiver.
Installation key
All of the devices operating within an installation must have the same installa-
tion key in order to communicate with one another. This key is created on ini-
tial commissioning, and is then transmitted to the additional added devices.
The installation key is only known to the programmed devices, and cannot be
read off. The commissioning procedure is described in the relevant instruc-
tions for the receiver.
9-en
Programming transmitter
Please find the appropriate description in the instructions for the receiver.

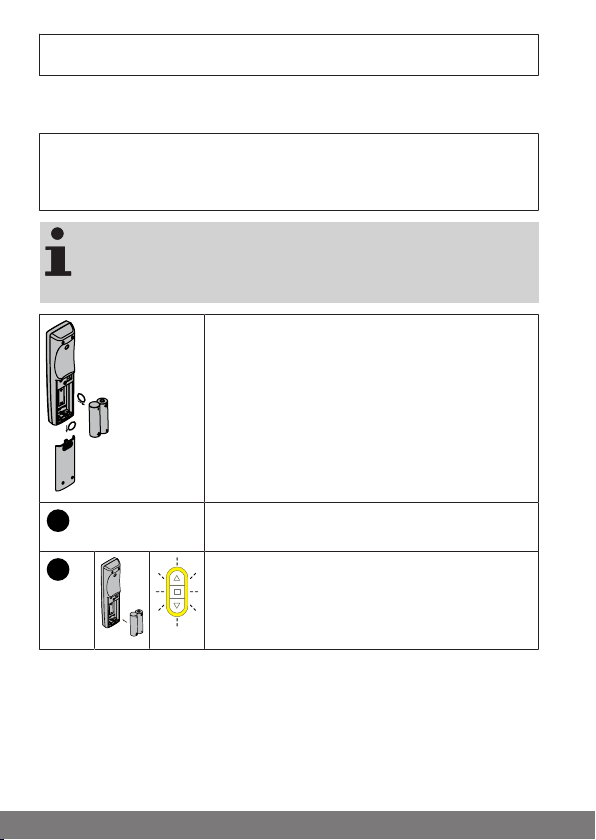

Restoring the factory settings of the
hand-held transmitter
When the factory settings of the transmitter are restored,
the settings in the receiver, such as run times, thresholds,
intermediate positions, etc. as applicable, are not taken into
account.
2
1
Open the cover of the battery compartment and
take out the batteries.
After approx. 3s, press and hold down the pro-
gramming button.
Re-insert the batteries while keeping the program-
ming button pressed down.
▻
The transmitter confirms with 4 yellow
flashes of the LED ring.
10-en
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Transmisor de Becker
Becker
Becker Centronic EasyControl EC141-II Manual de usuario
Becker
Becker Centronic VarioControl VC421 Manual de usuario
Becker
Becker B-Tronic EasyControl EC5415B Manual de usuario
Becker
Becker CentronicPLUS EC541A PLUS Manual de usuario
Becker
Becker Centronic / B-Tronic EasyControl MC611 Manual de usuario
Becker
Becker Centronic EasyControl EC5410A-II Manual de usuario
Becker
Becker Centronic SunWindControl SWC241-II Manual de usuario
Becker
Becker Centronic EasyControl EC411 Manual de usuario
Becker
Becker B-Tronic EasyControl EC5401B Manual de usuario
Becker
Becker Centronic EasyControl EC411-III Manual de usuario
Becker
Becker Centronic MemoControl MC411-III Manual de usuario
Becker
Becker TC445 Manual de usuario
Becker
Becker Centronic SunWindControl SWC442-II Manual de usuario
Becker
Becker Centronic EasyControl EC541-II Manual de usuario
Becker
Becker Centronic EasyControl EC242-II Manual de usuario
Becker
Becker Centronic VarioControl VC421 Manual de usuario
Becker
Becker Centronic VarioControl VC421A Manual de usuario
Becker
Becker Centronic SunWindControl SWC241 Manual de usuario
Becker
Becker Centronic EasyControl EC411A-III Manual de usuario
Becker
Becker Centronic SunWind Control SWC241A-II Manual de usuario
Manuales populares de Transmisor de otras marcas
Dejero
Dejero EnGo 3x Manual de usuario
Rosemount
Rosemount 4600 Manual de usuario
Speaka Professional
Speaka Professional 2342740 Manual de usuario
trubomat
trubomat GAB 1000 Manual de usuario
Teledyne Analytical Instruments
Teledyne Analytical Instruments LXT-380 Manual de usuario
Rondish
Rondish UT-11 Manual de usuario
