Model: C16

en Assembly and Operating Instructions

Radio controlled sun protection drives with locking

system

Important information for:

• Fitters / • Electricians / • Users

Please forward accordingly!

These instructions must be kept safe for future reference.

Becker-Antriebe GmbH

Friedrich-Ebert-Straße 2-4

35764 Sinn/Germany

www.becker-antriebe.com

2010 300 981 026/01/2022

Table of contents

General ............................................................................................................................................................................... 3

Warranty ............................................................................................................................................................................. 3

Safety instructions ............................................................................................................................................................... 4

Instructions for the user................................................................................................................................................... 4

Instructions for installation and commissioning.................................................................................................................. 4

Intended use ....................................................................................................................................................................... 6

Assembling and disassembling the plug-in connecting cable................................................................................................... 6

Assembly ............................................................................................................................................................................ 7

Commissioning.................................................................................................................................................................. 10

Programming the master transmitter .............................................................................................................................. 11

Checking that the running direction is correct.................................................................................................................. 11

Setting the limit positions............................................................................................................................................... 12

Deleting the limit positions ............................................................................................................................................. 13

Intermediate position I in the down direction.................................................................................................................... 13

Intermediate position II in the up direction ....................................................................................................................... 14

Programming additional transmitters.............................................................................................................................. 14

Deleting transmitters..................................................................................................................................................... 15

Overwriting the master .................................................................................................................................................. 16

Local operation with a single button..................................................................................................................................... 17

Programming and deleting the run times.............................................................................................................................. 18

Programming the run times............................................................................................................................................ 18

Deleting the run times ................................................................................................................................................... 18

Activating/deactivating the additional fabric untensioning function with the master transmitter................................................. 18

Disposal ............................................................................................................................................................................ 18

Maintenance ..................................................................................................................................................................... 18

Technical data dia. 35 ........................................................................................................................................................ 19

Technical data dia. 45 ........................................................................................................................................................ 19

Technical data dia. 58 ........................................................................................................................................................ 20

What to do if...?.................................................................................................................................................................. 20

Declaration of conformity ................................................................................................................................................... 21

2-en

General

These tubular drives are high-quality products with the following features:

•Optimised for sun protection applications with locking system

•Locking limit position and unlocking limit position freely programmable

•Automatic detection of upper limit position

•Several drives can be operated in parallel

•Compatible with existing drives with electronic limit switching (4-core connecting cable)

•Comprehensive range of the drive manufacturer's control units can be used

•Smooth operation of the system and the drive increases the service life

•Individual, group and central radio control

•No need to run wires to a switch or relay control device

•Any combination of drive and transmitter possible

•Simple to set the limit positions with the transmitter

•Setting of an intermediate position I in the down direction possible

•Setting of an intermediate position II in the up direction possible

•Flexible radio grouping; can be altered at any time with no need to install/uninstall

•For plug-in connecting cable

Please observe these Assembly and Operating Instructions when installing and setting the equipment.

The date of manufacture comes from the first four digits of the serial number.

The numbers 1 and 2 indicate the year and the numbers 3 and 4 indicate the calendar week.

Example: 34th calendar week in 2020

Ser. No.: 2034XXXXX

Explanation of pictograms

CAUTION CAUTION indicates a hazardous situation which, if not avoided, could

result in injury.

ATTENTION ATTENTION indicates measures that must be taken to avoid damage to

property.

Denotes user tips and other useful information.

Warranty

Structural modifications and incorrect installation which are not in accordance with these and our other instructions can result in

serious injuries, e.g., crushing of limbs. Therefore, structural modifications may only be carried out with our prior approval and

strictly in accordance with our instructions, particularly the information contained in these Assembly and Operating Instructions.

Any further processing of the products which does not comply with their intended use is not permitted.

The end product manufacturer and fitter have to ensure that all the relevant current statutory, official and, in particular, EMC regu-

lations are adhered to during utilisation of our products, especially with regard to end product manufacture, installation and cus-

tomer advice.

3-en

Safety instructions

The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury.

Instructions for the user

General information

•The drive must be disconnected from its power source during cleaning and maintenance and when re-

placing parts.

•All work, including maintenance and cleaning, on electrical installations as well as other system parts

must always be performed by trained technicians, in particular qualified electricians.

•Children from the age of 8 years and persons with reduced physical, sensory or mental capabilities or

lack of experience and/or knowledge may use these devices, provided they are supervised or have

been instructed in the safe use of the device, and have understood the hazards involved. Children must

not play with the device.

•Systems have to be checked regularly by authorised specialists for wear and damage.

•Always put damaged systems out of operation immediately until they are repaired by an authorised

specialist.

•Do not operate equipment if people or objects are within the danger zone.

•Observe the danger zone of the equipment during operation.

•Ensure that there is adequate clearance (at least 40 cm) between moving parts and adjacent objects.

Caution

Safety instructions for avoiding serious injuries.

•Crushing or shearing points must be avoided or protected.

Instructions for installation and commissioning

General information

•Observe the safety instructions in EN 60335-2-97. Please note that this list of safety instructions is not

exhaustive, since it would be impossible for the standard to include all sources of danger. For example,

the design of the operated product, the way the drive works in the situation it is installed in or even the

way the end product is mounted in the end user’s place of use cannot be taken into consideration by

the drive manufacturer.

If any questions or uncertainties regarding the safety instructions contained in the standard arise,

please contact the manufacturer of the part or end product in question.

•All applicable standards and regulations for electrical installation must be complied with.

•All work, including maintenance and cleaning, on electrical installations as well as other system parts

must always be performed by trained technicians, in particular qualified electricians.

•Only use spare parts, tools and accessory devices which have been approved by the drive manufac-

turer.

Unapproved third-party products or modifications to the system and its accessories represent a risk to

your safety and the safety of others. This means that the use of unapproved third-party products, or

modifications which have not been agreed with or approved by us, are prohibited. We do not accept li-

ability for damage or injury arising from such actions.

•Position switch with OFF presetting within sight of the driven product, but away from moving parts, at a

height of over 1.5 m. This must not be publicly accessible.

•Permanently mounted control devices must be positioned where they can be seen.

•Rated torque and duty cycle must be suitable for the requirements of the driven product.

Technical data - rated torque and service life can be found on the type plate of the tubular drive.

4-en

•Hazardous moving parts of the drive must be installed at a height of over 2.5 m above floor level or any

other surface from which the drive can be accessed.

•To ensure safe operation of the system after commissioning, the limit positions must be correctly set/

programmed in.

•Drives with a H05VV-F connecting cable may only be used indoors.

•Drives with a H05RR-F, S05RN-F or 05RN-F connecting cable may be used both indoors and outdoors.

•To connect the drive to the driven part, solely mechanical accessory components made by the drive

manufacturer from the current product catalogue may be used. The components must be installed in

accordance with the manufacturer's instructions.

•If the drive is used for shading solutions in a specially marked area (e.g., escape routes, hazard zones,

safety areas), compliance with all applicable regulations and standards must be ensured.

Caution

Safety instructions for avoiding serious injuries.

•When electrical or electronic equipment and units are operated, certain components,

e.g., the power supply unit, are live. Physical injuries or damage to property can result in

the event of unauthorised interventions or failure to heed warnings.

•Be careful when touching the tubular drive, as it heats up during operation for technical

reasons.

•Before installation, shut down all lines and control devices that are not essential for op-

eration.

•Crushing or shearing points must be avoided or protected.

•When installing the drive, all-pole disconnection from the mains with a contact gap of at

least 3mm per pole must be provided (EN60335).

•If the mains connecting cable is damaged, it may only be replaced by the manufacturer.

If the drive has a plug-in connecting cable, it must be replaced with the same type of

mains connecting cable, which is available from the drive manufacturer.

Attention

Safety instructions for avoiding property damage.

•Ensure that there is adequate clearance between moving parts and adjacent objects.

•The drive must not be carried by the mains connecting cable.

•All latching connections and fastening screws on the brackets must be checked to en-

sure that they are secure.

•Ensure that nothing rubs against the tubular drive, such as shading solution attach-

ments, screws, etc.

•The drive must be fitted horizontally.

5-en

Intended use

The type of tubular drive described in these instructions is intended solely for the operation of sun protection systems with locking

systems . To function properly, these tubular drives need a fixed stop in the upper limit position (retracted blind).

When mounting connection parts on the drive dia. 35 mm PXX/XX, only use screws EJOT Delta PT 40x12 WN 5454 Torx (9900 000

545 4).

It may only be used in networked systems if all the individual drives are exactly synchronised and reach the upper limit position at

the same time.

For roller shutter applications, please use only the types of tubular drive designed for this purpose.

This type of tubular drive is designed for use in single systems (one drive per barrel).

The tubular drive must not be used in potentially explosive areas.

The connecting cable is not suitable for transporting the drive. Always carry the drive by the housing tube.

Other applications, uses and modifications are not permitted in order to protect the safety of the users and others, since these ac-

tions can impair the system’s safety and carry the risk of personal injury and property damage. The drive manufacturer does not

accept liability for damages or injury arising from such actions.

Always observe the information in these instructions when operating or repairing the system. The drive manufacturer does not ac-

cept liability for damage or injury resulting from improper usage.

Assembling and disassembling the plug-in connecting cable

Caution

The power supply to the connecting cable must be disconnected prior to assembly/disas-

sembly.

Assembling the plug-in connecting cable

Ø35/Ø45/Ø58 Insert the dead connecting cable into the drive head until the

locating lug clicks into place in the drive. If necessary, use a

suitable flathead screwdriver to assist with insertion. Set the

screwdriver into one of the two plug grooves provided for this

purpose.

Check that the cable is properly engaged.

1 = locating lug

Disassembling the plug-in connecting cable for tubular drives

Ø35 Insert a suitable flathead screwdriver between the locating lug

and the snap-in pin, so that the snap-in pin releases the locat-

ing lug from the plug.

Now you can pull out the connecting cable along with the flat-

head screwdriver.

A = snap-in pin

6-en

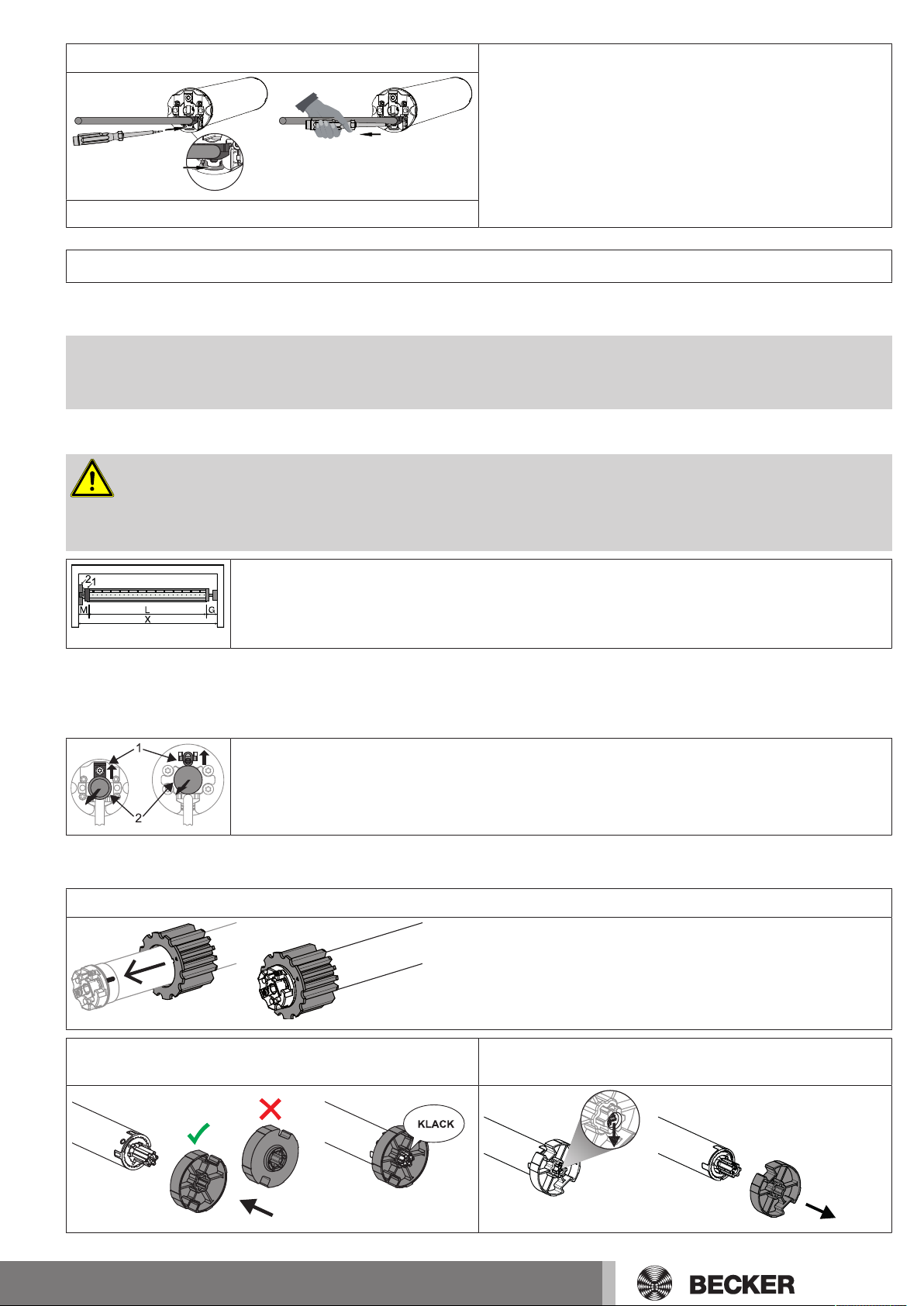

Ø45/Ø58 Insert a suitable flathead screwdriver right into the recess of the

locating latch, so that the latch releases the locating lug from

the plug.

Now you can pull out the connecting cable along with the flat-

head screwdriver.

1. 2.

A = locating latch

Assembly

Assembling the drive

Attention

To connect the drive to the driven part, solely mechanical accessory components made by

the drive manufacturer from the current product catalogue may be used.

Prior to mounting, the fitter must ensure that the masonry and the system being motorised are sufficiently robust (drive torque plus

weight of the shading solution).

Caution

Electrical connections may only be carried out by a qualified electrician. Prior to assembly,

the power supply must be disconnected and secured. Please give the enclosed connection

information to the responsible electrical contractor.

Calculate the space required at the side (M) by measuring the drive head (1) and wall bracket (2). The

clear dimension of the box (X) minus the space required at the side (M) and idler (G) gives the length

(L) of the barrel: L=X-M-G.

The space required at the side (M) varies depending on the combination of drive and wall bracket.

Then mount the wall bracket and idler. Ensure that the barrel is aligned at right angles to the wall and that sufficient axial play is al-

lowed for the mounted system.

Undoing the mounting pin

When pushed in, the mounting pin (2) locks automatically. To undo the mounting pin (2), push the tab

washer (1) upwards and pull out the mounting pin (2).

Assembling and disassembling the drive adapter

Fitting the ring onto the thrust ring

Assembling the drive adapter with safety catch on the

drive shaft

Dismantling the drive adapter with safety catch on the

metal drive shaft

7-en

Disassembling the drive adapter with safety catch on the drive shaft

Disassembling with the disassembly tool

Item no. 4930 300 606 0

Disassembly with long nose pliers

Assembling and disassembling the drive adapter with drive adapter safety catch or screw connection

Assembling and disassembling the drive

adapter with separate drive adapter

safety catch

Assembling and disassembling the drive

adapter with screw connection

Mounting the drive in the tube

For profile shafts:

In the case of some drive adapters, tolerances of the groove widths in different barrels can be offset by

rotating the drive adapter into a different groove recess. These groove recesses have different sizes

and allow the drive to fit exactly.

For round shafts:

Measure the lug of the thrust ring (X, Y). Then notch the tube on the motor side, so the lug of the thrust

ring can also be pushed into the shaft. There must be no play between the lug of the thrust ring and the

shaft.

-10 mm

To ensure secure torque transmission for round shafts, we recommend screwing the drive adapter to

the shaft (see the table below).

Attention!When drilling into the barrel, never drill near the tubular drive!

Size of drive

[mm]

Drive adapter Torque

max. [Nm]

Fastening screws

(4 units)

dia. 35-dia. 45 All Up to 50 Self-tapping screw

dia. 4.8 x 9.5 mm

dia. 58 Aluminium drive adapter Up to 120 Countersunk screw

M8 x 16 mm

dia. 58 Diecast drive adapter Up to 120 Self-tapping screw

dia. 6.3 x 13 mm

We also recommend screwing the idler to the barrel.

Attention

Do not hammer the tubular drive into the tube or drop it into the barrel!

Assemble the tubular drive with the relevant ring (1) and drive adapter (2). If the ring has several

grooves, select the groove which is a perfect fit and push the ring (1) onto the thrust ring.

Insert the tubular drive with the pre-assembled ring (1) and drive adapter (2) into the tube to achieve a

form fit. Ensure that the ring and drive adapter are secure in the tube.

Mount the assembled unit comprising shaft, tubular drive and idler on the box and secure the drive with

a splint or spring pin according to the type of wall bracket fixing.

8-en

Lay the connecting cable

Lay the connecting cable up to the tubular drive, and fix The connecting cable and any antennae must

not project into the winding chamber. Cover any sharp edges.

9-en

Commissioning

Explanation of symbols

UP button

STOP button

DOWN button

Programming button

Receiver confirms once or multiple times by “clicking” or “shifting”

1 = direction switch

2 = radio switch

Unlocked

Locked

Locking bolt Moving part of the locking system on the front section of the sun protection

system

Bolt mechanism Fixed part of the locking system in the guide track of the sun protection sys-

tem

230V AC / 50 Hz

Connecting the tubular drive

Connect the tubular drive to the power supply.

1 = blue 3 = black

2 = brown 4 = green-yellow

Readying the tubular drive for programming

Readying the tubular drive for programming by switching on the power

▻Switch on the power.

►The tubular drive is ready to programme for 3 minutes

If several tubular drives are to be connected in parallel, you can deactivate the program-

ming mode on one tubular drive by switching the radio switch to the outside position after

turning the power on.

10-en

Tabla de contenidos

Otros manuales de Accionamiento de CC de Becker

Becker

Becker C01 Manual de usuario

Becker

Becker L50/17 C SEF I1 Manual de usuario

Becker

Becker enocean P5-16 Manual de usuario

Becker

Becker R4-17 Manual de usuario

Becker

Becker U 5.40 Manual de usuario

Becker

Becker R8/17R Manual de usuario

Becker

Becker R8 17C PR+ Manual de usuario

Becker

Becker EVO 20 R PLUS BT Manual de usuario

Becker

Becker E22 Manual de usuario

Becker

Becker E01 Series Manual de usuario

Becker

Becker P5/20M Manual de usuario

Becker

Becker U30 Manual de usuario

Becker

Becker Extended Features XR7/85 Manual de usuario

Becker

Becker enocean R30-17 Manual de usuario

Becker

Becker R12/17RO+ Manual de usuario

Becker

Becker E03 Manual de usuario

Becker

Becker R8/17RF Manual de usuario

Becker

Becker enocean R40-17 Manual de usuario

Becker

Becker VariAir VAU 4/4 Manual de usuario

Becker

Becker C01a Manual de usuario

Becker

Becker P5/16R+ Manual de usuario

Becker

Becker P5-B01 Manual de usuario

Becker

Becker R7/17 Manual de usuario

Becker

Becker EVO 20 R Manual de usuario

Manuales populares de Accionamiento de CC de otras marcas

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manual de usuario

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manual de lista de piezas

Chamberlain Garog

Chamberlain Garog D Series Manual de usuario

Parker

Parker PDS Series Manual de usuario

Festo

Festo DGC G Series Guía de configuración

Binks

Binks QS-5012-1-CE Manual de usuario

Danfoss

Danfoss VLT 2800 Series Hoja de especificaciones

ABB

ABB ACQ580-01 Series Manual de instalación

YASKAWA

YASKAWA CANopen SI-S3 Manual de usuario

GE D20A6 Manual de usuario

Unex

Unex MC-D-250-1000-050W-TW Manual de usuario

Geckodrive

Geckodrive G213V Manual de usuario

ABB

ABB RSYC-01 Manual de usuario

Rockwell Automation

Rockwell Automation PowerFlex 700S Manual del propietario

WEG

WEG DeviceNet CFW500 Manual de usuario

Siemens

Siemens SINAMICS G Hoja de datos

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Instrucciones de funcionamiento

SOMFY

SOMFY JR RU 30 Manual de usuario
