USER’S MANUAL

Model: BC-P186S

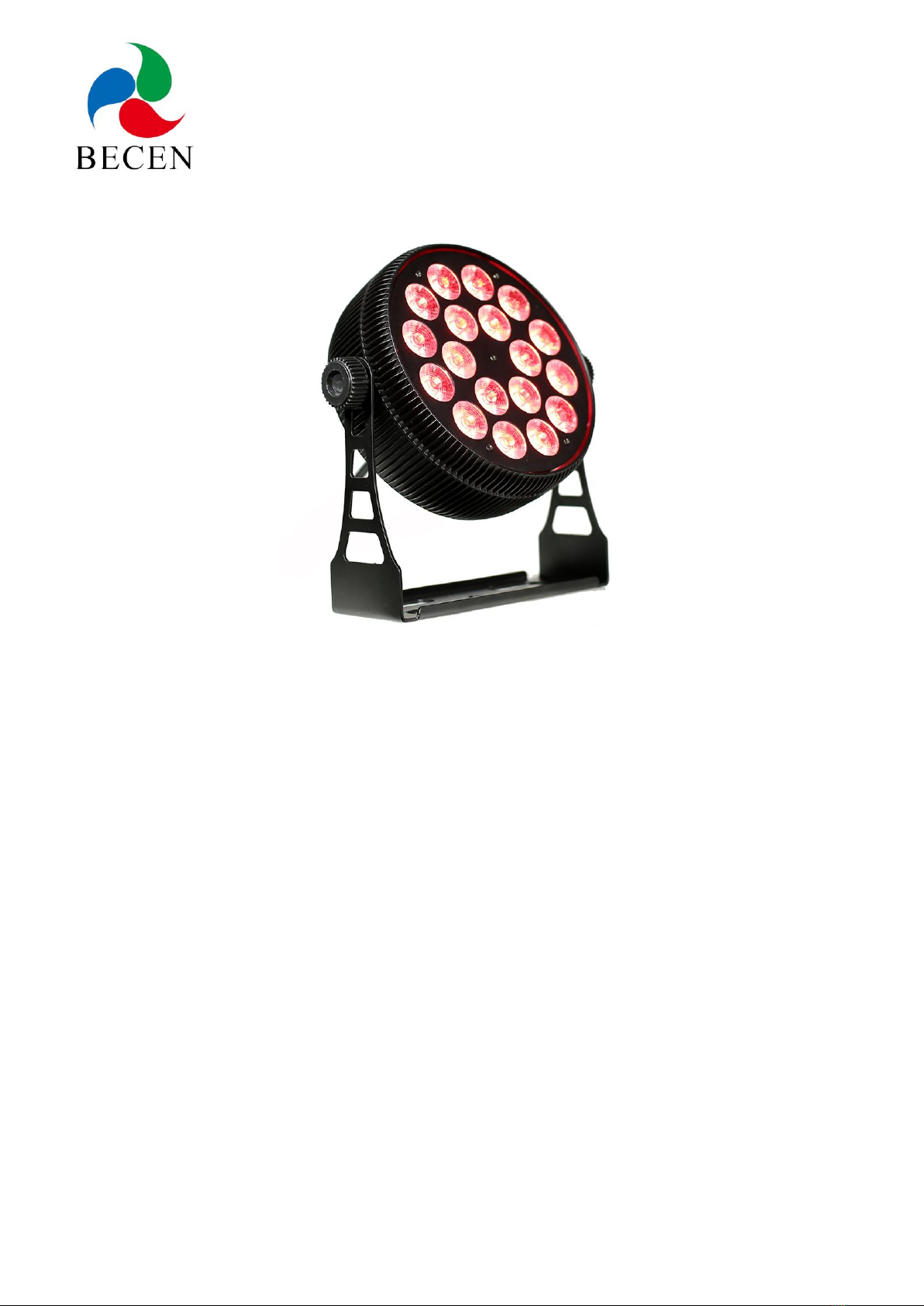

18x6in1 Super Wash Led Par Light

Package Includes:

1 x super wash led par light

1 x handle,knob

1 x power cable

1 x DMX cable

Please read this manual before use

www.szbecen.com

Features

Voltage:AC 110-260V，50/60Hz

Lamp:18pcs*6in1 LED

Control mode: DMX512, RDM

Safety precautions

To ensure that the local voltage and the required voltage for product is consistent.

If a product's power cord is damaged, please do not try to use the product. Do not try to

unplug the power cord from the ground plug. Plug is used to reduce short-circuit

electric shocks and fire prevention.

Before making any connections disconnect the main power supply.

In any case, please do not remove the lid, which is not part of the user can use.

If the product of the shell is missing, please do not run product.

Do not stuff the products to the dimmer package.Guarantee that the product in the

ventilate place ,and maintained between the product and the wall 6 feet (15 cm)

distance.

If damaged, please do not run product.

If the long-term non-use products, please disconnect the power.

Make sure the product located in a safe and stable place.

Special attention to the power cord from being pinched or out of product.

Cleaning:In accordance with the manufacturer's recommendation to clean products’

fixed position. Please read the "cleaning" in detail.

Heat output

Devices should be away from heat sources such as radiator, heater, warm furnace or other

devices generate heat.

www.szbecen.com

In the following circumstances, the fixed installations are required to qualified service

personnel overhaul:

A. When the power cord or plug is damaged.

B. The product fall or when the liquid outflow the device.

C. When the device does not work correctly, or have some change in the exhibition.

Installation of power

At the time of switching in power, make sure that the voltage in your area is consistent

with the the led spot light’s voltage. This for AC110-240V. Since different parts of the

voltage is different, so products in operation, make sure your wall outlet voltage consistent

with the product.

DMX combination

In order to ensure a fixed DMX data transmission, when using several DMX device to the

fullest extent possible use the shortest cables. Fixtures connected to the DMX channel

order does not affect the choice of DMX. For example:when the allocation of fixed

installations DMX 1 channel, DMX will be located in any location, in the front, back or

middle of anywhere. When the fixed installations assigned to DMX 1 channel, whether it

is located in which of the DMX channels, DMX controller is aware that the data sent on

the channel one.

Usage mode

You can use the following four ways:

Automatic ---- This section will automatically operate through a variety of colors .

RGBW Mode ---- select a color or a different color in order to maintain the same state.

DMX control mode --- This function will be under the standard of DMX512 controller, let

you control each device separately.

www.szbecen.com

LED display

The digital display like below:

A: Menu

B: Up

C:DOWN

D:Enter

A B C D

LED display

function

A001

6/9/10CH DMX address

CP00

Color change

CC00

Color Jump change

DE00

Color Pulse change

SOUD

Sound mode

R255

Red

G255

Green

B255

Blue

W255

White

Y255

Amber

U255

Purple

Channel table

6 Channel mode

CHANNEL

VALUE

FUNCTION

CH1

0~255

Red

CH2

0~255

Green

CH3

0-255

Blue

CH4

0-255

White

CH5

0-255

Amber

CH6

0-255

Purple

www.szbecen.com

9 channels mode

CHANNEL

VALUE

FUNCTION

CH1

0~255

Dimmer

CH2

0~255

Red

CH3

0~255

Green

CH4

0-255

Blue

CH5

0-255

White

CH6

0-255

Amber

CH7

0-255

Purple

CH8

0-255

Strobe slow-fast

CH9

0-255

Pulse strobe:0-5 no effect,

6-255 pulse strobe (CH1-CH7 value is

255)

10 channels mode

CHANNEL

VALUE

FUNCTION

CH1

0~255

Dimmer

CH2

0~255

Strobe slow--fast

CH3

0-255

0-50：DMX control

51-100：Color jump change

101-150: Color change gradually

151-200：color pulse change

201-255：sound activate

CH4

0-255

Speed slow-fast

CH5

0~255

Red

CH6

0~255

Green

CH7

0-255

Blue

CH8

0-255

White

CH9

0-255

Amber

CH10

0-255

Purple

RDM: Address and channel mode can be changed by RDM controller or MA support

RDM.

www.szbecen.com

Cleaning

As the smoke and dust corrosion, internal and external vision lens must be cleaned out to

make the light output power optimization.

1. Use the glass cleaner and soft cloth to clen the package.

2. Every 20 days, use the glass cleaner and soft cloth to clean the external lens.

3. When you insert the power is always to ensure that every part of the product dry.

When Fixtures run, require regular cleaning according to the different environments.

Troubleshooting

The following are some common problems encountered and the solutions when the

customers use it:

For there is no response to DMX

Check the DMX cable is properly connected (pin3 as follows: "hot", in other DMX

devices, pin2 are also as follows: "hot" means.

For the voice made no reply

Sound is too small or too high-profile voice can not make it up and running. If this

problem persists, please contact your vendor for help.

Description

This item is a model of the control of several kinds of audience spot light. This light

widely used in mobile DJ and clubs. This aspect can be used alone or as part of a

voice-activated to run through several kinds of mode control.

Maintenance

1. Please keep the light in dryness and avoiding use in wet place.

2. Using intermittenlly can be extended the life.

3. Attention to clean the fan and lens usually in order to get the ventilating effects

and lighting effects better.

4. Please do not wipe the crust using organic menstruum avoiding to damage the product.

www.szbecen.com

Statement

The product has well capability and intact packing when leave factory. All of the user

should comply with above warning item and manual,any misuse cause of the damages are

not included in our guarantee,and also can’t be responsible for any malfunction & problem

owing to ignore the manual. Please forgive that we will not be notice for technical change.

ShenZhen BECEN Stage Equipment Co., Ltd

Add: Room 501,5th floor,Yishenrong industrial park,Xihuan road,

ShaJing,BaoAn,Shenzhen,GuangDong,China

Website: www.szbecen.com

www.becenstage.com

Tel: 86-13410588234

Email: [email protected]

[email protected]
