BEC EG-210N Manual de usuario

BEC EG-210N

GigaConnect®Smart Gateway

Quick Start Guide

BEC EG-210N GigaConnect® Smart Gateway

Package Contents

✓BEC EG-210N Smart Router * 1

✓This Quick Start Guide * 1

✓RJ-45 Ethernet Cable * 1

✓Wi-Fi Antenna * 2

✓DC Power Adapter * 1

NOTE:ALL IMAGES SHOWNARE FOR ILLUSTRATION PURPOSE ONLY. PACKAGE CONTENTS MAY DIFFER FROM ACTUAL

PRODUCTS.

Warning

⚫Do not use the router in high humidity or at high temperature.

⚫Do not use the same power source for the router as other equipment.

⚫Do not open or repair the case yourself. If the router is too hot, turn off

the power immediately and have it repaired at a qualified service center.

⚫Avoid using this product and all accessories outdoors.

Attention

⚫Place the router on a stable surface.

⚫Only use the power adapter that comes with the package. Using a

different voltage rating power adapter may damage the router.

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE ONLINE USER

MANUAL.

Quick Start Guide

Front Panel LEDs

LED

STATUS

DESCRIPTION

Power

Green

System is up and ready

Red

Boot failure

Ethernet Port

LAN 1 - 2

Green

Transmission speed is at Gigabit speed (1000Mbps)

Orange

Transmission speed is at 10/100Mbps

Blinking

Data being transmitted/received

Wireless

Green

Wireless connection established

Green

blinking

Data being transmitted / received

Orange

WPS configuration is in progress

Internet

Green

IP address has received; traffic is passing thru the device.

Red

IP address request has failed.

Off

EG-210N is either in bridged mode or WAN connection not ready.

BEC EG-210N GigaConnect® Smart Gateway

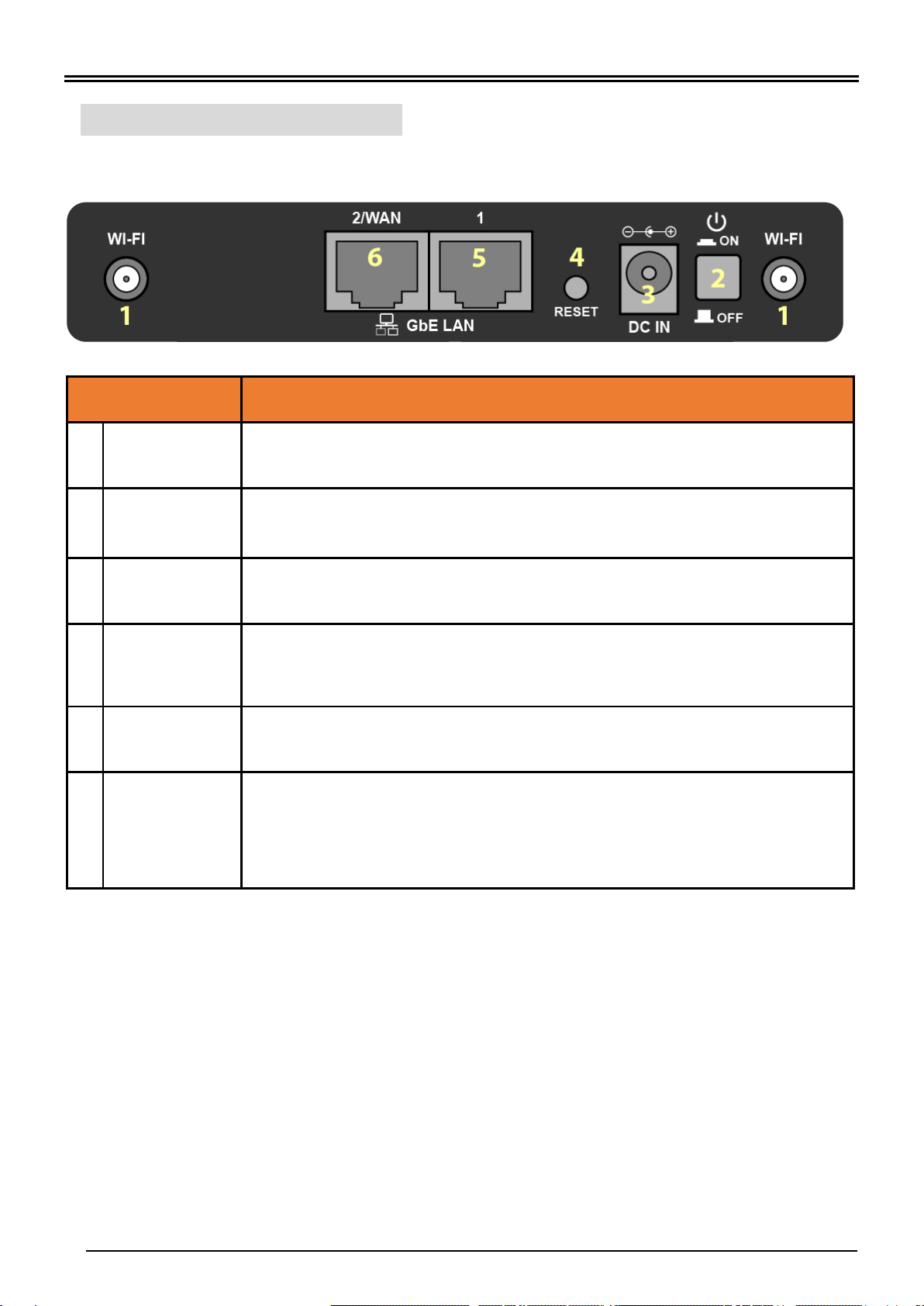

Rear Panel Connectors

INTERFACE

MEANING

Wi-Fi Antenna

Connectors

Screw the supplied Wi-Fi antennas onto the antenna connectors on both sides

Power Button

Power ON/OFF switch

Power Jack

(DC IN)

Plug in the supplied Power Adapter to this jack

RESET

After the device is powered on, press it 6 seconds or above: to restore to factory

default settings (this is used when you cannot login to the router, e.g. forgot your

password)

Gigabit Ethernet

(LAN 1)

Connected to a 10/100/1000Mbps Ethernet device

Gigabit Ethernet

(LAN 2 / WAN)

Ethernet LAN: Connected to a 10/100/1000Mbps Ethernet device

Ethernet WAN: Software configurable in the GUI. Connect to a broadband device

such as a cable modem, ADSL/VDSL modem or fiber modem.

Quick Start Guide

Hardware Connection

Hardware Installation

1. Power Connection

Plug in the supplied power adapter to the wall jack, the other side to the EG-210N then power

it ON the by pressing the Power On/Off button.

BEC EG-210N GigaConnect® Smart Gateway

2. LAN Connection

Plug the RJ-45 Ethernet cable to one of the Ethernet ports, and the other side to the PC’s

Ethernet interface.

3. WAN Link Interface and Connection

BEC EG-210N supports failover and failback on dual WAN interfaces, Ethernet WAN and

Wi-Fi WAN. <Please refer to User Manual for detailed Internet setup>

3.1 Ethernet WAN Connection

Connect RJ-45 Ethernet cable to the WAN port and connect the other side to another

alternative broadband device, such as Cable Modem, VDSL, Fiber Modem or PON optic

lines.

Quick Start Guide

3.2 Wi-Fi WAN Connection

Go to the device GUI / Interface Setup / Internet setting to connect to a Wireless Access

Point as the WAN interface or Wireless Service Provider to the Internet.

BEC EG-210N GigaConnect® Smart Gateway

Connecting to the Router

The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the attached

PC to this router is in the same subnet and has an IP address in the range between 192.168.1.1

~ 192.168.1.253.

Open a web browser and type http://192.168.1.254 in the URL address bar.

The login prompt will appear. Input the default username and password.

*This username / password may vary by different Internet Service Providers.

Quick Setup Your Router

Use the Quick Start for fast connection setup.

Step 1: Change administration password

Setup a new password for “admin” account for device management. The default password is

“admin”. Click Continue to go on to the next step.

*The password may vary by different Internet Service Providers.

Step 2: Time Zone configuration

Enable and select your Time Zone then click Continue to go on to the next step.

URL Address bar: type

http://192.168.1.254

Time Zone: select your time zone

Next Step: click Next

Wired Broadband Connection - before start configuring the EG-210N, make sure you

have the LAN2/WAN connect to your Internet box/modem or fiber line.

New Password: assign a new,

unique password

Confirm Password: re-enter the

new password again

Next Step: click Next

Quick Start Guide

Step 3: Setup Local Wireless Connection

Step 4: WAN / Internet Connection Setup

Select the appropriate WAN protocol then fill out the information provided by your ISP in all

relevant parameters.

Example: WAN Interface in EWAN mode.

Step 5: Save Confirmation Settings

Click “Next” to save and complete the Quick Setup.

You should now be able to access to the Internet.

Please see the relevant sections of User Manual for detailed information.

Access Point: select Activated

SSID: Assign a unique name

Channel: pick from 1~11

Security Type: select a mode

-Disable (No security)

-WPA

-WPA2 (Most secure one)

-WPA / WPA2 (auto detect WPA mode with wireless

clients)

-WEP (Less secure one)

Pre-Shared Key: key for wireless authentication

-WPA / WAPA2 Share Key: Assign a key between 8

~ 63 characters.

-WEP: select Open System, use default WEP Key 1

then assign 26 Hex codes

Next Step: click Next

Protocol: select one of them

- Dynamic IP Address (Obtain an IP address

automatically)

- Static IP Address (Manually assign an IP)

- PPPoE

- Bridge Mode

Net Step: click Continue
