BEA FLY Manual de usuario

FLY

* Other use of the device outside of the permitted purpose can not be guaranteed by the manufacturer.

TECHNICAL SPECIFICATIONS

DESCRIPTION

ENGLISH

PASSIVE INFRARED SENSOR FOR AUTOMATIC DOORS*

Speciﬁcations are subject to changes without prior notice.

Measured in speciﬁc conditions.

Technology :

Optical characteristics:

Maximum Detection area (mounting height: 2.2m):

Minimum Detection area (mounting height: 2.2 m)

Detection mode:

Detection speed:

Light indicator:

Warm up time:

Hold time:

Response time:

Power supply:

Frequency:

Power consumption:

Connection:

Recommended cable section (terminal block):

Standard output:

Max. contact voltage:

Max. contact current:

Max. switching power:

Mounting height:

Temperature range:

Dimensions:

FLY:

FCA:

FSA:

Color (FLY-FCA-FSA):

Length of cable:

Conformity:

passive infrared and microprocessor

P.I.R. with 4 elements, 15 lenses with full independent masking possibilities

2.5 m (W) x 1.5 m (D)

0.5 m (W) x 0.5 m (D)

motion

0.1 to 1.5 m/s

1 red LED:ﬂashes for a few seconds after power-on

LED lights up: sensor detects motion

10 s

0.5 s ou 2 s

< 200 ms

12 VDC - 10% to 24VDC +30% /12 to 24 V AC ±10%

50/60 Hz

< 1 W

terminal block

< 0.5 mm²

relay (free potential contact)

60 V DC / 42 V AC

1A (resistive)

30W (DC) / 42 VA (AC)

3 m max

from -30 °C to +55 °C

101 mm (W) x 41 mm (H) x 27 mm (D)

91 mm (W) x 40 mm (H) x 40 mm (D)

121 mm (W) x 51 mm (H) x 40 mm (D)

anthracite grey

2.5 m

EN 61000-6-2; EN 61000-6-3; EN 50581

User’s Guide for product version 0202 and higher

See product label for serial number.

PLEASE KEEP FOR FURTHER USE

DESIGNED FOR COLOUR PRINTING

1. Sensor ﬁxing

screw BLACK

2. LED

3. DIP-switch

4. Lens

5. Terminal block

6. Bracket

7. bracket ﬁxing

screw ALU

FLY

FSA -FLYCATCHER

FCA-FLYUP

FLY FSA

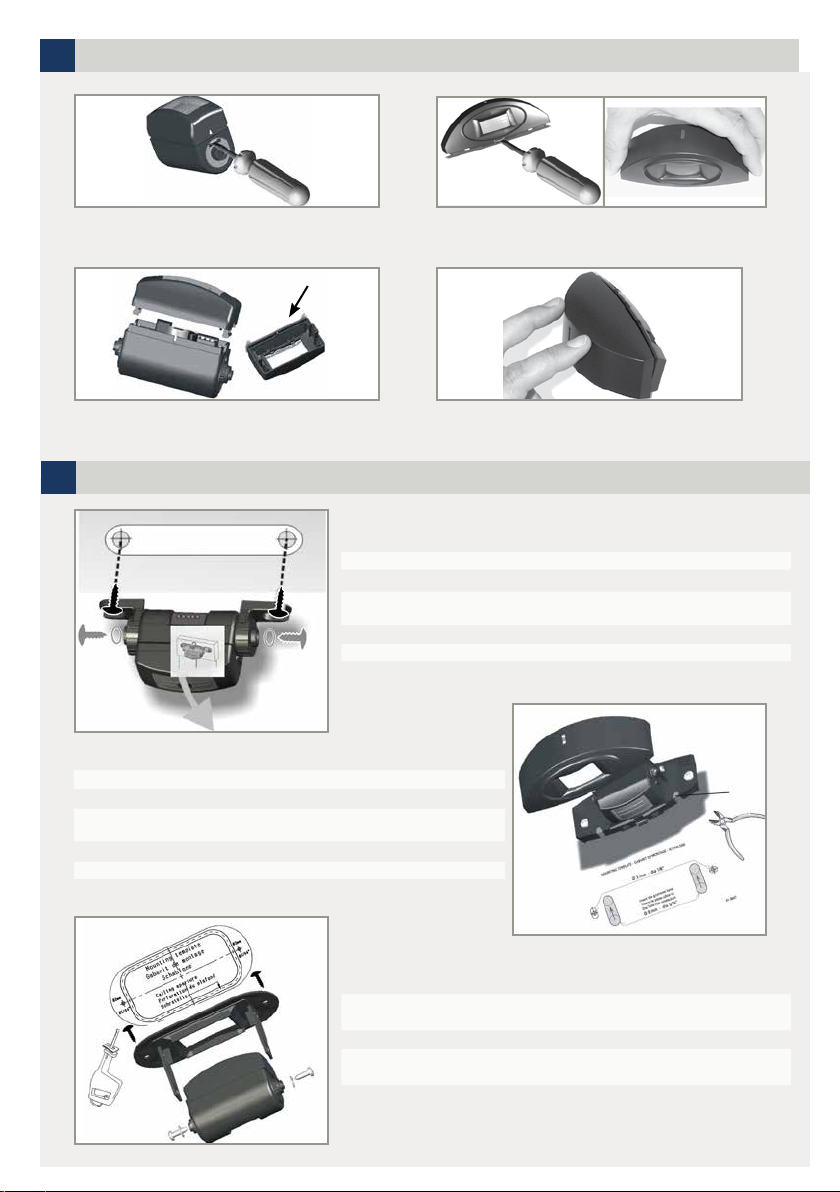

OPENING AND CLOSING THE SENSOR

MOUNTING THE SENSOR

To open the Fly sensor, insert a screwdriver in the

hole under the bracket cam..

Consider the position of the guide pin when

closing the sensor. Insert the bottom of the front cover to the bottom

clip of the base and push to close the FSA.

To open the FSA insert a screwdriver as shown (left)

or pinch off both sides of the front cover (right).

1. Stick the template to the internal proﬁle.

2. Drill the 2 holes.

3. Fix the brackets to both sides of the sensor with the 2 aluminum screws and washers.

4. Fix the sensor, with the connector facing you, to the proﬁle with the 2 black screws.

5. Make the cut-out in the door proﬁle.

6. Connect the sensor using the cable (See p. 1 for wiring).

7. Adjust the tilt angle using the brackets.

1. Stick the template to the wall.

2. Drill the 2 holes to ﬁx the FSA and the hole for the cable.

3. Open the FSA and cut out a wire opening footprint.

4. Fix the sensor to the FSA base with the 2 aluminum screws sup-

plied with the Fly.

5. Connect the sensor using the cable.

6. Fix the sensor with the 2 black screws and close the FSA.

1. Stick the template to the ceiling and cut out the hole.

2. Clip the sensor on the FCA and ﬁx it with the 2 washers and the 2

aluminum screws.

3. Connect the sensor using the cable.

4. Insert the complete assembly into the ceiling and ﬁx it using the 2

long, black screws.

FLY

2 3

DIP SWITCH SETTINGS

OFF

DIP SWITCH #1 DIP SWITCH #2 DIP SWITCH #3

Sensitivity high

Sensitivity low

(mounting height< 2.2m)

Passive output (NC)

Active output (NO)

Hold time: 2 s

Hold time: 0.5 s

The drawings show the maximum sensing ﬁeld dimensions. If you install the FLY without accessories (FCA or FSA),

you can move the sensing ﬁeld position by tilting the sensor to select the required vertical tilt angle. Otherwise, this

adjustment is not possible.

To adjust the sensing ﬁeld, use the

masking lens. To tailor the sensing

ﬁeld, cut the segments.

Use the guide pins to insert the

masking lens on the front cover.

Position the screwdriver as shown

to remove the masking lens.

SENSING FIELD SETTINGS

EXAMPLES: door threshold

door threshold

DETECTION AREA

NO DETECTION

DETECTION AREA

FRONT VIEW

FLAT VIEW

Door threshold

height

©BEA | Original instructions | 47.0028 / V3 - 04.21-D0

BEA hereby declares that the FLY is in conformity with the basic requirements and the other relevant provisions of the

directives 2014/30/EU and 2011/65/EU.

The complete declaration of conformity is available on our website.

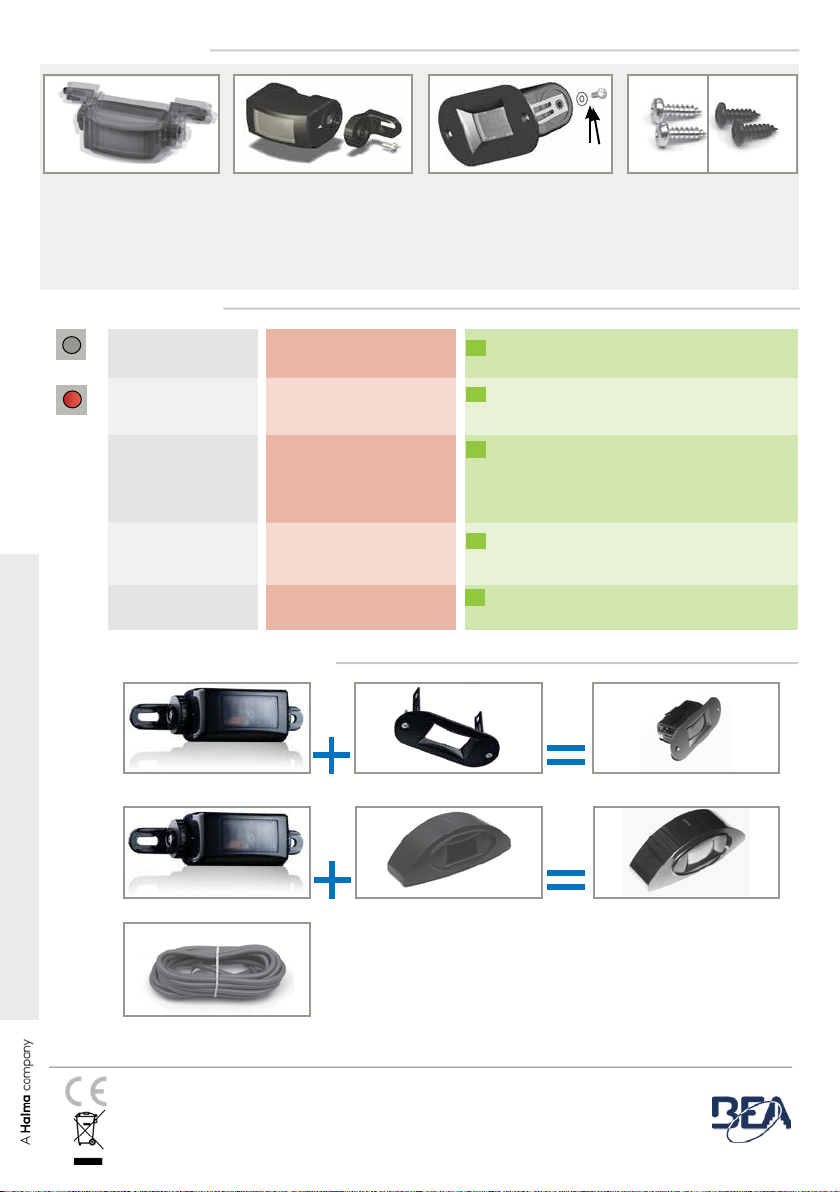

TROUBLESHOOTING

Only for EC countries: According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE)

INSTALLATION TIPS

The sensor must be ﬁrmly

fastened in order to avoid

vibrations!

When mounting the Fly,

make sure you apply the

brackets before tightening

the screws.

When clipping the sensor

on the FCA, make sure you

apply the washers before

tightening the screws.

Always use the aluminium

screws to fasten the

accessories and the black

screws to ﬁx the sensor!

Using the wrong screws

could damage the sensor!

PRODUCT RANGE & ACCESSORIES

The door remains

closed. The LED is OFF.

The door will not open

and the LED lights up.

The door opens when

no detection occurs

and closes during

detection.

The sensing ﬁeld does

not correspond to your

requirements.

The detection is very

bad.

The sensor power is off.

The mode of the relay output

is not correct.

The cut of the masking lens

is wrong.

The sensor might be installed

upside down.

The wiring of the relay

output is not connected

correctly.

Check the wiring and the power supply. check the

supplied voltage.

Check the relay wiring.

Change the position of dip-switch 2.

Cut out a new lens to meet the required sensing

ﬁeld size.

Check if the sensor is installed with its connector

facing you.

Main cable 2.5m

FLY FCA: Fly Ceiling Accessory

FSA: Fly Surface Accessory F LY C AT C H E R :

Kit for mounting on wall

F LY U P : Kit for mounting in ceiling

FLY
