This Quick Start Guide is for BCM AR6MXCS ARM motherboards based on Freescale

i.MX6 Cortex A9 platform.

Quick Start Guide

Ver 0.1

AR6MXCS Quick Start Guide Page 2

Contents

1. Overview…………………………………………………….3

2. Mainboard Illustration…………………………………….4

3. Getting Started……………………………………………..5

4. Jumper and Connector pin out………………………….6

AR6MXCS Quick Start Guide Page 3

1. Overview

The AR6MXCS is a simplified version of our popular AR6MX platform. The

AR6MXCS features a Single-Core i.MX6 processor from Freescale. The hardware

specifications for the AR6MXCS board are the following:

oSingle-Core ARM® Cortex A9 processor at 1GHz

o512MB of 32-bit DDR3 Memory @400Mhz

oLVDS Outputs for 1080p displays

oHDMI 1.4a

o4GB eMMC (optional)

oOn-Board mPCIE connector with both PCIe and USB interfaces

oRS-232 serial port header

omicroSD 3.0/SDXC card slot

oAnalog (headphone/mic) and Digital (HDMI) audio

oSPDIF header

o10/100/1000 Ethernet

o3x High speed USB ports (2xHost, 1xOTG)

oCAN port header

oI2C

oReal-Time Clock with battery backup

oSIM Card Holder

oGeneral Purpose I/O for Device Control

o5V DC-In power input

AR6MXCS Quick Start Guide Page 4

2. Mainboard illustration: Locations of IO ports & Jumper settings definition

Board Top View：

Board Side View：

AR6MXCS Quick Start Guide Page 5

3. Getting Started

1.1 Connect a HDMI monitor to CN2 (HDMI).

1.2 Connect a USB mouse/keyboard either to the rear I/O USB connectors (CN18), or through

the onboard header CN10 (USB cable not included)

1.3 Connect the 5V power adapter to CN14

1.4 Plug in the power adapter to an outlet and the board will boot up

1.5 Connect TTL Console to CN12.

(PIN1 –Empty ; PIN2 –GND ; PIN3 –RX ; PIN4 - TX)

AR6MXCS Quick Start Guide Page 6

4. Jumper Settings and Pin Definition

JP6

CN1: Micro SD Card Socket

Connector type：HDR 1X3 2.0mm

Definition

D5V

L0_PWR

D3V3

Default

Jumper selector

LVDS0 PWR SEL

1 －2

2 －3

3.3V

Definition

DATA2

DAT0

CD/DATA3

DAT1

CMD

VDD

GND

CLK

VSS

GND

CN2：HDMI Conn

Connector type：HDMI

Definition

D2+

CEC

D2_SHIELD

HEC

D2-

I2C_CLK

D1+

I2C_DATA

D1_SHIELD

GND

D1-

+5V

D0+

HOT_PLUG_DET

D0_SHIELD

SHELL1

D0-

SHELL2

CK+

SHELL3

CK_SHIELD

SHELL4

CK-

CN4: LVDS0

2930

2 1

LVDS CONN.

Connector type：HIROSE DF13A-30DP-1.25

Definition

LBL0_PWR

LVS0_TX3_P

GND

LBL0_PWR

LVDS0_TX2_P

GND

LVDS0_TX3_N

LVDS0_SDA

GND

LVDS0_TX2_N

LVDS0_TX0_P

BL0EN

CAP_TCH_INT0

LVDS_SCL

AR6MXCS Quick Start Guide Page 7

LVD0_CLK_P

GND

LVDS0_TX0_N

LBL0_PWM

LVS0_TH_SCL

GND

LVDS0_CLK_N

LVDS0_TX1_P

GND

LVDS0_TH_SDA

LCD0_PWR

GND

LVDS0_TX1_N

LCD0_PWR

CN5：GPIO

CN6：COM-1 RS232

Connector type：HDR 1x8 2.0

Definition

GPIO1

GPIO2

GPIO3

GPIO4

GPIO5

GPIO6

GPIO7

GPIO8

Connector type：1x6 2.00mm DIP

Definition

SOUT

RTS

CTS

SIN

GND

D5V

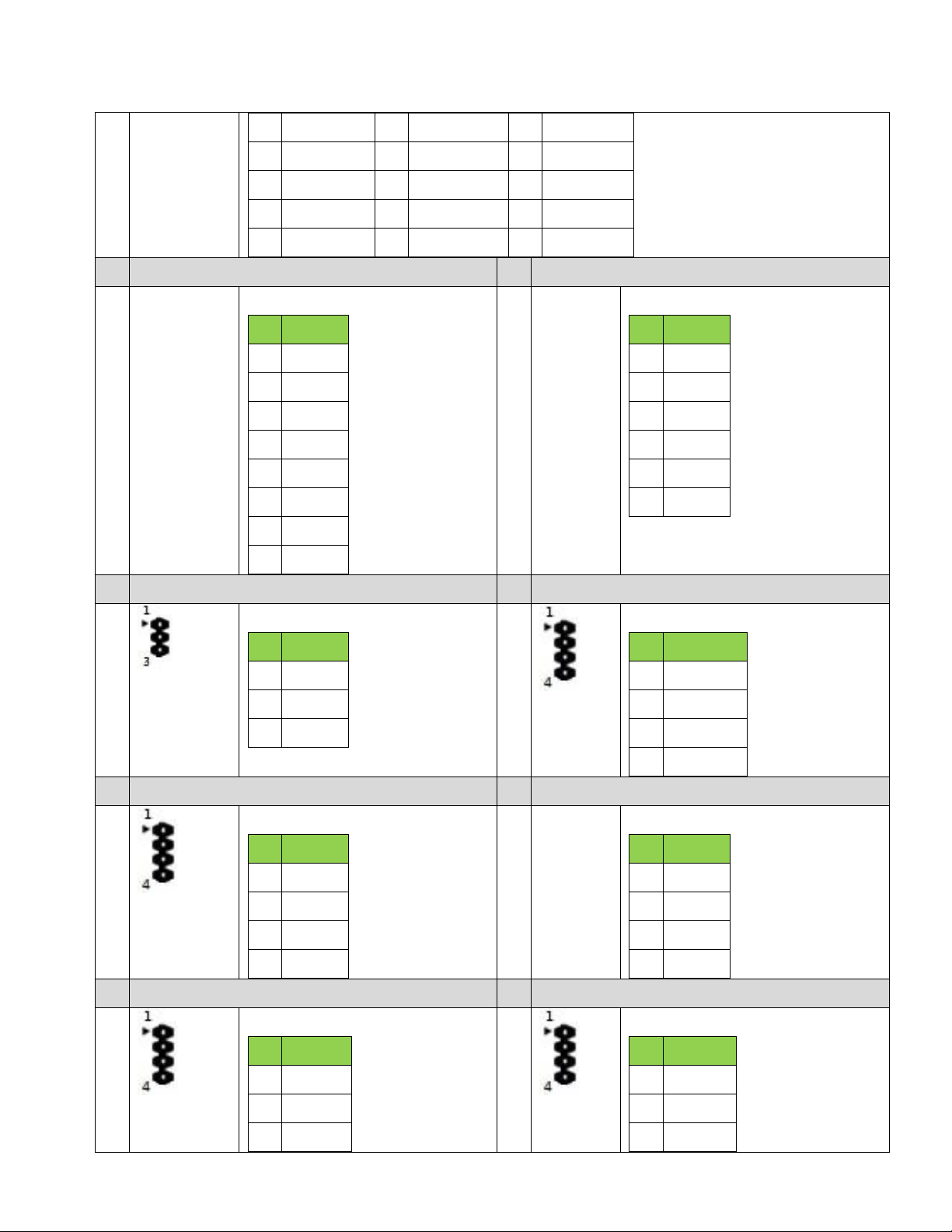

CN7：CAN BUS

CN8：SPDIF

Connector type：HDR 1x3 2.0

Definition

CANH

GND

CANL

Connector type：HDR 1x4 2.0

Definition

D5V

SPDIF_TX_O

SPDIF_RX_O

GND

CN10：USB-3/USB-4

10.

CN13: Micro USB

Connector Type: Header 1x4 2.0

Definition

USBV3

USB3P-

USB3P+

GND

Connector type : 207A-ABAD-R

Definition

D-

D+

GND

11.

CN12：Console

12.

CN17：MIC IN

Connector type：Header 1X4 2.54

Definition

D3V3

GND

CON_TXD

Connector type：1x4 2.0mm

Definition

MIC_DET

MICBIAS_J

MIC_J

AR6MXCS Quick Start Guide Page 8

CON_RXD

AD_AGND

13.

CN18：USB-1/USB-2’

14.

CN19：LAN Conn’

Connector type：USAF-8D-HNR0SPJ

Definition

USBV1

USBV2

USB1P-

USB2P-

USB1P+

USB2P+

GND

Connector type：RTA-164AAK1A

Definition

GE_MDI0+

GE_MDI3+

GE_MDI0-

GE_MDI3-

GE_MDI1+

LED2

GE_MDI1-

D3V3

GND

D3V3

GND

LED1

GE_MDI2+

GND

GE_MDI2-

GND

15.

CN16：SIM Card Slot

16.

CN20：I2C3

Connector type：SIM_Socket

Definition

SIM_VCC

SIM_RST

SIM_CLK

SIM_GND

SIM_VPP

SIM_IO

Connector type：Header 1x2 2.0

Definition

I2C3_SCL_HDR

I2C3_SDA_HDR

17.

CN21: RESET SW

18.

CN22：SPK OUT

Connector Type: Header 1x2 2.0

Definition

SW_RST

GND

Connector type：3.5mm Phone Jack Green

Definition

AD_AGND

LOUT_R

L-DET

AD_AGND

LOUT_L

19.

CN23：D5V

AR6MXCS Quick Start Guide Page 9

Connector Type: Header 1x2 2.0

Definition

D5V

GND

20.

CN15：mPCI-e Port 1

Connector type：PCI-e_MINI_CARD

Definition

WAKE#

UIN_VPP

PET_N0

LED_WPAN#

+3.3V_1

UIN_GND

SMB_DATA

RSVD10

RSVD1

GND8

PET_P0

+1.5V_3

GND7

UIN_IN

GND10

RSVD11

RSVD2

RSVD18

GND6

GND12

+1.5V_1

GND3

USB_D-

RSVD12

CLKREQ#

PERST#

RSVD5

+3.3V_2

UIM_PWR

PER_N0

USB_D+

GNDM1

GND1

+3.3V_AUX

RSVD6

GNDM2

UIN_DATA

PER_P0

GND11

REFCLK-

GND9

RSVD7

UIN_CLK

GND4

LED_WWAN#

NUT

REFCLK+

+1.5V_2

RSVD8

NUT

UIN_RST

GND5

LED_WLAN#

GND

GND2

SMB_CLK

RSVD9

GND

21.

CN25：PWR SW ON (Optional)

Connector type：HDR 2x10 2.0mm DIP

Definition

OTG_5V

PWR_D5V

GPIO_LED1+

WPS

IR_TX+

GND

GPIO_LED2#

GND

E_N

PWR_EN

GPIO_LED1#

GND

IR_TX-

GND

IR_RX#

E_P

GPIO_LED2+

IR_RX+

GND
