BCM AR3399RK Manual de usuario

AR3399RK

This Quick Start Guide is for BCM AR3399RK ARM motherboards based on Rockchip

RK3399 Cortex A72+A53 platform.

Quick Start Guide

Ver 0.1

AR3399RK Quick Start Guide Page 2

Contents

1. Overview…………………………………………………….3

2. Mainboard Illustration…………………………………….4

3. Getting Started……………………………………………..5

4. Jumper and Connector pin out………………………….7

AR3399RK Quick Start Guide Page 3

1. Overview

AR3399RK

Rockchip® RK3399 Dual Core Cortex-A72 + Quad Core

Cortex-A53 (6-Core) SoC ARM Motherboard

•Rockchip® RK3399 Dual Core Cortex-A72 + Quad Core Cortex-A53

(6-Core) SoC

•2GB DDR3L Onboard (Expandable to 4GB Max)

•ARM® Mali-T860MP4 Integrated Graphics

•HDMI, LVDS, MIPI-CSI

•1 x uSD Card Socket

•16GB eMMC Onboard

•2 x USB 3.0, 2 x USB 2.0, 1 x USB 3.0 Gen 2 Type C OTG Connector

•1 x 2230 M.2 E Key and 1 x 2242 M.2 B Key

•I2C, I2S, GPIO

•12V DC-In

•4.33” x 5.71” (110mm x 145mm)

AR3399RK Quick Start Guide Page 4

2. Board IO/Jumper illustration

Board Top view：

AR3399RK Quick Start Guide Page 5

3. Getting started

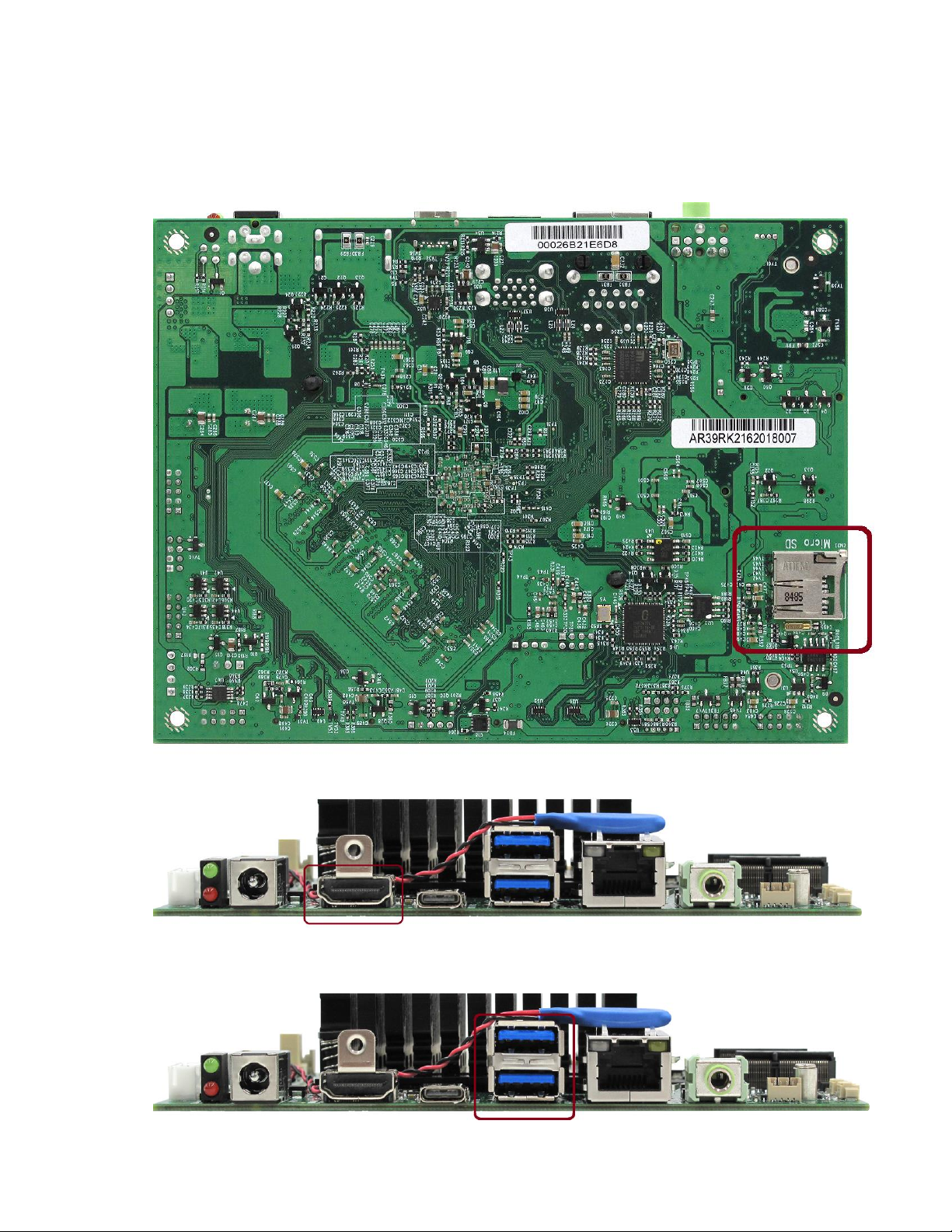

1. Insert a bootable uSD card into slot CN23 if booting from uSD instead of eMMC.

Note: do not force the card into the slot; it should go in with moderate pressure

2. Connect an HDMI monitor to CN2

3. Connect a USB mouse/keyboard either to the rear I/O USB connectors (CN7), or

through the onboard header CN22 (USB cable not included)

AR3399RK Quick Start Guide Page 6

4. if you need console access, connect a serial (TTL) to USB adapter from CN11 to your

workstation.

4.1 Set your terminal settings to the following: 115200 bps, 8bits, no parity, 1 stop bit,

and no flow control

5. Connect 12V power adapter to CN5 to boot up

AR3399RK Quick Start Guide Page 7

4. Jumper Settings and Pin Definition

JP1

Boot Mode

JP2

Front Panel

Connector type：HDR 1x2 2.0mm

Definition

GND

Default

JP1

BOOT MODES

Open

Normal Boot

Recovery Mode

Connector type：HDR 2x4 2.0mm DIP

Definition

GND

PMIC_PWRON

GND

VCC_RTC

RK808D_RESET

Usage

JP2

Effect

Short pin 7-8

System Reset

JP5

LVDS Panel EDID Options

Connector type：HDR 2x4 2.0mm DIP

Definition

7511GPI3

7511GPI2

7511GPI1

7511GPI0

GND

Default

GPI[3:0]

Panel EDID

GPI[3:0]

Panel EDID

0000

800x600 1ch/18bit

1000

1366x768 1ch/24bit

0001

1024x768 1ch/18bit

1001

1440x900 2ch/24bit

0010

1024x768 1ch/24bit

1010

1440x1050 2ch/24bit

0011

1280x768 1ch/18bit

1011

1600x900 2ch/24bit

0100

1280x800 1ch/18bit

1100

800x480 1ch/24bit

0101

1280x960 2ch/24bit

1101

1024x600 1ch/24bit

0110

1280x1024 1ch/18bit

1110

800x480 1ch/18bit

0111

1366x768 1ch/18bit

1111

1024x600 1ch/18bit

AR3399RK Quick Start Guide Page 8

JP6

CH7511 LVDS FW mode

CN1

LINE OUT

Connector type：HDR 2x4 2.0mm DIP

Definition

9904_SPC

9904_SPD

SPC1

SPD1

9904_SPC

9904_SPD

EE100_SPC

EE100_SPD

Default

Jumper selector

9904 EEPROM

1-2, 5-6

Default

3-4, 7-8

Update mode

Connector type：3.5mm Phone Jack Green

Definition

AD_AGND

LOUT_R

L-DET

AD_AGND

LOUT_L

CN2

HDMI

CN4

MIC IN

Connector type：HDMI

Definition

D2+

CEC

GND

D2-

I2C_CLK

D1P

I2C_DAT

GND

D1+

D0+

HP_DET

GND

D0-

GND

CLK+

GND

CLK-

Connector type：HDR 1x4 1.25mm DIP

Definition

MIC_DET

MICBIAS_J

MIC_J

AD_AGND

AR3399RK Quick Start Guide Page 9

CN5

DC JACK

CN6

LAN

Connector type：DC-JACK 6.5/2.5mm

Definition

12V DC-IN

GND

Connector type：RTA-164AAK1A

Definition

GE_MDI0+

GE_MDI3+

GE_MDI0-

GE_MDI3-

GE_MDI1+

LED2

GE_MDI1-

D3V3

GND

D3V3

GND

LED1

GE_MDI2+

GND

GE_MDI2-

GND

10.

CN7 : USB3.0x2 (Type A)

Connector type：UEA11123-8HD1-4H

AR3399RK Quick Start Guide Page 10

11.

CN8

SPK OUT R

12.

CN9

SPK OUT L

Connector type：Header 1X2 1.25

Definition

SPK_R_OUT+

SPK_R_OUT-

Connector type：Header 1X2 1.25

Definition

SPK_L_OUT+

SPK_L_OUT-

13.

CN10

M.2 Key E Slot

14.

CN11

UART Debug Console

Standard M.2 Key E pinout

Connector type：Header 1X4 2.54

Definition

VCC3V3

GND

UART2_TXD

UART2_RXD

15.

CN12

I2S

16.

CN13

M.2 Key B Slot

Connector type：HDR 2x5 2.0mm DIP

Definition

I2S1_SCLK

I2S1_SDO0

VCC1V8

I2S_LRCK_TX

GND

I2S1_SDI0

GND

I2S_LRCK_RX

GND

Standard M.2 Key B pinout

17.

CN14

NANO SIM CARD

18.

CN15

COM-1 UART0

Connector type：NANO SIM Socket

Definition

CCVCC

CCRST

CCCLK

GND

CCIO

SIMDET_1

Connector type：HDR 2x5 2.0mm DIP

Definition

RTS_RS232

RX_TTL

RX_RS232

CTS_TTL

CTS_RS232

TX_TTL

TX_RS232

GND

RTS_TTL

GND
