Baxton Studio Queen Bed 0038 Manual de usuario

0038 Queen Bed

Assembly Instructions

Page 1 of 9

Assembled View

Note: Do not assemble

using power tools.

This can cause the bolts

to be overtightened

Use 2 People

Parts List

AHeadboard Panel x1

BFootboard Panel x1

Set of Bed Slats x1

CHeadboard Support Rail x1

Parts in Box A:

Parts in Box B:

FSide Rail x2

GLong Support x1 Support Leg

x3 J

WII-0120

DHeadboard Post

(Left Hand)

EHeadboard Post

(Right Hand)

All manuals and user guides at all-guides.com

Page 2 of 9

Parts List

Wood Screw

(M4 x 16mm)

x14

Hardware List

1M4 Allen Key

12 CSK Cap Wood Screw

(M6 x 50mm)

x24

2Center Rail

Bracket x2 3'L' Bracket

x8 4Adjustable

Foot x3 5Barrel

Nut x13

Wood Screw

(M4 x 32mm)

x18

7Wood Dowel

(M8 x 30mm)

8Wood Dowel

(M10 x 40mm)

9Spring

Washer

13 M6 x 15mm

JCB x20 14 M6 x 30mm

JCB x8

16 M6 x 60mm JCB

x8 17 M6 x 90mm JCB

x13

Parts in Box C:

Storage Side Panel

(Left Hand)

Storage Foot

Storage Divider

KStorage Back Panel x2

LStorage Bottom Panel x2

MStorage Support Rail x4

Storage Side Panel

(Right Hand)

P Q

Flat

Washer

11 15 M6 x 40mm

JCB x20

WII-0120

0038 Queen Bed

Assembly Instructions

All manuals and user guides at all-guides.com

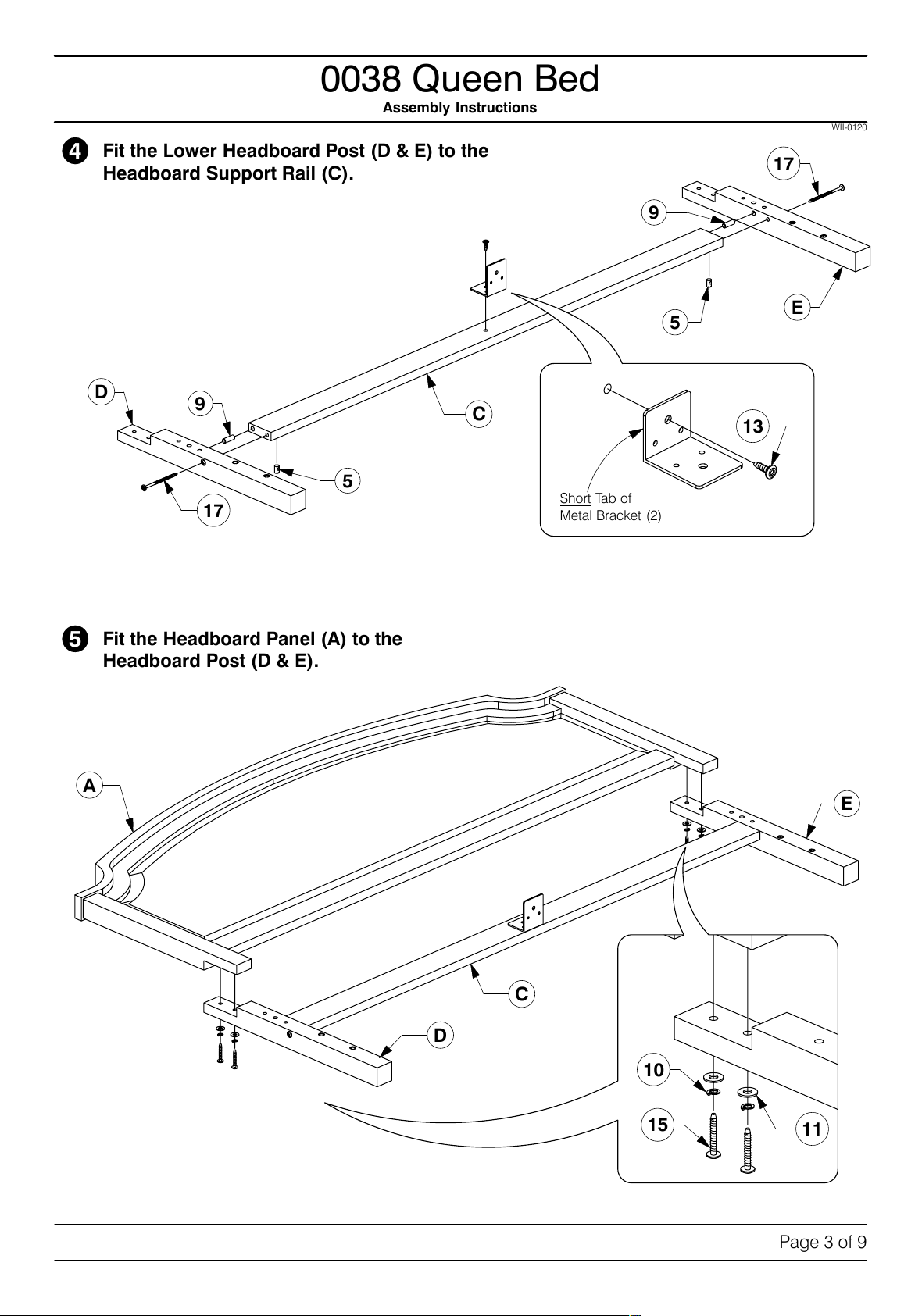

Page 3 of 9

Fit the Lower Headboard Post (D & E) to the

Headboard Support Rail (C).

417

Short Tab of

Metal Bracket (2)

Fit the Headboard Panel (A) to the

Headboard Post (D & E).

WII-0120

0038 Queen Bed

Assembly Instructions

All manuals and user guides at all-guides.com

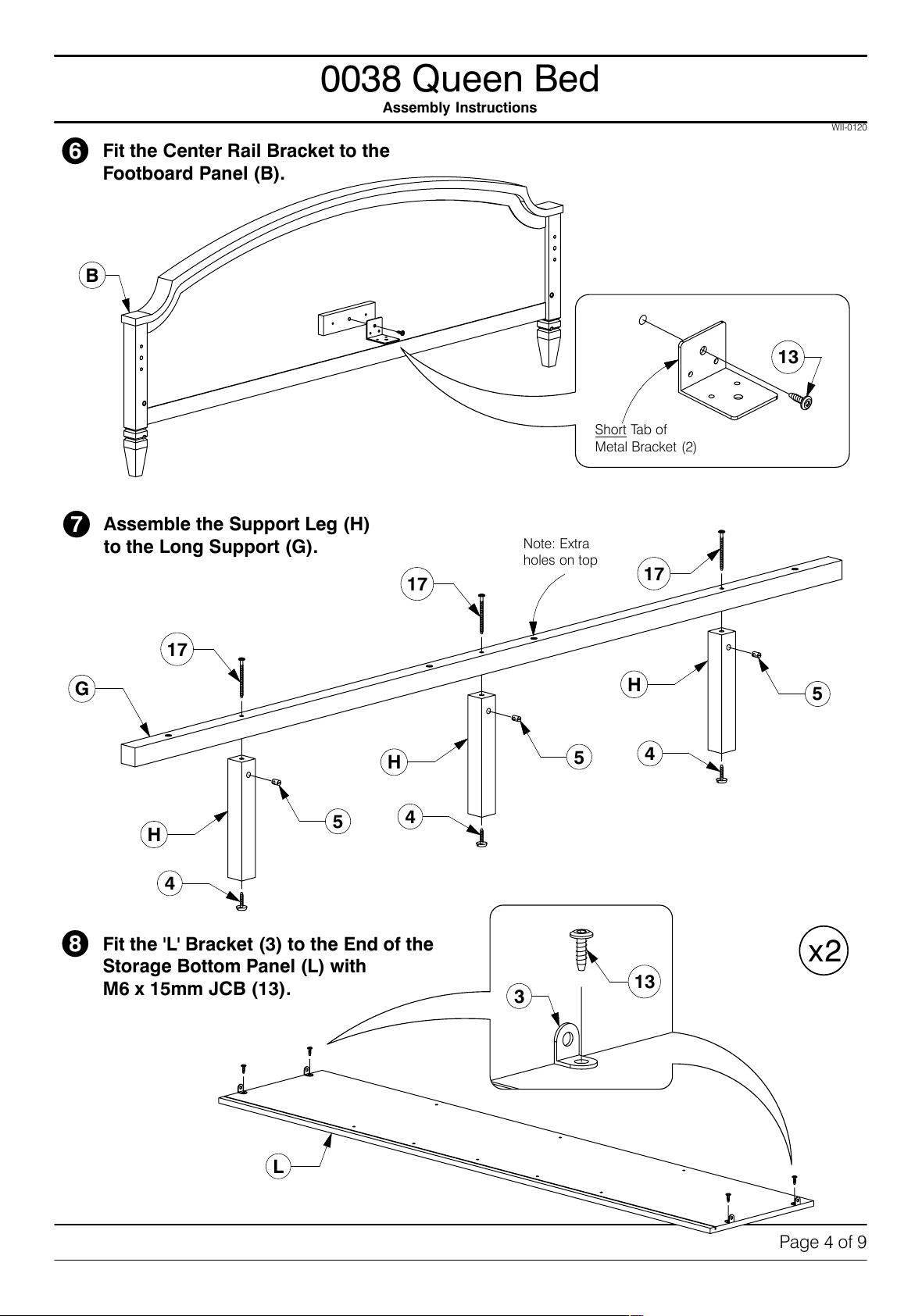

Page 4 of 9

Fit the Center Rail Bracket to the

Footboard Panel (B).

WII-0120

0038 Queen Bed

Assembly Instructions

Fit the 'L' Bracket (3) to the End of the

Storage Bottom Panel (L) with

M6 x 15mm JCB (13).

Note: Extra

holes on top

Assemble the Support Leg (H)

to the Long Support (G).

Short Tab of

Metal Bracket (2)

All manuals and user guides at all-guides.com

Assemble the Storage Side Panel (N & O) to the

Storage Bottom Panel & Support Rail (L & M).

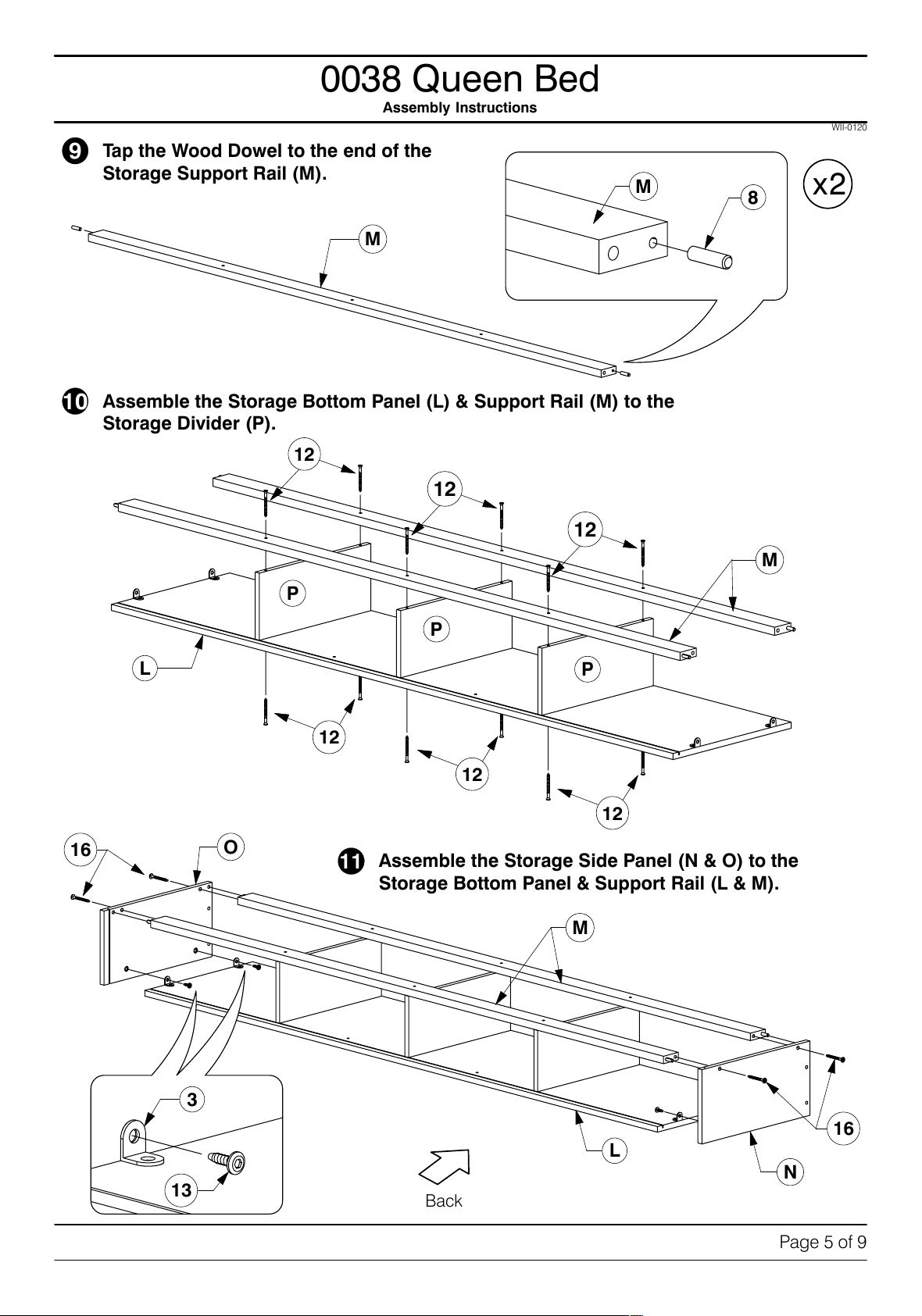

Page 5 of 9

Tap the Wood Dowel to the end of the

Storage Support Rail (M).

13 Back

WII-0120

0038 Queen Bed

Assembly Instructions

Assemble the Storage Bottom Panel (L) & Support Rail (M) to the

Storage Divider (P).

All manuals and user guides at all-guides.com

Slide the Storage Back Panel (K) into the groove.

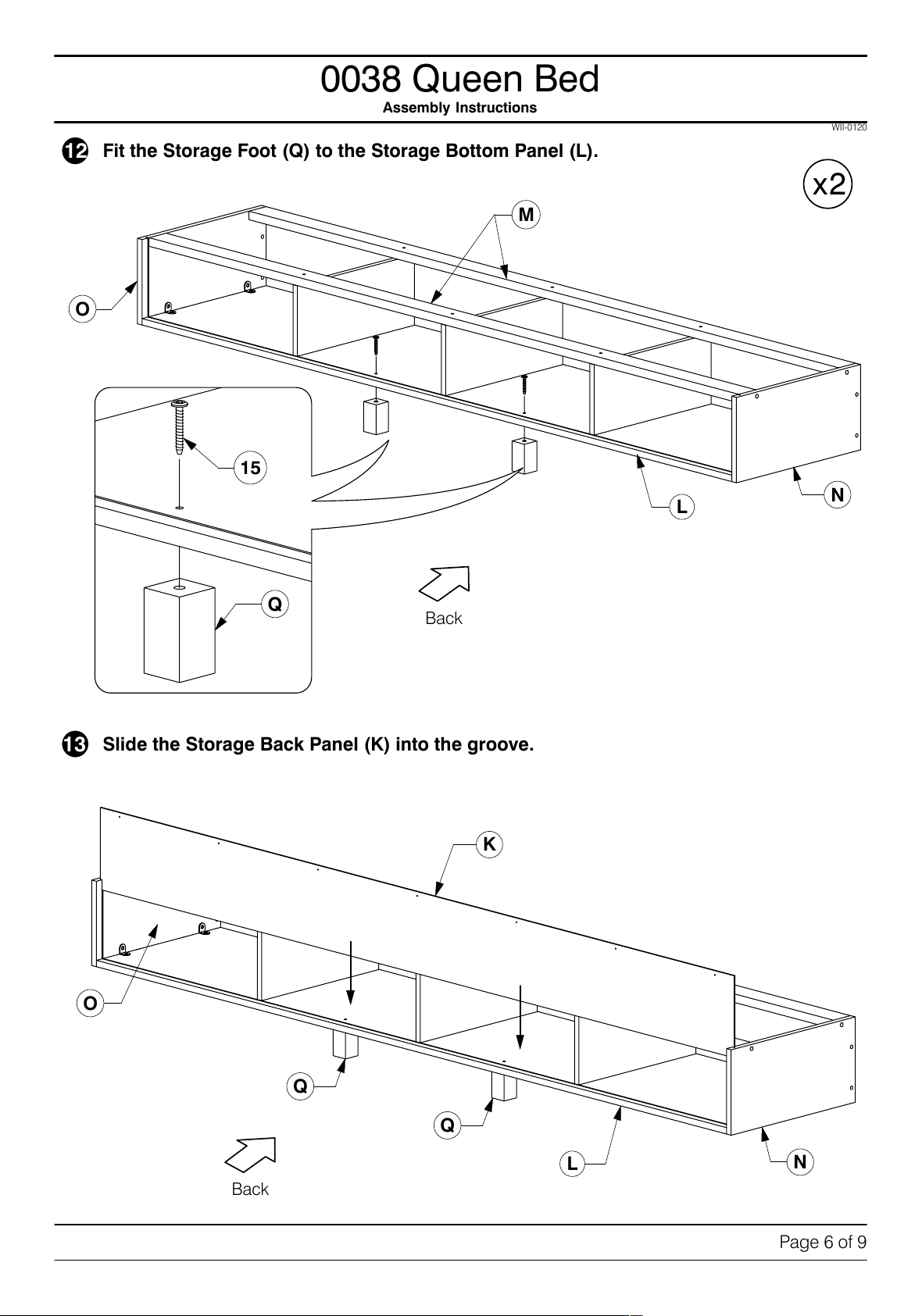

Page 6 of 9

Fit the Storage Foot (Q) to the Storage Bottom Panel (L).

Back

WII-0120

0038 Queen Bed

Assembly Instructions

QBack

All manuals and user guides at all-guides.com

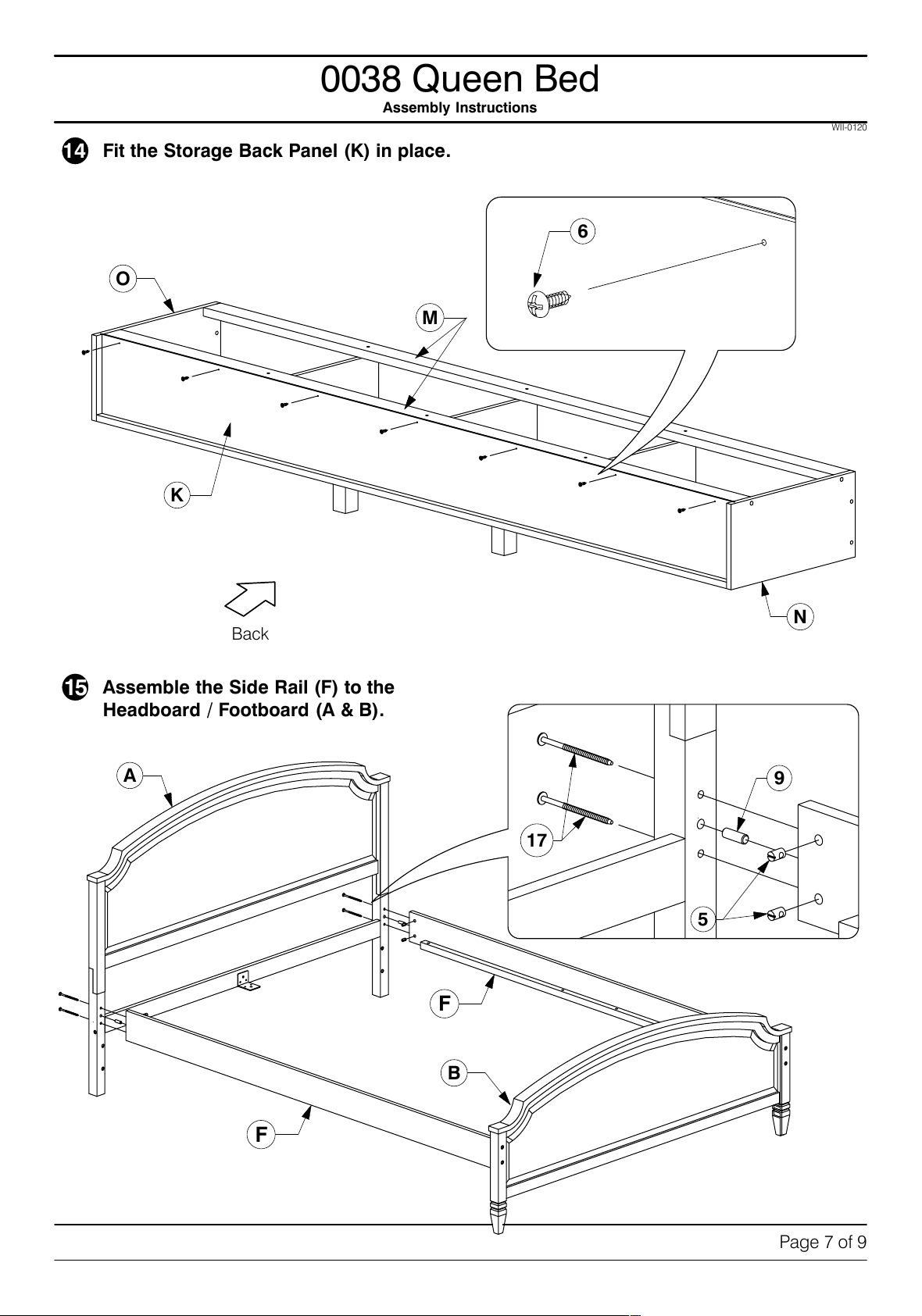

Fit the Storage Back Panel (K) in place.

Page 7 of 9

Assemble the Side Rail (F) to the

Headboard / Footboard (A & B).

WII-0120

0038 Queen Bed

Assembly Instructions

Back

All manuals and user guides at all-guides.com

Page 8 of 9

Bolt the Long Support (G) to the Center Rail Brackets on

the Headboard Panel / Footboard Panel (A & B).

Bolt & screw the Bed Slats (J) to the Side Rail (F).

WII-0120

0038 Queen Bed

Assembly Instructions

All manuals and user guides at all-guides.com

Page 9 of 9

Fit the Assembled

Storage under the

Bed Frame.

Assembled Storage

NOTE: Open shelves

facing outside!

Assembled Storage

NOTE: Open shelves

facing outside!

Assembled

Storage

Bolt the Assembled Storage to

the Bed Frame with

M6 x 30mm JCB (14).

WII-0120

0038 Queen Bed

Assembly Instructions

All manuals and user guides at all-guides.com
