Baumatic Q900SS Manual de usuario

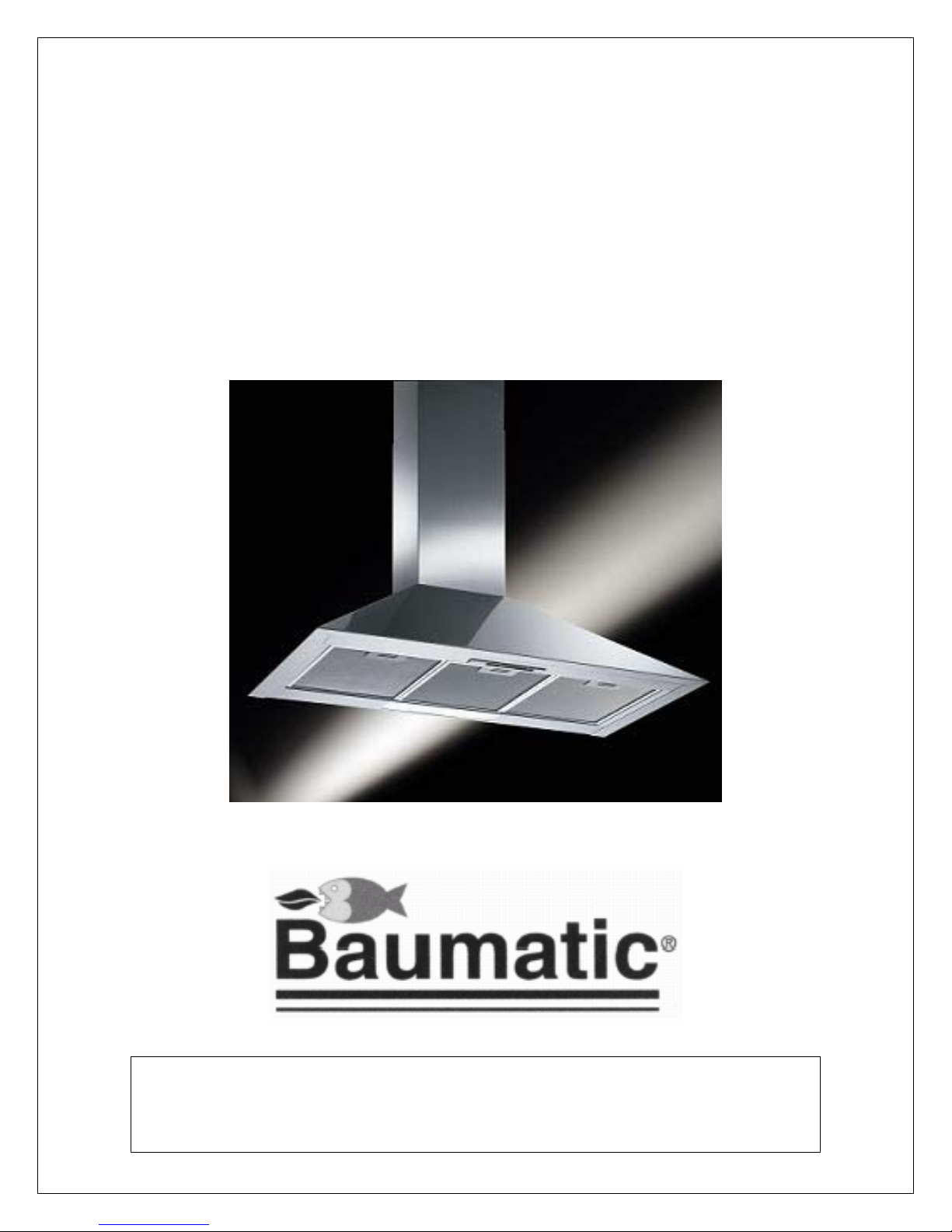

Q900SS 90 cm Cooker hood

User Manual for your Baumatic

Q900SS Cooker Hood

90 cm Chimney Hood in Linen Steel

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference.

YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3

IMPORTANT SAFETY INFORMATION……………………………….…4-5

CARING FOR THE ENVIRONMENT…………………………………………6

USING YOUR COOKER HOOD………………………………..……………..7

MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10

INSTALLATION INSTRUCTIONS ……………………….……...….12-19

ELECTRICAL CONNECTION……………12

INSTALLING THE COOKER HOOD………13-15

FITTING THE PIPE…………………16-17

INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….18

NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET..……19

TROUBLESHOOTING ……………………………………………20

CONDITIONS OF GUARANTEE……………………………………………21

CONTACT DETAILS…………………………………………………………..22

CONTENTS

DD 20/06/07

Congratulations on purchasing a Baumatic Cooker

Hood!

To fully enjoy using your appliance long into the future,

please firstly familiarise yourself with its specifications,

safety advice and operational instructions included in this

manual. You will also need this manual to ensure that your

Cooker Hood has been installed properly.

DIMENSIONS

Width (canopy): 900 mm

Depth (canopy): 500 mm

Height (adjustable): 700 mm to 1040 mm

Dimensions of Chimney Section:

165 mm X 220 mm

Your stainless steel Cooker Hood is fitted with:

•High extraction tangential motor

•Slider control operation

•3 speeds

•3 metallic grease filters

•2 halogen lights

Extraction capacity – 500 m³/hr

Optional Extra: 2 x UCF1 Carbon filters for air

recirculation.

Specifications of your Q900SS Cooker Hood

Important Safety Information: Please Read this before installing & using.

Any installation work must be

carried out by a qualified

electrician or competent person.

The hood must be installed in

accordance with the installation

instructions and all measurements

followed.

oIf the cooker hood is installed

for use above a gas appliance then

the provision for ventilation must

be in accordance with the Gas

Safety Codes of Practice BS.6172,

BS.5440 & BS.6891 (Natural Gas)

and BS.5482 (LP Gas) 1994, the

Gas Safety (Installation & Use)

Regulations, the Building

Regulations issued by the

Department of the Environment,

the Building Standards (Scotland)

(Consolidated) Regulations issued

by the Scottish Development

Dptmt.

oIt is dangerous to alter the

specifications or to modify this

product in any way. Do not tamper

with it or attempt to alter it in the

attempt to customise it further.

oWhen installing the hood,

ensure that the following

recommended distances are

observed between the highest

point on the hob top (including the

burners) and the bottom of the

cooker hood:

9Electric cookers:

700 mm

9Gas cookers:

700 mm

9Coal/ oil cookers:

800 mm

* NOTE -

DO NOT SET YOUR

COOKER HOOD LESS THAN

700mm ABOVE YOUR COOKER!

oWhen installed between

adjoining wall cabinets,

the cabinets must not

overhang the hob.

oThe edges of the cooker

hood are sharp – be

mindful of this as you

handle your appliance,

especially during

installation and cleaning.

NOT

CLEAN

BEHIND

THE

GREASE

FILTERS!

oIf the room where the

cooker hood is to be used

contains a fuel burning

appliance such as a

central heating boiler

then its flue must be of

the sealed or balanced

flue type.

oIf other types of flue or

appliances are fitted,

ensure that there is an

adequate supply of air in

the room.

oWhen the hood is being

used in its extractor

function, ensure that the

ducting is fire retardant

and that there are no

bends sharper than 90

odegrees as this will

reduce the efficiency of

the hood.

oEnsure the ducting for

the extractor function

has the same diameter as

the outlet hole all the

way through.

Keep young children from

using, playing with or

tampering with the

cooker hood. Older

children and infirm

persons should be

supervised if they are

using the cooker hood.

Your cooker hood is for

domestic use only.

Please dispose of the

packing material

carefully – children are

especially vulnerable to

it.

Dirty oil is an even

greater fire risk.

Always put lids on pots

and pans when cooking

on a gas cooker.

The manufacturer

refuses to accept any

responsibility for

damages arising to the

hood or its catching on

fire from failure to

observe fire safety advice

in these instructions.

Remember that when in

extraction mode, your

cooker hood is removing

air from your room.

Ensure that proper

ventilation measures are

being observed. Note

that it removes odours

from your room, not

steam.

oWarning - Always ensure

that the cooker hood has

been disconnected from

the power supply before

carrying out any work on

the hood, including

replacing light bulbs.

:Do not connect the

ducting system of this

appliance to any existing

ventilation system which

is being used for any

other purpose.

:Do not install above a

cooker with a high level

grill.

Never leave frying pans

unattended during use as

overheated fats and oils

might catch fire.

Do not leave naked

flames under the cooker

hood.

:Do not attempt to use

the cooker hood if it is

damaged in any way.

Never attempt to use it

without the grease filters

fitted or if the filters are

excessively greasy!

Never flambé cook under

this cooker hood.

Important Safety Information: Please Read this before installing & using.

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person.

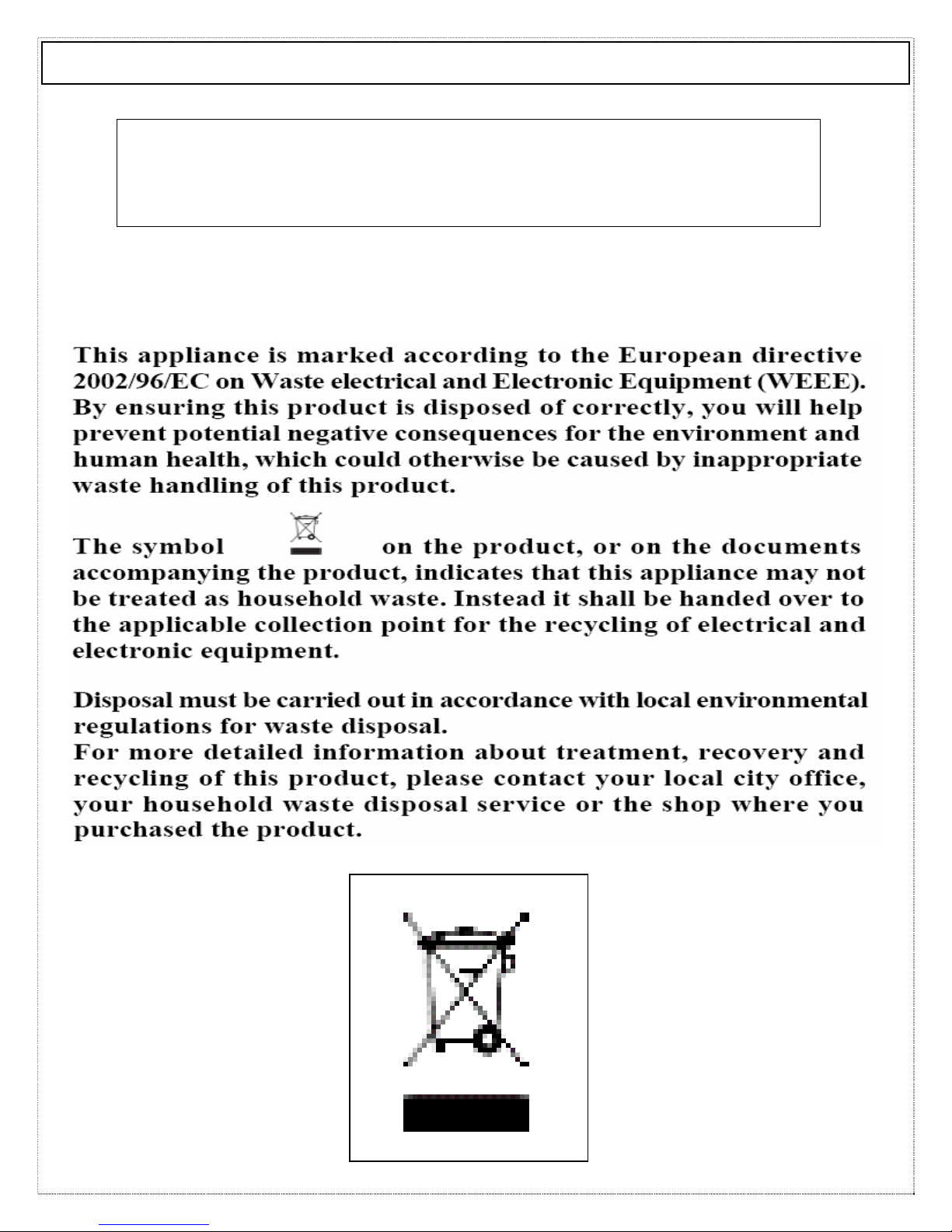

CONFORMITY TO W.E.E.E. DIRECTIVE

Environmental Note

To use your cooker hood:

1) Make sure it has been properly installed.

2) Find the CONTROL PANEL. It is located at the bottom of the

hood on the underside, at the front of the canopy.

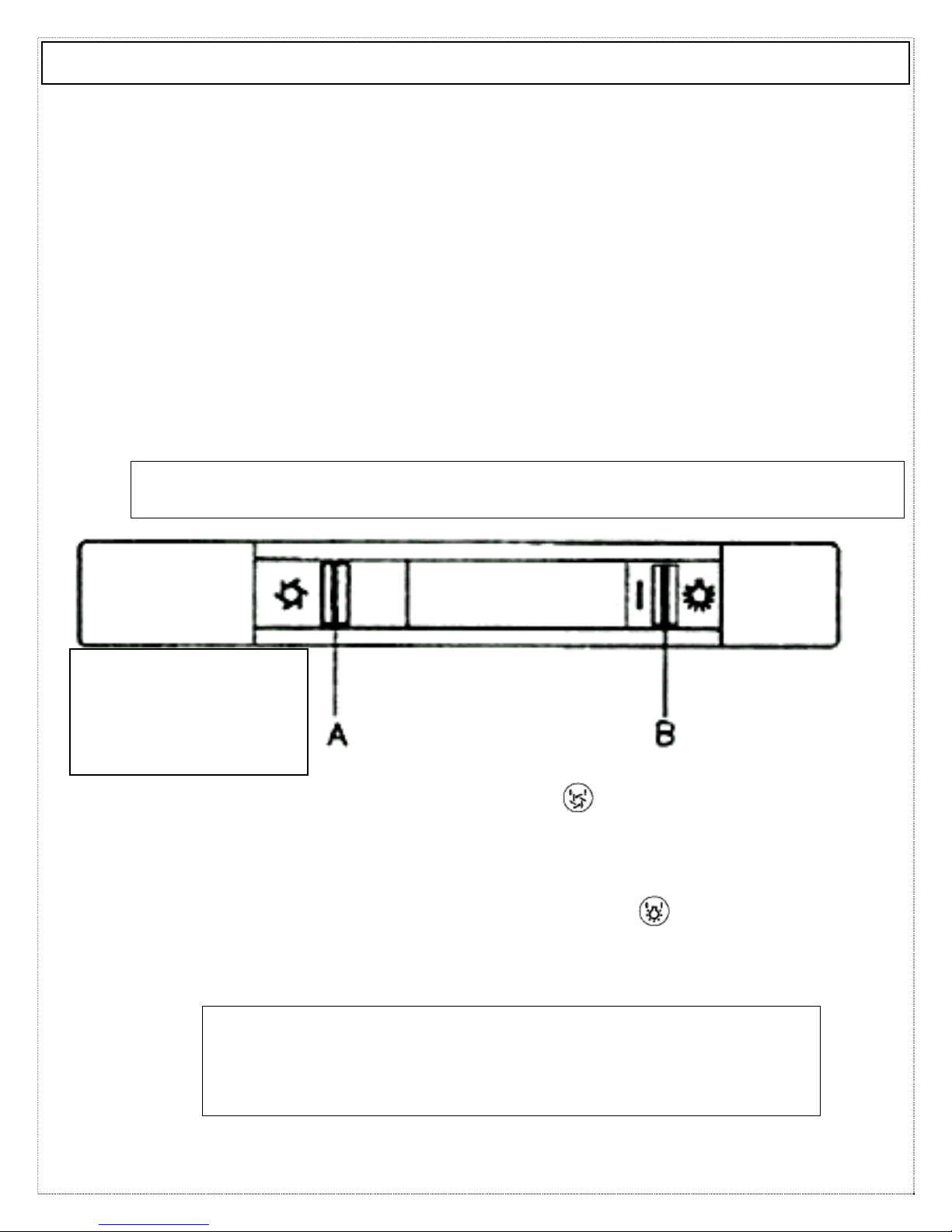

3) The CONTROL PANEL contains switches as shown in the Figure

below. These perform separate functions. You will need to

understand what both switches do before you attempt to use your

cooker hood.

* Note: The hood should be switched on at least as soon as you start

cooking.

A) MOTOR ON /OFF switch – the ‘ ’ switch (‘A’ in

figure above) turns the motor on and off and adjusts

its speed. There are three speeds.

B) LIGHT ON/OFF switch - Pressing the ‘ ’ switch (‘B’

in figure above) turns your cooker hood’s light on

and off.

PLEASE NOTE THAT YOUR BAUMATIC COOKER HOOD CAN BE

USED EITHER IN RECIRCULATION MODE OR IN EXTRACTION

MODE. TO USE THE EXTRACTOR IN RE-CIRCULATION MODE,

YOU WILL NEED TO FIT THE CARBON FILTERS.

Usin

our Baumatic Cooker Hood:

* THE CONTROL PANEL

CAN BE FOUND ON THE

UNDERSIDE AT THE

FRONT OF THE COOKER

HOOD’S BOTTOM.

IMPORTANT!:

Before cleaning, always ensure that you

have switched your cooker hood OFF at the omni-polar

switch, set at the wall from the cable:

Cleaning

ÂClean the external parts with

mild liquid detergents on a

damp cloth.

ÂNever use abrasive powder,

corrosive solvents or brushes.

ÂNever insert pointed objects

into the motor’s protective grid.

ÂOnly clean the control panel

and filter grill with a damp

cloth and delicate detergents.

ÂBe sure to replace the

carbon filters at the

recommended intervals.

Build up could cause a

fire hazard.

ÂNever take out the

grease filters and

attempt to clean the

space above where they

are set.

________________________________________________

Anti-Grease Grille

ÂYour cooker hood includes an anti-grease grille

which helps absorb vapour-suspended grease

particles to protect your kitchen & furniture from

greasy residues.

ÂThe metal grille may become inflammable if it

becomes saturated with greasy residue.

9To prevent this fire hazard, the grille should be

cleaned regularly (depending on use) every 10-15

days and at least once a month in a dishwasher or in

hot water with normal washing-up detergent.

Cleanin

our Baumatic Cooker Hood:

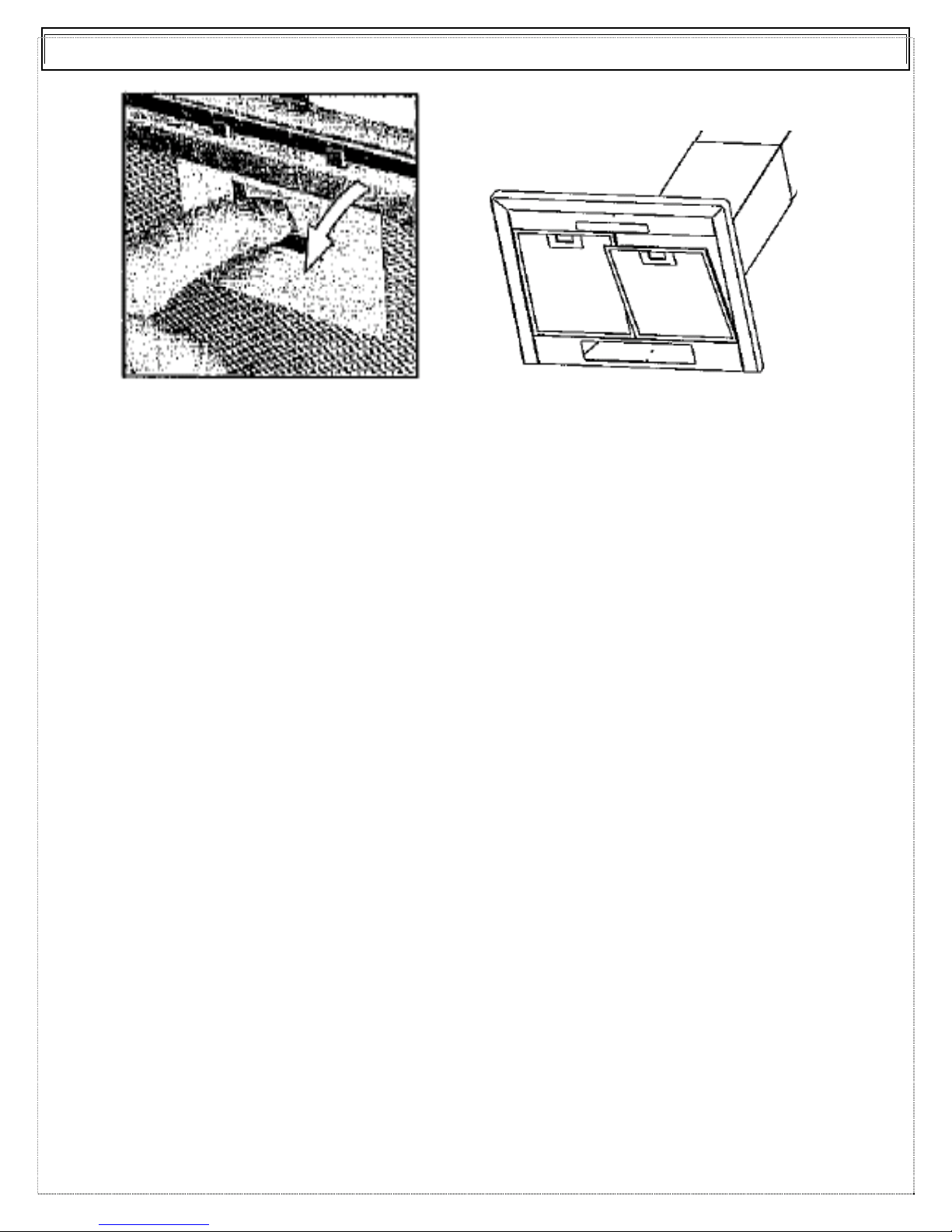

First remove the grille by pulling down on it. Undo the

side catches.

You can now clean the anti-grease filter grilles.

9Soak them for about one hour in hot water with a

grease-loosening detergent then rinse off thoroughly

with hot water.

9Repeat the process if needed. Refit the grease grille

once it has dried.

To clean the grease filter grilles in your dishwasher:

9Place the grease filter grilles in the dishwasher. Select the most

powerful washing programme and highest temperature.

9Repeat the process, if necessary.

9Refit the grease grilles when dry.

9PLEASE NOTE: DISCOLOURATION OF THE GREASE

FILTER CAN TAKE PLACE WHEN CLEANED IN A

DISHWASHER, ETC. Do not worry about the slight

discolouration of the grille – its performance won’t

be affected.

Let the filter grilles dry thoroughly before refitting

them.

Maintenance - Cleaning the Anti-grease Filters
