NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference.

YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3

IMPORTANT SAFETY INFORMATION……………………………….…4-5

ENVIRONMENTAL NOTE ………….…………………………………………6

USING YOUR COOKER HOOD………………………………..……………..7

MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10

INSTALLATION INSTRUCTIONS ……………………….……...….11-14

CARBON FILTER ………….……..11

ELECTRICAL CONNECTION………….………12

INSTALLING THE COOKER HOOD………….…13-14

TROUBLESHOOTING ……………………………………………15

CONDITIONS OF GUARANTEE……………………………………………16

CONTACT DETAILS…………………………………………………………..17

CONTENTS

Congratulations on purchasing a Baumatic Cooker

Hood!

To fully enjoy using your appliance long into the future,

please firstly familiarise yourself with its specifications,

safety advice and operational instructions included in this

manual. You will also need this manual to ensure that your

Cooker Hood has been installed properly.

Your cooker hood can work either as an extraction fan or as

an air recirculator. Whichever mode you choose, you will

need to bear in mind that the extractor calls for ducting (not

included) to be worked from the exhaust of your fan, while

the recirculation function will require the replacement of

carbon filters.

Please see the installation section of this manual for details.

DIMENSIONS

Width: 600 mm (at rear)

Depth: 485 mm (top); 540 (bottom)

Height: 150 mm

Your stainless steel Cooker Hood is fitted with:

•Slider control operation

•3 speeds

•1 light

Extraction capacity: 290 m³/hr

Optional Extra: 1 x UCF1 Carbon filter for air

recirculation.

Specifications of your STD6.1 Cooker Hood

Any installation work must be

carried out by a qualified

electrician or competent person.

The hood must be installed in

accordance with the installation

instructions and all measurements

followed.

oIf the cooker hood is installed

for use above a gas appliance then

the provision for ventilation must

be in accordance with the Gas

Safety Codes of Practice BS.6172,

BS.5440 & BS.6891 (Natural Gas)

and BS.5482 (LP Gas) 1994, the

Gas Safety (Installation & Use)

Regulations, the Building

Regulations issued by the

Department of the Environment,

the Building Standards (Scotland)

(Consolidated) Regulations issued

by the Scottish Development

Dptmt.

oIt is dangerous to alter the

specifications or to modify this

product in any way. Do not tamper

with it or attempt to alter it in the

attempt to customise it further.

oWhen installing the hood,

ensure that the following

recommended distances are being

observed between the cooker top

and the bottom of the cooker hood:

9Electric cookers:

700 mm

9Gas cookers:

700 mm

9Coal/ oil cookers:

800 mm

* NOTE -

DO NOT SET YOUR

COOKER HOOD LESS THAN

700mm ABOVE YOUR COOKER!

oWhen installed between

adjoining wall cabinets,

the cabinets must not

overhang the hob and

their undersides must be

at least 50 mm off from

the hob edges.

oThe edges of the cooker

hood are sharp – be

mindful of this as you

handle your appliance,

especially during

installation and cleaning.

NOT

CLEAN

BEHIND

THE

GREASE

FILTERS!

oIf the room where the

cooker hood is to be used

contains a fuel burning

appliance such as a

central heating boiler

then its flue must be of

the sealed or balanced

flue type.

oIf other types of flue or

appliances are fitted,

ensure that there is an

adequate supply of air in

the room.

oWhen the hood is being

used in its extractor

function, ensure that the

ducting is fire retardant

and that there are no

bends sharper than 90

degrees as this will

reduce the efficiency of

the hood.

Important Safety Information: Please Read this before installing & using.

oEnsure the ducting for

the extractor function

has the same diameter as

the outlet hole all the

way through.

Keep young children from

using, playing with or

tampering with the

cooker hood. Older

children and infirm

persons should be

supervised if they are

using the cooker hood.

Your cooker hood is for

domestic use only.

Please dispose of the

packing material

carefully – children are

especially vulnerable to

it.

Dirty oil is an even

greater fire risk.

Always put lids on pots

and pans when cooking

on a gas cooker.

The manufacturer

refuses to accept any

responsibility for

damages arising to the

hood or its catching on

fire from failure to

observe fire safety advice

in these instructions.

Remember that when in

extraction mode, your

cooker hood is removing

air from your room.

Ensure that proper

ventilation measures are

being observed. Note

that it removes odours

from your room, not

steam.

oWarning - Always ensure

that the cooker hood has

been disconnected from

the power supply before

carrying out any work on

the hood, including

replacing light bulbs.

:Do not connect the

ducting system of this

appliance to any existing

ventilation system which

is being used for any

other purpose.

:Do not install above a

cooker with a high level

grill.

Never leave frying pans

unattended during use as

overheated fats and oils

might catch fire.

Do not leave naked

flames under the cooker

hood.

:Do not attempt to use

the cooker hood if it is

damaged in any way.

Never attempt to use it

without the grease filters

fitted or if the filters are

excessively greasy!

Never flambé cook under

this cooker hood.

Important Safety Information: Please Read this before installing & using.

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person.

CONFORMITY TO W.E.E.E. DIRECTIVE

Environmental Note

To use your cooker hood:

1) Make sure it has been properly installed.

2) Find the CONTROL PANEL. It is located on the hood’s front

surface near the upper right corner of the unit.

3) The CONTROL PANEL contains switches as shown in the Figure below.

These perform separate functions. You will need to understand what

both switches do before you attempt to use your cooker hood.

* Note: The hood should be switched on at least as soon as you start

cooking.

MOTOR ON /OFF switch – the ‘ ’ switch (‘A’ in figure above) turns the motor

on and off and adjusts its speed. There are three speeds. Pushing the switch to

the right increases the speeds from ‘0’ (off) to ‘3’ (high).

Motor Operation Pilot light - ‘B’ in the figure above.

LIGHT ON/OFF switch - Pressing the ‘ ’ switch (‘C’ in figure above) turns your

cooker hood’s light on and off.

PLEASE NOTE THAT YOUR BAUMATIC COOKER HOOD CAN BE

USED EITHER IN RECIRCULATION MODE OR IN EXTRACTION

MODE. TO USE IN RE-CIRCULATION MODE, YOU WILL NEED TO

FIT THE CARBON FILTER.

Usin

our Baumatic Cooker Hood:

Your Cooker

Hood’s

Control Panel

* IMPORTANT!:

Before cleaning, always ensure that you

have switched your cooker hood OFF at the omni-polar

switch, set at the wall from the cable:

Cleaning

ÂClean the external parts with

mild liquid detergents on a

damp cloth.

ÂNever use abrasive powder,

corrosive solvents or brushes.

ÂNever insert pointed objects

into the motor’s protective grid.

ÂOnly clean the control panel

and filter grill with a damp

cloth and delicate detergents.

ÂBe sure to replace the

carbon filters at the

recommended intervals.

Build up could cause a

fire hazard.

ÂNever take out the

grease filters and

attempt to clean the

space above where they

are set.

________________________________________________

Anti-Grease Grille

ÂYour cooker hood includes an anti-grease grille

which helps absorb vapour-suspended grease

particles to protect your kitchen & furniture from

greasy residues.

ÂThe metal grille may become inflammable if it

becomes saturated with greasy residue.

9To prevent this fire hazard, the grille should be

cleaned regularly (depending on use) every 10-15

days and at least every three months in a dishwasher

or in hot water with normal washing-up detergent.

Cleanin

our Baumatic Cooker Hood:

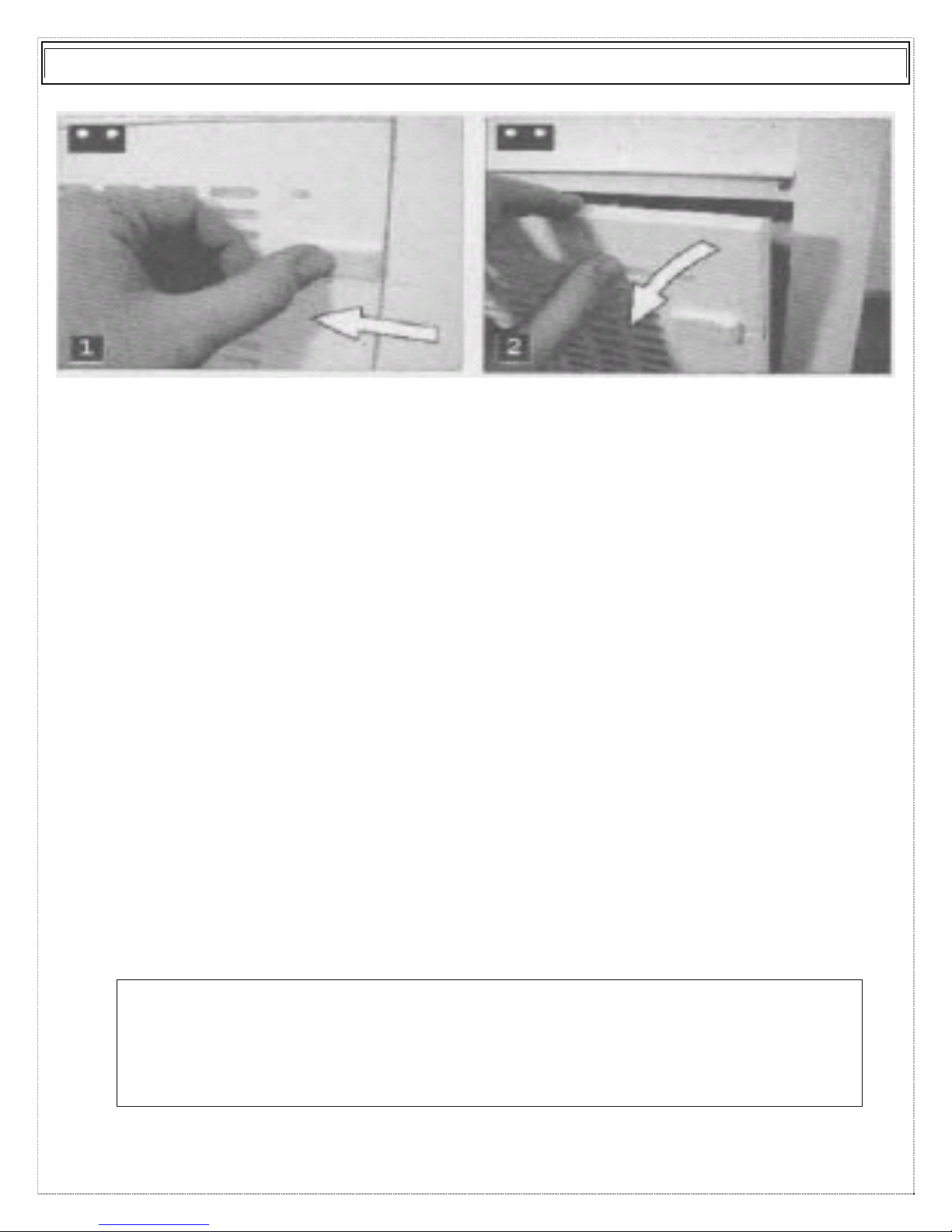

First remove the anti-

grease filter by sliding the

securing nibs at the sides

of the grille on the

underside of the hood.

You can now clean

the anti-grease grille:

To clean the grille by hand:

9Soak it for about one hour in

hot water with a grease-

loosening detergent then rinse off

thoroughly with hot water.

9Repeat the process if needed.

Refit the grease grille once it has

dried.

To clean the grille in your

dishwasher:

1) Place the grease grille in the

dishwasher. Select the most

powerful washing programme and

highest temperature. Repeat the

process if necessary.

2) Refit the grease grille when it is

dry. Do not worry about the slight

discolouration of the grille – its

performance won’t be affected.

DISCOLOURATION OF THE GREASE

FILTER CAN TAKE PLACE WHEN

CLEANED IN A DISHWASHER. THIS IS

NORMAL.

•NOTE - After carefully rinsing and drying the anti-

grease grille, put it back in place. Never put it back

in wet!

•Never attempt to use your Cooker hood without the

grease filter grille in place!

Maintenance - Cleaning the Anti-grease Filters

Tabla de contenidos

Otros manuales de Campana de ventilación de Baumatic

Baumatic

Baumatic CAN52.1ME Manual de usuario

Baumatic

Baumatic Pythagora P30SS Manual de usuario

Baumatic

Baumatic BT82.1GL Manual de usuario

Baumatic

Baumatic BPP75L Manual de usuario

Baumatic

Baumatic BTC977SS Manual de usuario

Baumatic

Baumatic STD6.2 Manual de usuario

Baumatic

Baumatic BTC6750GL Manual de usuario

Baumatic

Baumatic BT06.8ME Manual de usuario

Baumatic

Baumatic BESW601BGL Manual de usuario

Baumatic

Baumatic BES900BGL Manual de usuario

Baumatic

Baumatic BEI350SS Manual de usuario

Baumatic

Baumatic BU676GL-EU 60 Manual de usuario

Baumatic

Baumatic BE60GL Manual de usuario

Baumatic

Baumatic CAN52.2ME Manual de usuario

Baumatic

Baumatic BKH61SS Manual de usuario

Baumatic

Baumatic BT6GL Manual de lista de piezas

Baumatic

Baumatic OMBRA3.1SS Manual de usuario

Baumatic

Baumatic BRT60SS Manual de usuario

Baumatic

Baumatic BTC6510GL Manual de usuario

Baumatic

Baumatic BTC675SS Manual de usuario

Baumatic

Baumatic GEH6009 Manual de usuario

Baumatic

Baumatic BT11 Instrucciones de funcionamiento

Baumatic

Baumatic BT120 Manual de lista de piezas

Baumatic

Baumatic F60.2BL Manual de usuario

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
