Baumatic AS35SS Manual de usuario

AS35SS Cooker

Hood

User Manual for your Baumatic

AS35SS Cooker Hood

Studio Solari 80 cm Chimney Hood in

Stainless Steel

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference.

SPECIFICATION OF YOUR COOKER

HOOD PAGE 3

IMPORTANT SAFETY

INFORMATION PAGES 4 - 5

ENVIRONMENTAL NOTE PAGE 6

DESCRIPTION OF YOUR COOKER

HOOD PAGE 7

USING YOUR COOKER HOOD PAGE 8

CLEANING YOUR COOKER HOOD PAGE 9

MAINTENANCE- Removing and cleaning the

rease filter

Changing a light bulb

Fitting the carbon filter

The carbon filter saturation

signalling device

PAGE 10

PAGE 11

PAGE 12

PAGE 13

INSTALLATION- Electrical Connection

Before beginning installation

Extraction mode or

recirculation mode?

Installation without a

chimney

Installation with a chimney

Connecting to external

ducting.

PAGE 14

PAGES 15 -

PAGE 17

PAGE 18

PAGE 19

PAGE 20

TROUBLE SHOOTING PAGE 21

CONDITIONS OF GUARANTEE PAGE 22

CONTACT DETAILS PAGE 23

CONTENTS

Congratulations on purchasing a Baumatic Cooker

Hood!

To fully enjoy using your appliance long into the future,

please firstly familiarise yourself with the specifications,

safety advice and operational instructions included in this

manual. You will also need this manual to install your

cooker hood correctly.

DIMENSIONS

Width (canopy): 800 mm

Depth (canopy): 131 mm to 346 mm

Height (with chimney) 1105 mm to 1635 mm

(without chimney) 569 mm

Dimensions of Chimney Section:

Width 240 mm

Depth 250 mm

Your stainless steel Cooker Hood is fitted with:

•Superior extraction capacitor motor

•Touch control operation with blue under lit buttons

•3 speeds and Booster

•2 metallic grease filters

•2 Halogen lights

Extraction capacity – 600 m³/hr

Optional Extra: Carbon filter kit (available from the

Baumatic Spares Department)

ecifications of

our AS35SS Cooker Hood

Any installation work must

be carried out by a qualified

electrician or competent

person.

The hood must be installed in

accordance with the installation

instructions and all measurements

followed.

oIf the cooker hood is installed

for use above a gas appliance then

the provision for ventilation must

be in accordance with the Gas

Safety Codes of Practice BS.6172,

BS.5440 & BS.6891 (Natural Gas)

and BS.5482 (LP Gas) 1994, the

Gas Safety (Installation & Use)

Regulations, the Building

Regulations issued by the

Department of the Environment,

the Building Standards (Scotland)

(Consolidated) Regulations issued

by the Scottish Development

Dptmt.

oIt is dangerous to alter the

specifications or to modify this

product in any way. Do not tamper

with it or attempt to alter it in the

attempt to customise it further.

oWhen installing the hood,

ensure that the following

recommended distances are being

observed between the cooker top

and the bottom of the cooker hood:

9Electric cookers:

700 mm

9Gas cookers:

700 mm

Important Safety Information: Please Read this before installing & using.

9Coal/ oil cookers:

800 mm

* NOTE -

DO NOT SET YOUR

COOKER HOOD LESS THAN

700mm ABOVE YOUR COOKER!

oWhen installed between

adjoining wall cabinets,

the cabinets must not

overhang the hob.

oThe edges of the cooker

hood are sharp – be

mindful of this as you

handle your appliance,

especially during

installation and cleaning.

NOT

CLEAN

BEHIND

THE

GREASE

FILTERS!

oIf the room where the

cooker hood is to be used

contains a fuel burning

appliance such as a

central heating boiler

then its flue must be of

the sealed or balanced

flue type.

oIf other types of flue or

appliances are fitted,

ensure that there is an

adequate supply of air in

the room.

oWhen the hood is being

used in its extractor

function, ensure that the

ducting is fire retardant

and that there are no

bends sharper than 90

degrees as this will

reduce the efficiency of

the hood.

oEnsure the ducting for

the extractor function

has the same diameter as

the outlet hole all the

way through.

Keep young children from

using, playing with or

tampering with the

cooker hood. Older

children and infirm

persons should be

supervised if they are

using the cooker hood.

Your cooker hood is for

domestic use only.

Please dispose of the

packing material

carefully – children are

especially vulnerable to

it.

Dirty oil is an even

greater fire risk.

Always put lids on pots

and pans when cooking

on a gas cooker.

The manufacturer

refuses to accept any

responsibility for

damages arising to the

hood or its catching on

fire from failure to

observe fire safety advice

in these instructions.

Remember that when in

extraction mode, your

cooker hood is removing

air from your room.

Ensure that proper

ventilation measures are

being observed. Note

that it removes odours

from your room, not

steam.

Important Safety Information: Please Read this before installing & using.

oWarning - Always ensure

that the cooker hood has

been disconnected from

the power supply before

carrying out any work on

the hood, including

replacing light bulbs.

:Do not connect the

ducting system of this

appliance to any existing

ventilation system which

is being used for any

other purpose.

:Do not install above a

cooker with a high level

grill.

Never leave frying pans

unattended during use as

overheated fats and oils

might catch fire.

Do not leave naked

flames under the cooker

hood.

:Do not attempt to use

the cooker hood if it is

damaged in any way.

Never attempt to use it

without the grease filters

fitted or if the filters are

excessively greasy!

Never flambé cook under

this cooker hood.

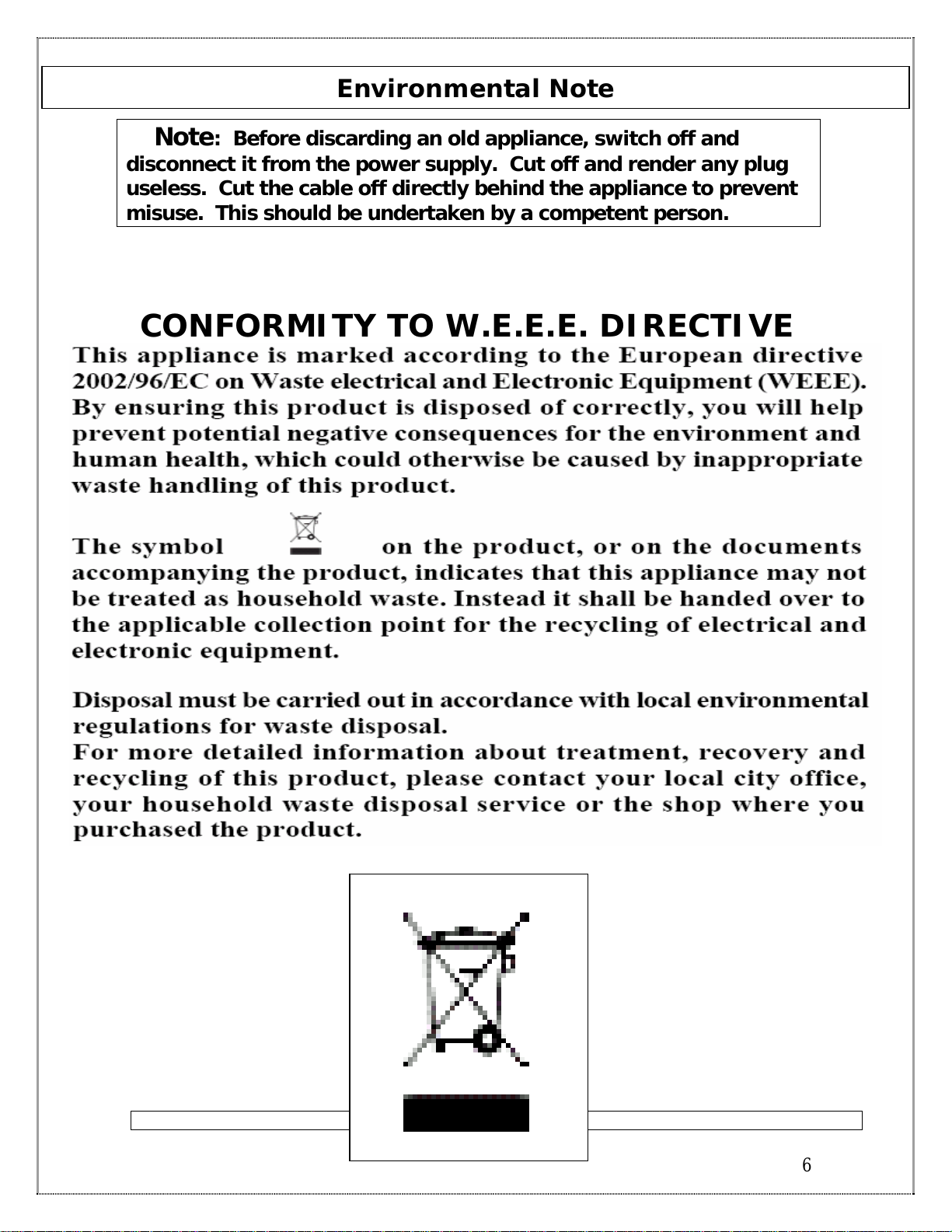

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person.

CONFORMITY TO W.E.E.E. DIRECTIVE

Environmental Note

Description of your Cooker Hood

Description of the hood (Fig. 1)

1. Control panel

2. Grease filter

3. Grease filter release handle

4. Halogen lamp

5. Cover screen

6. Telescopic chimney

7. Air outlet (used for filter version only)

To use your cooker hood:

1)Make sure it has been properly installed by a suitably

qualified person.

2)Find the CONTROL PANEL. It is located on the right hand

side of the hood, at the front of the canopy.

3)The CONTROL PANEL contains switches as shown in the

Figure below. These perform separate functions. You will

need to understand what both switches do before you

attempt to use your cooker hood.

* Note: The hood should be switched on as soon as you start

cooking.

Control panel functions

1. Motor OFF

2. Suction speed selection key (power) 1

3. Suction speed selection key (power) 2

4. Suction speed selection key (power) 3

5. Booster function selection key (power). This lasts 5 minutes,

after which the extractor motor switches off or the hood goes back to

the suction speed (power) previously selected. In order to deselect this

suction speed, press buttons 1 or 2 or 3 or 4.

6. ON/OFF lights key

7. Settings and reset filter saturation signals: This lights

up in order to warn you that the grease filter needs maintenance. If it

blinks then maintenance of the carbon filter is required. To reset the

device, please press button 7 and hold for 5 seconds.

In case of possible working anomalies, before contacting service

assistance, disconnect the electrical feed for at least 5 seconds by

pulling out the plug, and then connect it again. If malfunction

continues, contact the Baumatic Service Department on (0118) 933

6911.

Usin

our Baumatic Cooker Hood:

IMPORTANT!: Before cleaning, always ensure that you

have switched your cooker hood OFF at the omni-polar

switch, set at the wall from the cable:

Cleaning

ÂClean the external parts with

mild liquid detergents on a

damp cloth.

ÂNever use abrasive powder,

corrosive solvents or brushes.

ÂNever insert pointed objects

into the motor’s protective grid.

ÂOnly clean the control panel

and filter grill with a damp

cloth and delicate detergents.

ÂBe sure to replace the

carbon filters at the

recommended intervals.

Build up could cause a

fire hazard.

ÂNever take out the

grease filters and

attempt to clean the

space above where they

are set.

________________________________________________

Grease Filter

ÂYour cooker hood includes a grease filter which

helps to absorb grease particles to protect your

kitchen & furniture from greasy residues.

ÂThe metallic filter may become inflammable if it

becomes saturated with this greasy residue.

9To prevent this fire hazard, the filter should be

cleaned regularly. Depending on use, this should be

done every 10-15 days or at least once a month,

using hot water and normal washing-up detergent.

9DO NOT WASH THE GREASE FILTER IN A

DISHWASHER.

Cleanin

our Baumatic Cooker Hood:

Tabla de contenidos

Otros manuales de Campana de ventilación de Baumatic

Baumatic

Baumatic BT7.3GL Manual de usuario

Baumatic

Baumatic F60.2BL Manual de usuario

Baumatic

Baumatic BT6.3GL Manual de usuario

Baumatic

Baumatic BTC977SS Manual de usuario

Baumatic

Baumatic CAN52.3ME Manual de usuario

Baumatic

Baumatic BESW601BGL Manual de usuario

Baumatic

Baumatic ISL4SS Manual de usuario

Baumatic

Baumatic BTEL60X Manual de usuario

Baumatic

Baumatic ISL5SS Manual de usuario

Baumatic

Baumatic BTW600ME Manual de usuario

Baumatic

Baumatic BT9.3BGL Manual de usuario

Baumatic

Baumatic BT26.1 Manual de usuario

Baumatic

Baumatic BTI9170GL Manual de usuario

Baumatic

Baumatic CAN75.2SS Manual de usuario

Baumatic

Baumatic OMBRA3.1SS Manual de usuario

Baumatic

Baumatic BT6GL Manual de lista de piezas

Baumatic

Baumatic TON6.1SS Manual de usuario

Baumatic

Baumatic OMBRA3 .1 SS Manual de usuario

Baumatic

Baumatic BT89 Instrucciones de funcionamiento

Baumatic

Baumatic BT49 Instrucciones de funcionamiento

Baumatic

Baumatic BRT60SS Manual de usuario

Baumatic

Baumatic BTI917GL 90cm Manual de usuario

Baumatic

Baumatic BT16.4SS-HK Manual de usuario

Baumatic

Baumatic F90.2BL Manual de usuario

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
