Baumatic F90.2BL Manual de usuario

F90.2BL/F90.2SS

Cooker Hood

Get user manuals: See SafeManuals.com

User Manual for your Baumatic

F90.2BL/F90.2SS

Cooker Hood

90 cm Cooker Hood in black

90 cm Cooker Hood in stainless steel

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 14/01/08

Get user manuals: See SafeManuals.com

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your cooker hood 8

Using your Baumatic cooker hood 9

Beforefirstuse 9

To use your cooker hood 9 - 10

Cleaning your Baumatic cooker hood 10

The grease filters 10

Maintenance 11

Removing and cleaning the grease filters 11

Changingalightbulb 12

Fitting the carbon filters 13

Installation 14 - 22

Electrical connection 14 - 15

Before beginning installation 15 - 16

Installing your cooker hood 16 –18

Connecting to external ducting 19

Fitting the chimney 19 – 21

Completing the installation 22

Extraction mode or recirculation mode? 22

Troubleshooting 23 - 24

Contactdetails 25

Get user manuals: See SafeManuals.com

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

CONFORMITY TO W.E.E.E. DIRECTIVE

Get user manuals: See SafeManuals.com

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Technical

Department.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product. Do not tamper with it or attempt to modify the

appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

¾Electric cookers: 700 mm

¾Gas cookers: 700 mm

¾Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

Get user manuals: See SafeManuals.com

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in its extractor function, ensure

that the ducting is fire retardant and that there are no bends

sharper than 90 degrees as this will reduce the efficiency of the

hood.

oEnsure the ducting for the extractor function has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or it catching on fire, from a failure

to observe the fire safety advice contained in this instruction

booklet.

Get user manuals: See SafeManuals.com

oRemember that when in extraction mode, your cooker hood is

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote that it removes odours from your room, not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including replacing light bulbs.

oDo not connect the ducting system of this appliance to any

existing ventilation system which is being used for any other

purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oDo not leave naked flames under the cooker

hood.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filters fitted or

if the filters are excessively greasy!

oNever flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Get user manuals: See SafeManuals.com

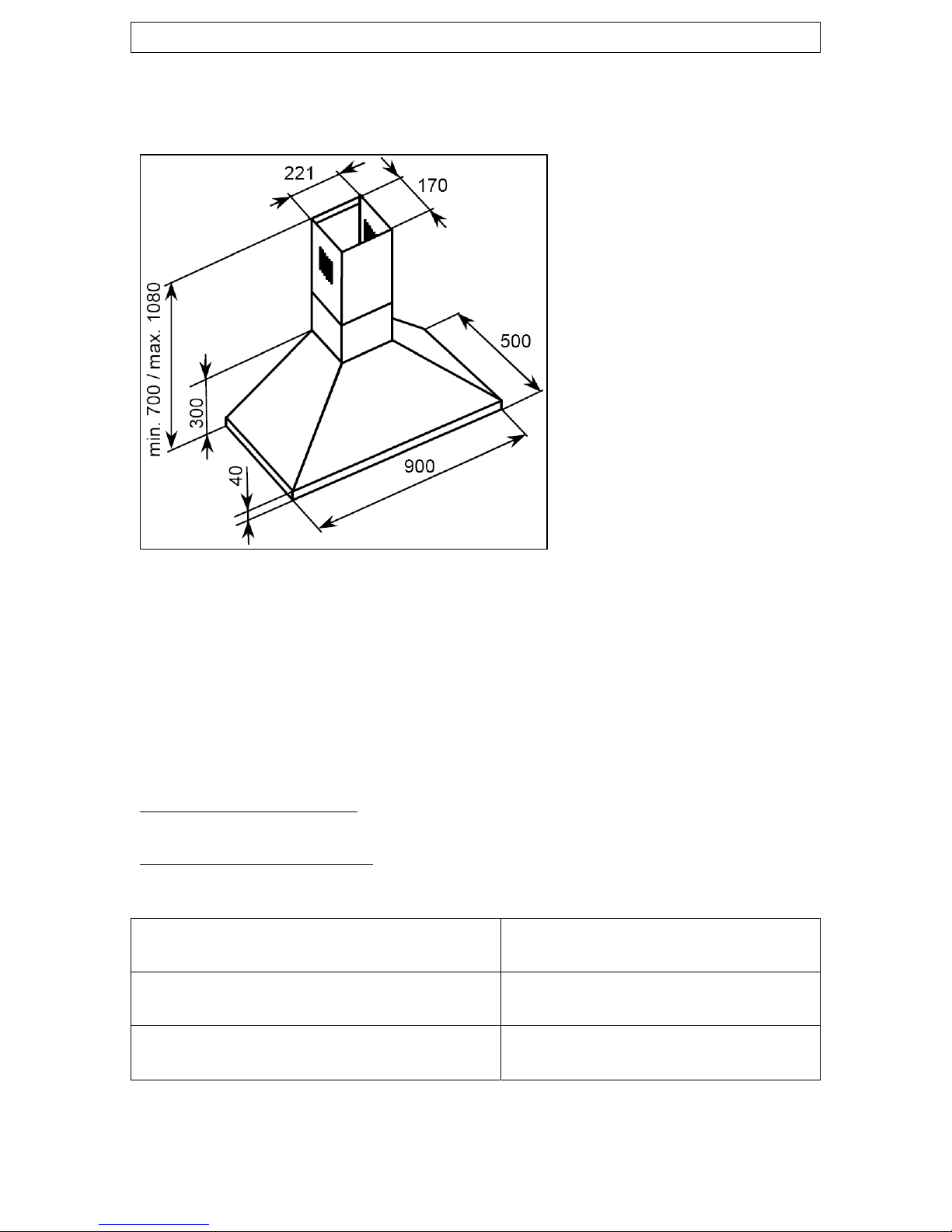

Specifications of your cooker hood

Congratulations on purchasing a Baumatic cooker

hood!

PRODUCT

DIMENSIONS

Height: 700 mm –

1080 mm

Width: 900 mm

Depth: 500 mm

DIMENSIONS OF

CHIMNEY SECTION:

170 mm x 221 mm

Your stainless steel cooker hood is fitted with:

oHigh extraction tangential motor

oPush button control operation

o3 Speeds

o3 Metallic grease filters

o2 lights

Extraction capacity: 500 m³/hr

Noise level min/max: 54 – 62 dB

MODEL NUMBER CARBON FILTER

REQUIRED

F90.2 from serial number

07300001

ST1

F90.2 upto serial number

07300000

Get user manuals: See SafeManuals.com

Using your Baumatic cooker hood

Before first use

IMPORTANT: THIS PROCESS MUST BE FOLLOWED

BEFORE THE COOKER HOOD IS USED FOR THE FIRST

TIME.

oYou should use a good quality stainless steel cleaner on ALL of

the stainless steel areas of your cooker hood, before it is used

for the first time.

oThis will help to leave a silicone water-resistant film to protect

the stainless steel surfaces.

To use your cooker hood

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oFind the control panel, which is located at the front right of the

canopy.

oThere are several buttons on the control panel, which perform

separate functions.

oA = ON/OFF button

oB = Speed selection buttons

= Low speed

= Medium speed

= High speed

Get user manuals: See SafeManuals.com

oC = Light on/off button

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR

HOOD TEN MINUTES BEFORE YOU START TO COOK,

OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.

YOU SHOULD ALSO RUN YOUR HOOD FOR TEN

MINUTES AFTER YOU HAVE FINISHED COOKING.

Cleaning your Baumatic cooker hood

IMPORTANT: BEFORE CLEANING, ALWAYS

ENSURE THAT YOU HAVE SWITCHED YOUR

COOKER HOOD OFF AT THE OMNI-POLAR

SWITCH, SET AT THE WALL FROM THE CABLE.

Cleaning

oClean the external parts of your cooker hood with mild liquid

detergent and a new damp cloth.

oNever use abrasive powder, corrosive solvents or brushes.

oNever insert pointed objects into the motor’s protective grid.

oOnly clean the control panel and grease filter grill with mild liquid

detergents and a new damp cloth.

oIf you are using the appliance in recirculation mode, then be

sure to replace the carbon filter at the recommended interval

(see section on “Fitting the carbon filter”). A build up of grease

could cause a fire hazard.

oNever attempt to clean the area above the grease filters.

The grease filters

oYour cooker hood includes grease filters which help to absorb

grease particles to protect your kitchen & furniture from greasy

residues.

oThis metallic filters may become inflammable if they become

saturated with this greasy residue.

oTo prevent this fire hazard, the filters should be cleaned

regularly. Depending on use, this should be done every 10-15

days or at least once a month, using hot water and normal

washing-up detergent.

oDO NOT WASH THE GREASE FILTERS IN A DISHWASHER.

Get user manuals: See SafeManuals.com
