Baumatic P619BS Manual de usuario

P619BS/SS 60 cm

Built-in fan oven

P629BS/SS & P639BS/SS 60cm

Built-in multifunction oven.

User Manual for your Baumatic

P619BS/SS 60 cm 4 Function fan oven

P629BS/SS 60 cm 7 Function multifunction oven

P639BS/SS 60 cm 9 Function multifunction oven

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 18/09/12

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8 - 14

P619BS/SS 8-9

P629BS/SS 9-10

P639BS/SS 10-11

Coolingfan 12

Controlpanel 13-14

Oven programmer/timer display 14

Setting and using the oven programmer/timer 14 - 20

Selecting manual operation mode 14

Setting the time of day 14

Theoventimer 14

Before first use 15

Setting the minute minder function 16

Setting the duration function 17

Setting the end cook function 18

Setting the start and end time function 19

Adjusting the audible signal 20

Selecting a cooking function and temperature 20 - 25

Selecting manual operation mode 20

Selectinganovenfunction 20

P619BS/SS oven functions 21

P629BS/SS oven functions 21 – 22

P639BS/SS oven functions 22 - 23

Thermostatcontrolknob 23

Ovenoperatinglight 23

Cooking guidelines 24

Warnings 25

Shelf levels 25 - 26

Cleaning and maintenance 26 - 28

Removable oven roof liner (P629BS/SS and P639BS/SS only) 27

Replacing the oven bulb 27

Removing the oven door for cleaning 28

Removing the inner door glass for cleaning 29

Installation 30 - 33

Electricalconnection 30

Installing the oven into the kitchen cabinet 31

Positioning the appliance 31

Ventilation requirements 32 - 33

My appliance isn’t working correctly 33 -35

Baumaticconsumables 36

Contact details 37

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and can

be built into a standard kitchen cabinet or housing unit.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/95/EC regarding “low voltage”

-2004/108/EC regarding “electromagnetic disturbances”

-Regulation (EC) N° 1935/2004 regarding “materials in contact

with food”

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

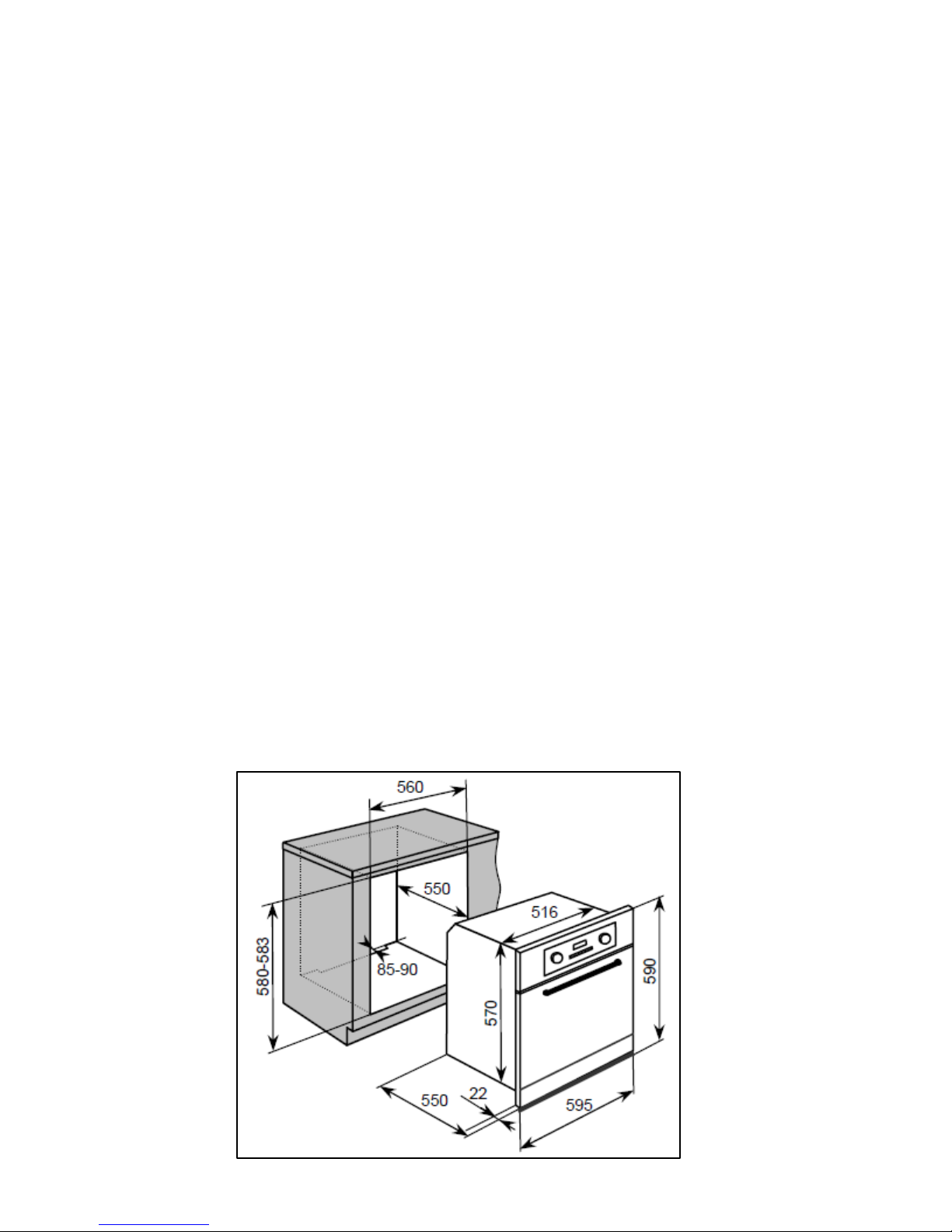

Specifications

P619BS/SS

Product Dimensions Aperture dimensions

Height: 590 mm Height: 580 – 583 mm

Width: 595 mm Width: 560 mm

Depth: 550 mm Depth: 550 mm

Product specifications

o4 oven functions

oEnergy efficiency class: A

oGross oven capacity: 59 litres

oNet oven capacity: 50 litres

oOven light

oLED full programmer

oCooling fan

oThermostatically controlled grill

oTriple-glazed removable door

oRemovable inner door glass

oMark resistant coating

Standard accessories

oEnamelled baking tray with handle

oSafety shelf

oTrivet

oRemovable side racks

Optional extras

oTEL2KIT Telescopic runners kit

oSCL7KIT Stay-clean liners kit

oBPS2 Pizza stone

Electrical details

Rated Voltage: 220 - 240 Vac 50 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 2.35 kW

Mains Supply Lead: 3 x 1.5mm²

Oven Light Bulb: 25 W/300°C screw type pygmy

P629BS/SS

Product Dimensions

Height: 590 mm

Width: 595 mm

Depth: 550 mm

Aperture dimensions

Height: 580 – 583 mm

Width: 560 mm

Depth: 550 mm

Product specifications

o7 oven functions

oEnergy efficiency class: A

oGross oven capacity: 59 litres

oNet oven capacity: 50 litres

oOven light

oLED full programmer

oCooling fan

oThermostatically controlled grill

oTriple-glazed removable door

oRemovable inner door glass

oMark resistant coating

Standard accessories

oEnamelled baking tray with handle

o2 x Safety shelves

oTrivet

oRemovable side racks

oRemovable roof liner

oTelescopic runners- 1 level

Optional extras

oSCL7KIT Stay-clean liners kit

oBPS2 Pizza stone

Electrical details

Rated Voltage: 220 - 240 Vac 50 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 2.40 kW

Mains Supply Lead: 3 x 1.5mm²

Oven Light Bulb: 25 W/300°C screw type pygmy

P639BS/SS
