User Manual for your Baumatic

BO616SS 60 cm Built in fan oven

BO628SS 60 cm Built in multifunction oven

BO636SS/R/W 60 cm Built in

multifunction oven

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 22/02/12

Contents

Environmentalnote 4

Important safety information 5 – 7

Specifications 8 – 12

BO616SS 8-9

BO628SS 9-10

BO636SS/R/W 10 - 11

Coolingfan 11

Controlpanel 11

Oven programmer/timer 12

Initial set up of your oven 12 – 13

Settingthetimeofday 12

Beforefirstuse 13

Timerfunctions 14 – 19

The minute minder function 14

The semi-automatic cooking function 15

The end of cooking function 16

The automatic cooking function 17 – 18

Cancelling the semi-automatic and automatic function 18

Cancelling the minute minder function 18

Adjusting the volume of the audible signal 18

Changingthetimeofday 19

Using your oven 19-22

Selecting an oven function 19 - 20

Thermostatcontrolknob 20

Ovenoperatinglight 21

Cooking guidelines 21 - 22

Warnings 22

Cleaning and maintenance 23 - 27

Replacing the oven bulb 24

Removing the oven door for cleaning 25

Removing the inner door glass for cleaning 26 - 27

Installation 27 - 31

Electrical connection 27 - 28

Positioning the appliance 29

Ventilation requirements 30

Installing the oven into the housing unit 31

My appliance isn’t working correctly 32 – 33

Baumatic consumables 34

Contact details 35

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Customer Care

Department.

General Information

oThis appliance is designed for domestic household use and can

be built into a standard kitchen cabinet or housing unit.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity.

This appliance complies with the following European Directives:

-2006/95/EC regarding “low voltage”

-2004/108/EC regarding “electromagnetic disturbances”#

-Regulation (EC) N° 1935/2004 regarding “materials in contact

with food”

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

BO616SS

Product Dimensions

Height: 600 mm

Width: 598 mm

Depth: 565.5 mm

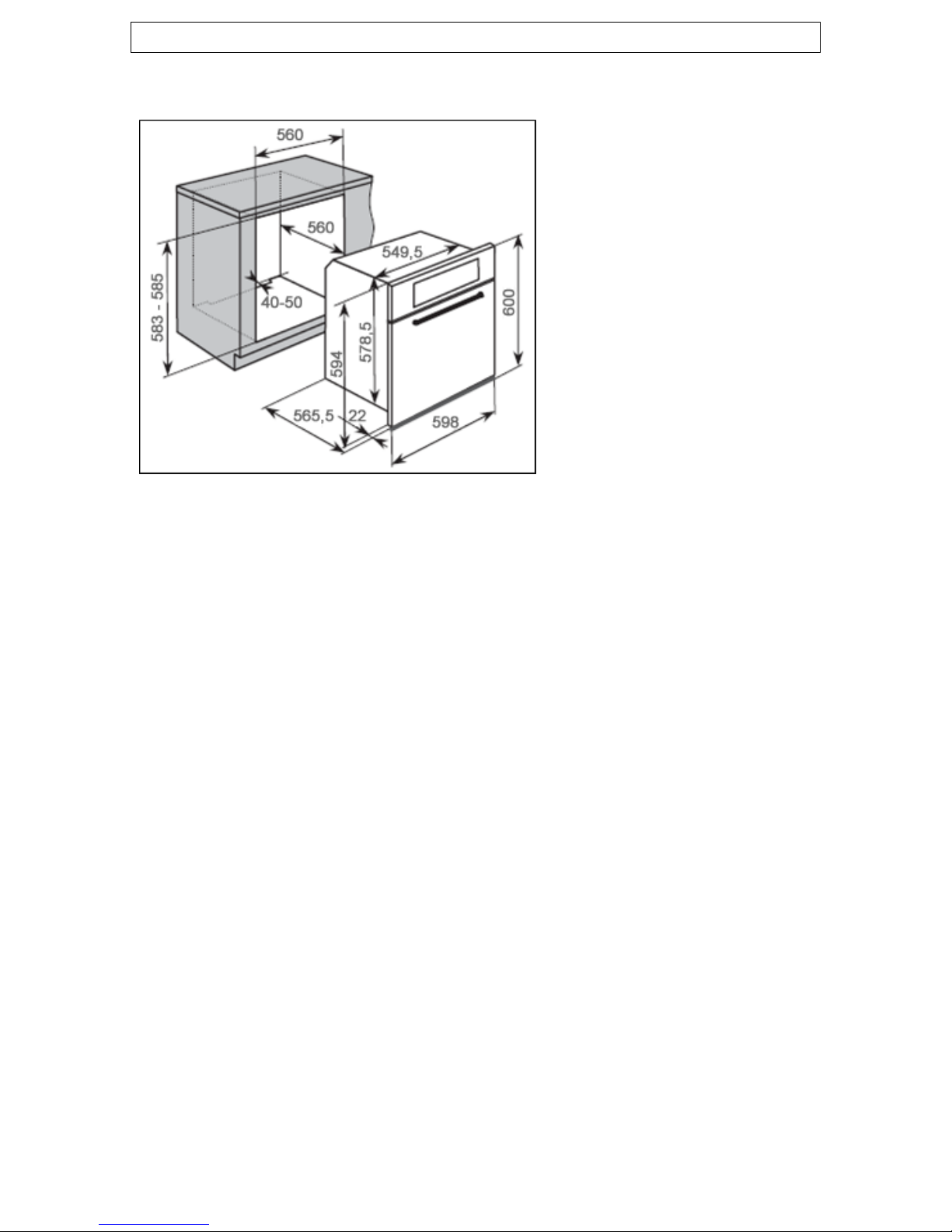

Aperture Dimensions

Height: 583 mm – 585

Width: 560 mm

Depth: 560 mm

Product specifications

o4 function fan oven

oEnergy efficiency class: A

oOven capacity (net): 61 litres

oOven capacity (gross): 68 litres

oLED full programmer

oOven light

oCooling fan

oThermostatically controlled grill

oDouble-glazed removable door

oRemovable inner door glass

Standard accessories

oEnamelled baking tray with handle

oSafety shelf

oTrivet

Optional extra

oBPS2 Pizza stone

Electrical details

Rated Voltage: 220 - 240 V~ 50/60 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 1.70 – 1.95 kW

Mains Supply Lead: 3 x 1.5mm²

BO628SS

Product Dimensions

Height: 600 mm

Width: 598 mm

Depth: 565.5 mm

Aperture Dimensions

Height: 583 mm – 585

Width: 560 mm

Depth: 560 mm

Product specifications

o5 function multifunction oven

oEnergy efficiency class: A

oOven capacity (net): 61 litres

oOven capacity (gross): 68 litres

oLED full programmer

oOven light

oCooling fan

oThermostatically controlled grill

oDouble-glazed removable door

oRemovable inner door glass

Standard accessories

o2 x Enamelled baking tray

oSafety shelf

Optional extra

oBPS2 Pizza stone

Electrical details

Rated Voltage: 220 - 240 V~ 50/60 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 1.95 – 2.30 kW

Mains Supply Lead: 3 x 1.5mm²

BO636SS/R/W

Product Dimensions

Height: 600 mm

Width: 598 mm

Depth: 565.5 mm

Aperture Dimensions

Height: 583 mm – 585

Width: 560 mm

Depth: 560 mm

Product specifications

o7 function multifunction oven

oEnergy efficiency class: A

oOven capacity (net): 61 litres

oOven capacity (gross): 68 litres

oLED full programmer

oOven light

oCooling fan

oThermostatically controlled grill

oDouble-glazed removable door

oRemovable inner door glass

Standard accessories

oEnamelled baking tray with handle

oSafety shelf

oTrivet

Optional extra

oBPS2 Pizza stone

Electrical details

Rated Voltage: 220 - 240 V~ 50/60 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 2.15 – 2.55 kW

Mains Supply Lead: 3 x 1.5mm²
