Baumatic BMC253SS Manual de usuario

BMC253SS 25 Litre

combination microwave

oven with grill

User Manual for your Baumatic

BMC253SS

25 Litre combination microwave oven

with grill

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 26/06/09

Contents

Environmentalnote 4

Important safety information 5 – 9

Specifications 10 – 13

Product and aperture dimensions 10

Product specifications 10 - 11

Electricaldetails 11

Description of the appliance 11

Controlpanel 12

Theturntable 12

LEDdisplay 13

Usingyourmicrowave 14 – 29

Theadjustmentdial 14

Settingtheclock 14

Beforefirstuse 14

Microwavecooking 15

Microwavepowerlevelchart 16

Timesettingchart 16

Grillcooking 17

Combinationcooking 18

Combination cooking chart 18

Convectioncooking 19

Convection cooking (with automatic pre-heating) 19 - 20

Interrupting a cooking cycle 20

Cancelling a cooking cycle 21

Enquirymode 21

Defrostbyweight 21

Defrostbytime 22

Setting multiple cooking phases 22

Settingacookingtimeinadvance 23

Automenufunction 24

Automenuchart 25

Safetylock 26

Microwave cooking guidelines 26 – 27

Materials you can use in a microwave oven 27 – 28

Materials not to be placed in a microwave oven 28

Utensils table 28 - 29

Cleaning and maintenance 29 – 30

The appliance exterior 29

Theapplianceinterior 29

Turntable and turntable support 29

General cleaning advice 29-30

Installation 30–39

Electrical connection 30 – 31

Aperture and ventilation requirements 32

Built under installation requirements 33 - 34

Supplied installation components 34

Preparing the housing unit 34 - 35

Installing the oven into a housing unit 36 – 37

My appliance isn’t working correctly 38 - 39

Contactdetails 40

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If yo

are unsure of any of the information contained in t u

his

ooklet, please contact the Baumatic Advice Line.

eneral Information

rhousing unit (see the section

nce when the turntable and

nly use ovenware that is suitable for being used in a

crowave should be wiped dry

le materials. If left unattended, they could pose a

our microwave oven, if you

by Baumatic and outlined in this manual should be

the microwave, to

ambient temperature

of the room it is located in, whilst in use.

oThis appliance is designed for domestic household use. It can

NOT be used as a freestanding microwave and must be built in

to a standard kitchen cabinet o

entitled “Installation” below).

oYou should only operate the applia

turntable support are in position.

oYou should o

microwave.

oTo prevent corrosion occurring due to moisture/condensation,

the cavity and the door of the mi

after each use of the appliance.

oThe appliance must not be left unattended if you are heating or

cooking food in containers that are made of paper, plastic or

other flammab

fire hazard.

oIf you notice smoke coming from the appliance, you should ke

the door of the microwave closed and then disconnect it from

your mains supply. DO NOT use y

think it is not operating correctly.

Installation

oIMPORTANT: Only the built in/built under installation

sanctioned

followed.

A separate building in kit will be supplied withoallow you to complete a built in installation.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oFor use in leisure accommodation vehicles, please refer to

the appropriate information given in the installation instructions

for this appliance.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

Service

oYour microwave complies with all relevant safety standards. In

order for it to continue to operate safely, only an engineer that

is approved by the Baumatic Customer Care Department

should work on the appliance.

oIMPORTANT: It is dangerous for a non qualified person to work

on the appliance, in particular if they remove the cover that

provides protection against exposure to microwave energy.

oIf you notice that the door seal, door surfaces, power cord and

plug are damaged. You should stop using the appliance,

disconnect it from the mains supply and contact the Baumatic

Customer Care Department.

oOnly genuine Baumatic spare parts should be fitted to your

appliance. These can be obtained from the Baumatic Spares

Department.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

oDO NOT place anything between the door and the door frame.

oDO NOT store anything that is flammable inside of the

microwave. When it is switched on, the items could catch fire.

oDO NOT switch the appliance on if there is no food or liquid

inside of the microwave. If you run the microwave whilst it is

empty, there is a chance that it will overload.

oThe door seals and the door surfaces should ALWAYS be kept

clean and free from debris.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oIMPORTANT: This appliance should only be operated by adults.

You SHOULD NOT allow young children to use the microwave

without supervision. Older children should only operate the

appliance if they have been thoroughly instructed on how to use

the microwave and the consequences of improper usage.

General Safety

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in.

oDo not use the appliance to dry paper, textiles or animals.

oDo not install the appliance next to curtains or soft furnishings.

oDo not use the appliance to heat unopened bottles or cans etc.

oDo not heat cooking oil or liquid containing alcohol, as there is

the chance of spontaneous combustion.

oDo not boil eggs or similar foods in their shells, otherwise they

may burst. It is possible to poach eggs in your microwave,

providing you prick the yolks first.

oDo not attempt to lift or move cooking appliances by using the

oven door, as this may cause damage to the appliance or result

in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

oCE: Appliance conforming to the European directives

89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions

and “RoHS” directive 2002/95/CE.*

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

*The RoHS directive stands for “the restriction of the use of

certain hazardous substances in electrical and electronic

equipment”. This directive bans the placing on the EU market of

new electrical and electronic equipment containing more than

the agreed levels of lead, cadmium, mercury, hexavalent

chromium, polybrominated biphenyl (PBB) and polybrominated

diphenyl ether (PBDE) flame retardants.

Specifications

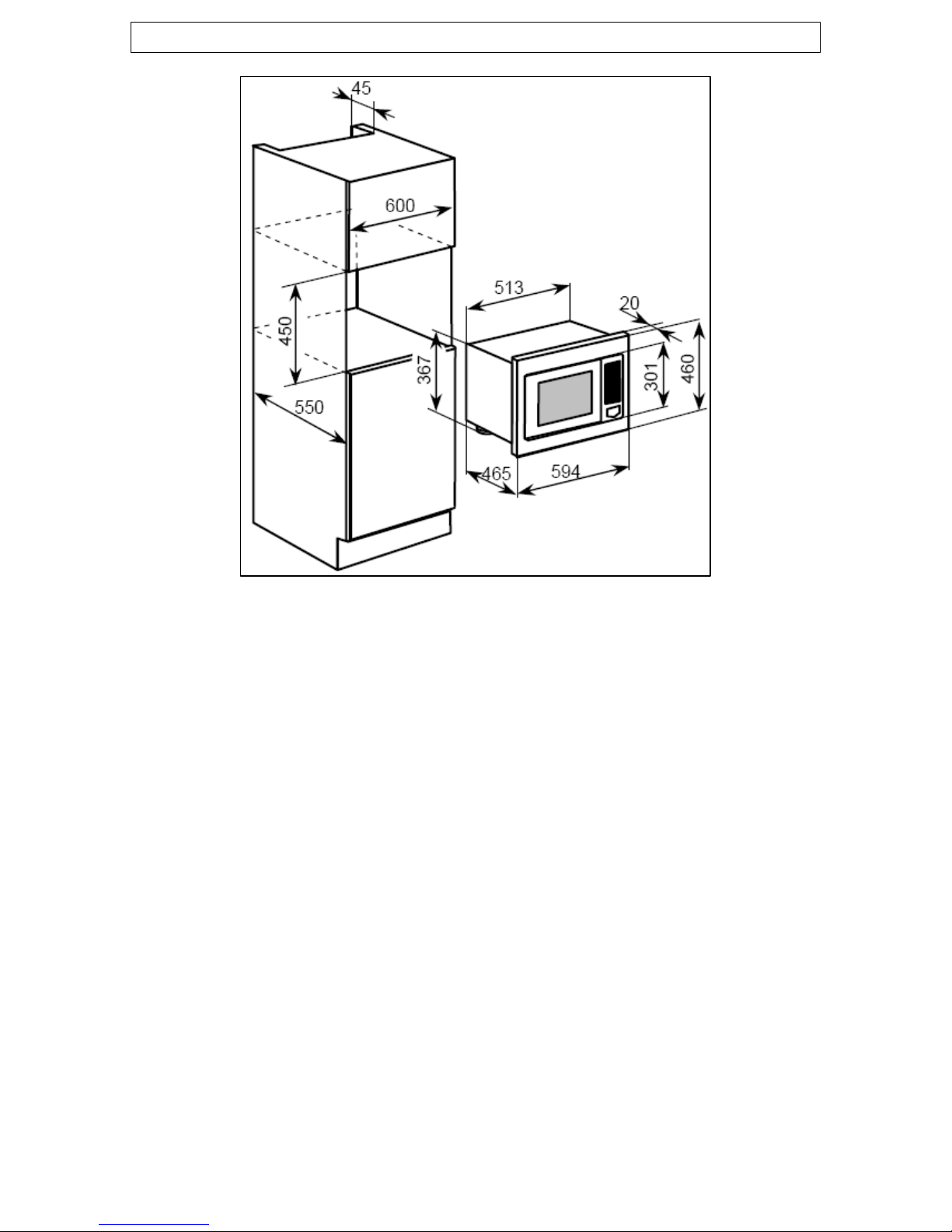

Product dimensions Aperture dimensions

(including frame kit)

Height: 460 mm Height: 450 mm

Width: 594 mm Width: 600 mm

Depth: 465 mm Depth: 550 mm

Product specifications

o10 functions: Auto-reheat

Vegetables

Fish

Meat

Pasta

Potato

Pizza

Soup

Chicken

Cake

oQuick start

oLED full programmer

oPushbutton control operation

oSafety lock

oStainless steel exterior and cavity

Otros manuales para BMC253SS

Tabla de contenidos

Otros manuales de Microondas de Baumatic

Baumatic

Baumatic GMGI250SS Manual de usuario

Baumatic

Baumatic B900SS-B Manual de usuario

Baumatic

Baumatic BTM25.3SS Manual de usuario

Baumatic

Baumatic BMM201SS Manual de usuario

Baumatic

Baumatic BTM23.1SS Manual de usuario

Baumatic

Baumatic BTM17SS Instrucciones de funcionamiento

Baumatic

Baumatic BMC460BGL Manual de usuario

Baumatic

Baumatic BMG200SS Manual de usuario

Baumatic

Baumatic BTM31SS Manual de usuario

Baumatic

Baumatic BTM17.4SS Manual de usuario

Baumatic

Baumatic BMCI300SS Manual de usuario

Baumatic

Baumatic BYMM204SS/BL Manual de usuario

Baumatic

Baumatic GEM252TK Manual de usuario

Baumatic

Baumatic BMC460SS Manual de usuario

Baumatic

Baumatic PMC355SS Manual de usuario

Baumatic

Baumatic BTM25.5SS Manual de usuario

Baumatic

Baumatic BMIC4625 Manual de usuario

Baumatic

Baumatic BTM25.2M Manual de usuario

Baumatic

Baumatic BMM174SS Manual de usuario

Baumatic

Baumatic BAMW2330-P Manual de usuario

Baumatic

Baumatic BTM40SL Manual del operador

Baumatic

Baumatic BTM25SS Manual del operador

Baumatic

Baumatic BTM25.5SS 25 Manual de usuario

Baumatic

Baumatic BMM204SS Manual de usuario

Manuales populares de Microondas de otras marcas

Daewoo

Daewoo KOG-574R0S Manual de usuario

LG MH7040SS Manual de usuario

Sharp

Sharp R-895(AL)M Manual de usuario

Dometic

Dometic DOTRM13W Manual de usuario

Sanyo

Sanyo EM-X680 Manual de usuario

Sharp

Sharp R-393M Manual de usuario

KitchenAid

KitchenAid KMCX4510 Instrucciones de instalación

Smeg

Smeg S45MCX1 Manual de usuario

Russell Hobbs

Russell Hobbs RHM2044 Manual de usuario

Sunbeam

Sunbeam SMW759 Manual de usuario

Gallet

Gallet FMOE230S Manual de usuario

Bosch

Bosch CEG732X.1B Manual de usuario

Dometic

Dometic Roadmate 230 Manual de usuario

Samsung

Samsung SJ0396W Manual de usuario

Sanyo

Sanyo EM-P494WS Manual de usuario

Sharp

Sharp R-240 Manual de usuario

Electrolux

Electrolux EMS2840 Manual de usuario

Daewoo

Daewoo KOC-984T2S13 Manual de usuario
