Baumatic BFD64SS Manual de usuario

BFD64SS 60 cm

electronic dishwasher

USER MANUAL FOR YOUR BAUMATIC

BFD64SS 60 cm

electronic dishwasher.

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 31/10/07

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8

Product dimensions 8

Product specifications 8

Energy efficiency details 9

Electricaldetails 9

Description of the appliance 9

Controlpanel 10

Displaywindow 10

Usingyourdishwasher 11

Before first use 11

Filling with dishwasher salt 11 – 12

Setting the water softener level 12

Fillingwithrinseaid 13

Setting the rinse aid level 13 – 14

Filling with dishwasher detergent 14

3 in 1 tablets before first use 14 – 15

Loading the upper basket 15

Adjusting the upper basket 16

Loadingthelowerbasket 17

The cutlery basket 17 – 18

Loading dishes and cutlery 18 – 19

Program table 20

Setting a wash program 20 – 21

Changingawashprogram 21

At the end of a wash program 21

The 3 in 1 wash program 22

Settingadelaystart 23

Setting a half load 23 – 24

Cleaning and maintenance 24

The filter system 24 – 25

Cleaning the filters 25

Cleaningthesprayarms 26

Cleaning the control panel 26

Cleaningthedoor 26

Error code failure system 27 – 28

General troubleshooting 29 – 30

Installation 31

Positioning and levelling the appliance 31 – 32

Connecting to the mains water supply 32

Wateroutlet 33

Power supply 33 – 34

Contact details 35

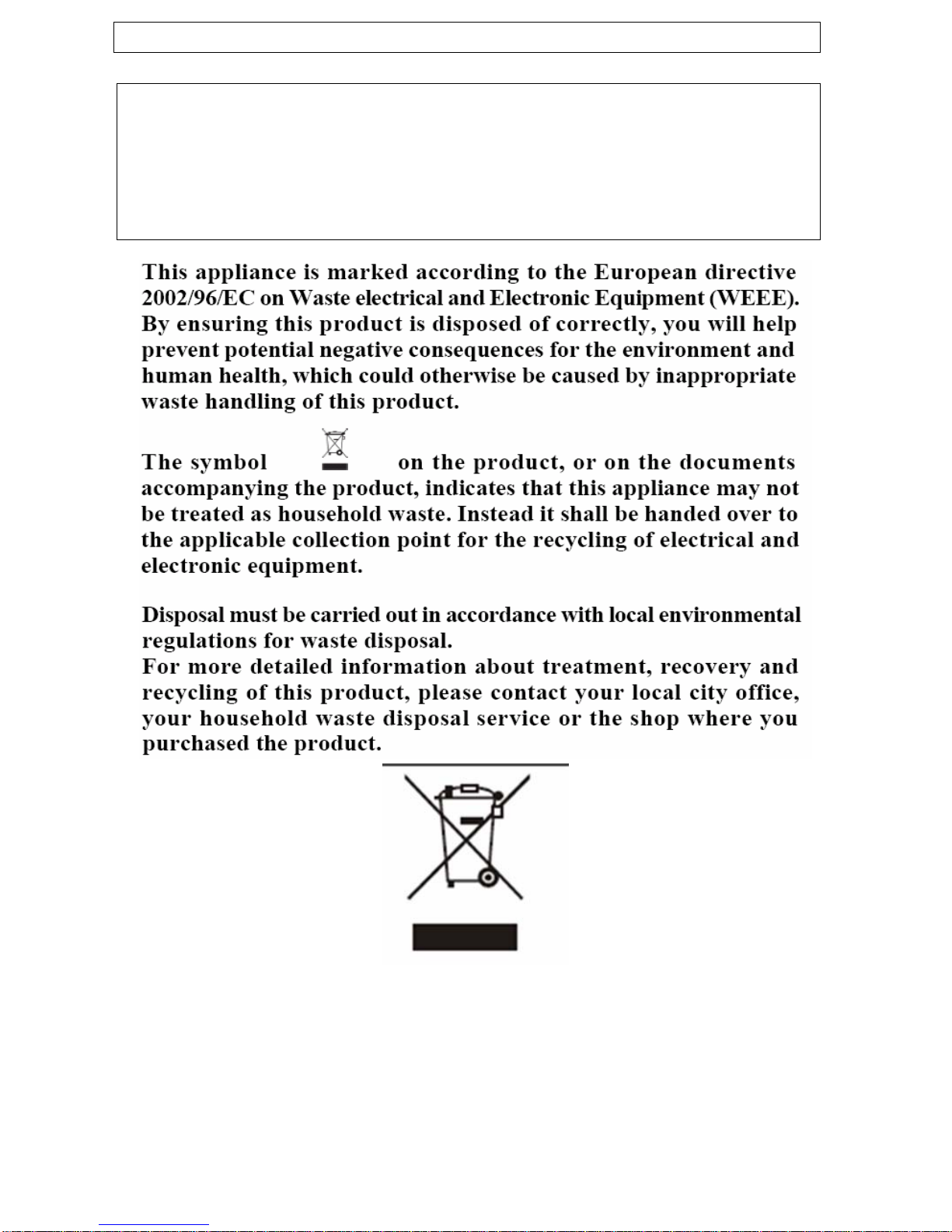

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Technical

Department.

General Safety

oRepairs to your appliance must only be carried out by a

Baumatic engineer or one of its authorized service agents. Any

attempt by an inexperienced person to repair the appliance,

could result in injury or damage to your dishwasher.

oIf you notice that the mains cable is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should be turned off and isolated from the mains

supply, before either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out of the

electrical socket.

oThe machine should not be sprayed with water.

oThe external surface of the appliance may become hot whilst

your dishwasher is in use.

oIt is possible for small animals to chew either mains cables or

water hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should be followed.

oIt is obligatory for the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oBefore the first use of the appliance, you should follow the

steps listed in the “Before first use” section of this

manual.

oCare should be taken not to trap the power supply cable

underneath the appliance whilst installing it.

oNo attempt should be made to alter or modify the specifications

of this appliance.

In daily use

oThis appliance is only designed to wash normal domestic

washloads. If you use your dishwasher in any other way or it is

incorrectly used, then Baumatic accepts no liability for any

damage that might be caused and any guarantee will be void.

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThe detergents, rinse aid and salt that you place in this appliance

should be suitable for automatic dishwashers. With regards to

dosage levels, the detergent manufacturer’s recommendations

should be followed.

oSharp or knifes with long blades are a potential safety hazard

when placed in an upright position in the cutlery basket. We

would recommend that these items are placed horizontally in the

upper basket.

oYou should not wash any items that have come into contact

with corrosive, acidic or alkaline chemicals, paint, petrol, iron or

steel debris.

oYou should not open the door whilst the appliance is set on a

wash program. Depending on which stage that the wash

program is at, hot water could escape the machine.

oYou should not leave the door of the appliance open, unless

you are loading or unloading the dishwasher.

oYou should not stand or sit on the door when it is open.

Child Safety

oYour dishwasher should only be used by adults. You should not

allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could be possible for a child or pet to gain access to the

dishwasher if the door is left open. Therefore please check the

inside of the appliance before setting it on a wash cycle.

oAny packaging that is removed from the machine should be kept

away from children.

oAll detergents should be kept out of children’s reach in a safe

place.

oSome water will remain inside the dishwasher when it has

completed a wash cycle. This water is not suitable for drinking

and may contain residues from the detergents that are used in

the appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23 dated 19/02/1973 Low Voltage Directive and subsequent

modifications.

-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and

subsequent modifications.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your dishwasher is

located on the right hand side of the drop down door.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Specifications

Product dimensions:

Height: 850 mm

Width: 600 mm

Depth: 600 mm

Product specifications

o14 Place settings

o7 functions: Normal

Intensive

Economy

Rinse

Glass

3 in 1

Soak

o4 Wash temperatures: 40°C, 45°C, 50°C, 60°C

oElectronic aqua stop

oTurbo drying

oLED display

oDelay timer

oIndicator of salt and rinse aid

oHalf load function

oConcealed heating element

oSelf cleaning stainless steel microfilter

oAnti leak device

oAnti flood device

oQuiet operation (49 dB)

oTop spray

oHeight adjustable basket

oCollapsable plate racks

oAdjustable feet

Energy efficiency details

Energy efficiency class: A

Washing performance class: A

Drying performance class: A

Electrical details

Rated voltage: 230 Vac 50 Hz

Supply connection: 13 A (double pole switched fused outlet with

3mmcontactgap)

Description of the appliance

1) Upper basket

2) Spray arms

3) Lower basket

4) Water softener

5) Main filter

6) Detergent dispenser

7) Cup shelf

8) Cutlery basket

9) Coarse filter

10) Rinse aid dispenser

11) Drain pipe connector

12) Inlet pipe connector

Control panel

Display window

The display window can show the following information:-

oSalt required

o3 in 1 wash program selected

oRinse aid required

o1/2 load wash program selected

oWash program time remaining

oDelay start time set

oIntensive wash program selected

oNormal wash program selected

oEconomy wash program selected

oRinse wash program selected

oGlass wash program selected

oSoak wash program selected

oFault codes
