Baumatic BDF465-SL/W Manual de usuario

BDF465-SL/W

45 cm Freestanding

dishwasher

USER MANUAL FOR YOUR BAUMATIC

BDF465-SL/W

45 cm Freestanding dishwasher

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 10/09/13

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8 - 10

Product dimensions 8

Product specifications 8

Energy efficiency details 9

Electricaldetails 9

Description of the appliance 9

Controlpanel 10

Usingyourdishwasher 10 - 27

Before first use 10

Filling with dishwasher salt 11 - 12

Setting the water softener level 12

Fillingwithrinseaid 13-14

Settingtherinseaidlevel 14

Filling with dishwasher detergent 15

Loading the upper basket 16

Adjusting the upper basket 16 - 17

Loadingthelowerbasket 18

The cutlery basket 19

Loading dishes and cutlery 20 - 21

Program table 22-23

Setting a wash program 23 - 24

Changingthewashprogram 24

At the end of a wash program 24

Settingadelaystart 25

The 3 in 1 wash program 26

Rinse aid and salt required indicator neons 27

Saving energy using your dishwasher 27 - 28

Cleaning and maintenance 28 - 31

The filter system 28

Cleaning the filters 29

Cleaningthesprayarms 30

Cleaning the control panel 30

Cleaningthedoor 31

Error code failure system 32 - 33

General troubleshooting 34 - 35

Installation 36 - 41

Positioning and levelling the appliance 36 - 37

Connecting to the mains water supply 38

Wateroutlet 39

Powersupply 40-41

Before first use 41

Baumaticconsumables 42

Technicaldata 43

Contact details 44

ENVIRONMENTAL NOTE

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic. Please

make sure that you read this instruction booklet before

attempting to install or use the appliance. If you are unsure

of any of the information contained in this booklet, please

contact the Baumatic Advice Line.

General Safety

oRepairs to your appliance must only be carried out by a

Baumatic engineer or one of its authorised service agents. Any

attempt by an inexperienced person to repair the appliance,

could result in injury or damage to your dishwasher.

oIf you notice that the mains cable is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should be turned off and isolated from the mains

supply, before either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out of the

electrical socket.

oThe machine should not be sprayed with water.

oThe external surface of the appliance may become hot whilst

your dishwasher is in use.

oIt is possible for small animals to chew either mains cables or

water hoses, which could cause an electric shock hazard.

oThis appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Installation

oThe installation instructions contained within this user manual

should be followed.

oIt is obligatory for the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oBefore the first use of the appliance, you should follow the

steps listed in the “Before first use” section on page 10

and page 41 of this manual.

oCare should be taken not to trap the power supply cable

underneath the appliance whilst installing it.

oNo attempt should be made to alter or modify the specifications

of this appliance.

In daily use

oThis appliance is only designed to wash normal domestic

washloads. If you use your dishwasher in any other way or it is

incorrectly used, then Baumatic accepts no liability for any

damage that might be caused and any guarantee will be void.

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThe detergents, rinse aid and salt that you place in this appliance

should be suitable for automatic dishwashers. With regards to

dosage levels, the detergent manufacturer’s recommendations

should be followed.

oSharp knives or ones with long blades are a potential safety

hazard when placed in an upright position in the cutlery basket.

We would recommend that these items are placed horizontally in

the upper basket.

oYou should not wash any items that have come into contact

with corrosive, acidic or alkaline chemicals, paint, petrol, iron or

steel debris.

oYou should not open the door whilst the appliance is set on a

wash program. Depending on which stage that the wash

program is at, hot water could escape the machine.

oYou should not leave the door of the appliance open, unless

you are loading or unloading the dishwasher.

oYou should not stand or sit on the door when it is open.

Child Safety

oYour dishwasher should only be used by adults. You should not

allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could be possible for a child or pet to gain access to the

dishwasher if the door is left open. Therefore please check the

inside of the appliance before setting it on a wash cycle.

oAny packaging that is removed from the machine should be kept

away from children.

oAll detergents should be kept out of children’s reach in a safe

place.

oSome water will remain inside the dishwasher when it has

completed a wash cycle. This water is not suitable for drinking

and may contain residues from the detergents that are used in

the appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23 dated 19/02/1973 Low Voltage Directive and subsequent

modifications.

-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and

subsequent modifications.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your dishwasher is

located on the right hand side of the drop down door.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Specifications

Product dimensions

Height: 850 mm

Width: 450 mm

Depth: 580 mm

Product specifications

o9 Place settings

o7 functions: Normal

Intensive

Economy

Glass

Rapid

1 hour

3 in 1

o5 Wash temperatures: 40°C, 50°C, 55°C, 60°C, 65°C

oDelay start

oLED display

oResidual drying

oConcealed heating element

oSelf-cleaning stainless steel micro-filter

oAnti-leak device

oAnti-flood device

oCollapsible plate racks

oHeight adjustable upper basket

oAdjustable feet

o3 in 1 wash program

oLow water consumption (13 litres – Normal program)

Energy efficiency details

Energy efficiency class: A+

Washing performance class: A

Drying performance class: A

Power consumption

Off mode: 0.00 W

Left on mode: 0.75 W

Electrical details

Rated voltage: 230 Vac 50 Hz

Supply connection: 13 A (double pole switched fused outlet

with 3 mm contact gap)

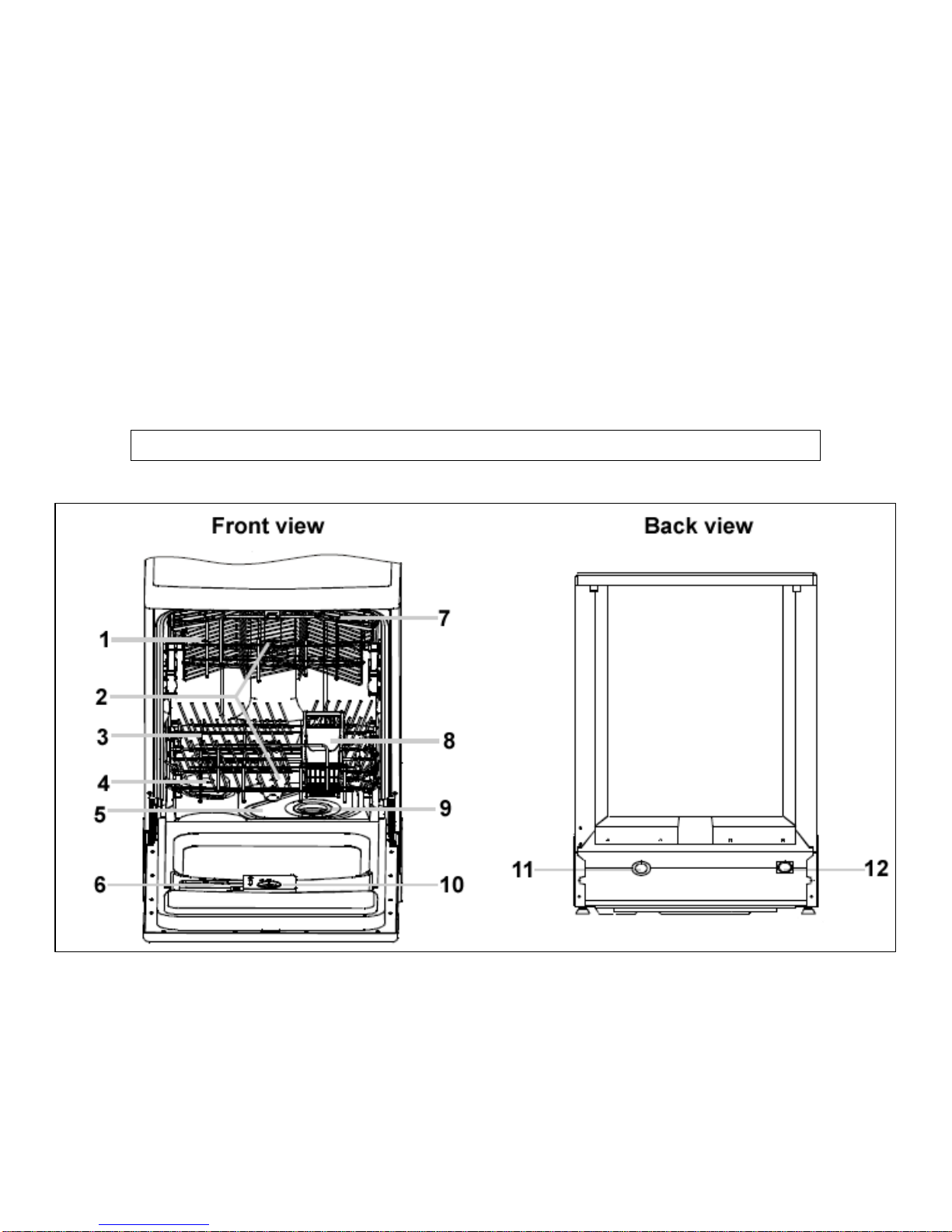

Description of the appliance

1) Upper basket 7) Cup shelf

2) Spray arms 8) Cutlery basket

3) Lower basket 9) Coarse filter

4) Water softener 10) Rinse aid dispenser

5) Main filter 11) Drain pipe connector

6) Detergent dispenser 12) Inlet pipe connector

Control panel

1) ON/OFF button

2) LED display (+ rinse aid and salt required indicator neons)

3) Delay start button

4) Program selection buttons

5) Power indicator neon

6) Program indicator neons

Using your dishwasher

Before first use

oInstall the appliance as per the installation instructions contained

within this booklet.

oFill the water softener with 0.5 litres of tap water and then fill

with specialist dishwasher salt. After this you should set the

water softener level.

oFill the rinse aid dispenser and then set the rinse aid dosage.
