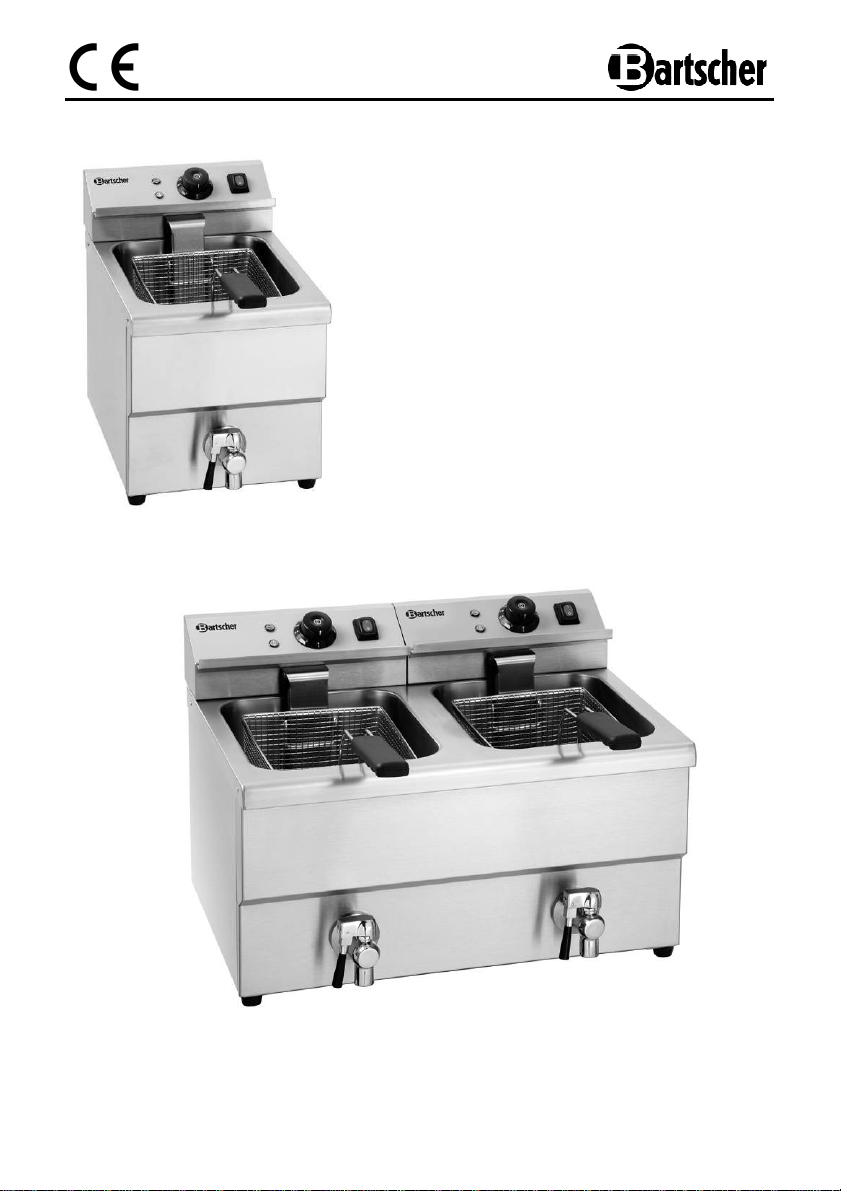

„IMBISS I“ / A150307

„IMBISS II“ / A150407

Original

Gebrauchsanleitung

V1/1215

- 21 -

ENGLISH

Table of contents

1.Safety ........................................................................................................................ 22

1.1 Safety instructions................................................................................................ 22

1.2 Key to symbols..................................................................................................... 25

1.3 Proper use............................................................................................................ 26

2. General information................................................................................................ 27

2.1 Liability and Warrantees....................................................................................... 27

2.2 Copyright protection ............................................................................................. 27

2.3 Declaration of conformity...................................................................................... 27

3. Transport, packaging and storage......................................................................... 28

3.1 Delivery check...................................................................................................... 28

3.2 Packaging............................................................................................................. 28

3.3 Storage................................................................................................................. 28

3.4 Scope of delivery.................................................................................................. 29

4. Technical data......................................................................................................... 29

4.1 Technical specification ......................................................................................... 29

4.2 Overview of parts ................................................................................................. 30

5. Installation and operation....................................................................................... 32

5.1 Installation............................................................................................................ 32

5.2 Operation.............................................................................................................. 33

6. Cleaning................................................................................................................... 38

7. Possible Malfunctions ............................................................................................ 39

8. Waste disposal........................................................................................................ 40

Bartscher GmbH

Franz-Kleine-Str. 28

D-33154 Salzkotten phone: +49 (0) 5258 971-0

Germany fax: +49 (0) 5258 971-120

GB/UK

- 22 -

Read this instruction manual before using and

keep them available at all times!

This instruction manual contains information about the installation, operation and

maintenance of the device and should be consulted as an important source of

information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure

the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and

safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device

and easily accessible for anyone carrying out the installation, servicing, maintenance or

cleaning.

Please keep these instructions and give them to future owners of the device.

1.Safety

This device is designed in accordance with the presently applicable technological

standards. However, the device can pose a danger if handled improperly and

inappropriately.

All persons using the device must follow the recommendations and instructions

in this instruction manual.

1.1 Safety instructions

•

The device is not intended for use by individuals (including children)

with physical or mental disabilities, insufficient experience, and/or

insufficient knowledge unless such persons are under the care of a

person responsible for their safety or have received instructions

regarding appropriate use of the device.

•

Children should be observed to ensure that they are not playing with

the device.

•

Do not leave the device unattended during operation since there

might occur malfunctions which could result in overheating of the oil.

In case of high temperatures oil might ignite.

•

Never leave the device unattended when in use.

•

Only use the device indoors.

•

The device is not adapted for use with an external timer or remote

control.

- 23 -

•

This device may only be operated in technically proper and safe

condition.

•

Prevent access of children to the package materials like plastic

bags and foamed polystyrene elements. Suffocation hazard!

•

Only a qualified technician and using original spare parts and

accessories should carry out repairs and maintenance of the device.

Do not attempt to repair the device yourself.

•

Do not use any accessory or spare parts that have not been

recommended by the manufacturer. These can be dangerous for the

user or lead to damages of the device or personal injury, and further,

the warranty expires.

•

To prevent hazards and to ensure optimum efficiency, no modifications

or alterations to the device that are not explicitly approved by the

manufacturer may be undertaken.

DANGER! Electric shock hazard!

To avoid the hazard results please follow the safety instructions below.

•

Never allow the power cable to come into contact with heat sources or

sharp edges. The power cable should not hang over the side of the

working surface. Ensure that no one can step on or trip over the cable.

•

The power cable must not be folded, bent or tangled, and must always

remain fully unrolled. Never place the device or other objects on the

power cable.

•

Do not lay the cable over carpets or heat insulations. Do not cover

the cable. Keep away the cable from operating range and do not

dunk it into water.

•

Inspect the power cable regularly for damage. Never use the device

if the cable is damaged. If the power cable is damaged, have an

authorised service center or qualified electrician replace it.

- 24 -

•

The supply cable must be disconnected from the socket only by

pulling the plug.

•

Never carry or lift the device by the supply cable.

•

In any case do not open the device housing. In case of electrical or

mechanical modifications the electric shock hazard will occur.

•

Never immerse the appliance, the power cord and the power plug in

water or other liquids; do not put it under running water and clean any

parts of the appliance in the in the dishwasher.

•

Do not use any acid agents and make sure no water ingresses the

device.

•

Never operate the device with moist hands or standing on wet floor.

•

Remove the plug from its socket:

-when the device is not used,

-in case of anomalies during operation,

-before cleaning.

HOT SURFACE! Burn hazard!

To avoid the effects of this risk, follow the safety instructions presented

below.

•

During the operation the surface of the device is very hot!

To avoid burns to the hands and fingers, do not touch the hot

surface of the device! Operate the device only using the designated

handles and switches.

•

Also after switching off, the frying oil/fat remaining in the basin

remains hot for some time. Before cleaning or moving it to another

place oil must cool down first. Hot oil/fat splashes or explosions may

cause burns at hands, arms and face!

- 25 -

•

Do not use moisten frying goods. Always remove the extra ice

from deep frozen products first. Do not leave any frozen products

in the basket hanging over the chamber filled in with the hot oil/fat.

Even the smallest water drops may cause oil splashes or lead to

explosions during frying.

WARNING! Fire or explosion hazard!

Follow the safety instructions listed in order to avoid the hazard:

•

Never operate the device near combustible, easily flammable

materials (e.g. petrol, spirit, alcohol etc.). They evaporate through

heating and in case of contact with ignition sources deflagrations

can occur which can lead to serious personal injuries and property

damages.

•

Do not use the device near the inflammable objects or under them

(e.g. curtains, wall mounted cabinets etc.)

•

When a fire arises unplug the power cord from the socket before you

initiate appropriate measures for fire-fighting. Provide sufficient supply

of fresh air. Caution: Never extinguish the fire with water when the

power plug is connected to the socket. Electric shock hazard!

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any

advice relating to the device. The instructions should be followed very carefully to avoid

any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards which could lead to injury.

WARNING!

This symbol highlights dangerous situations which could lead to injury or death.

- 26 -

HOT SURFACE!

This symbol is a warning that the device surface is hot when in use.

Ignoring this warning may result in burns!

CAUTION!

This symbol highlights dangerous situations which could lead to light

injuries, or damage, malfunction, and/or destruction of the device.

NOTE!

This symbol highlights recommendations and information aimed for effective

and trouble-free device operation.

1.3 Proper use

The operational safety of the device is assured only in case of proper use, according

to the operation manual.

All technical activities like installation and maintenance must be performed by the

qualified service personnel only.

The deep fat fryer is designed for the frying of appropriate foods only.

You may not use the deep fat fryer for the following:

-Heating of foods and liquids (fluids).

CAUTION!

Any use going beyond the intended purpose and/or any different use of the

device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a

consequence of experiencing damages resulting from unconventional use

are impossible.

The operator is liable for all damages resulting from inappropriate use.

- 27 -

2. General information

2.1 Liability and Warrantees

All the information and instructions in this manual take into account standard safety

regulations, current levels of technical engineering as well as the expertise and

experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do

not accept liability for any translation errors. The German version of this instruction

manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from

the descriptions and illustrations in this manual. This is also the case for special orders

or when the device has been modified in line with new technology.

CAUTION!

Read this manual carefully and thoroughly before any operation

of the device, and especially before turning it on!

Manufacturer is not liable for any damages or faults caused by:

-violation of advice concerning operation and cleaning;

-use other than designed;

-alterations made by user;

-use of inadequate spare parts.

We reserve the right to make technical changes for purposes of developing and improving

the useful properties.

2.2 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is

form or by any means without permission in writing from the manufacturer. Any person

who commits any unauthorized act in relation to this publication shall be liable to claims

NOTE!

The contents, texts, drawings, pictures and any other illustrations are

using this publication is liable to criminal prosecution.

2.3 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity. If required we will be

glad to send you the according declaration of conformity.

- 28 -

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately

after receipt. In case of visible damage do not accept or accept the delivery with

reservation only.

Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages

can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for

storage purposes, when moving or, in case of damages, when the device must be sent

back to a repair center. The outer and inner packing material should be removed

completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in

your country. Supply re-usable packing materials to the recycling.

3.3 Storage

Keep the package closed until installation and under consideration of the outside

indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

-Do not store outdoors.

-Keep it dry and dust-free.

-Do not expose it to aggressive media.

-Do not expose it to direct sunlight.

-Avoid mechanical shocks and vibration.

-In case of longer storage (> 3 months) make sure you check

the state of the packaging and the parts regularly.

If required refresh or renew.

- 29 -

3.4 Scope of delivery

The scope of delivery includes the following parts and components (see also figures on

pages 30-31):

A150307 A150407

Basic unit with oil basin

and oil drain tap

Basic unit with 2 oil basins

and 2 oil drain taps

Cover

Covers

Basket

Baskets

Control box unit with heating element

Control boxes with heating elements

Heating element shield

Heating element shields

Please inspect the device upon completeness. In case any part is missing please

contact our customer service center immediately.

4. Technical data

4.1 Technical specification

Name

Deep fat fryer

„IMBISS I“ Double deep fat fryer

„IMBISS II“

with oil drain tap

Code-No.:

A150307

A150407

Material: Body, lid and control box made of chrome nickel steel

Design: designed for frying oil and fat in blocks

Power: 3.25 kW / 230 V~ 50 Hz 2 x 3.25 kW / 230 V~ 50 Hz

Number of basins: 1 deep-drawn basin 2 deep-drawn basins

Capacity: 8 litres 2 x 8 litres

Number of baskets: 1 2

Oil temperature

control range:

50 °C - 190 °C

Dimensions: W 290 x D 550 x H 410 mm W 580 x D 550 x H 410 mm

Weight: 10.0 kg 22.0 kg

We reserve the right to make technical changes!

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Freidora de Bartscher

Bartscher

Bartscher 900 SERIES Guía de inicio rápido

Bartscher

Bartscher BF 30E OU Manual de usuario

Bartscher

Bartscher 162550 Manual de usuario

Bartscher

Bartscher SNACK I Plus Manual de usuario

Bartscher

Bartscher MINI II A165110 Manual de usuario

Bartscher

Bartscher PETIT Manual de usuario

Bartscher

Bartscher 70 Series Manual de usuario

Bartscher

Bartscher SNACK I Manual de usuario

Bartscher

Bartscher PETIT Manual de usuario

Bartscher

Bartscher PETIT Manual de usuario

Bartscher

Bartscher Snack XL Manual de usuario

Bartscher

Bartscher SNACK III Plus Manual de usuario

Bartscher

Bartscher FE-30 Manual de usuario

Bartscher

Bartscher 600 Series Guía de inicio rápido

Bartscher

Bartscher SNACK A162.400E Manual de usuario

Bartscher

Bartscher IMBISS PRO Manual de usuario

Bartscher

Bartscher FRE91M00 Manual de usuario

Bartscher

Bartscher 13FG Manual de instrucciones

Bartscher

Bartscher 132.115 Manual de usuario

Bartscher

Bartscher SERIE 650 SNACK Manual de operación

Bartscher

Bartscher MDI SNACK III Plus Guía del usuario

Bartscher

Bartscher 700 Series Guía de inicio rápido

Bartscher

Bartscher SNACK IV Plus Instrucciones de instalación

Bartscher

Bartscher CHEF IDEE CI2X8L Manual de usuario

Manuales populares de Freidora de otras marcas

Innsky

Innsky 55SA1US Manual de usuario

Falcon

Falcon G350/11 Guía del usuario

GoWISE USA

GoWISE USA GW22612 Manual de usuario

Wolf

Wolf IF15/S Manual de usuario

Electrolux

Electrolux Thermetic 9CHG583284 Guía rápida

Gourmia

Gourmia GAF799 Manual de usuario

DeLonghi

DeLonghi D677UX Manual de usuario

SEVERIN

SEVERIN DEEP FRYER - Guía del usuario

Toastmaster

Toastmaster TMFG18-NAT Manual de usuario

Domo

Domo DO465FR Manual de usuario

Henny Penny

Henny Penny PFG-691 Manual de usuario

Farberware

Farberware FBW FT 43721 B Manual de usuario

GERMANICA

GERMANICA GEAF5L3LD Manual de usuario

Roller Grill

Roller Grill MF 120 R Manual de operación

Philips

Philips HD9211 Manual de usuario

Linea 2000

Linea 2000 Domo DO536FR Manual de usuario

Lakeland

Lakeland 31796 Manual de usuario

Dash

Dash Tasti-Crisp DFAF755 Manual de usuario
