Barco F400 Manual de usuario
ENABLING BRIGHT OUTCOMES
R5914423 /02 | 2023-04-12
CAUTION: It is important to read the installation instructions before connecting the equipment to the
mains power supply.
Download Product Manual: Product manuals and documentation are a ailable online at
https://www.barco.com/support. The QR code at the bottom of this page leads directly to the F400
product page on the Barco website. Registration may be required; follow the instructions gi en on
the website.
Local keypad
1 2 3 4 5 6
10 9 8 711
1
Menu Na igation
2
Menu Selection
3
Open Menu
4
Menu Back
5
Power On/Off
6
OSD On/Off
7
Input Selection
8
Shutter Open/Close
9
Test Patterns
10
Lens Menu
11
LCD Panel
Button acklight status
Button Color status Description
Power button Blinking WHITE (slow) Projector starts up (Booting).
Blinking WHITE (fast) Projector is upgrading firmware.
Solid WHITE Projector is in Ready mode.
Blinking BLUE Projector goes to ON mode.
Solid BLUE Projector is ON.
Blinking RED Error condition.
Shutter button Off Projector is OFF, starts up, or is in Standby mode.
Solid WHITE Projector is ON, shutter is open.
Solid RED Projector is ON, shutter is closed.
Quick Reference Guide
F400
- 2 -

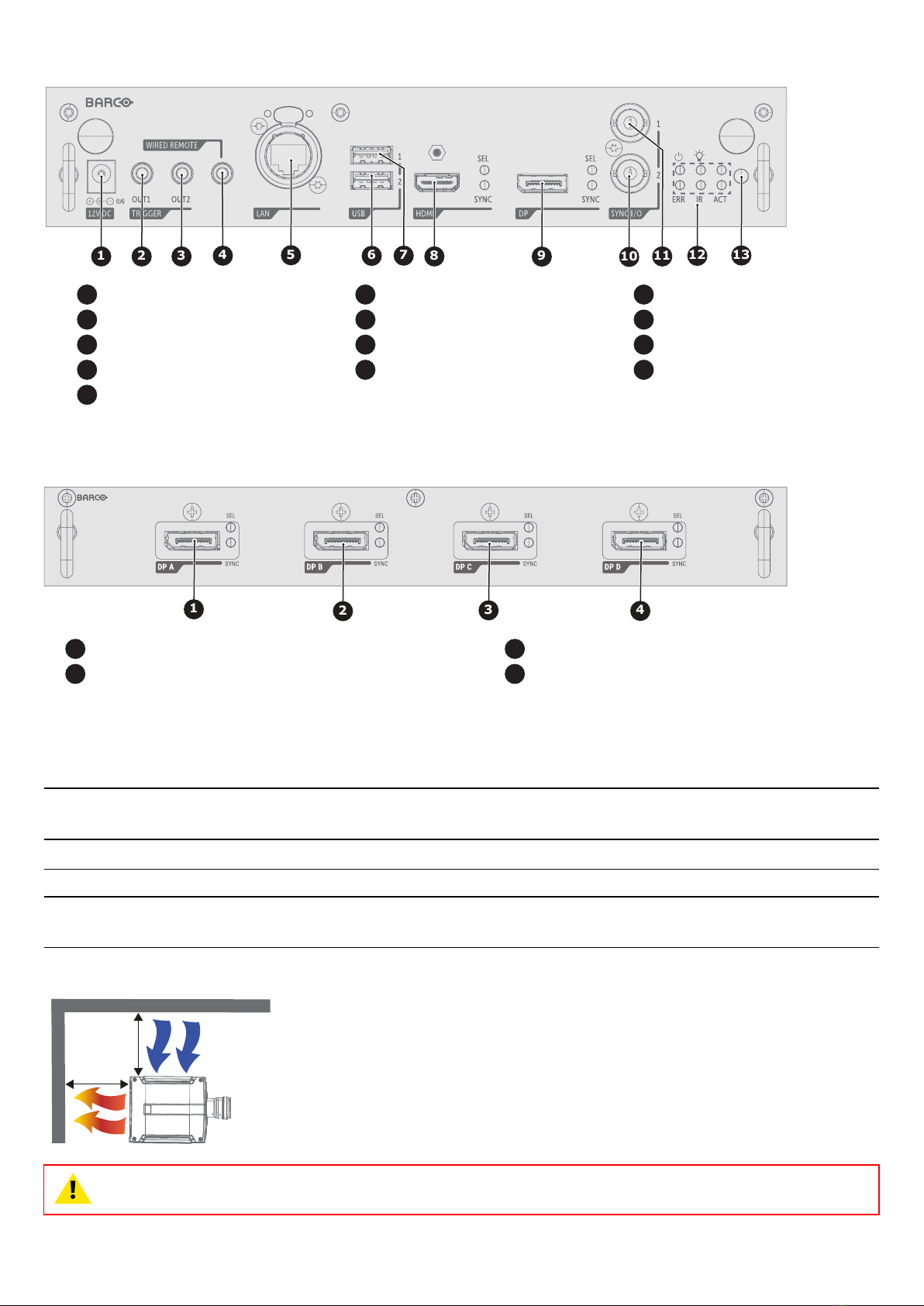

Communication panel
12 3 4568910 12
711 13
1
12V 1A output
6
USB connector 2
10
Sync I/O 2
2
Trigger output 1
7
USB connector 1
11
Sync I/O 1
3
Trigger output 2
8
HDMI Input
12
Status LED’s
4
Wired remote input
9
Display Port 1.4
13
IR recei er sensor
5
LAN connection
Quad DP1.2 input card
1234
1
Quad DisplayPort 1.2 channel A Input
3
Quad DisplayPort 1.2 channel C Input
2
Quad DisplayPort 1.2 channel B Input
4
Quad DisplayPort 1.2 channel D Input
Installation conditions
Requirement Value
Operation temperature 10 - 40°C / 50°F - 104°F (Altitude 0 - 1500 m)
10 - 35°C / 95°F - 104°F (Altitude 1500 - 3000 m)
Humidity 20 - 80% RH
Power 100 - 240V / 50 - 60 Hz
Dimensions without lens
[W x L (no front co er) x H]
472 x 562 (542) x 286 mm / 18.6 x 22.1 (21.3) x 11.3 in
Weight without lens 30 kg / 66.1 lbs
250mm
250mm
The projector must be installed with free air space on the projectors
left and rear side of minimum 250 millimeters. The air inlet is on the
left side, and the hot air output is on the rear side.
WARNING: Do not place heat sensiti e objects or materials in the area of the hot air output. (Orange
arrows).
- 3 -
Install a lens
1. Ensure that the combined handle is in the open position by pulling the release handle out (reference 1).
The locking handle (reference 2) will “follow”.
2. Insert the lens in to the correct position. Ensure that the lens connector (reference 3) matches the
electrical socket on the lens holder.
3. Press the locking handle inwards until it is in locked position. (a “click”will be felt and heard).
3
2
1
4. Ensure that the lens has a firm connection to the projector, without any slack.
Remove a lens
1. Support the lens with one hand.
2. Release the lens lock by pulling the release handle (reference 1). The locking handle (reference 2) will
follow, and the lens will come loose.
2
1
Power up the projector
1. Connect the mains power cord to the power inlet connector.
2. The projector will perform the startup sequence. When ready, the power button on the keyboard will
illuminate white, meaning that the projector is in ready mode.
3. Press the Power button on the keypad or remote. The power button will after some seconds illuminate
solid blue, meaning that the projector is ON.
- 4 -
Power down the projector
1. Press and hold the power button for 3 seconds. (A timer indicator will show up on the display).
2. The power button illumination will become white, and projector will enter the cool down modus for
approximately 5 minutes.
3. When the backlight for the keypad is off, unplug the power cord from the projector.
3 sec 5min
Connect and select source
1. Connect a ailable sources to the appropriate input ports.
2. Select connected source.
(See User Guide for detailed menu na igation steps).
Input LEDs explained:
•Select LED (reference 1)
- GREEN : port configured as input. Image appears on the screen.
- Blinking GREEN : bidirectional port configured as output/loopthrough.
•Sync LED (reference 2)
- YELLOW : sync/signal is present.
Sync
Select
1
2
Adjust
1. Adjust the lens settings by pressing the lens menu button on the keypad or ia the zoom, shift and focus
buttons on the keypad.
2. Orientation of the unit is set as standard in table front projection mode.
Change the projector set up in the INSTALLATION >ORIENTATION menu.
3. For Advanced adjustments like Warping, Light management, etc. see projector User Guide.
- 5 -
LED status
LED COLOR STATUS DESCRIPTION
PWR (power LED) Off Projector powers up or has no power
RED Projector is in Standby
ORANGE Projector is Ready
GREEN Projector is on
LIGHT (Illumination LED) Off Light source is off
RED No light source detected
GREEN Light source is on in normal mode
ERR (error LED) Off No error
RED toggles on/off Error
ORANGE toggles on/off Warning: Projector is installing firmware
IR RED IR signal recei ed
GREEN IR signal acknowledged
Basic Remote Control Unit
Image Nr Description
1
2
3
5
6
4
8
11
12
9
10
7
1 Close shutter
2 Open shutter
3 Button pressed indicator
4 Open Lens menu
5 Menu na igation keys
6 Mo e back one le el in menu system
7 Open Source menu
8 Power on / Power off
Note: Only shifts power between Ready and ON mode.
9 OSD menu on / off
10 Menu confirmation
11 Acti ate or deacti ate the GUI menu.
Note: If pressed while the projector is in stand-by mode, this will also
power up the projector.
12 Open Test pattern menu
- 6 -
Pulse Remote Control Unit
1
2
3
4
5
6
7
8
9
10
11
12
13
15
24
23
22
21
20
19
18
17
14 16
25 26
1
Button pressed indicator
2
Shutter open
3
Shutter close
4
LCD panel on / off
5
Project OSD on / off
6
Lens zoom
7
Lens shift
8
Menu open / close
9
Menu selection, OK button
10
Menu na igation
11
Input selection
12
Address button
13
Numeric buttons
14
Backspace (while entering alues)
15
XLR connector
16
Decimal mark (while entering alues)
17
Macro button
18
Menu back
19
Default alue button
20
Lens focus
21
RGB filter
22
Test patterns
23
Power on
24
Power off
25
3.5 mm jack
26
RCU on / off
CAUTION: Replace batteries with the correct battery type. Use AAA size batteries for the basic RCU
and AA size batteries for the Pulse RCU. There is a risk of explosion if the battery is replaced with an
incorrect type. Use alkaline batteries for optimum range and life time.
Make sure the polarities match the + and - marks, as depicted on the inside of the battery
compartment. There is a risk of explosion if the batteries are installed incorrectly.
Replacing batteries will reset the broadcast address of the Pulse RCU to its default alue ’0’.
Replacing batteries of the Pulse RCU switches on the Pusle RCU automatically.
In order to make sure you can control your projector remotely, Barco has pro ided a basic remote
control unit in case the Pulse RCU is not a ailable to you. While the basic remote control has a more
limited amount of a ailable features, it will be able to help you out with basic controls.
